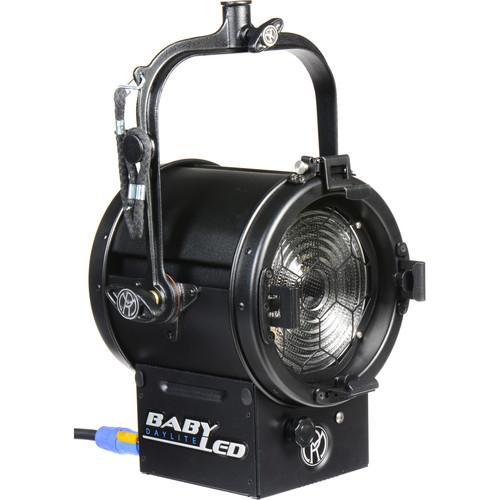

User Manual for Mole-Richardson BabyLED 150W 6.0" Fresnel Click to enlarge the picture
Contents of the user manual for the Mole-Richardson BabyLED 150W 6.0" Fresnel
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
 |
User manual for the Mole-Richardson BabyLED 150W 6.0" Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|

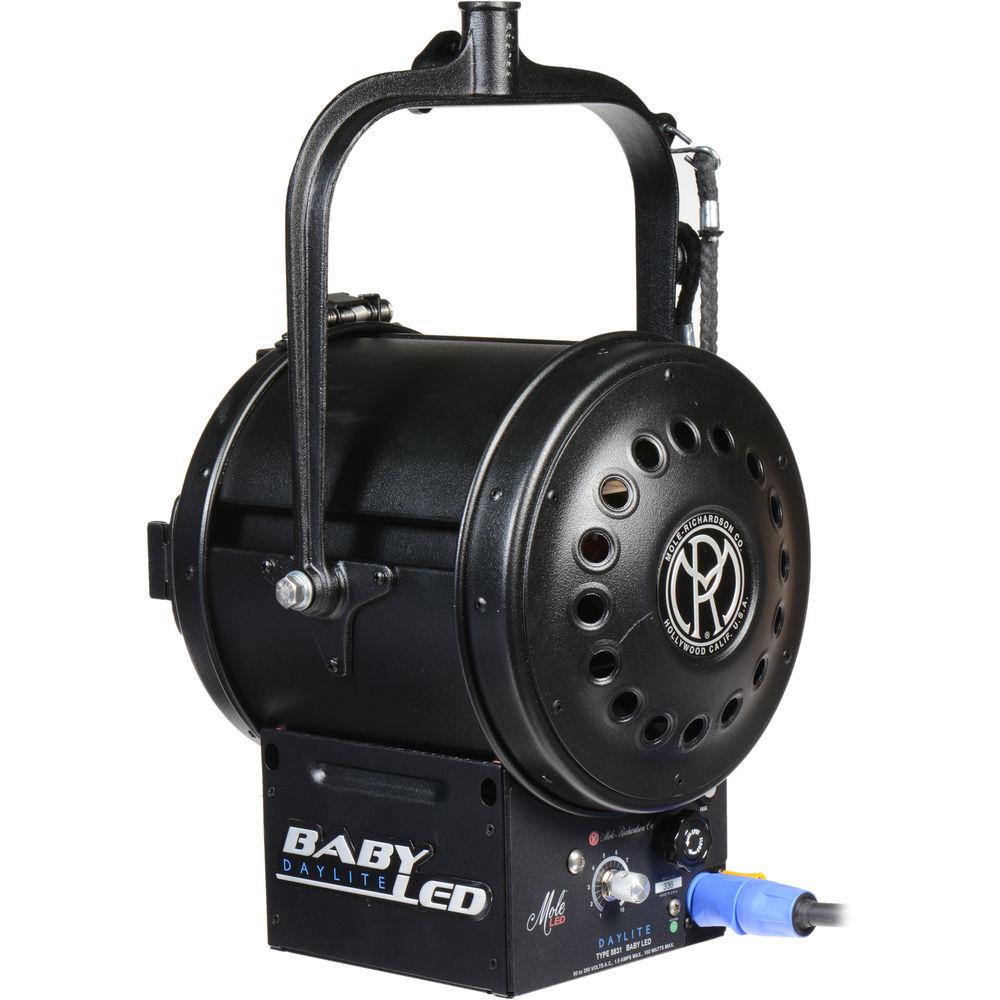

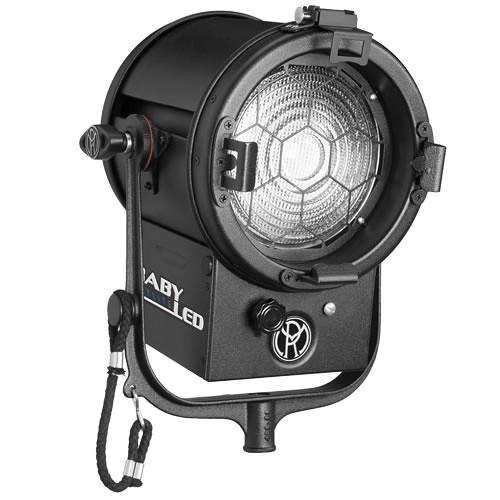

Product description This is a daylight-balanced Mole-Richardson BabyLED 150W 6.0" Fresnel. Fresnels have been a staple in Hollywood since 1936 and little has changed except the use of better materials with more precise construction techniques.While nobody had a problem with the Fresnel's quality of light, heat and electrical draw were another story. It's why you see so many movie people walking around the set with heat-resistant gloves. And of course frying the talent could bring the production to a screeching halt. Then there are scrims, the only way to knock down the output without changing the color temperature. Enter the MoleLED Fresnel line. Apart from the black powder-coated finish, the BabyLED head looks and performs the same as a legacy light allowing you to swap a standard light for a BabyLED or mix them. In fact there's a retro-fit kit available to convert your old style light to an LED.On-board local 100-10% dimming means you'll probably be restricting your scrimming to half-scrims, saving you a lot of ladder climbing. Besides comfort, you'll be saving on air-conditioning and head running costs in the studio. The BabyLED's maximum draw is 0.75 - 1.5A as compared to the legacy light's 1.7A - up to an 80% reduction in energy consumption. This means that you can run double the amount of LEDs as legacy lights without raising the temperature. Let's also consider the cost and downtime of re-lamping. LEDs last about 50,000 hours and are virtually maintenance-free.The 90-250 VAC BabyLED has a 6.0" lens, passive cooling and aluminum alloy and steel construction. It has 10-degree to 55-degree spot to flood variation and a 5/8" receiver for standard Baby pins. The #18 AWG power cable is 25' long and ends in a NEMA 5-15 Edison (US) plug. - Benefits
-
- An 80% reduction in energy consumption
- Flicker-free dimming with little to no color shift
- No need for external dimming systems
- No direct IR or radiant heat from Fresnel
- MoleLED Technology
- MoleLED Fresnels are powered by a proprietary, patent-pending Mole-Richardson Quantum Dot chip on-board LED module. The benefit of QD LED technology is the ability to specifically tune the visible wavelength at the nano scale which, in this case, allows for precise adjustment of the red spectrum without impacting the overall light output of the LED.
In the Box Mole-Richardson BabyLED 150W 6.0" Fresnel (Daylight) Attached Power Cable (25') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson BabyLED 150W 6.0" Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson BabyLED Specs | | | Beam Angle | 10 to 55° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 90 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Aluminum, Steel | | Fixture Dimensions | 11.0 x 11.0 x 17.2" / 279.0 x 279.0 x 438.0 mm | | Fixture Weight | 8.5 lb / 3.86 kg
11 lb / 5.0 kg (Including Cable) | | | | Lens Diameter | 6" / 15.2 cm | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz at 1.5 A | | Power Source | AC Adapter | | Max Power Consumption | 150 W | | Fuse | 1.0 A / Slow-Blow | | | | Cable Length | 25' / 7.6 m | | Inline Switch | Yes | | Cable Type | Attached to NEMA 5-15 | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP30 | | | | Package Weight | 13.65 lb | | Box Dimensions (LxWxH) | 18.2 x 12.6 x 12.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
