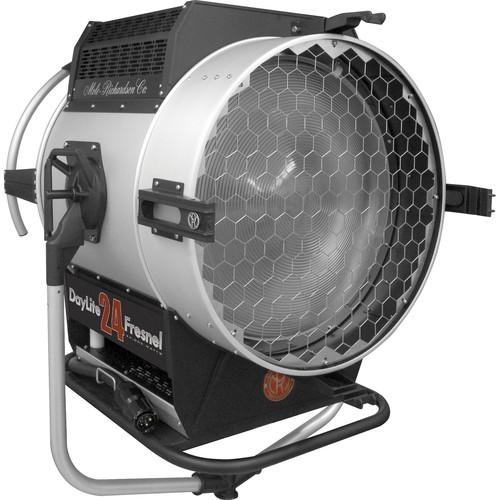

User Manual for Mole-Richardson Daylite Fresnel Fixture Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Daylite Fresnel Fixture
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
|
User manual for the Mole-Richardson Daylite Fresnel Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description The Daylite Fresnel Fixture from Mole⿿Richardson features a single HMI Fresnel. It does not make use of fans or other ways to cool the lamp. Instead, large, black anodized sockets, measuring 5.5" in diameter, combined with engineered top and bottom ventilation provides more than adequate cooling. In addition to the advances in cooling, a highly polished 11" reflector, producing over 95% reflectivity, was designed to work with the larger arc gap of the 24K lamp. The reflector, along with the 24.8" Borosilicate Fresnel lens, combine to produce unparalleled output and a perfectly smooth field from spot to floo - Yoke
- Tubular and cast aluminum with 1.1" diameter
Steel yoke pin - Reflector
- 11" diameter, Brytal finished, spherical
- Socket
- Spring-loaded positive clamping (pair)
- Safety Switch
- Interlock micro-switch at door shuts off power to globe sockets when door is opened
Globe cannot be turned on until door is closed Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Daylite Fresnel Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Fresnel Specs | Head | 24,000 W | | Rating | 272 VAC, 88 A maximum | | Switch | On and Off momentary push-button mounted on trough | | Focusing | Hand crank at rear | | Cable | Attached 7-conductor cable with interlocking Veam type connector | | Construction | Sheet aluminum housing and cast aluminum trough end caps | | Finish | Clear anodized and high heat black powder coated enamel | | Dimensions | 36.5 x 34.2 x 33.2" (92.7 x 86.8 x 84.3 cm) | | Weight | 160 lb (72.6 kg) with cable |
