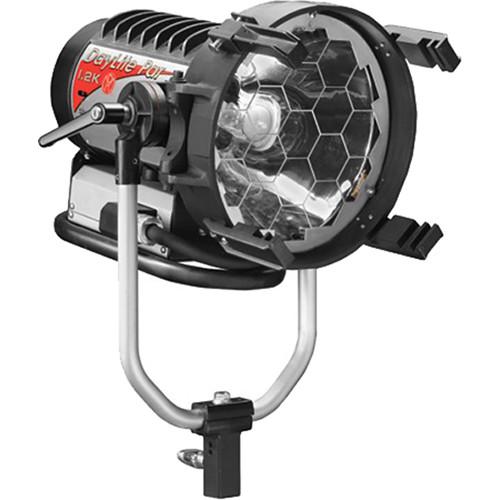

Product description The Daylite Par Fixture from Mole-Richardson is designed for motion pictures, television, events, and for ENG/EFP professionals. The solid-cast aluminum construction features dramatically improved ventilation and cooling while the Brytal aluminum parabolic reflector provides an enormous 96 in2 of reflective surface. The electronics in the fixture are contained in a low-profile trough totally isolated from the main housing, and feature a swing-out trap door for easy access to the igniter and safety switch.
The fixture has visual and tactile focal indicators to determine lamp position, and when used with the interchangeable lenses, the field of light can be fine-tuned for optimum beam control. Other features include a trough skid for operating and safe transportation, a low-profile yoke with a 5/8" baby receiver, a locking, hinged front door for easy lamping, and a pigtail style electrical input. Standard on all fixtures are a stainless steel safety screen, spring-loaded fourth accessory clip, and variable accessory clip positions located at either 90° or 45°. It is compatible with all existing 101/8" accessories. - Yoke
- Aluminum tubing and cast aluminum trunnions with 5/8" diameter
Baby receiver - Reflector
- Highly polished aluminum Brytal-finished parabolic reflector
- Socket
- G38, heavy duty electrical grade porcelain body with friction-type, bi-post brass inserts
- Safety Switch
- Interlock micro-switch at door shuts off power to globe sockets when door is opened. Globe cannot be turned on until door is closed
- Beam Control
-
- Used individually, change the beam pattern from narrow to extra wide flood
- Beam pattern created by the lenses may be rotated within the diffuser clips for vertical or horizontal beam orientation
- Spot-to-flood adjustments can be made using the focus knob on the rear of the fixture
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Daylite Par Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Par Specs | Head | 1200/1800 W | | Rating | 120 VAC, 15.6 A maximum | | Switch | On and Off push-button switches mounted on rear of fixture | | Cable | Attached 7-conductor, with male interlocking Veam type connector | | Construction | Rugged construction of cast and sheet aluminum | | Finish | Clear anodized aluminum/black powder coated enamel | | Dimensions | 11.3 x 11.5 x 23" / 28.7 x 29.2 x 58 cm | | Weight | 18 lb / 8.2 kg (with cable) |
