User Manual for Mole-Richardson HMI 12 12Kw PAR Kit Click to enlarge the picture
Contents of the user manual for the Mole-Richardson HMI 12 12Kw PAR Kit
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
 |
User manual for the Mole-Richardson HMI 12 12Kw PAR Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|

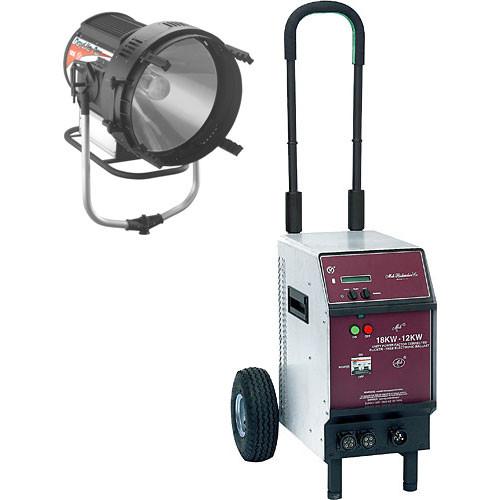

Product description This Mole-Richardson 12-18K HMI Molepar Kit is based on the Molepar, but with a re-engineered trough it achieves a more compact design over the previous model. This fixture also includes a redesigned curved yoke, allowing the head to pivot to steeper angles. Use it for lighting large indoor and outdoor sets where daylight illumination is required. Weighing only 67 lb, this lightweight HMI Molepar can be safely used on Condor or Power lifts and is a highly efficient compact source of daylight.When fitted with a 12K HMI bulb (available separately) and no accessory lens, this fixture will turn night into day with a beam of 27,440 footcandles from a distance of 25'. Its beam diameter at that distance will be 4.3'.Using the included accessory lenses, scrims, and barndoors will alter the beam spread, shape, and intensity. A 50' head-to-ballast cable is included, but an HMI lamp must be purchased separately. Fixture - Redesigned for lighter weight and greater stability

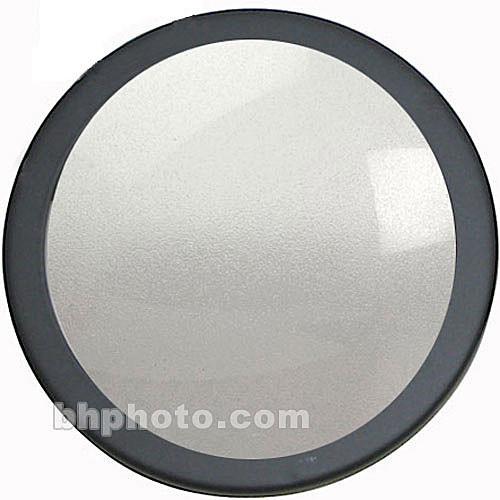

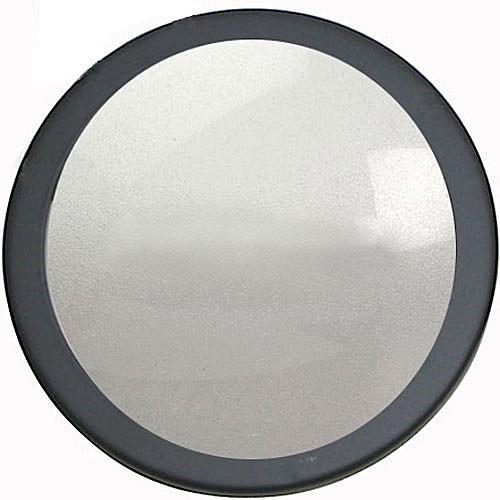

- Four separate lenses are included: Extra Wide, Wide, Medium and Narrow Beam for varied lighting applications
- Barndoors and scrims allow additional light-shaping
Ballast - Type 66065 solid-state, electronic, flicker-free ballast is dimmable
- Double circuit breaker and red indicator light
- Includes a wheeled cart with handle

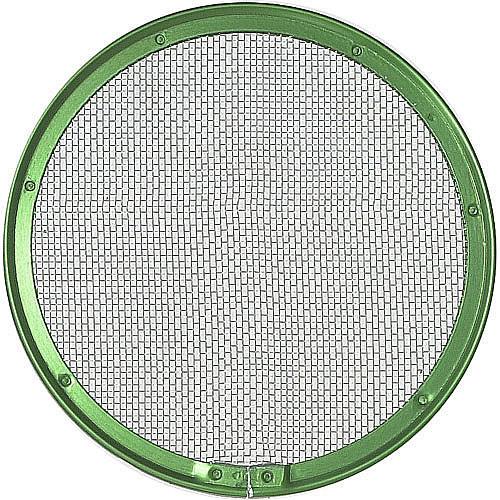

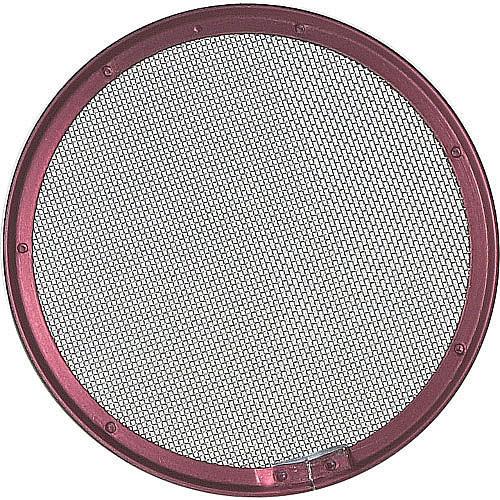

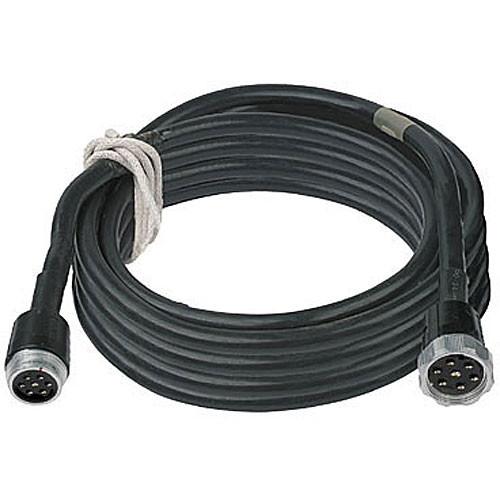

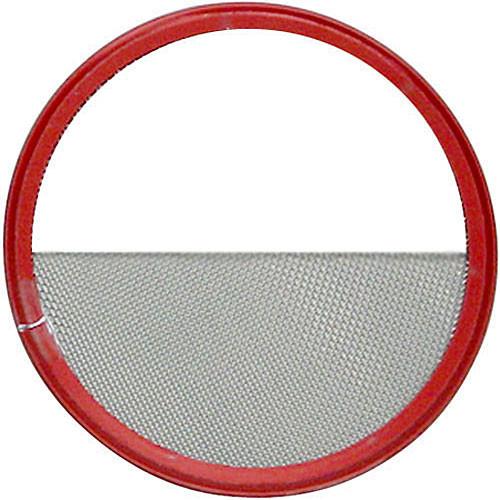

In the Box Mole-Richardson HMI 12/12Kw PAR Kit (208-240 VAC) 12/18K Molepar HMI Fixture uwreuadaxxzwrbcszyubyxuffwafsfzdavar 12-18KW Electronic HMI Ballast (208-240V) 4-Way/4-Leaf Barndoor Set for 12K Tungsten PAR 50' Head to Ballast Extension Cable for 12/18K HMI Narrow Lens Assembly for 12Kw Tungsten PAR - 21" Medium Lens Assembly for 12Kw Tungsten PAR - 21" Wide Lens Assembly for 12Kw Tungsten PAR - 21" Extra Wide Lens Assembly for 12Kw Tungsten PAR - 21" 660186 Lens Box for 12K PAR Lenses Half Double Wire Scrim for Tener 10/12K, 12/18K HMI PAR (21") Full Double Wire Scrim for Tener 10/12K, 12/18K HMI PAR (21") Full Single Wire Scrim for Tener 10/12K, 12/18K HMI PAR (21") uwreuadaxxzwrbcszyubyxuffwafsfzdavar Limited 1-Year Warranty Note: HMI Lamp not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson HMI 12 12Kw PAR Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Par Specs | | | Rating | 12,000-18,000 W | | Socket (Lampholder) | G-38 bi-post, porcelain | | Lens (Condenser) | 21", 4 lenses and box included | | Mounting | 1 1/8" pin | | Weight | 67 lb / 30.4 kg | | Dimensions | Not Applicable | | | | Rating | 12-18 kW, 208-240 VAC, 50-60 Hz, 80 A | | Cable | 50' / 15.2 m, included | | Weight | 140 lb / 63.6 kg, without cable or cart | | Dimensions | 27 x 20.5 x 30" / 68.5 x 52 x 76.2 cm | | Kit Weight | ~220 lb / 100 kg |
