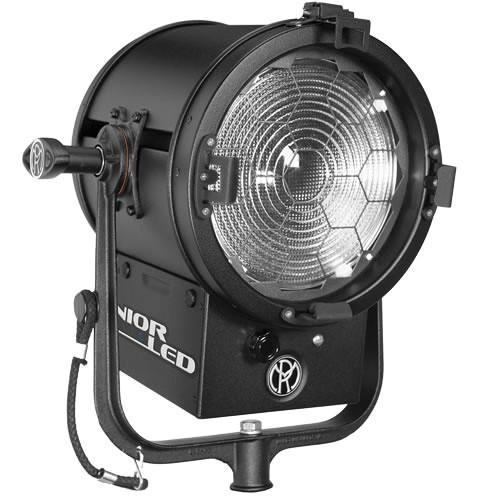

User Manual for Mole-Richardson JuniorLED 200W 8" Fresnel with DMX for Grid Mounting Click to enlarge the picture
Contents of the user manual for the Mole-Richardson JuniorLED 200W 8" Fresnel with
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
|
User manual for the Mole-Richardson JuniorLED 200W 8" Fresnel with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description This is a daylight-balanced Mole-Richardson JuniorLED 200W 8" Fresnel with DMX for Grid Mounting. Fresnels have been a staple in Hollywood since 1936 and little has changed except the use of better materials with more precise construction techniques. While there wasn't a problem with the Fresnel's quality of light, heat and electrical draw was another story.Apart from the black powder-coated finish, the JuniorLED head looks and performs the same as a legacy light allowing you to swap a standard light for a JuniorLED or mix them. In fact, there's a retro-fit kit available to convert your old style light to an LED.On-board and DMX dimming means you'll probably be restricting your scrimming to half-scrims, saving you a lot of ladder climbing. The JuniorLED has a low maximum draw as compared to the legacy lamp effecting up to an 80% reduction in energy consumption. This means that you can run double the amount of LEDs as legacy lights without raising the temperature. Cooler operation also means less air-conditioning running costs in the studio. Let's also consider the cost and downtime of re-lamping. LEDs last about 50,000 hours and are virtually maintenance-free. The 90-250 VAC JuniorLED has a 8" lens, passive cooling and aluminum alloy and steel construction. It has 13-degree to 54-degree spot to flood variation and a yoke with a 1/1/8" pin for standard Junior stands and accessories. The JuniorLED is supplied with a 36" short cable for grid mounting and a NEMA 5-15 Edison (US) plug. - Benefits
-
- An 80% reduction in energy consumption
- Flicker-Free dimming with little to no color shift
- No need for external dimming systems
- No direct IR or radiant heat from Fresnel
- MoleLED Technology
- MoleLED Fresnels are powered by a proprietary, patent-pending Mole-Richardson Quantum Dot chip on-board LED module. The benefit of QD LED technology is the ability to specifically tune the visible wavelength at the nano scale which, in this case, allows for precise adjustment of the red spectrum without impacting the overall light output of the LED.
- Photometrics
- Maximum Flood
680 fc/7320 lux at 5.0' (1.5 m) with 3.4' (1.0 m) beam diameter
180 fc/1938 lux at 10' (3.0 m) with 6.8' (2.1 m) beam diameter
80 fc/861 lux at 15' (4.6 m) with 10.3' (3.1 m) beam diameter
Maximum Spot
1900 fc/20,451 lux at 5.0' (1.5 m) with 1.1' (0.3 m) beam diameter
450 fc/4844 lux at 10' (3.0 m) with 2.3' (0.7 m) beam diameter
200 fc/2153 lux at 15' (4.6 m) with 3.4' (1.0 m) beam diameter In the Box Mole-Richardson JuniorLED 200W 8" Fresnel with DMX for Grid Mounting (Daylight) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson JuniorLED 200W 8" Fresnel with DMX for Grid Mounting in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson JuniorLED Specs | | | Beam Angle | 13 to 54° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 90 | | Cooling System | Passive | | Display | None | | Housing Material | Aluminum, Steel | | Fixture Dimensions | 20.6 x 14.0 x 12.0" / 52.4 x 35.6 x 30.5 mm | | Fixture Weight | 14 lb / 6.4 kg | | | | Lens Diameter | 8" / 20.3 cm | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz at 2.0 A | | Power Source | AC Adapter | | DMX Standby Current | <0.1 A | | Max Power Consumption | 200 W | | Fuse | 2.0 A / Slow-Blow | | | | Cable Length | 36" / 91.4 cm | | Inline Switch | Yes | | Cable Type | Attached to NEMA 5-15 | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP30 |
