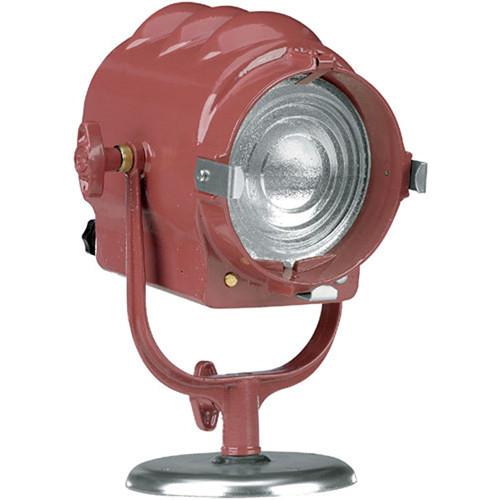

User Manual for Mole-Richardson Midget 200W Tunsgten Fresnel Light Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Midget 200W Tunsgten Fresnel Light
- Product category: Tungsten Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Tungsten Lights
|
User manual for the Mole-Richardson Midget 200W Tunsgten Fresnel Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description A small, rugged tungsten-halogen 200 watt Fresnel solarspot that can be focused from spot-to-flood with an even field. Used in the Motion Picture and Television Studios and Still Photography as a keylight or back-light. When equipped with an optional 200 watt bulb, this fixture will throw a beam of light of 295 footcandles 1.3 feet in diameter from 10 feet @ full spot. The Midget will throw a beam of 30 footcandles 8.4 feet in diameter @ full flood, from the same distance. - Designed to be placed in tight spaces as an accent light, or as a main light for small subjects.
- Accepts bulbs in 100, 150, 200, or 250 wattages.
- Cast aluminum construction.
- Mounts to a standard 5/8" stud.
In the Box Mole-Richardson Midget 200W Tunsgten Fresnel Light 25' Type SO 3 conductor cable, 3 prong USA houseplug 5-1/2" diameter base plate with 5/8" stud 1 Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Midget 200W Tunsgten Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Midget Solarspot Specs | Rating | 250 watts maximum | | Socket (Lampholder) | Double contact bayonet | | Lens (Condenser) | 4.5" Fresnel | | Reflector (Mirror) | Alzak aluminum | | Mounting | Standard 5/8" | | Yoke | Cast aluminum | | Cable | 25' Type SO 3 conductor, 3 prong grounding USA houseplug | | Focusing | Worm gear, rear-mounted plastic control knob | | Weight | 6.75 lbs (3 kg) with included base plate | | Dimensions | 5.6 x 5.4 x 6.75" (14.2 x 13.7 x 17.1 cm) | | | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 15.0 x 10.7 x 10.7" |
