User Manual for Mole-Richardson Molepar 1200 Watt HMI One-Light Kit Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Molepar 1200 Watt HMI One-Light
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
 |
User manual for the Mole-Richardson Molepar 1200 Watt HMI One-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|

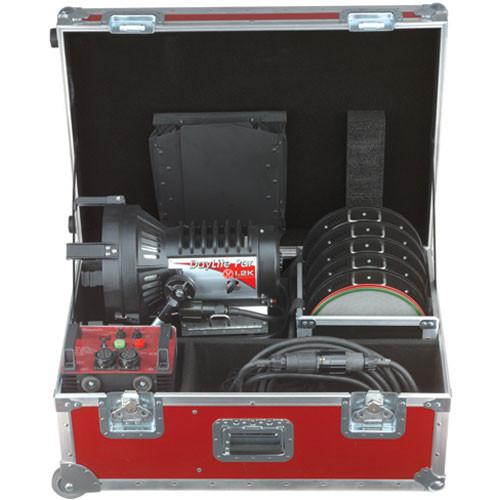

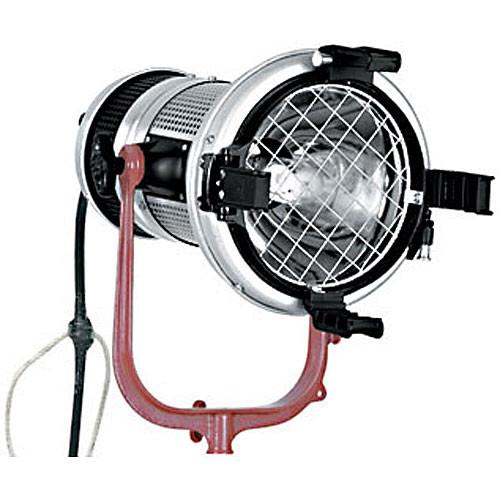

Product description The Mole-Richardson 1200-Watt Molepar Kit is a highly efficient, compact source of daylight using a 1200W HMI single-ended globe (available separately). Without a lens, the Molepar 1200 will throw a beam of light of 640 footcandles, 5.3 feet in diameter from 50 feet away. This one-light kit includes a flicker-free, multi-voltage electronic ballast, four lenses, scrims, diffuser frame, 4-leaf barndoor set, and a hard travel case with aluminum clasps and trim. Add an HMI bulb and a light stand of your choice to complete this kit. - Intuitive and Versatile
- Visual and tactile focal indicators to determine lamp position, and when used with the interchangeable lenses, the field of light can be fine-tuned for optimum beam control.
- Hot Restrike
- Allows restarting immediately after shutting down the light.
- Easy Access
- The electronics have been isolated from the main aluminum housing and feature a swing-out trap door for easy access to the igniter and safety switch.
- Safe
- Safety switch prevents fixture from turning on if the door to the fixture is open.
- Four-Lens Set
- Four lens assemblies from narrow spot to extra wide flood are included to alter the beam spread of the fixture.
- Light Shaping
-
- The oval beam pattern created by the lenses may be rotated within the diffuser clips for vertical or horizontal beam orientation.
- Barndoors, scrims, and diffuser frame offer additional control over the beam direction, shape, and intensity.

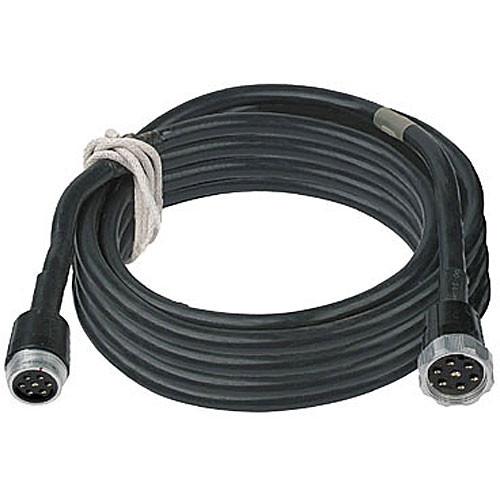

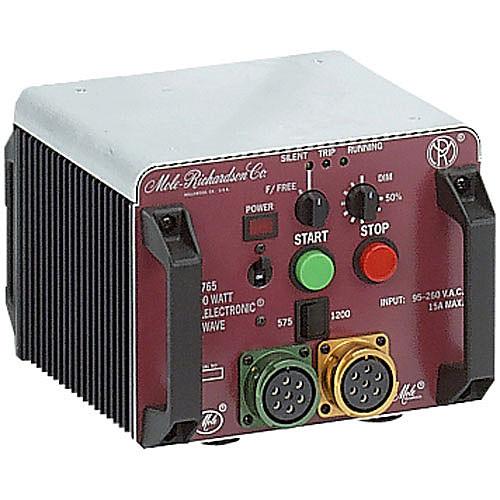

In the Box Mole-Richardson Molepar 1200 Watt HMI One-Light Kit (90-260 VAC) 1200-Watt Molepar (6371) Ballast Cable for 1.2K HMI Fresnel - 50' xzrwvxzeffsxfawdycxq Electronic Ballast for HMI Par 575/1200W Very Narrow Lens Assembly for HMI 1.2K Par Narrow Lens Assembly for HMI 1.2K Par Medium Lens Assembly for HMI 1.2K Par Wide Lens Assembly for HMI 1.2K Par Diffuser Frame for Mole Junior Full Single Scrim for Mole PAR Fixtures (10 1/8") Full Double Scrim for Mole Par Lights (10 1/8") Half Single Scrim Stainless Steel for Mole PAR Fixtures (10 1/8") Half Double Stainless Steel Scrim for Mole PAR Lights (10 1/8") Scrim Bag for 8" Junior MOBD4HP1.2KQ Kit Case Limited 1-Year Warranty Note: HMI Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Molepar 1200 Watt HMI One-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Par Specs | | | Rating | 575-1200 W | | Socket (Lampholder) | Type 63295, bi-post ceramic base with brass inserts | | Lens (Condenser) | 4 accessory lenses included | | Mounting | 5/8" standard stud | | Weight | 26 lb / 11.8 kg, with cable | | Dimensions | 20.25 x 7.1 x 11" / 51.4 x 18 x 28 cm | | | | Rating | 575-1200 watts, 90-260 VAC | | Cable | 50' / 15.2 m, detachable 7 conductor head to ballast | | Weight | Ballast: 17 lb / 7.7 kg, with cable | | Dimensions |
Ballast: 11.5 x 9 x 7" / 29.2 x 23 x 17.8 cm
Kit in Case: 32.5 x 19 x 13.25" / 82.5 x 48.3 x 34 cm | | Kit Weight | 67 lb / 30.4 kg | | | | Package Weight | 134.0 lb | | Box Dimensions (LxWxH) | 41.5 x 31.0 x 20.0" |
