User Manual for Mole-Richardson Molepar 1K-9KW 9 Light Par Bank Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Molepar 1K-9KW 9 Light Par
- Product category: Stage & Studio Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Stage & Studio
|
User manual for the Mole-Richardson Molepar 1K-9KW 9 Light Par contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|

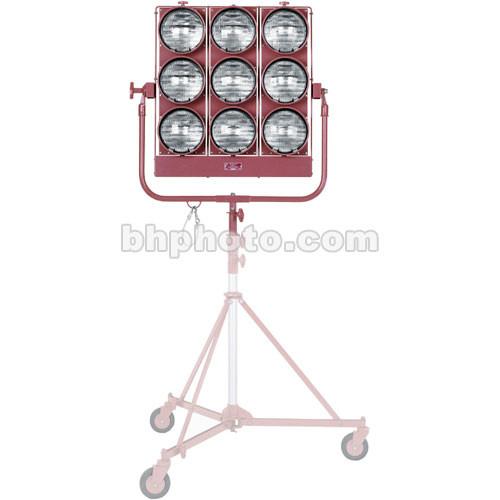

Product description This is a 9000 watt 9 Light Par Bank for lighting large areas. The high intensity output of this fixture permits a minimum number of lights for the required lighting level. For Television and Film set use. A choice of bulbs is available for boosting the light output, with either 3200° or 5000° Kelvin color temperatures. Using a very narrow spot par bulb, a beam of 405 footcandles 23.3 x 15 feet, at a distance of 100 feet may be achieved.Using a wide flood par bulb will result in a beam of 40 footcandles 90 x 47 feet, at a distance of 100 feet. - Accepts different bulbs with built-in reflectors that disperse or internsify the light beam emitted from the heads.
- May be used as a hanging, grid or pipe mounted fixture, or mounted on a Cine stand.
- Pivoted globe modules permit variable beam coverage.
- Nine toggle switches allow total control over light output. An optional master line switch is available.
- This Par light is also available in single, 6, 12, 24, and 36 light configurations.
- 120 or 240 volt operation.
In the Box Mole-Richardson Molepar 1K-9KW 9 Light Par Bank 1-1/8" Steel yoke pin 3' #4/1 2 conductor with #6/1 ground & MC257G plugNote: Bulbs are not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Molepar 1K-9KW 9 Light Par Bank in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Molepar Specs | Rating | 1000 - 9000 watts maximum | | Socket (Lampholder) | Mogul end prong Par 64 | | Lens (Condenser) | None | | Reflector (Mirror) | In bulb of choice | | Mounting | C Clamp or 1-1/8" junior stand mount | | Yoke | Tubular steel 2 blade fork with removable steel junior pin | | Cable | 3' #4/1 2 conductor with #6/1 ground & MC257G plug | | Focusing | Variable with bulb used | | Weight | 71.25 lbs (33 kg) | | Dimensions | 31 x 31.5 x 7" (79 x 80 x 18 cm) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
