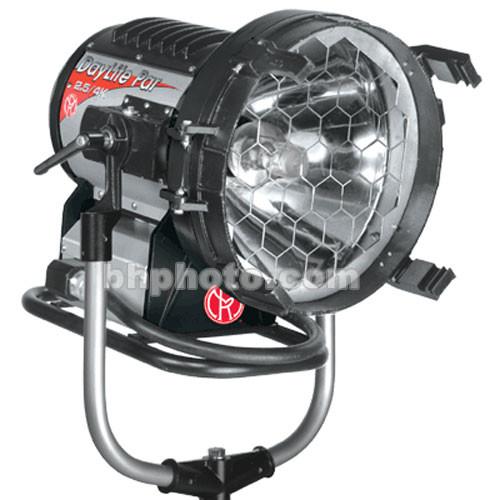

User Manual for Mole-Richardson Molepar 2.5 4K HMI Par Light Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Molepar 2.5 4K HMI Par
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
|
User manual for the Mole-Richardson Molepar 2.5 4K HMI Par contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description The 2.5/4K DayLite Par is the latest addition to the Mole-Richardson family of lighting products. This fixture features solid, rugged construction that is both lightweight and compact, designed to address the needs of both the user and service technician. It has an easy globe installation and removal, visual and tactile feedback for lamp position, adjustable yoke pivot point, easy access for maintenance and replacement of the ignitor and safety switch, and a new reflector design that provides a very powerful output with either lamp. As with most Par fixtures, the light output of this fixture may also be adjusted by using different lenses placed in front. For example, when fitted with a 2,000 HMI bulb and a medium lens, it will emit a beam of light 385 footcandles, 25.8 ft in diameter, from a distance of 50 ft. Without a lens, it can blast a subject with 3816 footcandles 4.26 ft in diameter from the same distance. When fitted with a 4000 watt HMI bulb and medium lens, this fixture will emit 525 footcandles, 21.6 ft in diameter from 50 ft. Without a lens, 3906 footcandles, 5 ft wide, from 50 ft. Click HERE for more Photometrics data. Note: This is a fixture only. An electronic ballast, cable and HMI bulb must be purchased separately. - A 4-Leaf Barn Door with built-in light spill guard is available separately, and a set of diffusion lenses that can be rotated 360° while mounted in the fixture.
- This fixture can accommodate all standard 13.5 inch diameter accessories.
- Separate igniter housing for cooler operation.
- Rugged construction of cast and sheet aluminum.
- Clear anodized aluminum/black powder coated enamel.
- Operates on 200 volts AC, 50-60Hz., 25.6 Amps, max.
In the Box Mole-Richardson Molepar 2.5/4K HMI Par Light Aluminum yoke and 1-1/8" steel yoke pin Note: HMI bulb, cable and ballast not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Molepar 2.5 4K HMI Par Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Molepar Specs | Rating | 2,500 or 4000 watts | | Socket (Lampholder) | G38 bi-post porcelain with brass inserts | | Lens (Condenser) | Optional | | Mounting | 1-1/8" Steel yoke pin | | Weight | 39 lbs (17.7 kg) with yoke, no bulb | | Dimensions | 35.85 x 16.2 x 20.26" (91 x 41 x 51.5 cm) with yoke |
