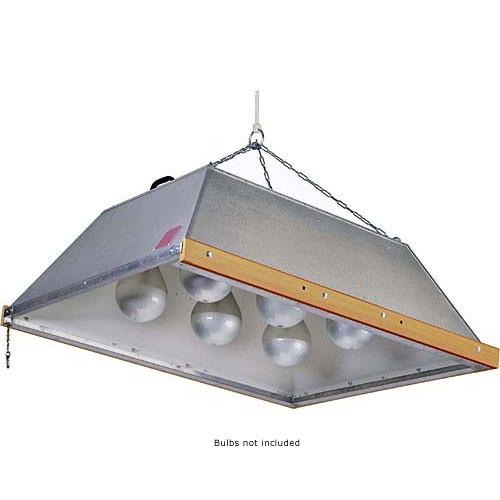

User Manual for Mole-Richardson Overhead 6 Spacelite Cluster with Socapex Connection - 7200 Maximum Watts Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Overhead 6 Spacelite Cluster with
- Product category: Tungsten Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Tungsten Lights
|
User manual for the Mole-Richardson Overhead 6 Spacelite Cluster with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description The Mole Richardson Maxi-Spacelite is a modern MolePar that accepts six Par 64 bulbs oriented in a circular pattern to be used as a Spacelite. The optical design provides a similar horizontal light level output to a traditional 6,000 watt Spacelite, while increasing the vertical output by up to 1000 percent with silk sides and bottom. This fixture accepts Par 64 dual pin bulbs, available separately. Four choices of bulbs allow different spreads of light: very narrow spot, narrow spot, medium flood, and wide flood. The low profile yoke and integrated trapeze hanger allow for several mounting options including dead hang with rope, junior pipe clamp, junior stand and double pipe clamps (cyc-strip hangers). Optional light modification accessories include a White Skirt and Target (72936, 72937), which will create a side spread of light similar to a Lantern Light. When fitted with the white skirt, target, and six FFR medium flood 1000 watt bulbs, this fixture will provide 74 footcandles 14.3 feet in diameter from a distance of 20 feet, directly under the fixture. From a 45° angle, 25 footcandles are provided at 20 feet. The Black Skirt (72935) provides 78 footcandles 16 feet in diameter from 20 feet, with the same FFR bulb. - The Maxi-SpaceLite is compatible with all Type 7291 6K Spacelite accessories and incorporates stacking pins for easy transportation using the optional wheeled 6K Spacelite Cart.
- Rugged construction of solid and perforated sheet aluminum with clear anodized aluminum/maroon powder-coated enamel.
In the Box Mole-Richardson Overhead 6 Spacelite Cluster with Socapex Connection - 7200 Maximum Watts (220V AC) 1-Year Manufacturer's Warranty Note: Bulbs not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Overhead 6 Spacelite Cluster with Socapex Connection - 7200 Maximum Watts in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Overhead 6 Cluster Specs | Rating | 7200W maximum, 220V AC or DC | | Socket (Lampholder) | Mogul end prong PAR 64 | | Lens (Condenser) | In bulb of choice | | Reflector (Mirror) | In bulb of choice | | Mounting | 1-1/8" removable yoke pin, rope hanger, tag line points | | Yoke | Tubular steel | | Cable | Socapex, 6 circuit panel mount, cables optional | | Focusing | None in fixture | | Weight | 30 lbs (13.6 kg) with bulbs | | Dimensions | 35 x 32.25 x 9.15" (89 x 82 x 23.5 cm) |
