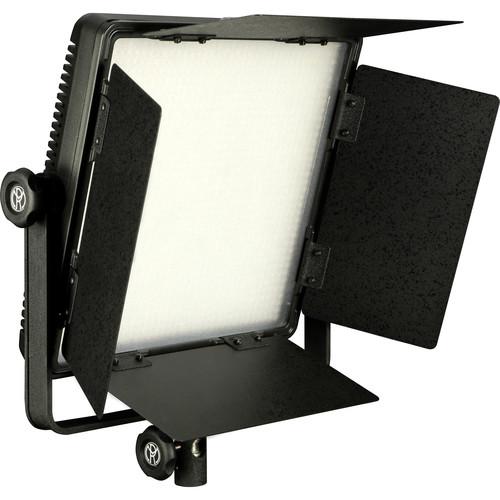

User Manual for Mole-Richardson Pro LED Panel Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Pro LED Panel
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
|
User manual for the Mole-Richardson Pro LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description The Pro LED Panel from Mole-Richardson is a 13 x 14.5 x 4.75" light source with variable color temperature of 3200 to 5600K and flicker-free dimming from 0-100%, controlled locally on the unit or remotely via onboard DMX. The light has a 140-degree beam angle which can be shaped and controlled with the included 4-way barndoors. The 100-240 VAC power adapter makes it ready for worldwide use, but it can also run on batteries thanks to its V-mount battery adapter. A Gold Mount Adapter is available as optional equipment. Light and heavy diffusers are included to soften the output. In the Box Mole-Richardson Pro LED Panel Light Diffuser Heavy Diffuser 4-Way Barndoors Power Supply 14' Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Pro LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Mole Pro Panel Specs | | | Beam Angle | 140° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 1 to 100% (Continuous, Stepped) | | Display | LCD | | Housing Material | Aluminum, Plastic | | Number of LEDs | 1296 | | Fixture Dimensions | 13.5 x 14.5 x 4.8" / 340.0 x 370.0 x 125.0 mm | | Fixture Weight | 6.0 lb / 2.72 kg | | | | Battery Plate | 1 x V-Mount | | DMX Connector | 5-Pin XLR | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 2 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 15 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 50 W | | | | Certifications | RoHS, as per Manufacturer | | IP Rating | IP30 | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 19.0 x 18.5 x 5.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
