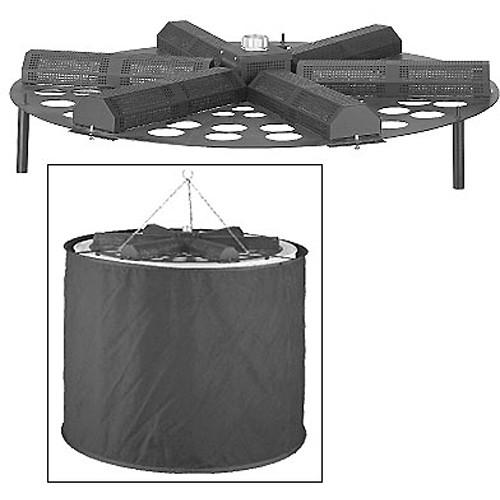

User Manual for Mole-Richardson Skylite 12K Open Face Tungsten Floodlight Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Skylite 12K Open Face Tungsten
- Product category: Stage & Studio Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Stage & Studio
|
User manual for the Mole-Richardson Skylite 12K Open Face Tungsten contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description The Type 7281 12,000 Watt Spacelite brings to the Motion Picture Industry a huge lantern light. Use the optional silk skirt and target for a multi-directional lantern look. Add the optional black skirt to direct that soft light downward. All Spacelites are equipped with safety screens. Please note that the Black and silk skirts and targets are all sold separately, as are the multi-wattage, multi-voltage quartz-halogen bulbs. When fitted with 12- 1000 watt FCM bulbs, Black Skirt, White Silk Skirt and Silk Target, this fixture will emit a beam 36 footcandles 17 feet in diameter from a distance of 20 feet.When fitted with 12- FCM bulbs, White Silk Skirt and Silk Target, the light emitted will be 16 footcandles, spread out over a diameter of 30 feet. - With a 6 circuit socapex connector, this unit can be powered and controlled with the existing socapex multi-circuit control system.
- A 1 or 2 circuit adapter is available, or attach a socapex cable and have 6 circuits of control.
- Rugged sheet aluminum construction with high heat black powder coated enamel finish.
- Wide choice of bulbs in different wattages, voltages, clear and frosted finishes.
- Attached chrome plated steel chain for hanging.
- Fixture is equipped with legs, for easy stacking of units for storage.
In the Box Mole-Richardson Skylite 12K Open Face Tungsten Floodlight (120V AC) Chrome plated Steel Chain 6 x 2000W Circuits with Male Socapex Panel MountNote: Bulbs, cables and plugs not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Skylite 12K Open Face Tungsten Floodlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Spacelite Specs | Rating | 12,000 watts, 120 or 240V AC or DC, 100 Amps | | Socket (Lampholder) | Compressible, 2 contact | | Lens (Condenser) | n/a | | Reflector (Mirror) | 45" Alzak aluminum | | Mounting | Chain and ring | | Yoke | None | | Cable | Not included. Specify length of cable and type of plug when ordering | | Focusing | n/a | | Weight | 30lbs (13.6kg) fixture only | | Dimensions | 45 x ~12" (114 x 30cm) |
