User Manual for Mole-Richardson Tweenie II and Teenie-Mole 3-Light Pro Kit Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Tweenie II and Teenie-Mole 3-Light
- Product category: Tungsten Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Tungsten Lights
|
User manual for the Mole-Richardson Tweenie II and Teenie-Mole 3-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|

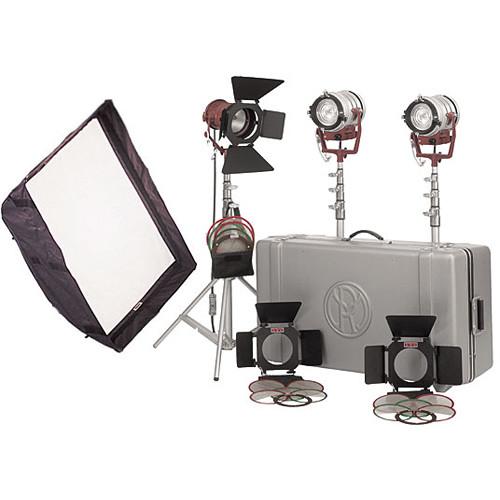

Product description This 1950 total watt Mole-Richardson Tweenie II and Teenie 3-Light Pro Kit includes two 650W Tweenie Solarspots, a 650W Teenie-Mole, a Chimera 16 x 22" Video Pro Plus softbox, barndoors, scrims, stands, bulbs, and a hard plastic case with casters. The 650-watt Solarspot with circular channel construction provides added strength and more efficient airflow resulting in cooler operation. This results in less heat on the fixture and a lower seal temperature for longer lamp life. This fixture can use one of three lamps: a 650W FRK, a 500W FRG, or a 300W FKW. The Teenie-Mole is a compact, focusable tungsten-halogen quartz fixture that provides high intensity in a small package. It is excellent for use in small TV studios or on stages in schools and universities. It uses a special aluminum Molebrite Alzak reflector. This unit uses a 650W FAD lamp and it is equipped with a safety screen. - Chimera Softbox
- The Chimera Video Pro Plus 1 16 x 22" softbox intensifies, softens, and broadens the light output of one of the fixtures.
- Front and Rear Focus
- The Tweenie II has a focusing knob in the front and the rear that goes from spot to wide flood with a smooth even field
- Easy Lamp Access
- Front door on the Tweenie II opens for easy lamp access, and has new quick globe release socket.
- Multiple Use
- The Teenie-Mole is excellent for use in news coverage, television, film, commercials, as well as motion picture and industrial films.
- Flat Field
- The Teenie-Mole provides an extremely smooth flat field in all positions from spot to flood.
In the Box Mole-Richardson Tweenie II and Teenie-Mole 3-Light Pro Kit 2 x 650W Tweenie Solarspots (4821) 2 x 650W Bulbs (FRK) 650W Teenie-Mole (4051) 650W Bulb (FAD) 2 x 4-way Barndoors (40445A) 2 x Diffuser Frames (40437A) 2 x Sets: Half and Full Single, Half Double Moledura Scrims
(5523S, 5523D, 5526S) 4 x Full Double Moledura Scrims (5526D) Chimera Video Pro Plus 1 16 x 22" Softbox with Adapter Ring
(CH8114, CH9660AL) GafferPack:
Gloves with Mitt Clip, Cube Tap, C-47's
Gel Pack and Ditty Bag 2 x Scrim Bags (G135) Accessory Holder (4055) 4-Leaf Light Shield (4054) Diffuser Frame (4053) Set: Half, Full Single, Half Double Moledura Scrims
(4058S, 4058D, 4059S) 2 x Full Double Moledura Scrims (4059D) Scrim Bag (G136) 3 x Lightwate Kit Stands Moleded Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Tweenie II and Teenie-Mole 3-Light Pro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson 5824P Specs | Rating | Each Head: 650 W max. | | Socket (Lampholder) | Tweenie II: 2-pin prefocus
Teenie-Mole: Compressible single contact (2 per globe) | | Lens (Condenser) | Tweenie II: 4.5" / 11.4 cm, glass Fresnel
Teenie-Mole: Not applicable | | Reflector (Mirror) | Alzak aluminum | | Mounting | Fits on standard 5/8" stand | | Yoke | Cast aluminum fits any standard 5/8" diameter standard spud or hanger spud | | Cable | 25' / 7.6 m, Type SO, 3-conductor #18 AWG with 3-prong grounded house plug (other plug substitutes are available) | | Focusing | Tweenie II: Rotating plastic knobs, front and rear
Teenie-Mole: Screw type knob on back of lamp | | Weight | Tweenie II: 6.75 lb / 3.1 kg
Teenie-Mole: 5.25 lb / 2.4 kg | | Dimensions | Tweenie II: 8.75 x 8.75 x 11.1 " / 22.2 x 22.2 x 28 cm
Teenie-Mole: 6.25 x 7.4 " / 16 x 18.1 cm
Kit in Case: 35.5 x 19 x 13.25 in / 90 x 48 x 34 cm | | Kit Weight | 61 lb / 27.7 kg | | | | Package Weight | 69.0 lb | | Box Dimensions (LxWxH) | 35.0 x 21.0 x 12.0" |
