User Manual for Mole-Richardson Tweenie II and Teenie Tungsten Light Combo Kit Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Tweenie II and Teenie Tungsten
- Product category: Tungsten Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Tungsten Lights
|
User manual for the Mole-Richardson Tweenie II and Teenie Tungsten contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|

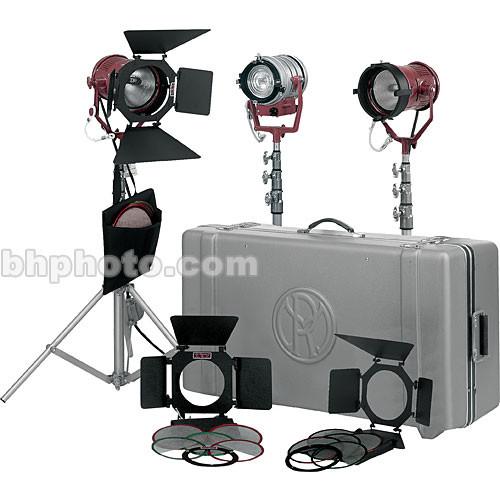

Product description The 1950 total watt Mole Richardson Tweenie II and Teenie Tungsten Light Combo Kit includes one Tweenie II 650W Fresnel, two Teenie Mole 650W Open Face lights, barndoors, scrims, light stands, and a hard plastic case with casters. The 650-watt Solarspot Fresnel with circular channel construction provides added strength and more efficient airflow, resulting in a cooler operation. This results in less heat on the fixture and a lower seal temperature for longer lamp life. It uses one of three lamps: a 650-watt FRK, a 500-watt FRG, or 300-watt FKW. The Teenie is a compact, focusable tungsten-halogen quartz fixture that provides high intensity in a small package. Excellent for use in small TV studios, or on stages in schools and universities. It uses a special aluminum Molebrite Alzak reflector. The Mickey-Mole is a compact, focusable open-face fixture that provides high intensity in a small package. For use in news coverage, television, film, commercials, as well as motion picture and industrial films. The Mickey-Mole uses a 1000-watt DXW lamp and is equipped with a safety screen. Bulbs must be ordered separately. - Front and Rear Focus
- The Tweenie II has a focusing knob in the front and the rear that goes from spot to wide flood with a smooth, even field.
- Easy Lamp Access
- Front door on the Tweenie II opens for easy lamp access, and has new quick globe release socket.
- Multiple Use
- The Teenie Mole is excellent for use in news coverage, television, film, commercials, as well as motion picture and industrial films.
- Flat Field
- The Teenie Mole provides a smooth, flat field in all positions from spot to flood.
In the Box Mole-Richardson Tweenie II and Teenie Tungsten Light Combo Kit 650W Tweenie Solarspot (4821) Four-way Barndoor (40445A) Diffuser Frame (40437A) Scrim Set: Half and Full Single, Half Double Moledura Scrims
(5523S, 5523D, 5526S) 2 x Full Double Moledura Scrims (5526D) Scrim Bags (G135) 2 x 650W Teenie Moles (4051) 2 x Accessory Holders (4055) 2 x Four-leaf Light Shields (4054) 2 x Diffuser Frames (4053) 2 x Set: Half, Full Single, Half Double Moledura Scrims
(4058S, 4058D, 4059S) 4 x Full Double Moledura Scrims (4059D) 2 x Scrim Bags (G136) 3 x Lightwate Kit Stands Moleded Case Limited 1-Year Warranty Note: Bulbs not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Tweenie II and Teenie Tungsten Light Combo Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson 58219 Specs | Rating | Each Head: 650 W max. | | Socket (Lampholder) | Tweenie II: 2-pin prefocus
Teenie Mole: Compressible single contact (2 per globe) | | Lens (Condenser) | Tweenie II: 4.5" / 11.4 cm glass Fresnel
Teenie Mole: Not applicable | | Reflector (Mirror) | Alzak aluminum | | Mounting | Fits on standard 5/8" stand | | Yoke | Cast aluminum fits any standard 5/8" diameter standard spud or hanger spud | | Cable | 25' / 7.6 m, Type SO, 3-conductor #18 AWG with 3-prong grounded house plug (other plug substitutes are available) | | Focusing | Tweenie II: Rotating plastic knobs, front and rear
Teenie Mole: Screw type knob on back of lamp | | Weight | Tweenie II: 6.75 lb / 3.1 kg
Teenie Mole: 5.25 lb / 2.4 kg | | Dimensions | Tweenie II: 8.75 x 8.75 x 11.1 " / 22.2 x 22.2 x 28 cm
Teenie Mole: 6.25 x 7.4 " / 16 x 18.1 cm
Kit in Case: 35.5 x 19 x 13.25" / 90 x 48 x 34 cm | | Kit Weight | 67 lb / 30.4 kg |
