User Manual for Mole-Richardson Tweenie-Mickey-Mole 3-Light Pro Kit Click to enlarge the picture
Contents of the user manual for the Mole-Richardson Tweenie-Mickey-Mole 3-Light Pro Kit
- Product category: Tungsten Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Tungsten Lights
|
User manual for the Mole-Richardson Tweenie-Mickey-Mole 3-Light Pro Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|

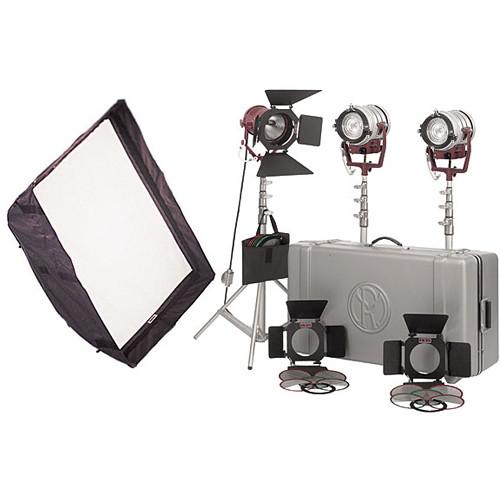

Product description This 2300 total watt Tweenie-Mickey-Mole Combo 3-Light Pro Kit from Mole-Richardson consists of two Tweenie 650W Fresnels, one Mickey-Mole 1K open face light, a 24 x 32" softbox with adapter ring, barndoors, scrims, light stands, bulbs, and a hard case. The 650-watt Tweenie Solarspots have circular channel construction providing added strength and cooler operation. The compact, focusable 1K Mickey tungsten-halogen quartz fixture provides high intensity in a small package. This kit is suitable for news coverage, television, film, commercials, as well as motion picture and industrial films. - The Chimera Video Pro Plus 1 24 x 32" Softbox intensifies, softens, and broadens the light output of the Mickey-Mole.
- The Tweenie has a focusing knob in the front and the rear that goes from spot to wide flood with a smooth, even field.
- The Mickey-Mole provides an extremely smooth, flat field in all positions from spot to flood.
- The scrims and barndoor sets allow control over the shape and intensity of the lights.
In the Box Mole-Richardson Tweenie-Mickey-Mole 3-Light Pro Kit 2 x 650W Tweenie Solarspots (4821) DXW 1000W Bulb 2 x 650W Bulbs 1000W Mickey-Mole Open Face Light (40875) 3 x 4-Leaf Barndoor Sets (4084, 2 x 40445A) 3 x Diffuser Frames (4083, 2 x 4053) Set of Scrims for Mickey:
Full Single (4089S)
Full Double (4089D)
Half Single (4088S)
Half Double (4088D) 2 x Sets of Scrims for Tweenies, 2 ea:
Full Single (5523S)
Full Double (5523D)
Half Single (5526S)
Half Double (5526D) 3 x Scrim Bags (G136) Chimera 24 x 32" Video Pro Plus 1 Softbox with Adapter Ring (8124, 9120) Accessory Holder (4055) 4-Leaf Light Shield (4054) 3 x Lightwate Kit Stands (3631) Gaffer Pack:
Gloves with Mitt Clip
Cube Tap, C-47's, Ditty Bag Moleded Carrying Case (5812) Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson Tweenie-Mickey-Mole 3-Light Pro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson 58215P Specs | Rating | Tweenie: 650 W
Mickey-Mole: 1000 W | | Socket (Lampholder) | Tweenie: 2-pin prefocus
Mickey-Mole: Compressible single contact (2 per globe) | | Lens (Condenser) | Tweenie: 4.5" glass Fresnel lens
Mickey-Mole: Not applicable | | Reflector (Mirror) | Special Molebrite Alzak aluminum | | Mounting | Standard 5/8" stand | | Yoke | Cast aluminum fits 5/8" diameter spud or hanger | | Cable | 25' / 7.6 m, Type SO, 3-conductor #18 AWG with 3-prong grounded house plug | | Focusing | Tweenie: Rotating plastic knobs, front and rear
Mickey-Mole: Screw type knob on rear | | Weight | Tweenie: 6.75 lb / 3.1 kg
Mickey-Mole: 6.75 lb / 3.1 kg | | Dimensions | Tweenie: 8.75 x 8.75 x 11" / 22.2 x 22.2 x 28.1 cm
Mickey-Mole: 7.25 x 8" / 18.4 x 20.3 cm
Kit in Case: 35.5 x 19 x 13.25" / 90 x 48 x 34 cm | | Kit Weight | 89.4 lb / 40.5 kg | | | | Package Weight | 87.4 lb | | Box Dimensions (LxWxH) | 38.0 x 25.0 x 25.0" |
