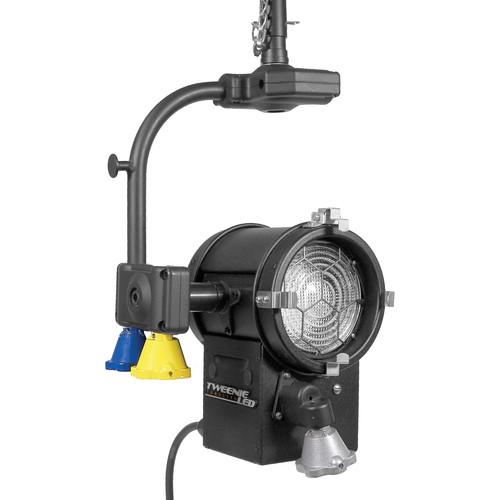

Product description This is a pole-operated daylight-balanced Mole-Richardson TweenieLED 100W 4.5" Fresnel. Fresnels have been a staple in Hollywood since 1936 and little has changed except the use of better materials with more precise construction techniques.While nobody had a problem with the Fresnel's quality of light, heat and electrical draw was another story. It's why you see so many movie people walking around the set with heat-resistant gloves. And of course frying the talent could bring the production to a screeching halt. Then there are scrims - the only way to knock down the output without changing the color temperature.Enter the MoleLED Fresnel line. Apart from the black powder-coated finish, the TweenieLED head looks and performs the same as a legacy light allowing you to swap a standard light for a TweenieLED or mix them. In fact there's a retro-fit kit available to convert your old style light to an LED.On-board local 100 - 10% dimming means you'll probably be restricting your scrimming to half-scrims, saving you a lot of ladder climbing. Besides comfort, you'll be saving on air-conditioning and head running costs in the studio. The TweenieLED's maximum draw is 0.5 - 1.0A as compared to the legacy lamp's 1.7A - up to an 80% reduction in energy consumption. This means that you can run double the amount of LEDs as legacy lights without raising the temperature. Let's also consider the cost and downtime of re-lamping. LEDs last about 50,000 hours and are virtually maintenance-free.The 90-250 VAC TweenieLED has a 4.5" lens, passive cooling and aluminum alloy and steel construction. It has 22-degree to 56-degree spot to flood variation and a 5/8" receiver for standard Baby pins. The #18 AWG power cable is 25' long and ends in a NEMA 5-15 Edison (US) plug. - Benefits
-
- An 80% reduction in energy consumption
- Flicker-free dimming with little to no color shift
- No need for external dimming systems
- No direct IR or radiant heat from Fresnel
- MoleLED Technology
- MoleLED Fresnels are powered by a proprietary, patent-pending Mole-Richardson Quantum Dot chip on-board LED module. The benefit of QD LED technology is the ability to specifically tune the visible wavelength at the nano scale which, in this case, allows for precise adjustment of the red spectrum without impacting the overall light output of the LED.
In the Box Mole-Richardson TweenieLED 100W 4.5" Fresnel (Daylight, Pole-Operated) Attached Power Cable (25') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson TweenieLED 100W 4.5" Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson TweenieLED Specs | | | Beam Angle | 22 to 56° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 90 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Aluminum, Steel | | Fixture Dimensions | 8.0 x 9.0 x 16.0" / 200.0 x 229.0 x 406.0 mm | | Fixture Weight | 6 lb / 2.7 kg
8 lb / 3.6 kg (Including Cable) | | | | Lens Diameter | 4.5" / 114 mm | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Yoke Type | Pole Operated | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz at 1 A | | Power Source | AC Adapter | | Max Power Consumption | 100 W | | Fuse | 1.0 A / Slow-Blow | | | | Cable Length | 25' / 7.6 m | | Inline Switch | Yes | | Cable Type | Attached to NEMA 5-15 | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP30 |
