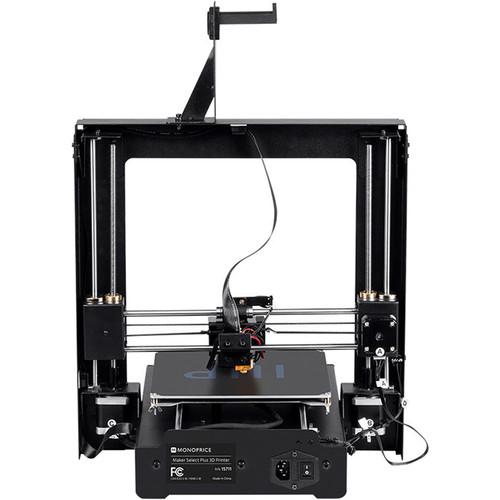

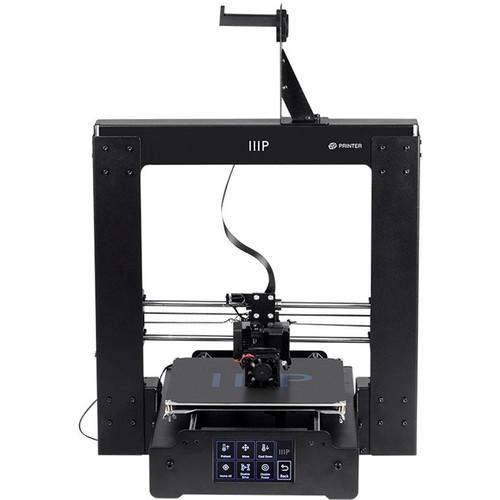

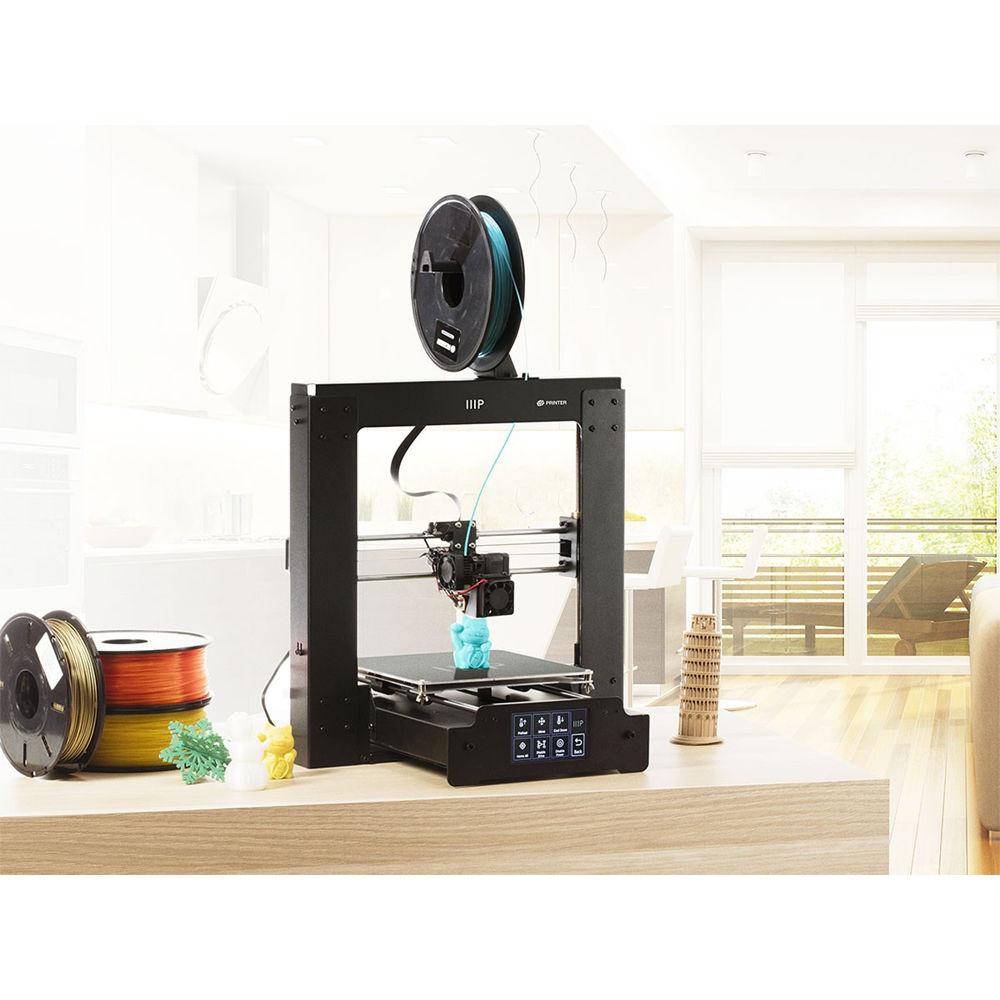

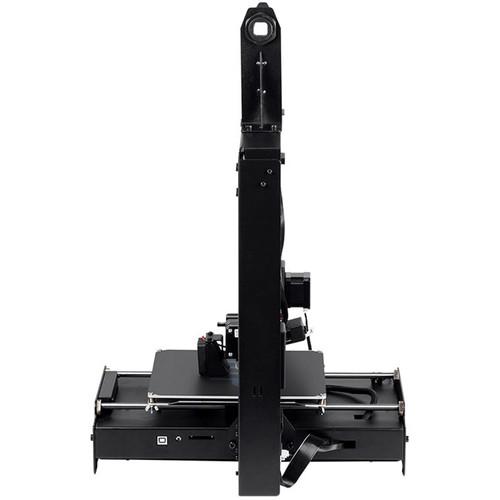

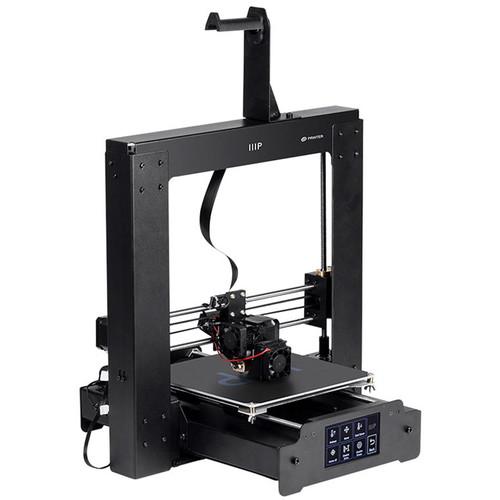

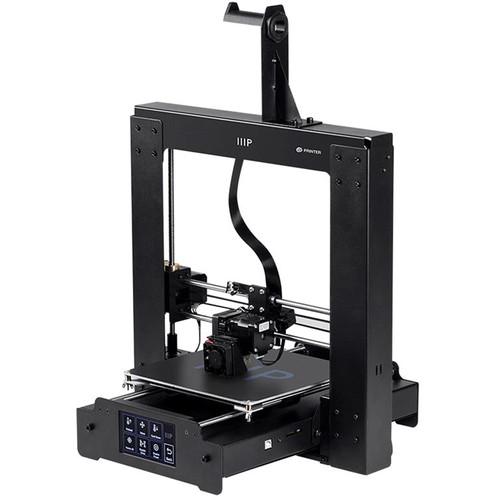

User Manual for Monoprice Maker Select Plus 3D Printer Click to enlarge the picture
Contents of the user manual for the Monoprice Maker Select Plus 3D Printer
- Product category: 3D Printers Monoprice
- Brand: Monoprice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Monoprice 3D Printers
 |
User manual for the Monoprice Maker Select Plus 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Monoprice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Monoprice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Monoprice product will considerably shorten its lifespan!
|
Product description With a build volume of 7.9 x 7.9 x 7.1", the Monoprice Maker Select Plus 3D Printer features a layer resolution of 100-400 microns and is able to use ABS and PLA filaments. It is equipped with a single extruder nozzle, a heated print bed, and a 3.25" LCD display.Users may print their compatible .stl, .obj, .dae, and .amf formatted files through open-source and commercial software like Cura, Repetier, and Simplify 3D. Print via the included microSD card or through the USB Type-B port. This printer works with computers running Windows, Mac OS X, or Linux operating systems. The printer also supports other filament materials, such as PVA, HIPS, wood, flex, conductive, and more. The printer comes almost fully assembled; you just need to place four screws to secure the frame to the base and two screws to attach the filament holder. - Print Now
- This printer comes almost fully assembled, requiring just 4 screws to secure the frame to the base and two screws to attach the filament holder. Additionally, the printer comes with sample PLA filament and a microSD card with sample 3D model files so you'll be ready to print after assembly.
- Compatible Software
- With the ability to use both open-source and commercial software, such as Cura, Repetier, or Simplify 3D, the Maker Select Plus printer is compatible with Windows, Mac OS X, and Linux operating systems.
- Large Volume
- The large 7.9 x 7.9 x 7.1" build area allows you to create larger, more complex models with more detail.
UPC: 889028038208 In the Box Monoprice Maker Select Plus 3D Printer Spool Holder Spool Stand AC Power Cord USB Cable microSD Card Scraper PTFE Tube Hex Key Set 6 x Hex Bolt 2 x Cable Tie 10m PLA Filament Print Bed Mat Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Monoprice Maker Select Plus 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMonoprice Maker Select Plus 3D Specs | | | Build Volume | 7.9 x 7.9 x 7.1" / 20.1 x 20.07 x 18.0 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 400 micron / 0.1 to 0.4 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 338 to 464°F / 170 to 240°C | | Positioning Precision | XY Axis: 12 micron / 0.012 mm
Z Axis: 4 micron / 0.004 mm | | Print Speed | 10 to 70 mm/s | | Filament Compatibility | 1.75 mm Diameter:
ABS, Conductive, FPE, Felty, Flexible Materials, Foam, HIPS, Jelly, PET, PETG, PLA, PVA, TPC, TPU, Wood | | | | Build Area Type | Open | | Build Plate Features | Heated | | Build Plate Temperature | 86 to 158°F / 30 to 70°C | | Filament Spool Storage | External | | | | Wired Connections | 1 x USB Type-B (USB 2.0) | | Wi-Fi | None | | Media Card Slots | 1 x microSDHC | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows (Version Unspecified)
macOS X (Version Unspecified) | | Supported 3D File Types | .amf, .dae, .gcode, .obj, .stl | | | | AC Input Power | 100 to 120 VAC, 60 Hz | | Operating Temperature | 59 to 86°F / 15 to 30°C | | Dimensions (W x H x D) | 15.7 x 16.1 x 15.7" / 398.78 x 408.94 x 398.78 mm | | Weight | 22 lb / 10 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 20.0 x 19.0 x 10.0" |
