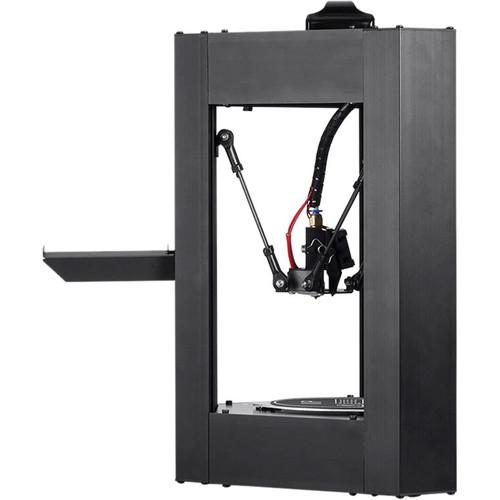

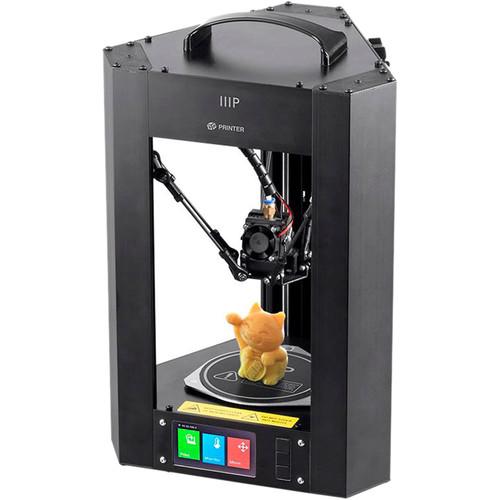

Product description With a build area of 4.3 x 4.7", the Monoprice Mini Delta 3D Printer features a resolution of 50-200 microns and is able to use 1.75mm ABS and PLA filaments. It is equipped with a single extruder nozzle and an LCD screen.The delta design continuously auto-calibrates so you don't have to deal with print bed leveling. The build platform is also heated. You can print from the Mini Delta via USB, Wi-Fi, or microSD card. The printer also supports other filament materials, such as wood, copper fill, steel fill, and bronze fill. The printer features a steel and black anodized aluminum frame for durability. The Mini Delta ships fully assembled and ready to print out of the box. Features - Wi-Fi, microSD card, and USB connectivity
UPC: 889028049884 In the Box Monoprice Mini Delta 3D Printer Filament Holder Plastic Scalper USB Cable MicroSD Card Hex Wrench Power Adapter AC Power Cord Limited 1-Year Repair Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Monoprice Mini Delta 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMonoprice MP Mini Delta 3D Printer Specs | | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 50 to 200 micron / 0.05 to 0.2 mm (3 Settings) | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 356 to 500°F / 180 to 260°C | | Positioning Precision | XY Axis: 12.5 micron / 0.0125 mm
Z Axis: 5 micron / 0.005 mm | | Print Speed | 1 to 150 mm/s | | Filament Compatibility | 1.75 mm Diameter:
ABS, PLA | | | | Build Area Type | Open | | Build Plate Features | Auto Leveling, Heated | | Build Plate Temperature | 140°F / 60°C | | Filament Spool Storage | External | | | | Wi-Fi | Yes | | Media Card Slots | 1 x microSDHC | | | | Supported Operating Systems | Windows XP or Later
macOS X 10.6 or Later | | Supported 3D File Types | .amf, .dae, .obj, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 59 to 89°F / 15 to 31°C (Recommended) | | Storage Temperature | 32 to 89°F / 0 to 31°C | | Dimensions (W x H x D) | 14.2 x 17.3 x 18.9" / 360.68 x 439.42 x 480.06 mm | | Weight | 4 lb / 1.8 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 17.6 x 11.9 x 10.8" |
