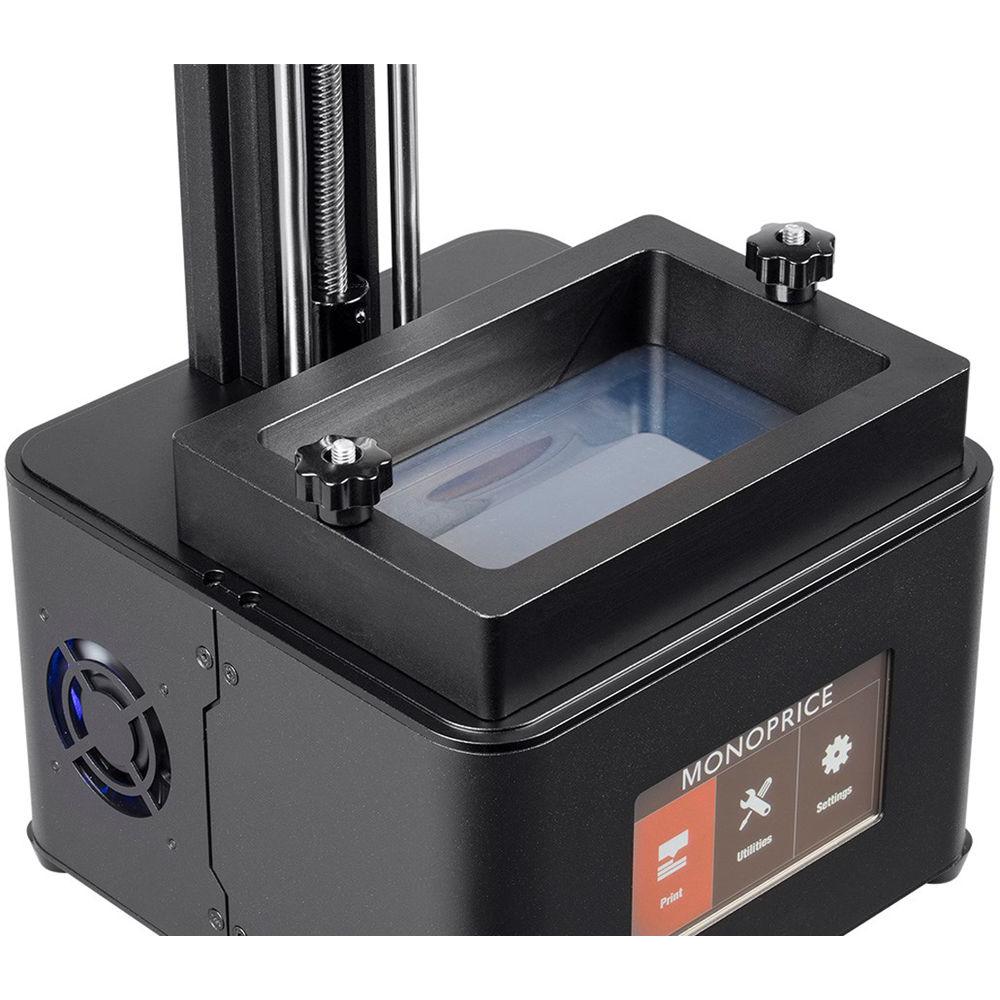

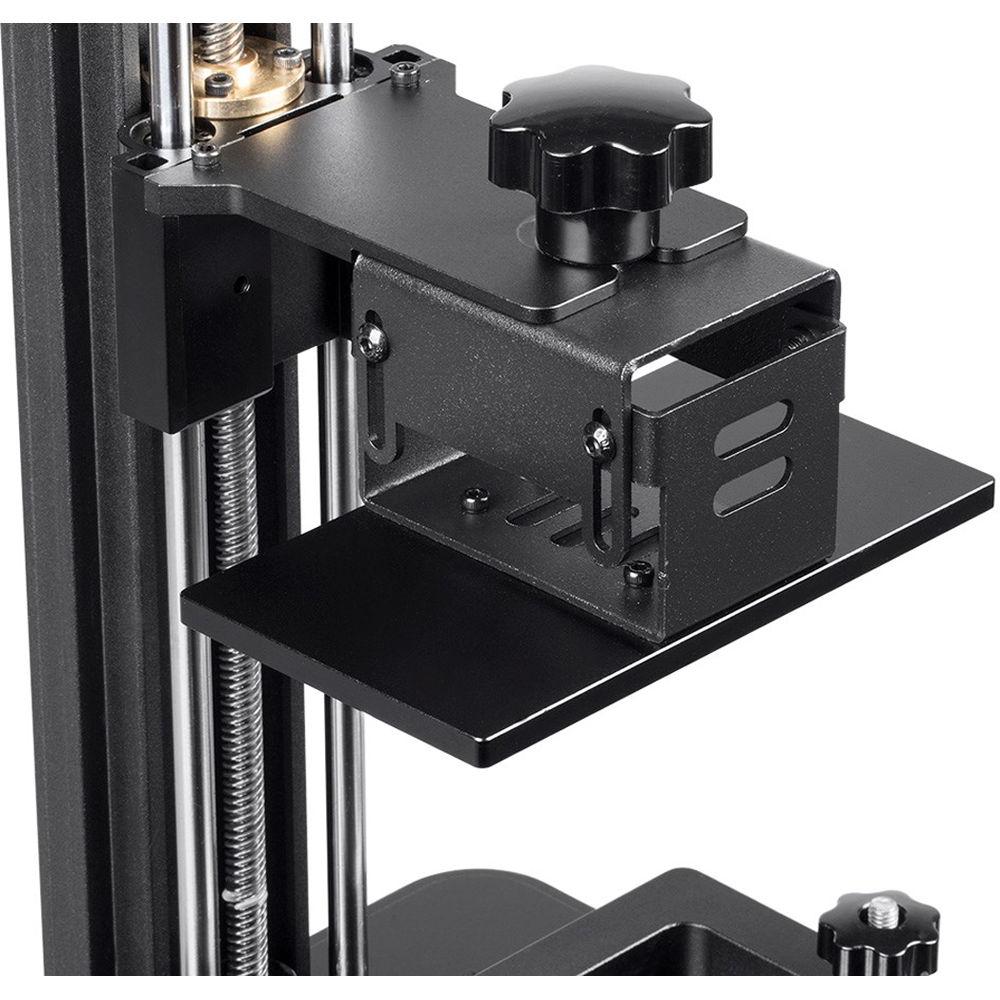

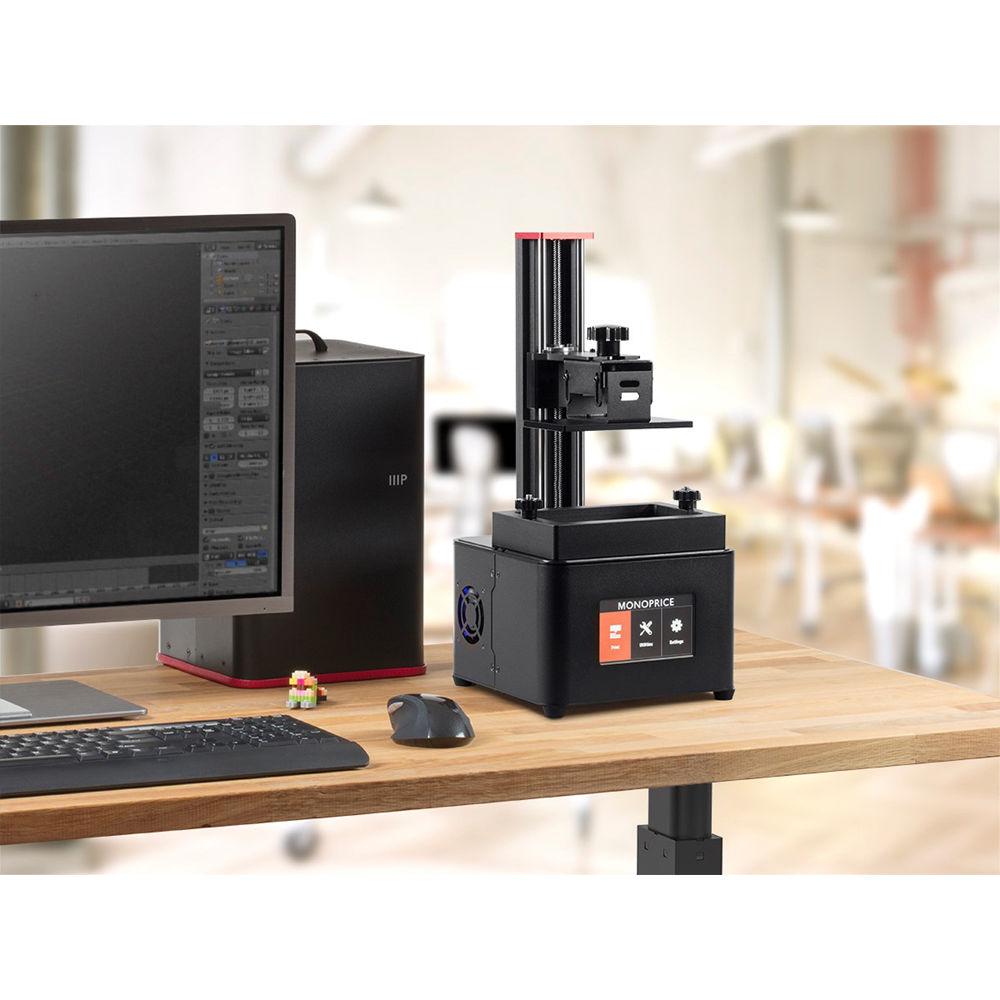

Product description The Monoprice Mini Deluxe SLA LCD High-Resolution Resin 3D Printer utilizes direct UV light printing (DUP) technology (stereolithography), which allows controlled UV light to pass through an LCD screen in order to harden liquid resin to form a model. This alternative method of 3D printing allows for high-resolution models, up to 20 microns.The light filters through the 2560 x 1440 IPS cure display and hits the resin inside the FEP resin vat (which is also removable). This printer has a build volume of 4.8 x 2.7 x 7.1". It also comes with a UV blackout full enclosure to cover the entire printer, including the aluminum build plate. The Z-axis stabilizer allows you to adjust the light. The software that comes included with this printer can also automatically generate any support elements your 3D model may need. There is also a 5.5" LCD touchscreen.Always wear gloves and eye protection when handling resin. Features - This printer is capable of printing at high resolutions, up to 20 microns. It can print with holes as small as 30 microns, making it ideal for applications where high levels of detail are required, such as jewelry or dental prototyping.
- Capable of printing up to 30mm/hour vertically, this printer is comparable in speed to traditional FDM/FFF 3D printers.
- The software supplied with this printer has the ability to automatically generate any support elements needed. Simply import your 3D model and click a single button to generate all necessary supports.

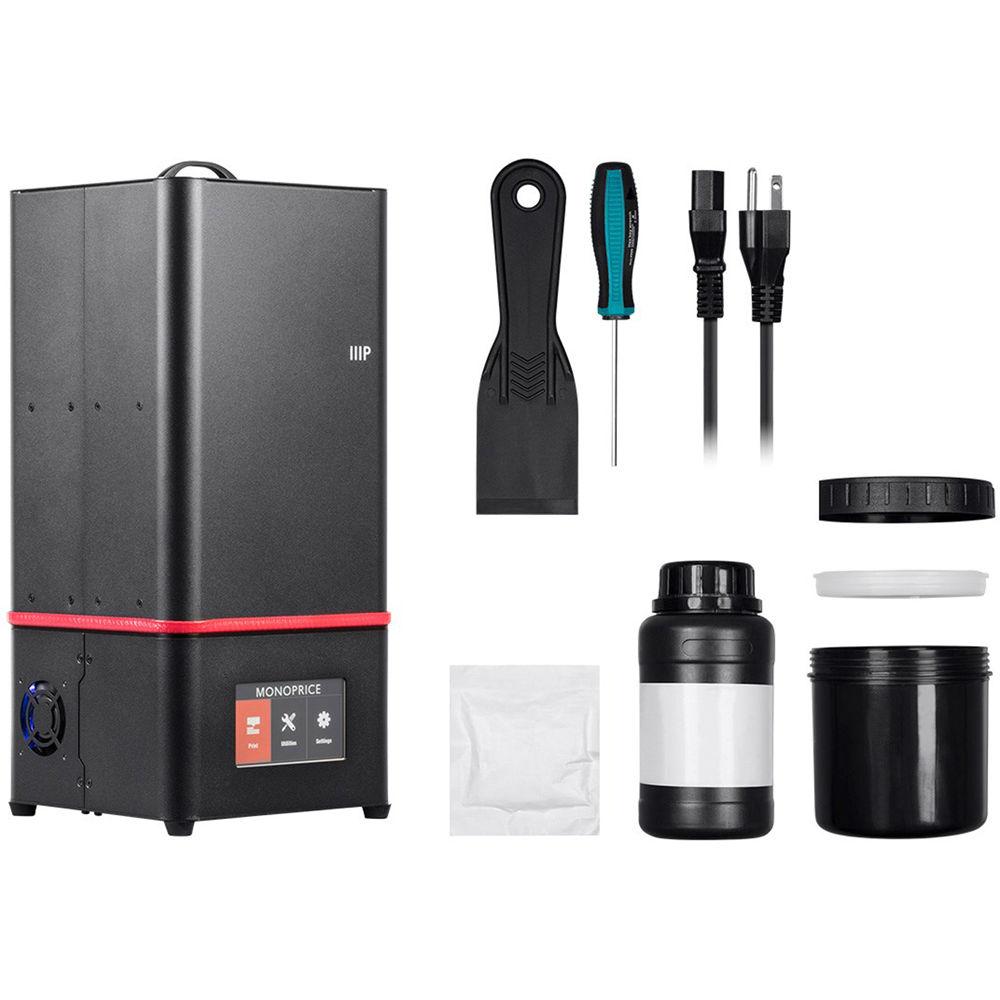

UPC: 889028077054 In the Box Monoprice Mini Deluxe SLA LCD High-Resolution Resin 3D Printer Full Enclosure Hood Power Cord HDMI Cable USB Cable Replacement VAT Film Plastic Spatula Latex Gloves Print Removal Tools Precision Hex Wrench Cleaning Container 250ml Red Photopolymer Resin Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Monoprice Mini Deluxe SLA LCD High-Resolution Resin 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

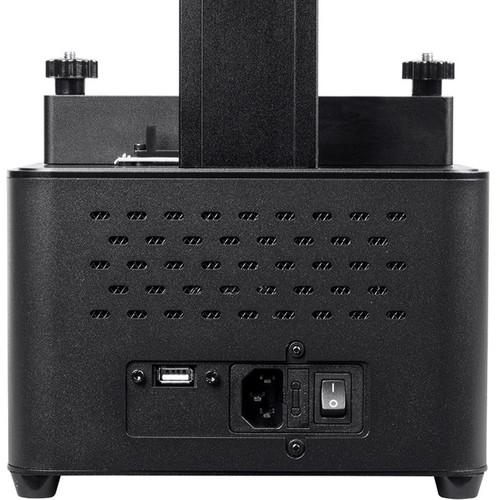

Technical parametersMonoprice MP Mini Deluxe SLA Specs | | | Print Technology | SLA (Stereolithography) | | Build Volume | 4.8 x 2.7 x 7.1" / 12.2 x 6.86 x 18.0 cm | | Layer Resolution | XY Axis: 20 to 100 micron / 0.02 to 0.1 mm | | Print Speed | 0.0083 mm/s | | | | Build Area Type | Enclosed | | Build Plate Composition | Aluminum | | | | Wired Connections | 1 x USB Type-A (USB 2.0) | | Wi-Fi | None | | Media Card Slots | Yes | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows (Version Unspecified) | | | | AC Input Power | 110 to 250 VAC, 50 / 60 Hz | | Operating Temperature | 59 to 86°F / 15 to 30°C | | Operating Humidity | 20 to 50% | | Dimensions (W x H x D) | 7.8 x 16 x 7.8" / 198.12 x 406.4 x 198.12 mm | | Weight | 19.8 lb / 9 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 22.4 lb | | Box Dimensions (LxWxH) | 20.8 x 12.0 x 11.4" |
