Monoprice Mini SLA LCD High-Resolution Resin

Search your instruction manual in PDF to download

User Manual for Monoprice Mini SLA LCD High-Resolution Resin 3D Printer

Click to enlarge the picture
Monoprice Mini SLA LCD High-Resolution Resin 3D Printer Contents of the user manual for the Monoprice Mini SLA LCD High-Resolution Resin
  • Product category: 3D Printers Monoprice
  • Brand: Monoprice
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Monoprice 3D Printers

Monoprice Mini SLA LCD High-Resolution Resin 3D Printer Monoprice Mini SLA LCD High-Resolution Resin 3D Printer Monoprice Mini SLA LCD High-Resolution Resin 3D Printer Monoprice Mini SLA LCD High-Resolution Resin 3D Printer Monoprice Mini SLA LCD High-Resolution Resin 3D Printer
User manual for the Monoprice Mini SLA LCD High-Resolution Resin contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Monoprice product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Monoprice user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Monoprice product will considerably shorten its lifespan!



Product description

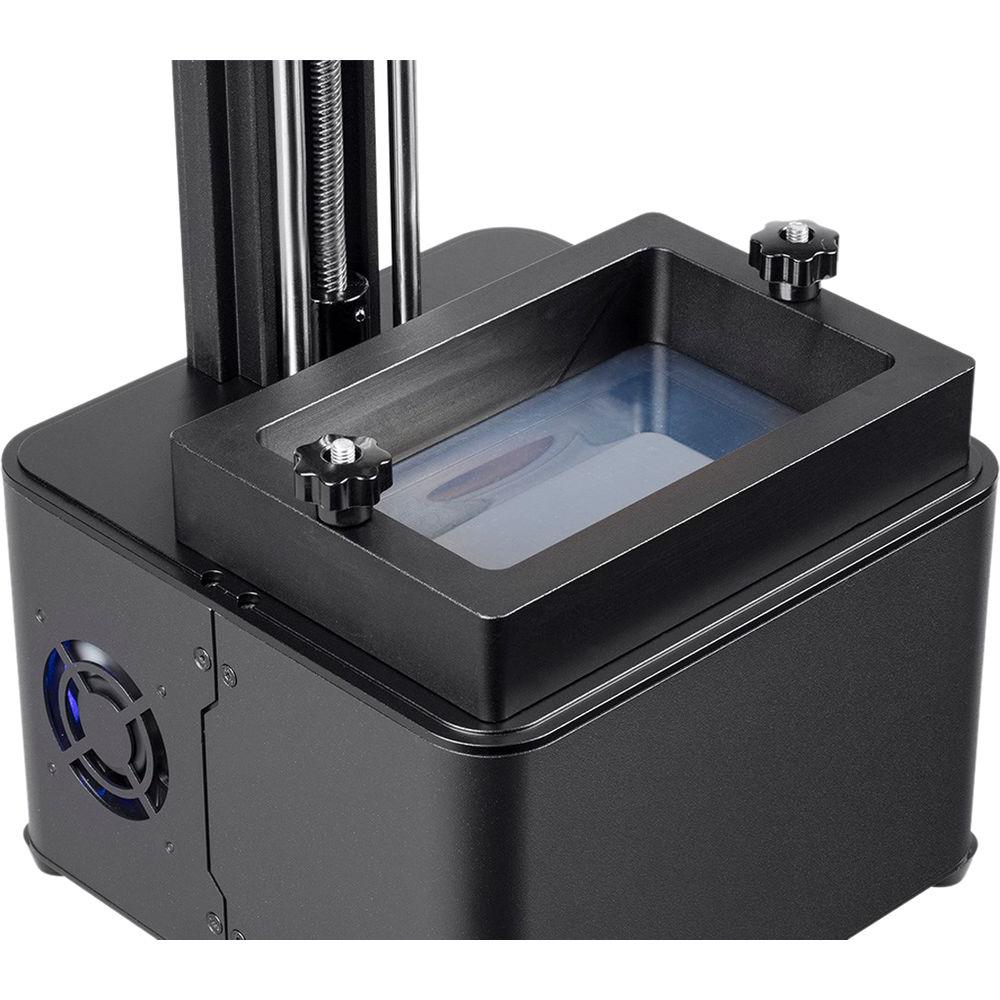

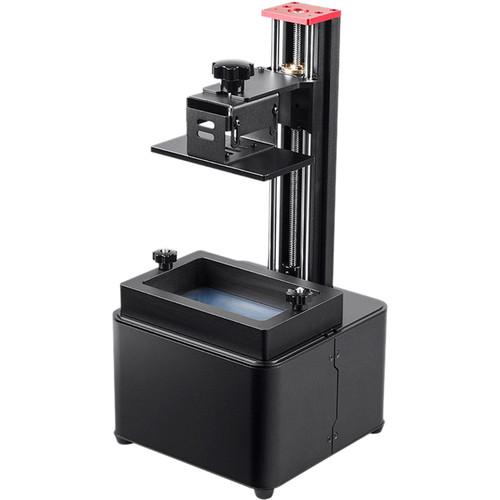

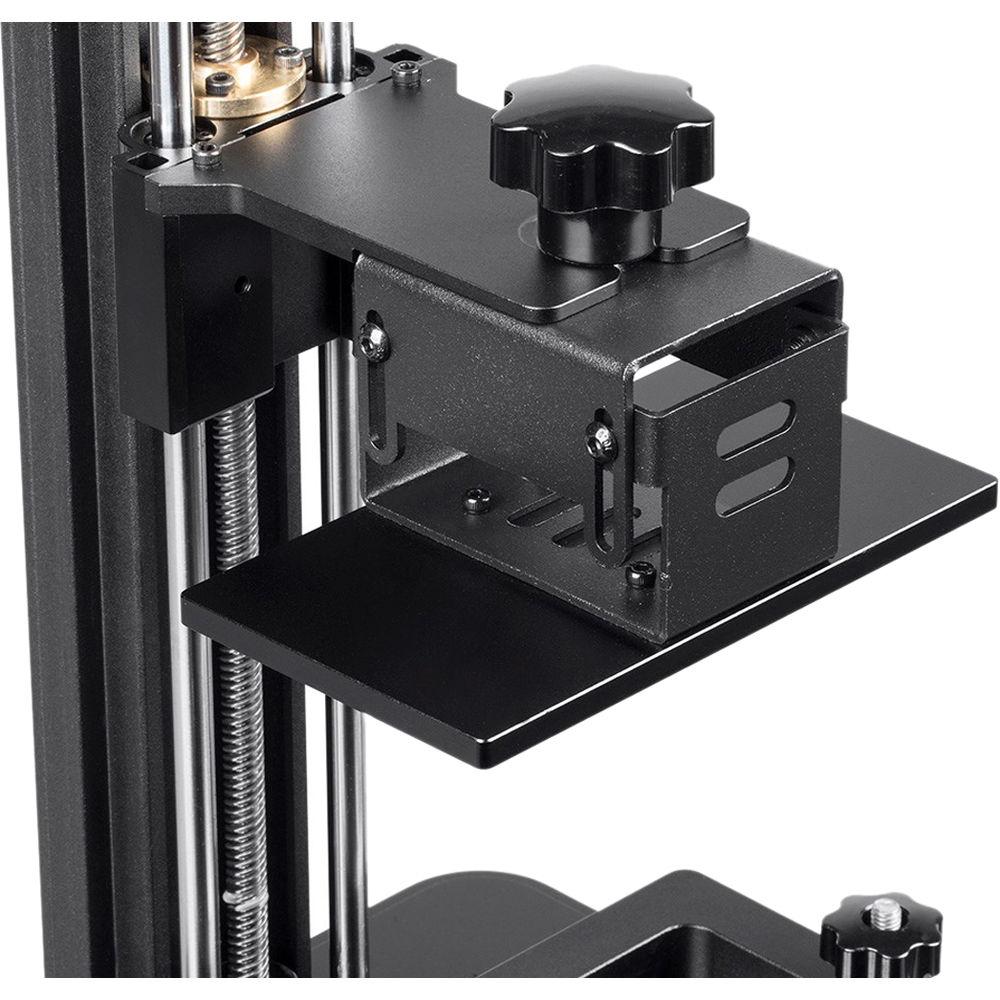

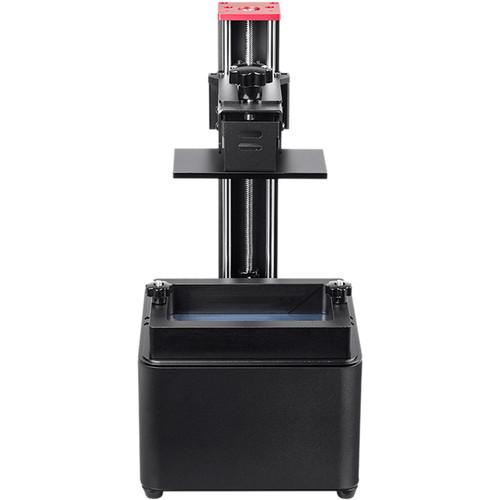

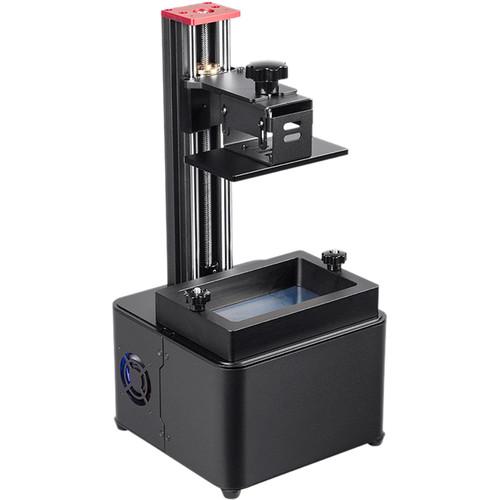

The Monoprice Mini SLA LCD High-Resolution Resin 3D Printer utilizes direct UV light printing (DUP) technology (stereolithography), which allows controlled UV light to pass through an LCD screen in order to harden liquid resin to form a model. This alternative method of 3D printing allows for high-resolution models, up to 20 microns.The light filters through the 2560 x 1440 IPS cure display and hits the resin inside the FEP resin vat (which is also removable). This printer has a build volume of 4.8 x 2.7 x 7.1". It also comes with a UV blackout full enclosure to cover the entire printer, including the aluminum build plate. The Z-axis stabilizer allows you to adjust the light. The software that comes included with this printer can also automatically generate any support elements your 3D model may need.Always wear gloves and eye protection when handling resin.

Features

  • This printer is capable of printing at high resolutions, up to 20 microns. It can print with holes as small as 30 microns, making it ideal for applications where high levels of detail are required, such as jewelry or dental prototyping.
  • Capable of printing up to 30mm/hour vertically, this printer is comparable in speed to traditional FDM/FFF 3D printers.
  • The software supplied with this printer has the ability to automatically generate any support elements needed. Simply import your 3D model and click a single button to generate all necessary supports.
UPC: 889028051207 In the Box Monoprice Mini SLA LCD High-Resolution Resin 3D Printer
  • Full Enclosure Hood
  • Power Cord
  • HDMI Cable
  • USB Cable
  • Replacement VAT Film
  • Plastic Spatula
  • Latex Gloves
  • Print Removal Tools
  • Precision Hex Wrench
  • Cleaning Container
  • 250ml Red Photopolymer Resin
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Monoprice Mini SLA LCD High-Resolution Resin 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Monoprice MP Mini SLA Specs

    Print Technology SLA (Stereolithography)
    Build Volume 4.8 x 2.7 x 7.1" / 12.2 x 6.86 x 18.0 cm
    Layer Resolution XY Axis: 20 to 100 micron / 0.02 to 0.1 mm
    Print Speed 0.0083 mm/s
    Build Area Type Enclosed
    Build Plate Composition Aluminum
    Wired Connections 1 x USB Type-A (USB 2.0)
    Wi-Fi None
    Media Card Slots Yes
    Supported Operating Systems Linux (Version Unspecified)
    Windows (Version Unspecified)
    AC Input Power 110 to 250 VAC, 50 / 60 Hz
    Operating Temperature 59 to 86°F / 15 to 30°C
    Operating Humidity 20 to 50%
    Dimensions (W x H x D) 7.8 x 16 x 7.8" / 198.12 x 406.4 x 198.12 mm
    Weight 19.8 lb / 9 kg
    Warranty Length Limited 1-Year Warranty
    Package Weight 22.1 lb
    Box Dimensions (LxWxH) 21.0 x 11.7 x 11.5"
