User Manual for Monoprice Monolith M1060C Closed-Back Planar Magnetic Headphones Click to enlarge the picture
Contents of the user manual for the Monoprice Monolith M1060C Closed-Back Planar Magnetic
- Product category: Headphones Monoprice
- Brand: Monoprice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Monoprice Headphones
 |
User manual for the Monoprice Monolith M1060C Closed-Back Planar Magnetic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Monoprice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Monoprice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Monoprice product will considerably shorten its lifespan!
|

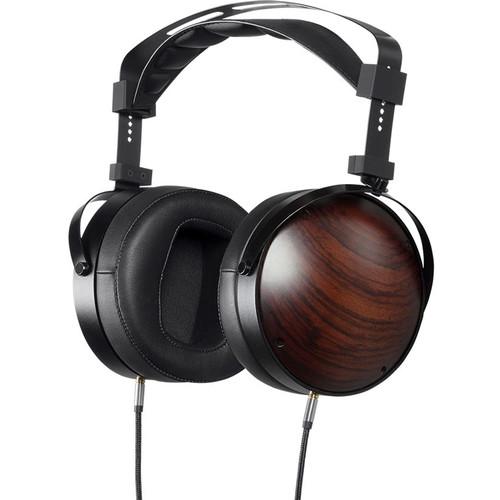

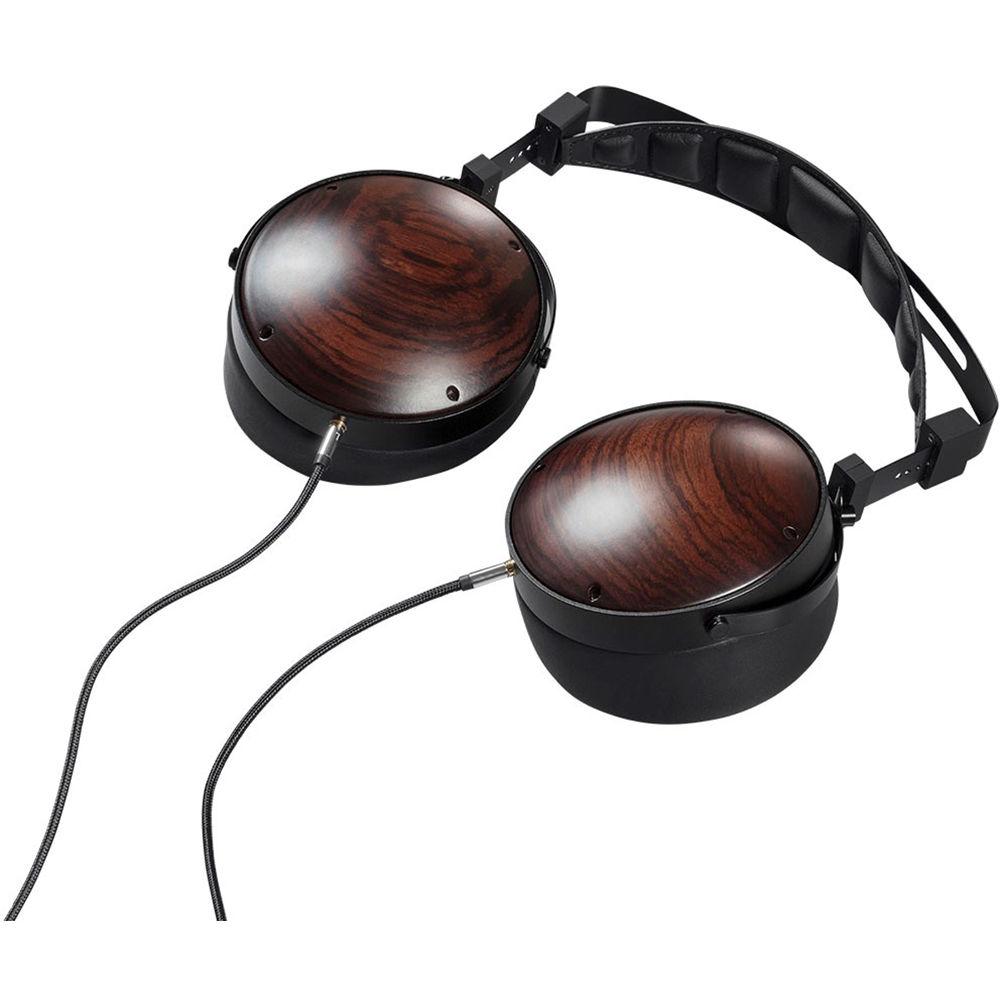

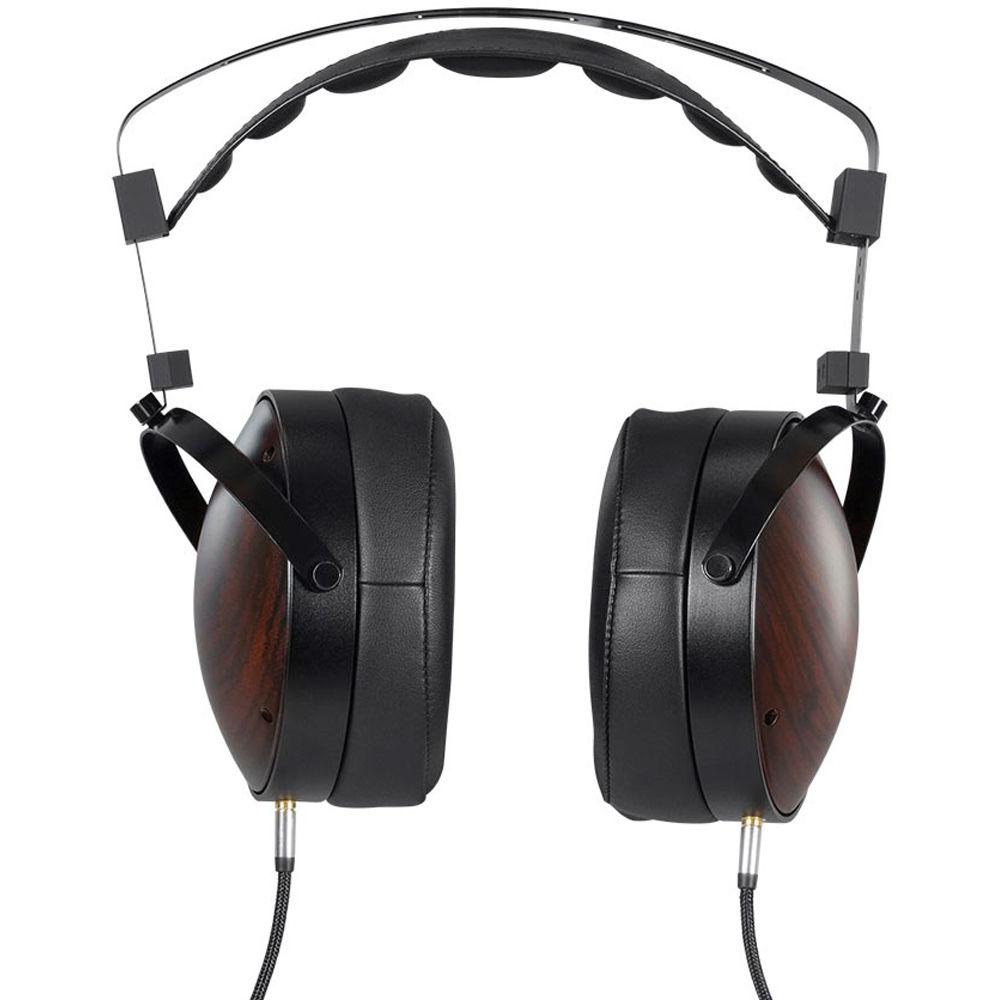

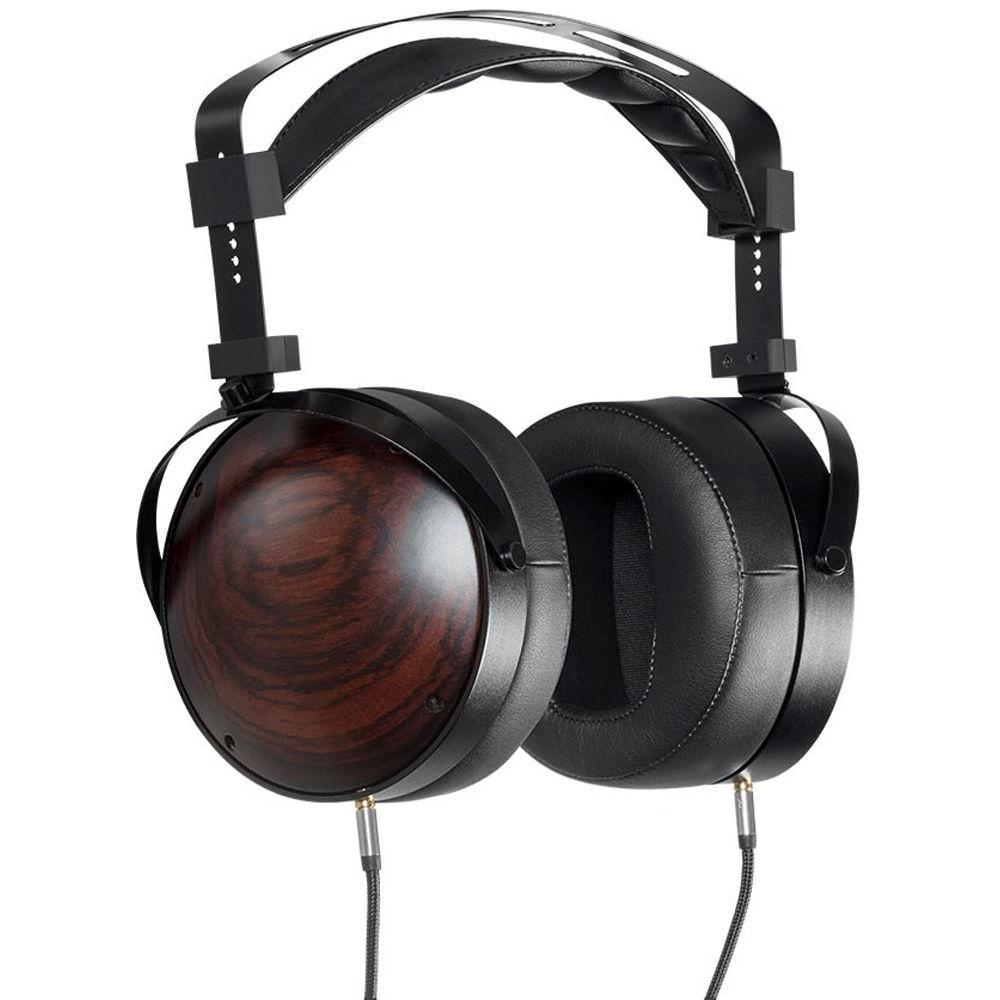

Product description The Monoprice Monolith M1060C are closed-back planar magnetic headphones designed for professional audio engineers and audiophiles. The M1060C feature a completely redesigned and re-engineered planar driver, which provides a highly detailed aural landscape with remarkable imaging, low distortion, and precise bass in a closed-back enclosure. The 106mm planar drivers can deliver a frequency response of 10 Hz to 50 kHz. Designed for comfort in long listening sessions, the headphones feature large, faux leather earpads and a padded headband. The Monoprice Monolith M1060C include a detachable coiled cable, a 3.5mm to 1/4" adapter, and a carrying case. - Planar Drivers
-
- The planar magnetic driver is a flat membrane that is surrounded by magnets. When current is delivered, the membrane produces sound that has low distortion, accurate bass, and pinpoint imaging.
- The planar driver in the M1060C has been completely redesigned with several enhancements, including a new symmetrical magnet structure that allows the planar driver to be much more efficient in a closed back enclosure. The result is low distortion, improved linearity, and remarkable imaging in a closed back design.
- Closed-Back Design
-
- The 1060C provides audio isolation, allowing the sonic landscape to not be disturbed by the outside world, and the outside to not be disturbed by your music. This makes the M1060C a great choice for audiophiles that may need to listen in less than silent environments.
- Comfort
-
- Large, comfy earpads made of faux leather and a padded headband are designed to keep you comfortable during extended listening sessions.

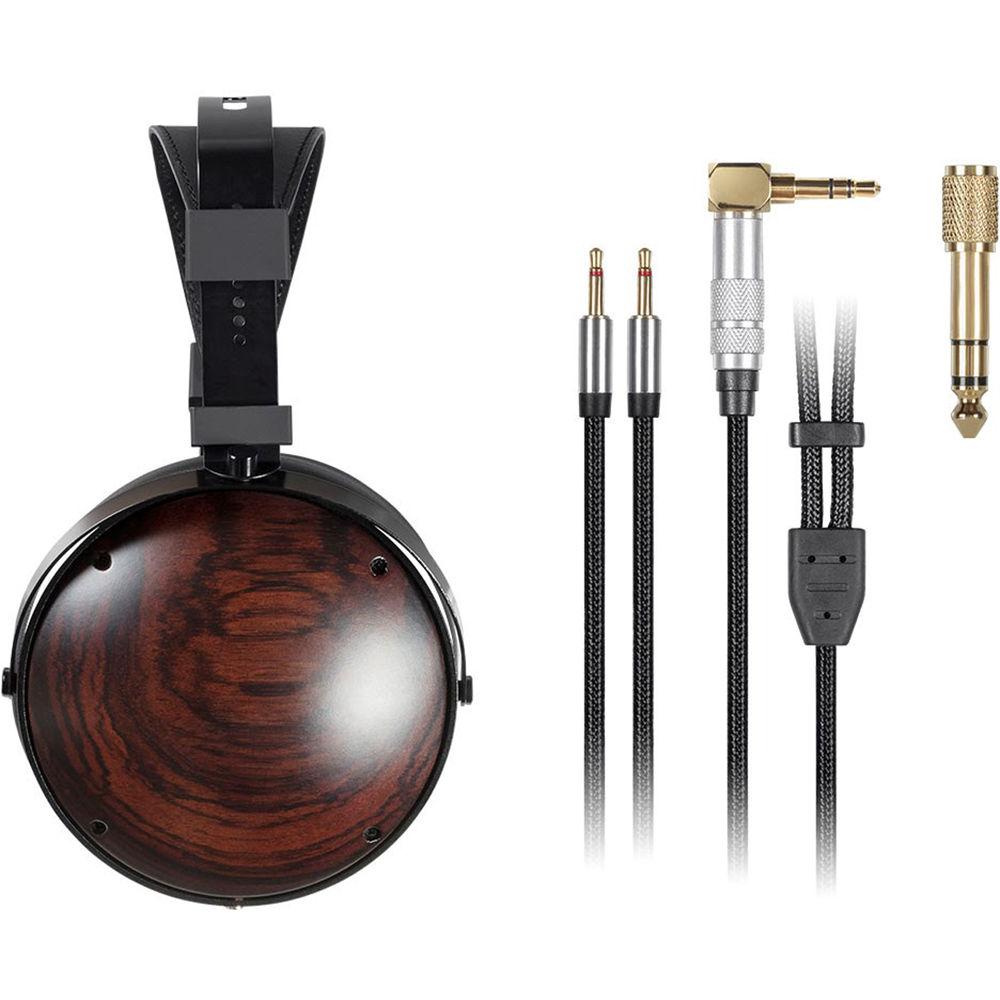

UPC: 889028070208 In the Box Monoprice Monolith M1060C Closed-Back Planar Magnetic Headphones Detachable Coiled Cable 3.5mm to 1/4" Adapter Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Monoprice Monolith M1060C Closed-Back Planar Magnetic Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMonoprice M1060C Specs | | | Driver Size | 4.17" / 106 mm | | Driver Type | Planar | | Magnet Type | Neodymium | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 10 Hz to 50 kHz | | Sensitivity | 90 dB at 1 kHz | | Impedance | 18 Ohms | | Maximum Sound Pressure Level (SPL) | 120 dB | | Maximum Power Handling | 5000 mW | | Total Harmonic Distortion (THD) | 1% | | Active Noise Cancellation | No | | Foldable | No | | | | Audio Connector | 1/8" (3.5 mm) TRS | | Adapter (Included) | 1/4" (6.3 mm) TRS | | Connector to Earpiece | 2 x 3/32" (2.5 mm) | | | | Design | Y-Type | | Detachable | Yes | | In-Line Remote/Microphone | None | | Cable Length | 4' / 1.22 m (Coiled) | | | | Package Weight | 3.82 lb | | Box Dimensions (LxWxH) | 12.1 x 12.0 x 5.4" |
