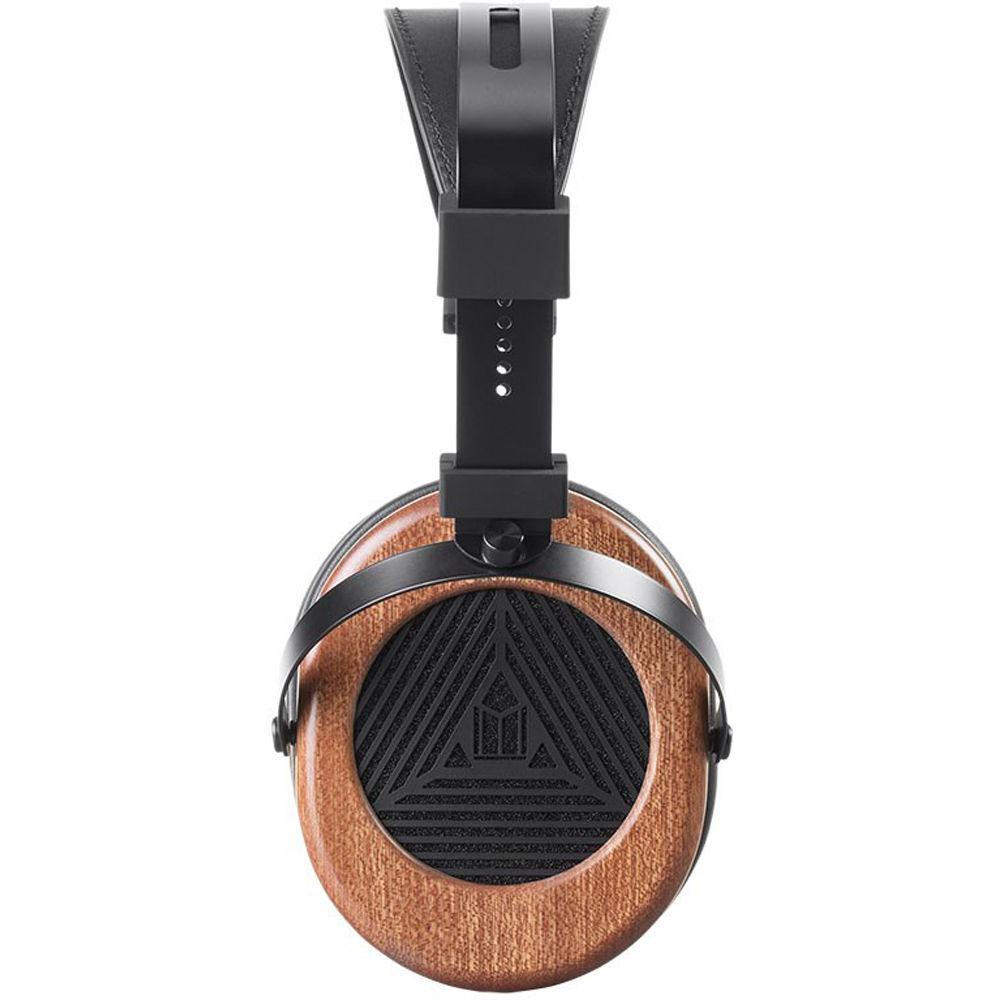

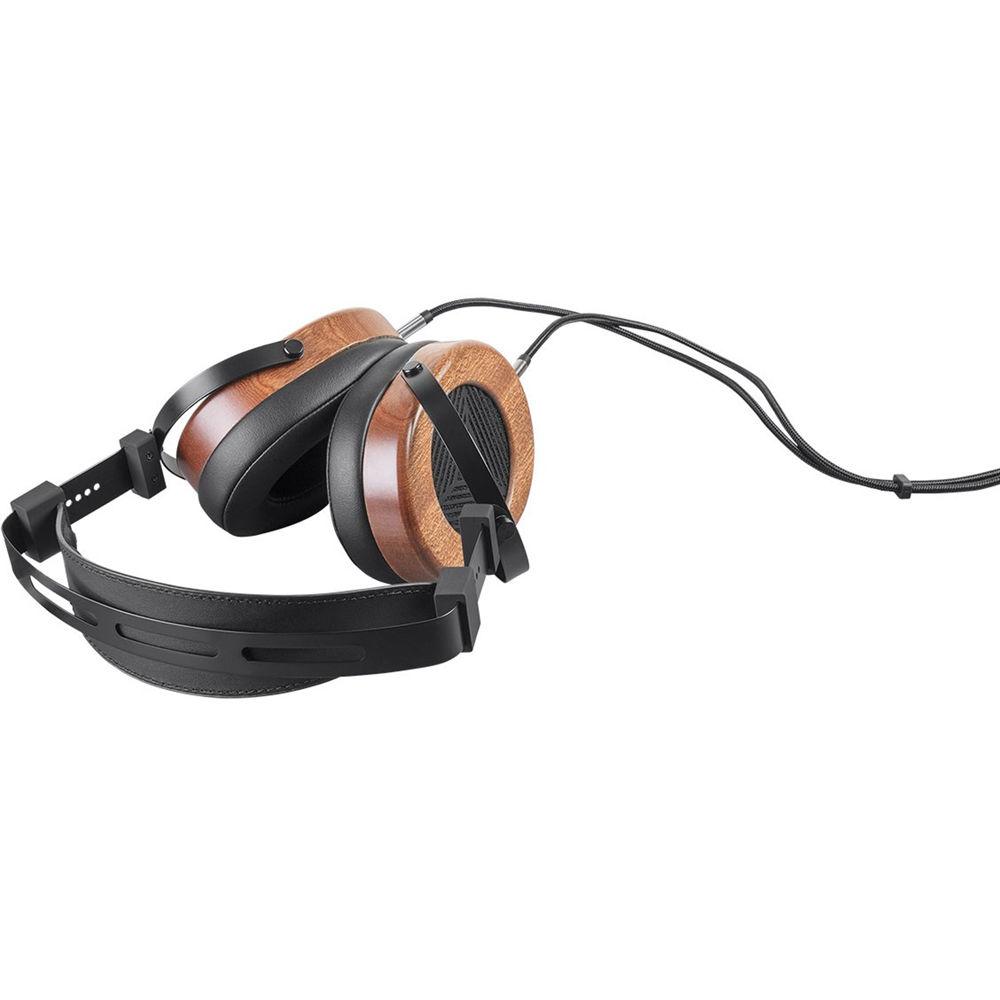

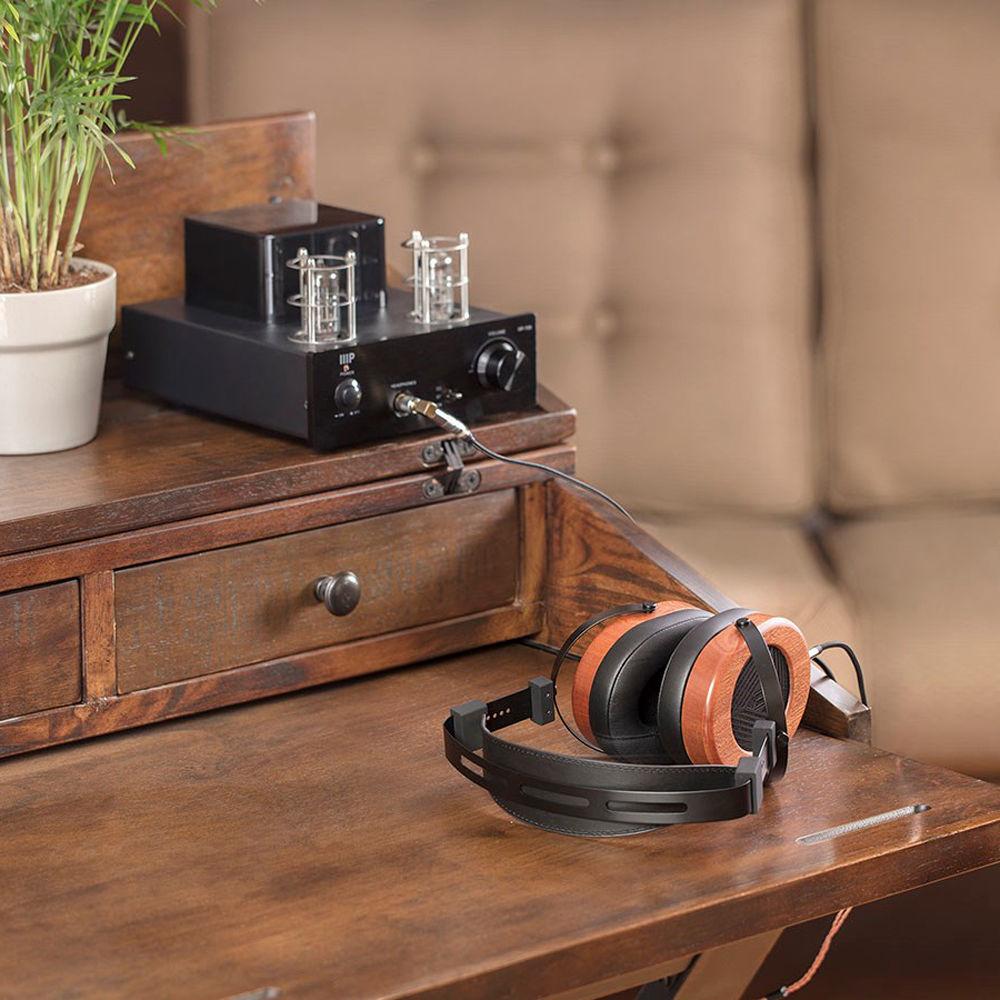

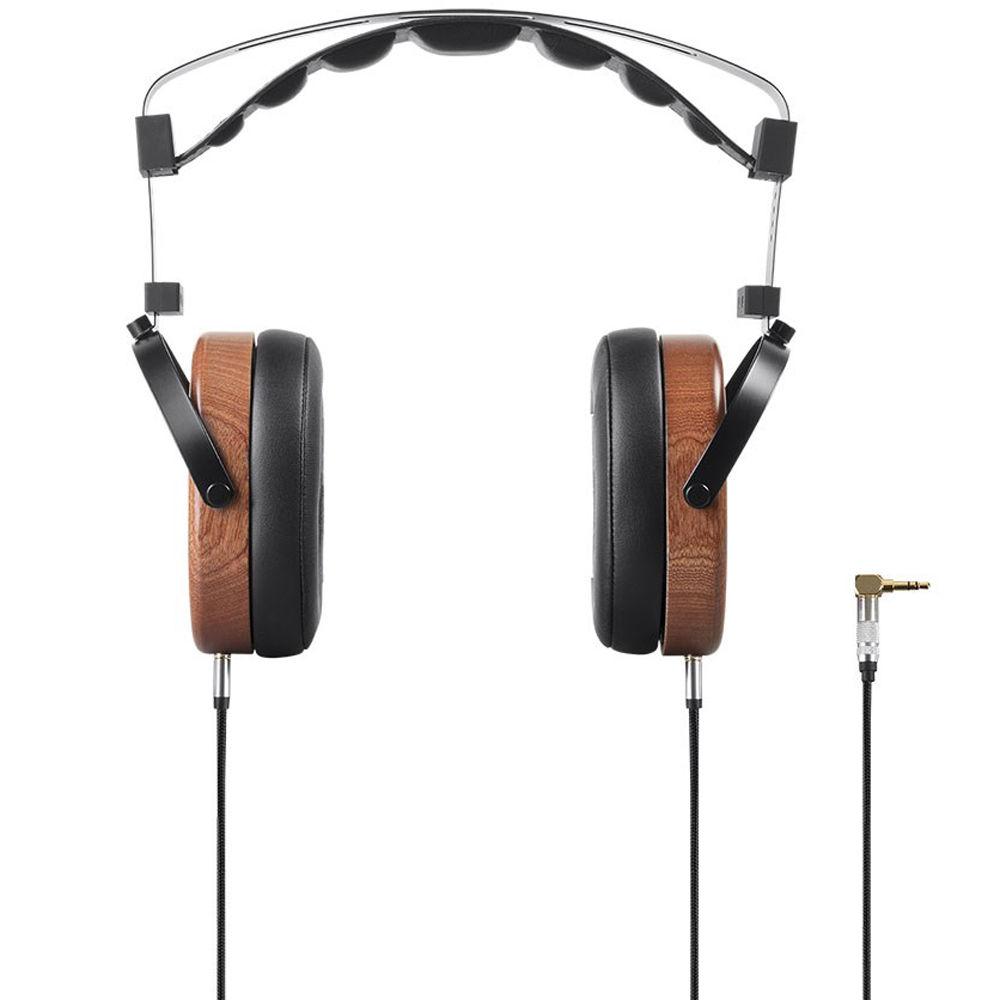

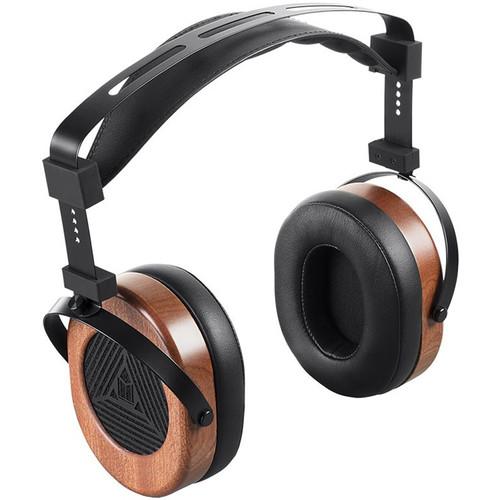

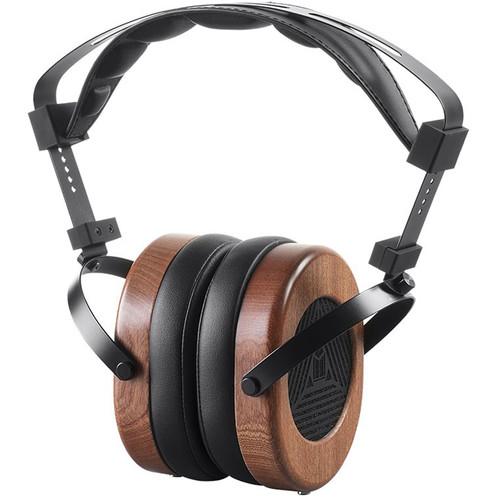

Product description The Monoprice Monolith M565 are open-back planar magnetic headphones designed for professional audio engineers and audiophiles. By leveraging advanced magnetic planar technology, the M565 provide a highly detailed aural landscape with remarkable imaging, low distortion, and precise bass. The 66mm planar drivers can deliver a frequency response of 10 Hz to 45 kHz, while the open-back design affords a holographic listening experience. Designed for comfort in long listening sessions, the headphones feature large, faux leather earpads and a padded headband. The Monoprice Monolith M565 include a detachable braided cable and a carrying case. - Planar Drivers
-
- The planar magnetic driver is a flat membrane that is surrounded by magnets. When current is delivered, the membrane produces sound that has low distortion, accurate bass, and pinpoint imaging
- Open Back
-
- Open-back headphones provide a holographic listening experience
- Comfort
-
- Large, comfy earpads made of faux leather and a padded headband are designed to keep you comfortable during extended listening sessions
UPC: 889028058701 In the Box Monoprice Monolith M565 Open-Back Planar Magnetic Headphones Detachable Braided Cable Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Monoprice Monolith M565 Open-Back Planar Magnetic Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMonoprice M565 Specs | | | Driver Size | 2.60" / 66 mm | | Driver Type | Planar | | Magnet Type | Neodymium | | Design | Over-Ear (Circumaural) | | Earcup Style | Open-Back | | | | Frequency Response | 10 Hz to 45 kHz | | Sensitivity | 102 dB at 1 kHz | | Impedance | 32 Ohms | | Maximum Sound Pressure Level (SPL) | 130 dB | | Maximum Power Handling | 10,000 mW | | Total Harmonic Distortion (THD) | 1% | | Foldable | No | | | | Audio Connector | 1/8" (3.5 mm) TRS Right-Angled | | Connector to Earpiece | 2 x 3/32" (2.5 mm) | | | | Design | Y-Type | | Detachable | Yes | | In-Line Remote/Microphone | None | | Cable Length | 6' / 1.83 m | | | | Package Weight | 2.49 lb | | Box Dimensions (LxWxH) | 11.05 x 10.55 x 4.7" |
