User Manual for Monoprice Select Mini 3D Printer V2 Click to enlarge the picture
Contents of the user manual for the Monoprice Select Mini 3D Printer V2
- Product category: 3D Printers Monoprice
- Brand: Monoprice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Monoprice 3D Printers
 |
User manual for the Monoprice Select Mini 3D Printer V2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Monoprice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Monoprice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Monoprice product will considerably shorten its lifespan!
|

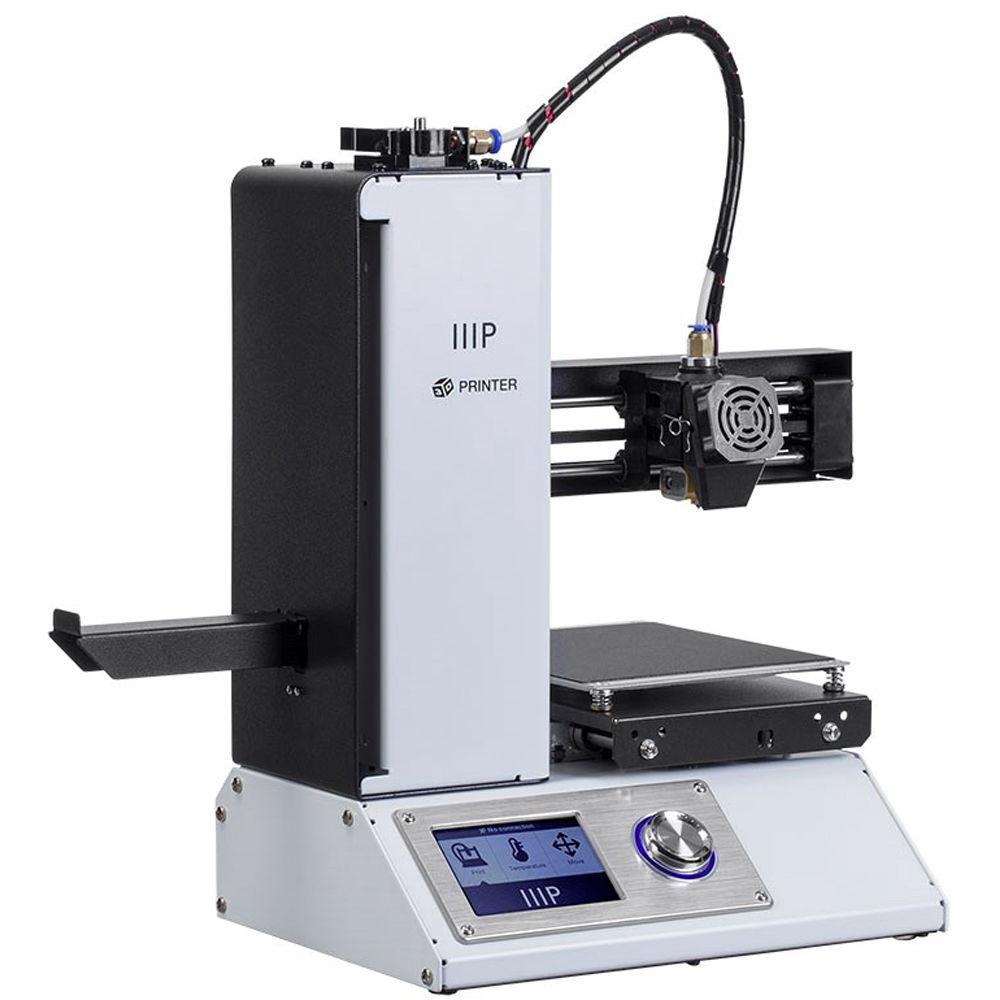

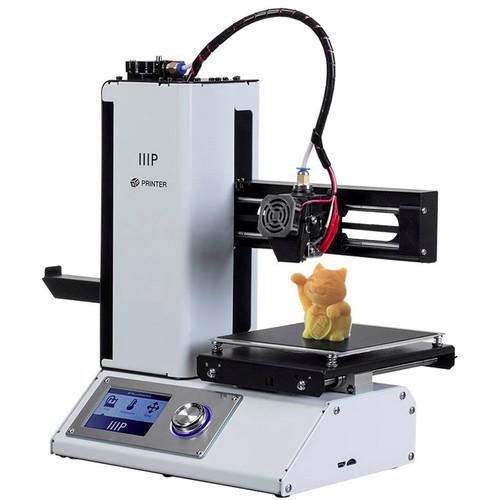

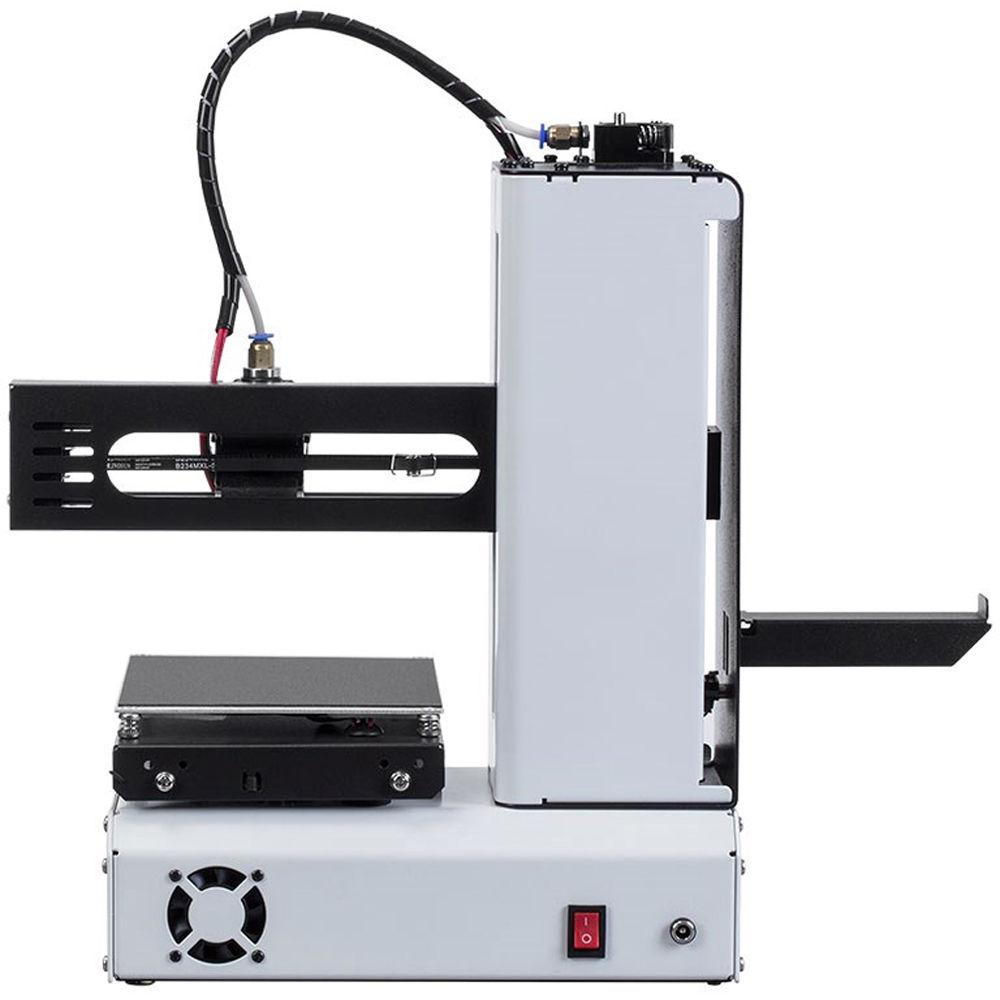

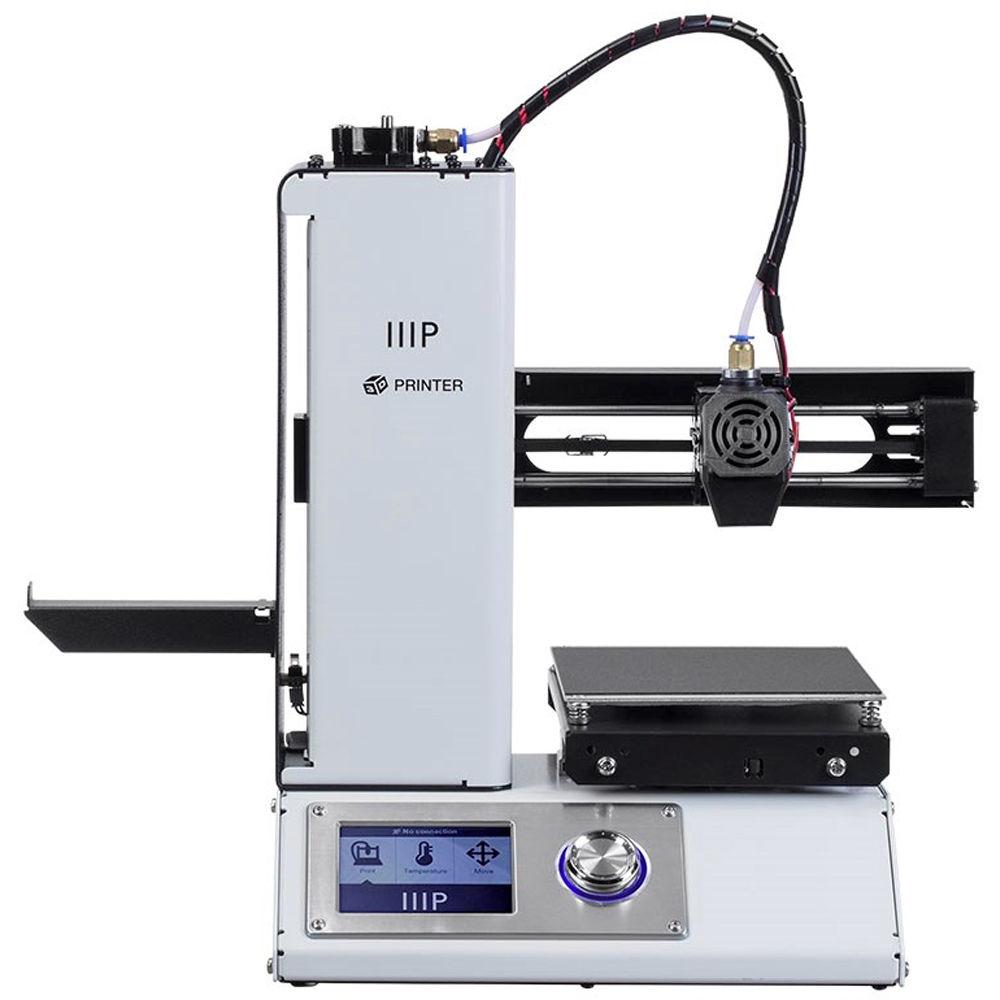

Product description With a build volume of 4.7 x 4.7 x 4.7", the white Monoprice Select Mini 3D Printer V2 features a layer resolution of 100 microns and is able to use ABS and PLA filaments. The printer also supports other filament materials, such as wood, copper fill, steel fill, and bronze fill. It is equipped with a single extruder nozzle, a heated print bed, and a 3.7" IPS color screen.You can print your compatible .stl and .obj formatted files through open-source and commercial software like Cura, Repetier, and Simplify 3D. Print via Wi-Fi, the included microSD card, or through the micro-USB port. This printer works with computers running Windows, Mac OS X, or Linux operating systems and comes almost fully assembled. Features - Fully assembled and factory calibrated so you can start printing right away
- Wi-Fi, microSD card, and USB connectivity
- Insulated and heated build plate
- Nozzle cooling fan and main board cooling fan
- Windows, Mac, and Linux compatible
- Compatible with Cura, Repetier, and other software

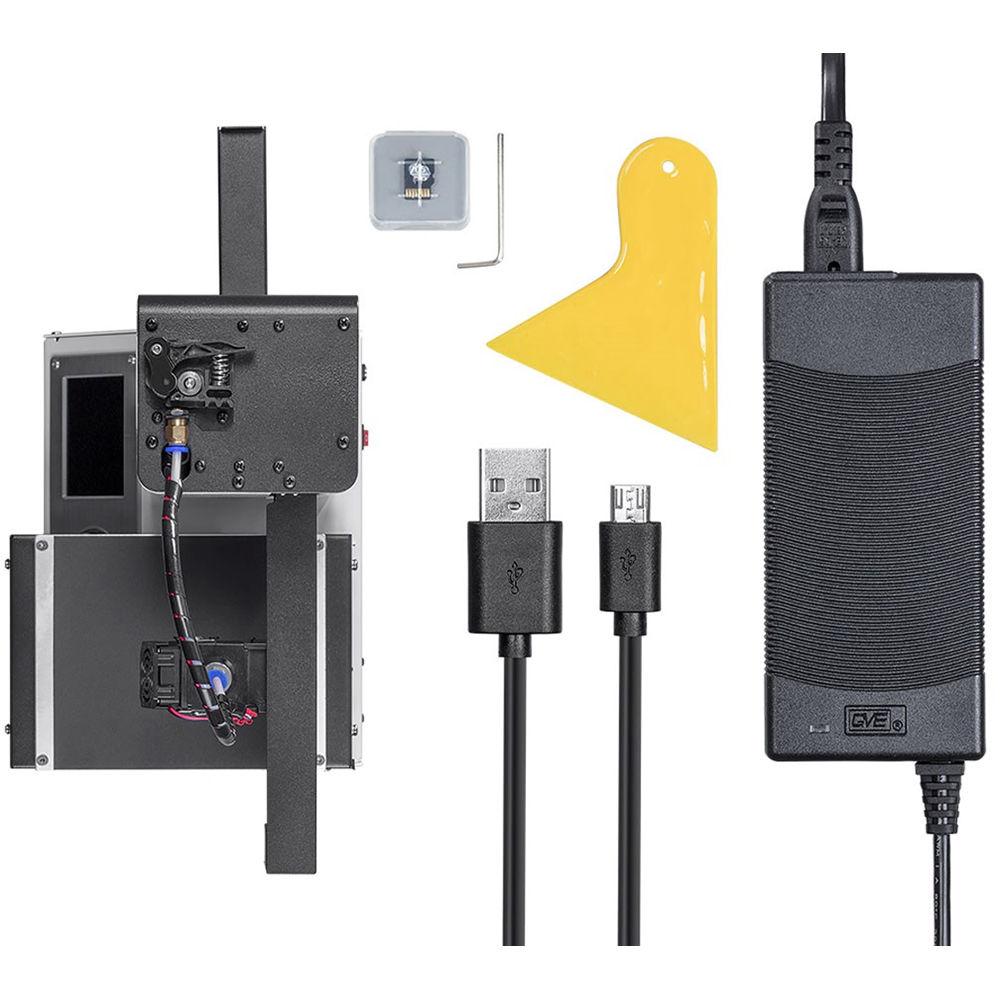

UPC: 889028034651 In the Box Monoprice Select Mini 3D Printer V2 (White) AC Power Adapter AC Power Cord Micro-USB Cable Filament Rack MicroSD Card Plastic Bed Scraper Bed Leveling Hex Wrench Sample PLA Filament Limited 1-Year Repair Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Monoprice Select Mini 3D Printer V2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMonoprice Select Mini 3D Printer V2 Specs | | | Print Technology | Fused Filament Fabrication (FFF), Marketed as Fused Deposition Modeling (FDM) | | Build Volume | 4.7 x 4.7 x 4.7" / 11.9 x 11.94 x 11.9 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 micron / 0.1 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 482°F / 250°C | | Print Speed | 55 mm/s | | Filament Compatibility | 1.75 mm Diameter:
ABS, PLA, PVA, Wood | | | | Build Plate Features | Manual Leveling, Heated | | Build Plate Temperature | 140°F / 60°C | | Build Plate Composition | Aluminum | | | | Wired Connections | 1 x USB Micro-B (USB 2.0) | | Wi-Fi | Yes | | Media Card Slots | 1 x microSDHC | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows 7
macOS X (Version Unspecified) | | Supported 3D File Types | .obj, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions (W x H x D) | 11.3 x 13.5 x 7.5" / 287.02 x 342.9 x 190.5 mm | | Weight | 9.9 lb / 4.5 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 14.4 lb | | Box Dimensions (LxWxH) | 17.0 x 14.0 x 10.5" |
