MOOER Micro Series Lofi Machine Bit

Search your instruction manual in PDF to download

User Manual for MOOER Micro Series Lofi Machine Bit Crusher Effect Pedal

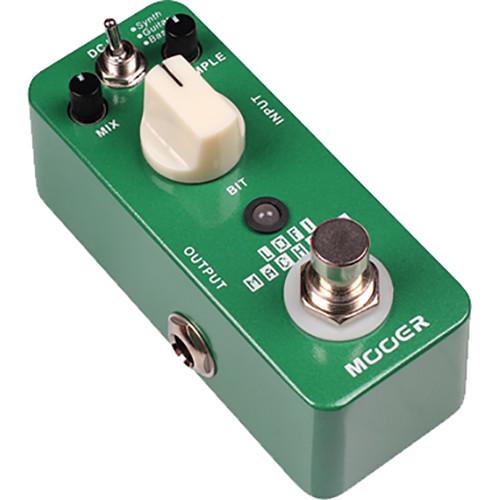

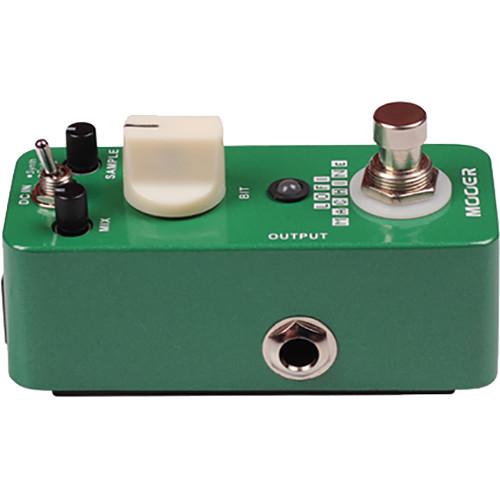

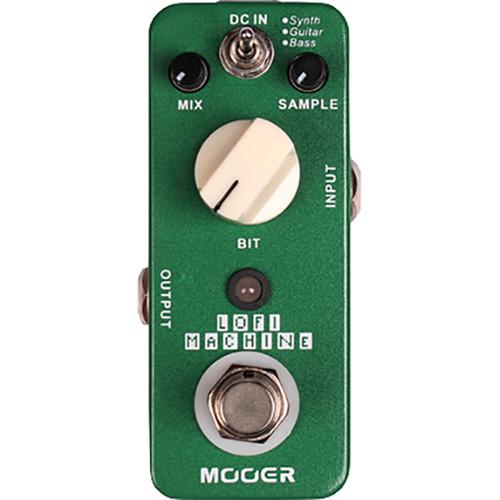

Click to enlarge the picture
MOOER Micro Series Lofi Machine Bit Crusher Effect Pedal Contents of the user manual for the MOOER Micro Series Lofi Machine Bit
  • Product category: Effects Pedals MOOER
  • Brand: MOOER
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for MOOER Effects Pedals

MOOER Micro Series Lofi Machine Bit Crusher Effect Pedal MOOER Micro Series Lofi Machine Bit Crusher Effect Pedal
User manual for the MOOER Micro Series Lofi Machine Bit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any MOOER product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official MOOER user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a MOOER product will considerably shorten its lifespan!



Product description

The Lofi Machine from Mooer is a Micro Series pedal for creating lo-fi, crunchy, digitized glitch effects with modes specially designed for guitar, bass, and synth/keyboard.The top-mounted toggle switches between Synth, Guitar, and Bass modes. Controls are provided for bit depth (Bit), sample rate (Sample), and dry/wet blend (Mix). The Bit control allows the bit depth to be set as high as 16-bit or as low as 5-bit. The Sample knob controls the sample rate, from 60 to 31,250 Hz. The Mix control adjusts the blend of dry and wet signal. As with all Mooer Micro Series pedals, the Lofi Machine is compact, features true bypass switching, and has an on/off LED indicator. It is powered by a 9 VDC power supply (available separately).
    • Use the mode selector to optimize the effect for guitar, bass, or synthesizer/keyboard
    • Set the Bit control to 16-bit for normal quality or as low as 5-bit for reduced dynamic range and increased noise
    • Set the Sample control to 31,250 Hz for minimal effect or as low as 60 Hz for extreme frequency-range reduction
    • Use the Mix knob to adjust the balance of dry and wet signal
In the Box MOOER Micro Series Lofi Machine Bit Crusher Effect Pedal
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the MOOER Micro Series Lofi Machine Bit Crusher Effect Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    MOOER MSE1-U Specs

    Pedal Type Lo-Fi
    Controls 3 x knobs: Bit, Sample, and Mix
    1 x toggle: Synth/Guitar/Bass
    1 x switch: bypass
    I/O Input: 1/4" mono
    Output: 1/4" mono
    Impedance 470 kOhms (input)
    100 Ohms (output)
    Construction Full metal shell
    Power Requirements 9 VDC power supply (Mooer Micro Power recommended)
    Current Draw 128 mA
    Dimensions (W × H × D) 1.7 x 2.0 x 3.7" / 42.0 x 52.0 x 93.5 mm
    Weight 5.6 oz / 160.0 g
