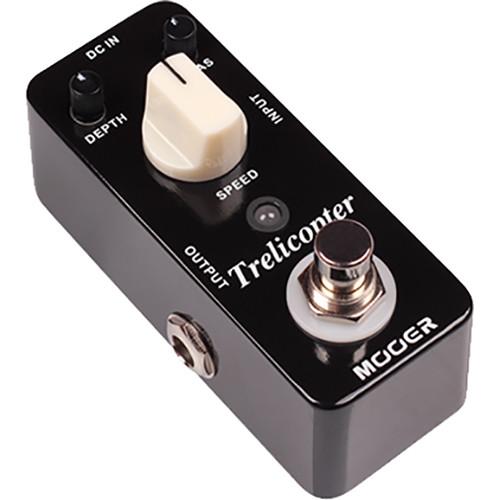

User Manual for MOOER Micro Series Trelicopter Optical Tremolo Pedal Click to enlarge the picture
Contents of the user manual for the MOOER Micro Series Trelicopter Optical Tremolo
- Product category: Effects Pedals MOOER
- Brand: MOOER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOOER Effects Pedals
 |
User manual for the MOOER Micro Series Trelicopter Optical Tremolo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOOER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOOER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOOER product will considerably shorten its lifespan!
|

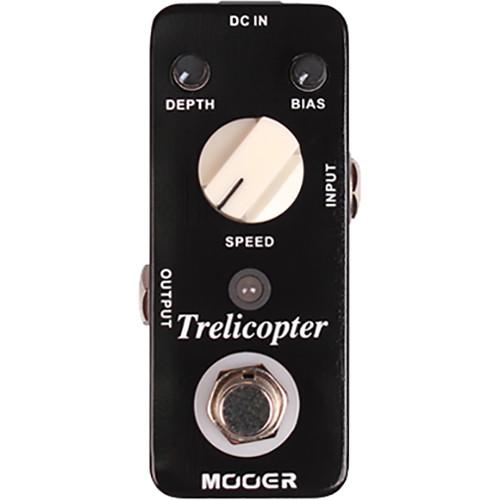

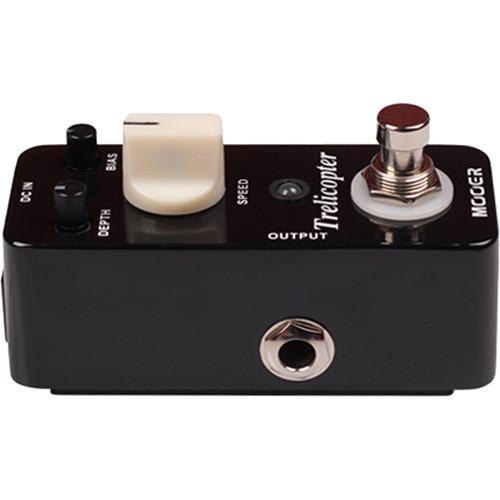

Product description The Trelicopter from Mooer is a Micro Series tremolo pedal designed for guitarists seeking classic optical tremolo effects, which produce cyclical changes in volume. Optical tremolo provides an asymmetrical tremolo wave shape, similar to the tremolo found in certain 1960s "Blackface" amplifiers. Controls are provided for tremolo volume (Depth), tremolo speed (Speed), and tremolo smoothness (Bias). Turned toward the left, the Depth control will yield subtle volume changes, while turning the knob to the right will result in more extreme volume changes. The Speed control sets how quickly the cyclical volume changes occur. The Bias control adjusts how smoothly the cyclical volume changes occur, from triangle wave shape to square wave shape. As with all Mooer Micro Series pedals, the Trelicopter is compact, features true bypass switching, and has an on/off LED indicator. It is powered by a 9 VDC power supply (available separately). -
- Classic optical tremolo
- Adjust the tremolo volume range via the Depth control
- Vary the Speed control to set the rate of the tremolo cycle
- Bias control allows the tremolo wave shape (smoothness) to be changed
- True bypass switch
In the Box MOOER Micro Series Trelicopter Optical Tremolo Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOOER Micro Series Trelicopter Optical Tremolo Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOOER MTR1-U Specs | Pedal Type | Tremolo | | Controls | 3 x knobs: Depth, Bias, and Speed
1 x switch: bypass | | I/O | Input: 1/4" mono
Output: 1/4" mono | | Impedance | 1 MOhm (input)
1 kOhm (output) | | Construction | Full metal shell | | Power Requirements | 9 VDC power supply (Mooer Micro Power recommended) | | Current Draw | 5 mA | | Dimensions (W × H × D) | 1.7 x 2.0 x 3.7" / 42.0 x 52.0 x 93.5 mm | | Weight | 5.6 oz / 160.0 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.2 x 2.3 x 1.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
