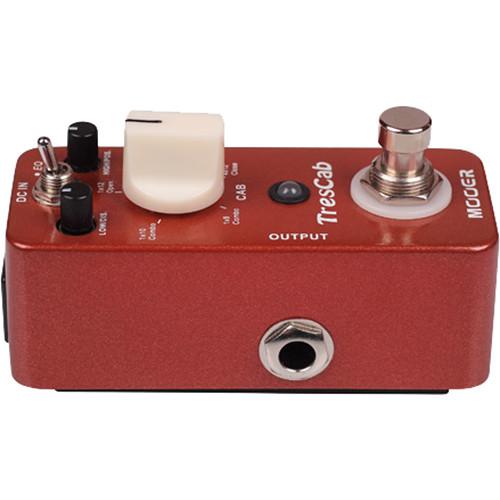

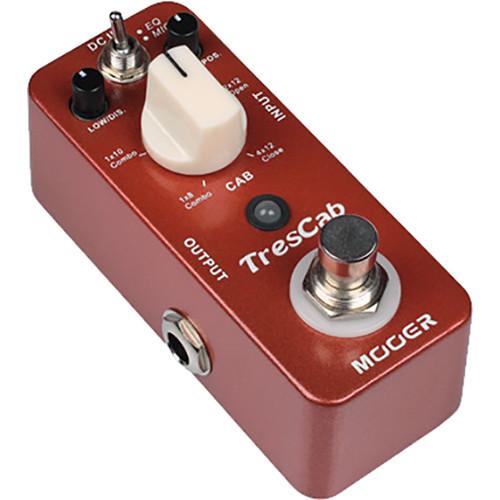

User Manual for MOOER Micro Series TresCab Speaker Cabinet Simulator Pedal Click to enlarge the picture
Contents of the user manual for the MOOER Micro Series TresCab Speaker Cabinet
- Product category: Effects Pedals MOOER
- Brand: MOOER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOOER Effects Pedals
 |
User manual for the MOOER Micro Series TresCab Speaker Cabinet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOOER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOOER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOOER product will considerably shorten its lifespan!
|

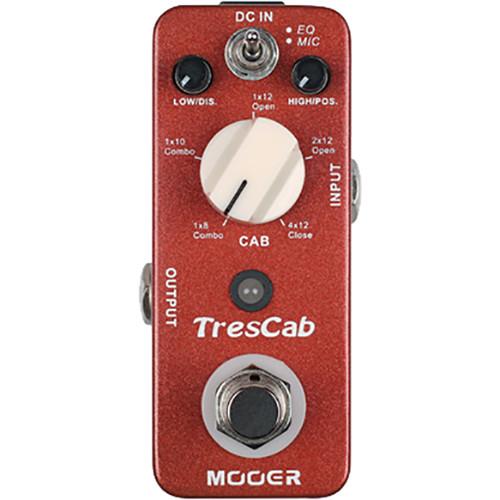

Product description The TresCab from Mooer is a Micro Series speaker cabinet simulator pedal designed for guitarists seeking flexible simulation of guitar speaker cabinets and microphone positioning.The Cab control selects among five speaker cabinet types. There are two combos (1x8 and 1x10) and three cabs (1x12 Open, 2x12 Open, and 4x12 Close). The functionality of the small, black knobs (Low/Dis and High/Pos) can be set via the top-mounted toggle switch. In EQ mode, they function as tone controls. In Mic mode, they adjust the placement of the simulated microphone. As with all Mooer Micro Series pedals, the TresCab is compact, features true bypass switching, and has an on/off LED indicator. It is powered by a 9 VDC power supply (available separately). -
- Use the Cab knob to select the speaker cabinet configuration (1x8 Combo, 1x10 Combo, 1x12 Open, 2x12 Open, or 4x12 Close)
- Use the toggle to set the mode to EQ or Mic
- In EQ mode, use the Low/Dis and High/Pos knobs to adjust the high and low frequencies
- In Mic mode, use the Low/Dis control to set the distance between the simulated microphone and cabinet
- In Mic mode, use the High/Pos control to adjust center/off-center position between the microphone and cabinet
In the Box MOOER Micro Series TresCab Speaker Cabinet Simulator Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOOER Micro Series TresCab Speaker Cabinet Simulator Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOOER MTC1-U Specs | Pedal Type | Speaker cabinet simulator | | Controls | 3 x knobs: Cab, Low/Dis, and High/Pos
1 x toggle: EQ/Mic
1 x switch: bypass | | I/O | Input: 1/4" mono
Output: 1/4" mono | | Impedance | 470 kOhms (input)
100 Ohms (output) | | Construction | Full metal shell | | Power Requirements | 9 VDC power supply (Mooer Micro Power recommended) | | Current Draw | 128 mA | | Dimensions (W × H × D) | 1.7 x 2.0 x 3.7" / 42.0 x 52.0 x 93.5 mm | | Weight | 5.3 oz / 150.0 g |
