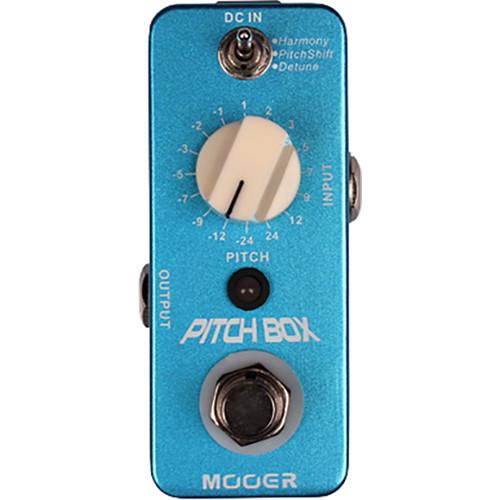

User Manual for MOOER Pitch Box Harmony and Pitch Shift Pedal Click to enlarge the picture
Contents of the user manual for the MOOER Pitch Box Harmony and Pitch
- Product category: Effects Pedals MOOER
- Brand: MOOER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOOER Effects Pedals
 |
User manual for the MOOER Pitch Box Harmony and Pitch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOOER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOOER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOOER product will considerably shorten its lifespan!
|

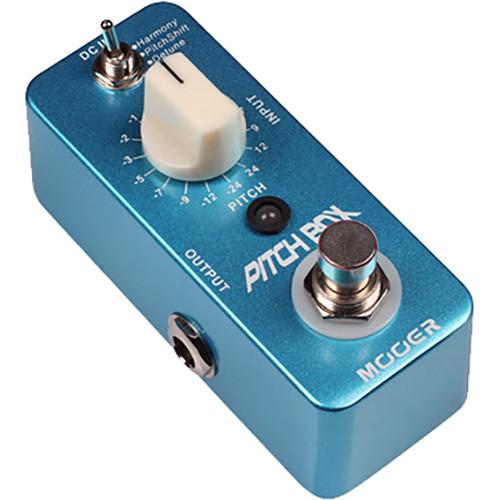

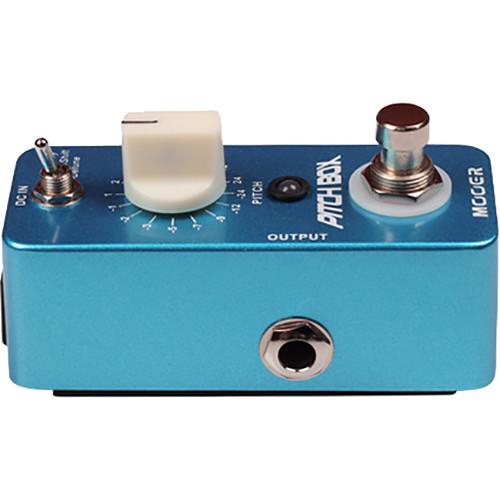

Product description Inside the Pitch Box Pedal from MOOER you'll find three different pitch shifting options to increase your tonal versatility. Harmony mode outputs both your dry signal and the pitch shifted signal simultaneously. The Pitch Shift mode outputs the shifted signal only. Lastly, the Detune mode outputs a slightly pitch shifted tone (measured in cents) for a chorusing effect. Each mode can be adjusted by the Pitch knob. In Harmony and Pitch Shift modes, the Pitch knob determines how many semitones the pedal shifts the reference pitch. In Detune mode the Pitch control offers granular adjustment of the pitch shifted sound. True bypass switching takes the pedal's circuit completely out of your signal chain to ensure that your signal passes through unmodified while the pedal is disengaged. In the Box MOOER Pitch Box Harmony and Pitch Shift Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOOER Pitch Box Harmony and Pitch Shift Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOOER MPS1-U Specs | Input | 1 x 1/4" instrument TS
Impedance: 470 kOhms | | Output | 1 x 1/4" instrument TS
Impedance: 100 Ohms | | Power Supply | 9 VDC (center negative) via separately available DC power supply | | Current Draw | 128 mA | | Dimensions | 3.6 x 1.7 x 2" / 93.5 x 42 x 52 mm | | Weight | 6 oz / 170 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
