User Manual for MOOER Twin Series Reverie Chorus Digital Chorus Pedal Click to enlarge the picture
Contents of the user manual for the MOOER Twin Series Reverie Chorus Digital
- Product category: Effects Pedals MOOER
- Brand: MOOER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOOER Effects Pedals
 |
User manual for the MOOER Twin Series Reverie Chorus Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOOER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOOER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOOER product will considerably shorten its lifespan!
|

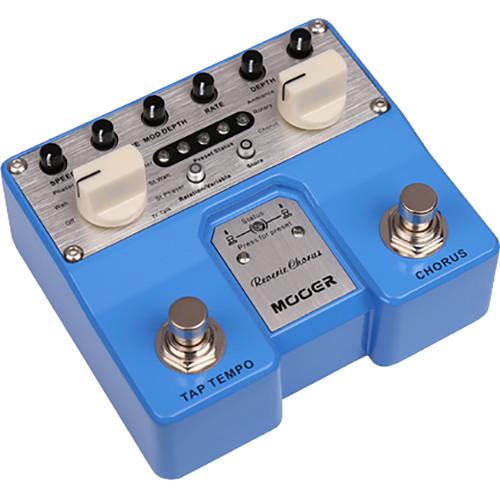

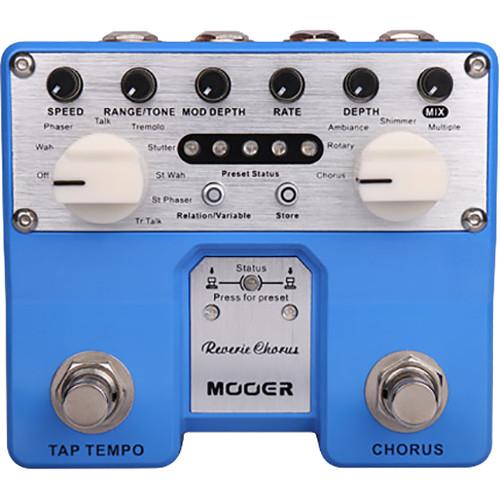

Product description The Reverie Chorus from Mooer is a Twin Series digital chorus pedal designed to provide a varied palette of chorus and modulation effects in mono or stereo for guitarists and keyboardists.Any of the five chorus types can be used alone or with any of the eight modulation effects, yielding 45 possible effect selections. To adjust the effects settings, seven parameter controls are provided (three for the selected chorus effect and four for the selected modulation effect). Effects can be kept in time with the music courtesy of the tap-tempo switch. Up to five presets can be saved and recalled for fast access to favorite tones. As with all Mooer Twin Series pedals, the Reverie Chorus utilizes a floating-point DSP chip to enable 32-bit / 44.1 kHz resolution without loss of tone. The Reverie Chorus features a solid metal enclosure, and is powered by a 9 VDC power supply (not included). - Five Chorus Types
-
- Chorus: Standard digital chorus effect
- Rotary: Spinning speaker effect
- Ambiance: Light, spacious chorus effect
- Shimmer: Chorus with pitched-up effect
- Multiple: Repeatedly overlays chorus effect
- Eight Modulation Effects
-
- Wah: Wah effect
- Phaser: Traditional phaser effect
- Talk: Vocal auto-wah effect
- Tremolo: Classic tremolo effect
- Stutter: Square-wave shape tremolo effect
- St. Wah: Stutter tremolo and wah effect
- St. Phaser: Stutter tremolo and phaser effect
- Tr. Talk: Classic tremolo and vocal wah effect
- Three Parameter Controls for Chorus Effect
-
- Rate: Speed of the selected chorus effect
- Depth: Amount of pitch variation for selected modulation effect
- Mix: Dry/wet blend
- Four Parameter Controls for Modulation Effect
-
- Speed: Speed of the selected modulation effect
- Range/Tone: Maximum allowed range value for selected modulation effect (Range functions as a tone control for Tremolo and Stutter effects if the Tap Tempo switch is held down)
- Mod Depth: Amount of pitch variation for selected modulation effect
- Relation/Variable: Push to change speed ratio (rhythmic pattern) of the selected modulation effect
- Additional Features
-

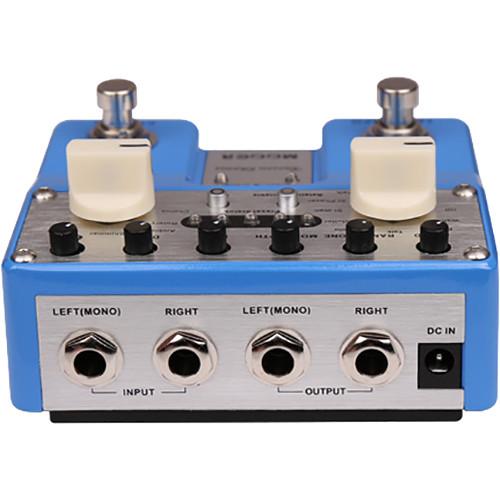

- Two 1/4" inputs and two 1/4" outputs for mono or stereo use
- Floating-point DSP chip ensures no loss of tone
- Tap tempo footswitch
- Bypass footswitch
- Save and load up to five presets for quick access to favorite configurations
- Solid metal enclosure
In the Box MOOER Twin Series Reverie Chorus Digital Chorus Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOOER Twin Series Reverie Chorus Digital Chorus Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOOER TCH1-U Specs | Pedal Type | Chorus | | I/O | Input: 2 x 1/4" mono
Output: 2 x 1/4" mono | | Impedance | 1 MOhm (input)
100 Ohms (output) | | Sample Rate | 44.1 kHz | | Bit Depth | 32-bit | | Power Requirements | 9 VDC power supply (Mooer Micro Power recommended) | | Current Draw | 130 mA | | Enclosure Material | Solid metal | | Dimensions (W × H × D) | 3.8 x 2.1 x 4.2" / 96.0 x 53.0 x 106.0 mm | | Weight | 15.9 oz / 450.0 g |
