User Manual for MOOER Twin Series Reverie Reverb Digital Reverb Pedal Click to enlarge the picture
Contents of the user manual for the MOOER Twin Series Reverie Reverb Digital
- Product category: Effects Pedals MOOER
- Brand: MOOER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOOER Effects Pedals
 |
User manual for the MOOER Twin Series Reverie Reverb Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOOER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOOER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOOER product will considerably shorten its lifespan!
|

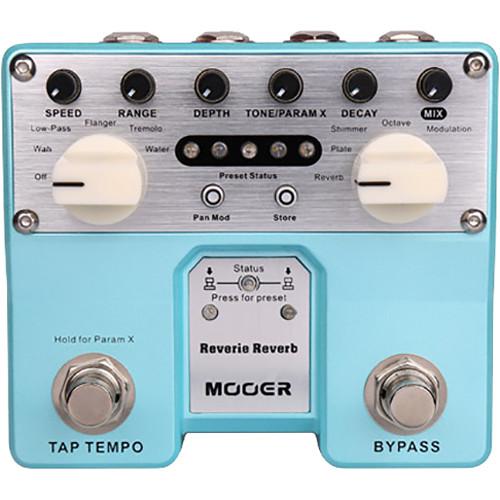

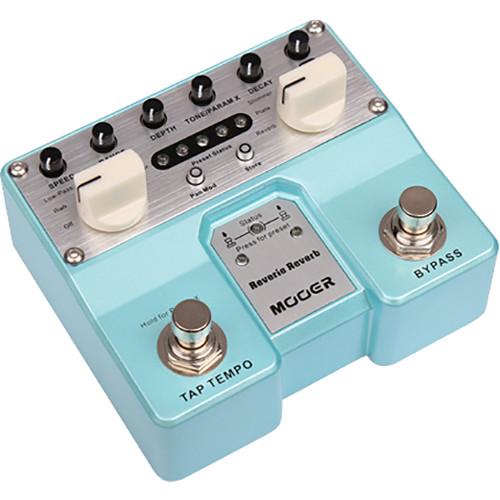

Product description The Reverie Reverb from Mooer is a Twin Series digital reverb pedal designed to provide a variety of reverb and modulation effects in mono or stereo for guitarists and keyboardists.Any of the five reverb types can be used alone or with any of the five modulation effects, yielding 30 possible effect selections. To adjust the effects settings, seven parameter controls are provided (three for the selected reverb effect and four for the selected modulation effect). Effects can be kept in time with the music courtesy of the tap-tempo switch. Up to five presets can be saved and recalled for fast access to favorite tones. As with all Mooer Twin Series pedals, the Reverie Reverb utilizes a floating-point DSP chip to enable 32-bit / 44.1 kHz resolution without loss of tone. The Reverie Reverb features a solid metal enclosure and is powered by a 9 VDC power supply (not included). - Five Reverb Types
-
- Reverb: Traditional room or hall reverb
- Plate: Simulation of plate reverb
- Shimmer: Reverb with pitched-up effect
- Octave: Reverb with pitch shifted down one octave
- Modulation: Reverb with cyclical pitch variations
- Five Modulation Effects
-
- Wah: Wah effect
- Low-Pass: Low-pass filter sweep
- Flanger: Traditional flanger effect
- Tremolo: Classic tremolo effect
- Water: Phaser effect
- Three Parameter Controls for Reverb Effect
-
- Tone/Param X: Frequency control for the reverb effect (Tone control adjusts the intensity of the Shimmer and Octave effects if the Tap Tempo switch is held down)
- Decay: Decay time of the reverb
- Mix: Dry/wet blend
- Four Parameter Controls for Modulation Effect
-
- Speed: Speed of the selected modulation effect
- Range: Maximum allowed range value for selected modulation effect
- Depth: Amount of pitch variation for selected modulation effect
- Pan Mod: Push to widen the stereo image when using the pedal in stereo
- Additional Features
-

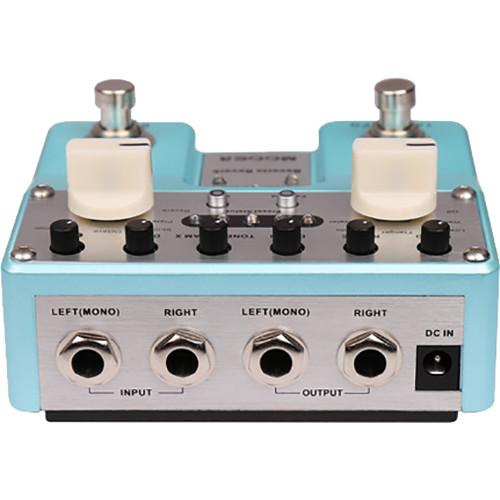

- Two 1/4" inputs and two 1/4" outputs for mono or stereo use
- Floating-point DSP chip ensures no loss of tone
- Tap-tempo footswitch
- Bypass footswitch
- Save and load up to five presets for quick access to favorite configurations
- Solid metal enclosure
In the Box MOOER Twin Series Reverie Reverb Digital Reverb Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOOER Twin Series Reverie Reverb Digital Reverb Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOOER TRV2-U Specs | Pedal Type | Reverb | | I/O | Input: 2 x 1/4" mono
Output: 2 x 1/4" mono | | Impedance | 1 MOhm (input)
100 Ohms (output) | | Sample Rate | 44.1 kHz | | Bit Depth | 32-bit | | Power Requirements | 9 VDC power supply (Mooer Micro Power recommended) | | Current Draw | 130 mA | | Enclosure Material | Solid metal | | Dimensions (W × H × D) | 3.8 x 2.1 x 4.2" / 96.0 x 53.0 x 106.0 mm | | Weight | 15.9 oz / 450.0 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
