User Manual for MOOER Twin Series ShimVerb Pro Digital Reverb Pedal Click to enlarge the picture
Contents of the user manual for the MOOER Twin Series ShimVerb Pro Digital
- Product category: Effects Pedals MOOER
- Brand: MOOER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOOER Effects Pedals
 |
User manual for the MOOER Twin Series ShimVerb Pro Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOOER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOOER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOOER product will considerably shorten its lifespan!
|

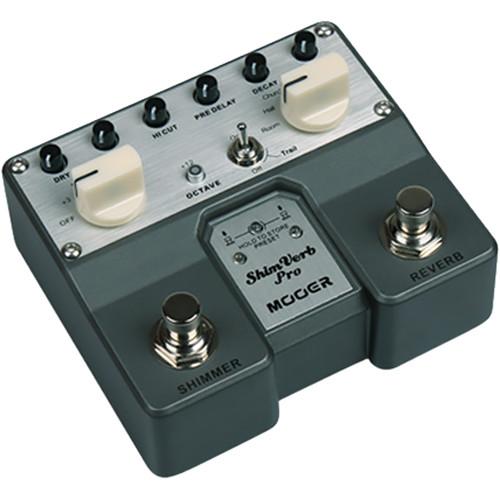

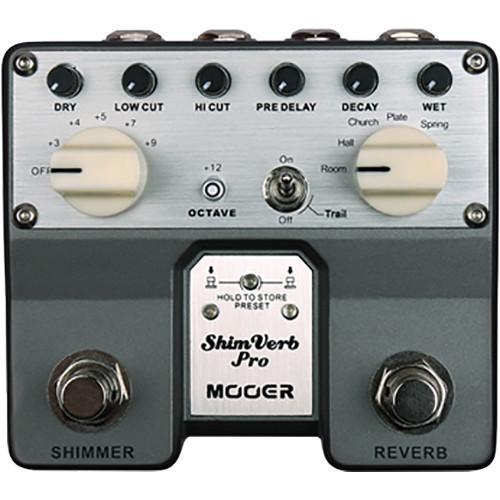

Product description The ShimVerb Pro from Mooer is a Twin Series digital reverb pedal designed to provide a varied palette of reverb and pitch effects in mono or stereo for guitarists and keyboardists.Any of the five reverb types can be used alone or with any of the 11 shimmer settings, yielding 60 possible effect selections. To adjust the reverb settings, six parameter controls are provided. One preset can be saved and recalled for fast access to a favorite configuration. The Trail toggle selects the bypass mode. With Trail mode on, the ShimVerb utilizes a buffered bypass, allowing the reverb to decay naturally when it is bypassed. With Trail mode off, the ShimVerb uses a true bypass, cutting the reverb signal when it is bypassed.As with all Mooer Twin Series pedals, the ShimVerb Pro utilizes a floating-point DSP chip to enable 32-bit / 44.1 kHz resolution without loss of tone. The ShimVerb Pro features a solid-metal enclosure, and is powered by a 9 VDC power supply (not included). - Five Reverb Types
-
- Room: Traditional room reverb
- Hall: Concert hall reverb
- Church: Church hall reverb
- Plate: Simulation of plate reverb, which produces a bright, metallic sound
- Spring: Reverb similar to that produced by a vibrating spring
- 11 Shimmer Settings
-
- Off: No Shimmer effect
- +3: Increases the pitch 3 semi-tones
- +4: Increases the pitch 4 semi-tones
- +5: Increases the pitch 5 semi-tones
- +7: Increases the pitch 7 semi-tones
- +9: Increases the pitch 9 semi-tones
- Octave switch: Raises the pitch of the current Shimmer setting by one octave
- Parameter Controls
-
- Low Cut: Amount of low frequency in reverb
- Hi Cut: Amount of high frequency in reverb
- Pre-Delay: Amount of delay before reverb
- Decay: Decay time of reverb
- Dry: Level of dry signal (the Dry knob will adjust the volume of the Shimmer effect while the Shimmer footswitch is held down)
- Wet: Level of wet (applied effect) signal
- Additional Features
-

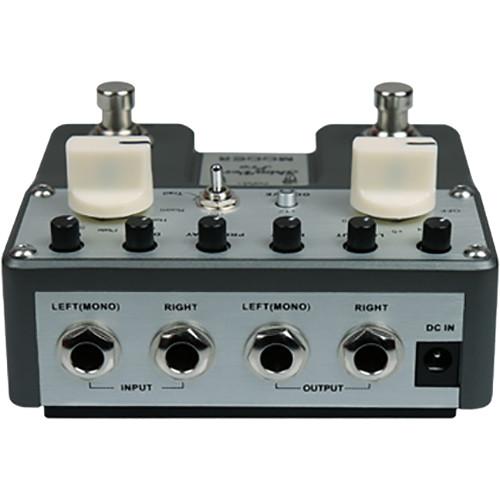

- Two 1/4" inputs and two 1/4" outputs for mono or stereo use
- Floating-point DSP chip ensures no loss of tone
- Separate bypass footswitches for Shimmer and Reverb effects
- Selectable bypass mode (true bypass or buffered bypass)
- Save and load one preset for quick access to a favorite configuration
- Solid metal enclosure
In the Box MOOER Twin Series ShimVerb Pro Digital Reverb Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOOER Twin Series ShimVerb Pro Digital Reverb Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOOER TVR1-U Specs | Pedal Type | Reverb | | I/O | Input: 2 x 1/4" mono
Output: 2 x 1/4" mono | | Impedance | 1 MOhm (input)
100 Ohms (output) | | Sample Rate | 44.1 kHz | | Bit Depth | 32-bit | | Power Requirements | 9 VDC power supply (Mooer Micro Power recommended) | | Current Draw | 210 mA | | Enclosure Material | Solid metal | | Dimensions (W × H × D) | 3.8 x 2.1 x 4.2" / 96.0 x 53.0 x 106.0 mm | | Weight | 15.5 oz / 440.0 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
