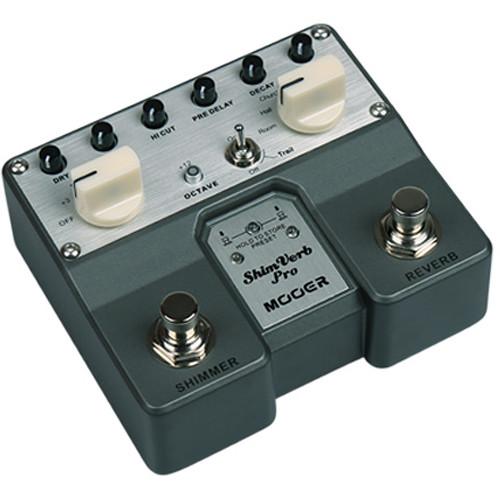

User Manual for MOOER Twin Series ShimVerb Pro Digital Reverb Pedal

Click to enlarge the picture
MOOER Twin Series ShimVerb Pro Digital Reverb Pedal Contents of the user manual for the MOOER Twin Series ShimVerb Pro Digital
  • Product category: Effects Pedals MOOER
  • Brand: MOOER
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for MOOER Effects Pedals

MOOER Twin Series ShimVerb Pro Digital Reverb Pedal MOOER Twin Series ShimVerb Pro Digital Reverb Pedal
User manual for the MOOER Twin Series ShimVerb Pro Digital contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any MOOER product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official MOOER user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a MOOER product will considerably shorten its lifespan!



Product description

The Twin Series ShimVerb Pro from Mooer is a powerful reverb and shimmer effects pedal with five reverb algorithms and five shimmer modes. The ShimVerb Pro uses floating-point DSP chips to ensure there is no tone loss. The pedal is capable of generating classic room, electro-mechanical plate, and spring reverbs to multi-octave pitch shifting sounds.

The pedal features dedicated controls for Dry, Wet, Hi Cut, Low Cut, Pre-Delay, and Decay. The two large knobs offer selections for five reverb types and five shimmer modes. A dedicated button engages an additional octave to the shimmer effect, while a switch controls the trail on/off function, which also toggles between true bypass and buffered bypass modes. Furthermore, the pedal features a save and recall function for one favorite reverb and shimmer setting. The ShimVerb Pro pedal is powered by a 9 VDC power supply (available separately).
    • High performance floating-point DSP chip ensures no tone loss
    • Five reverb effects
      • Room: Produces the reverb found in a room. The size of the room can be adjusted with different decay settings
      • Hall: Simulates the reverb that occurs in a concert hall. It's especially effective for adding dimension and depth to a sound
      • Church: Deep reverb sounds with dark decay
      • Plate: Creates the reverberations obtained from a metal plate vibrating, produces a bright metallic sound
      • Spring: Similar to plate reverb, but is obtained from a vibrating spring resulting in a twangy sound
    • Five Shimmer Effects: Restack multi-octave effect
      • Achieves +3, +4, +5, +7, +9 half-step modulation
      • Octave button adds another octave to half-step modulations
      • Adjustable shimmer volume
      • Dedicated shimmer on/off switch
    • Preset function stores one favorite reverb setting for instant recall
    • Twin switch design ensures easy tone switching during live performances
    • Stereo or mono operation
    • Pre-Delay knob adjusts the delay time of the reverb
    • Decay knob adjusts the decay of the reverb
    • Dry/Wet knob provides balance between unprocessed guitar and delay
    • Hi Cut and Low Cut: Control the high and low frequencies of the delay
    • 2-in/2-out connections
    • •Trail On/Off switch cuts the decay of the effect when the pedal is bypassed or allows the effect to fade away naturally. Also used for switching between true bypass or buffered bypass modes
In the Box MOOER Twin Series ShimVerb Pro Digital Reverb Pedal
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the MOOER Twin Series ShimVerb Pro Digital Reverb Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    MOOER ShimVerb Pro Specs

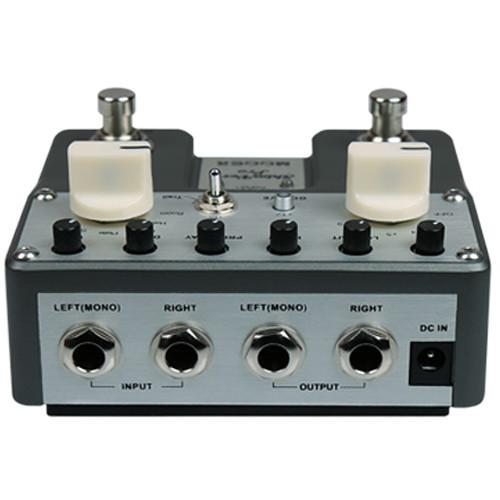

    Connections Inputs: 2x mono 1/4" / 6.35 mm
    Outputs: 2x mono 1/4" / 6.35 mm
    Impedance Input: 1 MOhms
    Output: 100 Ohms
    Sample Rate 44.1 kHz
    Bit Depth 32-bit
    Power Power Requirements: AC adapter 9 VDC (center negative plug)
    Current Draw: 210 mA
    Dimensions (W x D x H) 4.2 x 3.8 x 2.1" / 106.0 x 96.0 x 53.0 mm
    Weight 15.5 oz / 440.0 g
    Package Weight 1.05 lb
    Box Dimensions (LxWxH) 5.9 x 4.5 x 2.5"
