Product description The Etherwave Plus Field Upgrade from Moog allows you to upgrade your Etherwave Theremin to an Etherwave Plus by adding gate, pitch, and volume control voltage outputs along with a headphone output, headphone volume pot and knob, and power LED. By upgrading you will also be able to use the headphone output as a pitch preview out.

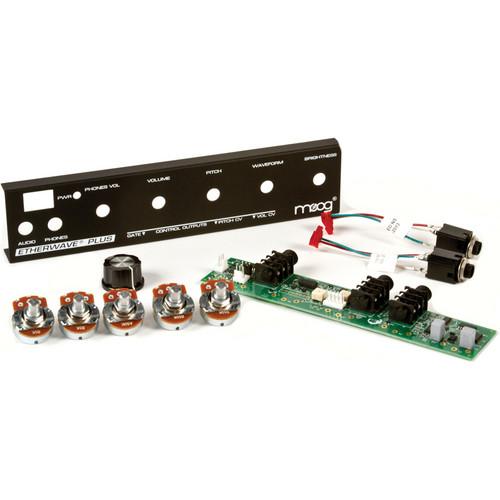

This upgrade includes an Etherwave Plus printed circuit board, a new front panel, a headphone volume pot, a headphone volume knob, a headphone jack, an on/off switch, LED indicator, and a drilling template for the bottom of your Etherwave Standard. Note: This kit requires drilling and soldering for installation. UPC: 094922449924 In the Box Moog Etherwave Plus Field Upgrade Etherwave Plus Printed Circuit Board 3 x 15mm Nylon Hex Nuts Etherwave Plus Front Panel 5-Wire Harness 2 x 50K Linear Taper Potentiometers (Labeled 50kb) with Hardware: Lockwasher, Washer, and Nut 2 x 5k Linear Taper Potentiometers (Labeled 5kb) with Hardware: Lockwasher, Washer, and Nut 50k Audio Taper Potentiometer (Labeled 50ka) with Hardware: Lockwasher, Washer, and Nut #6 Locking Terminal LED 2 x 1/4" TRS Jack Assemblies with Hardware: Lockwasher, Washer, and Nut Power Switch Knob Calibration Tool Limited 1-Year Warranty Table of Contents
|
