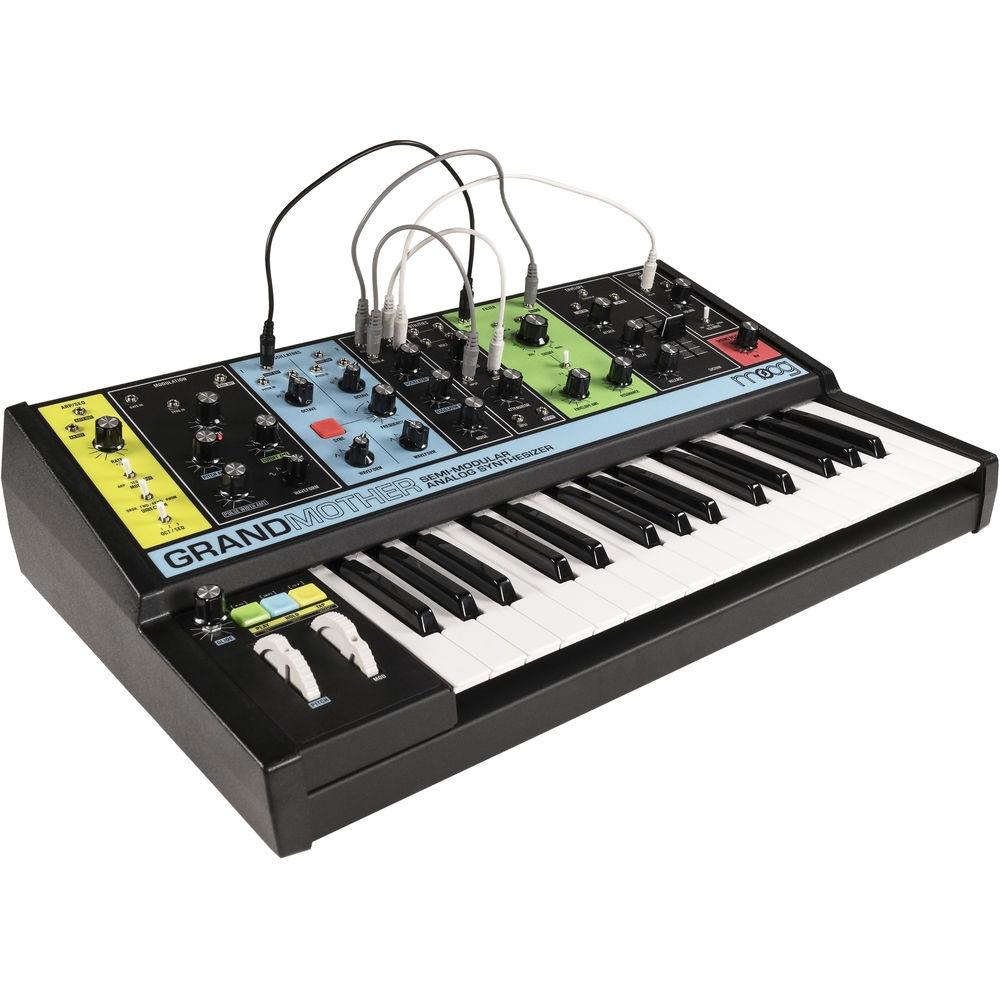

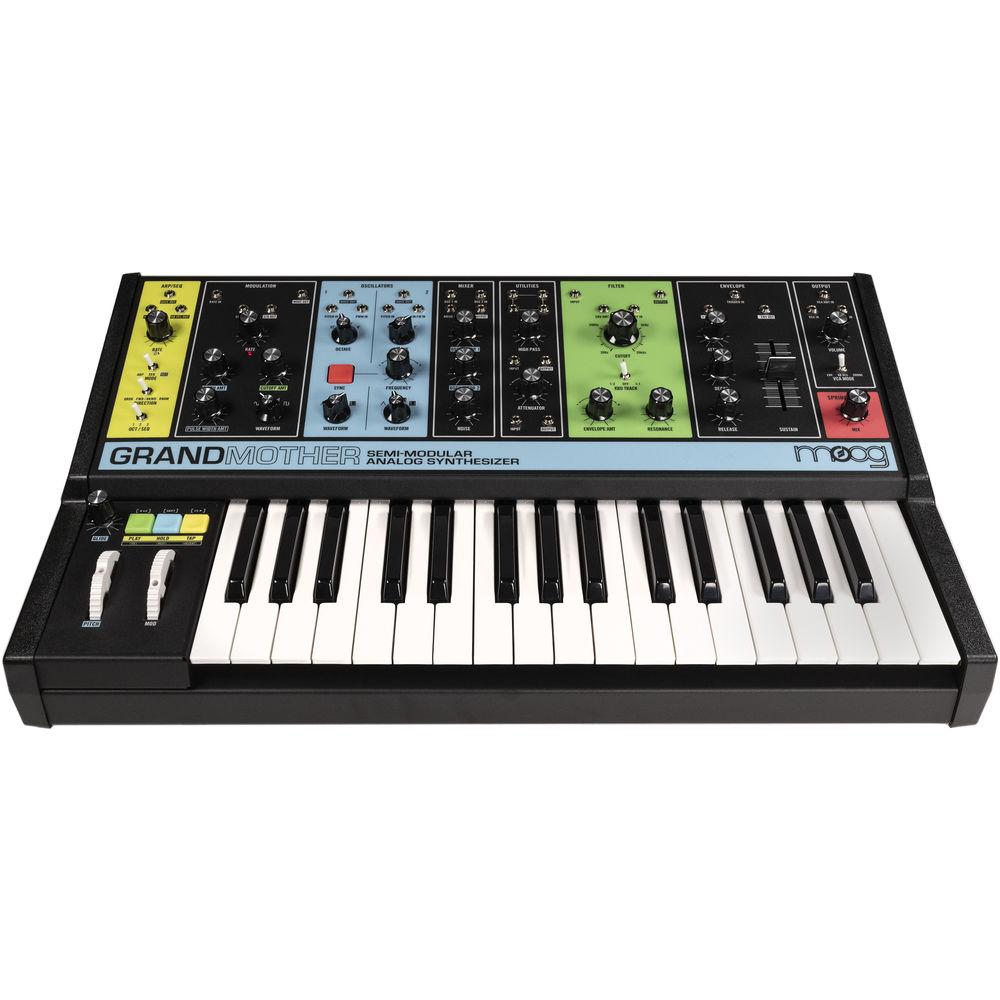

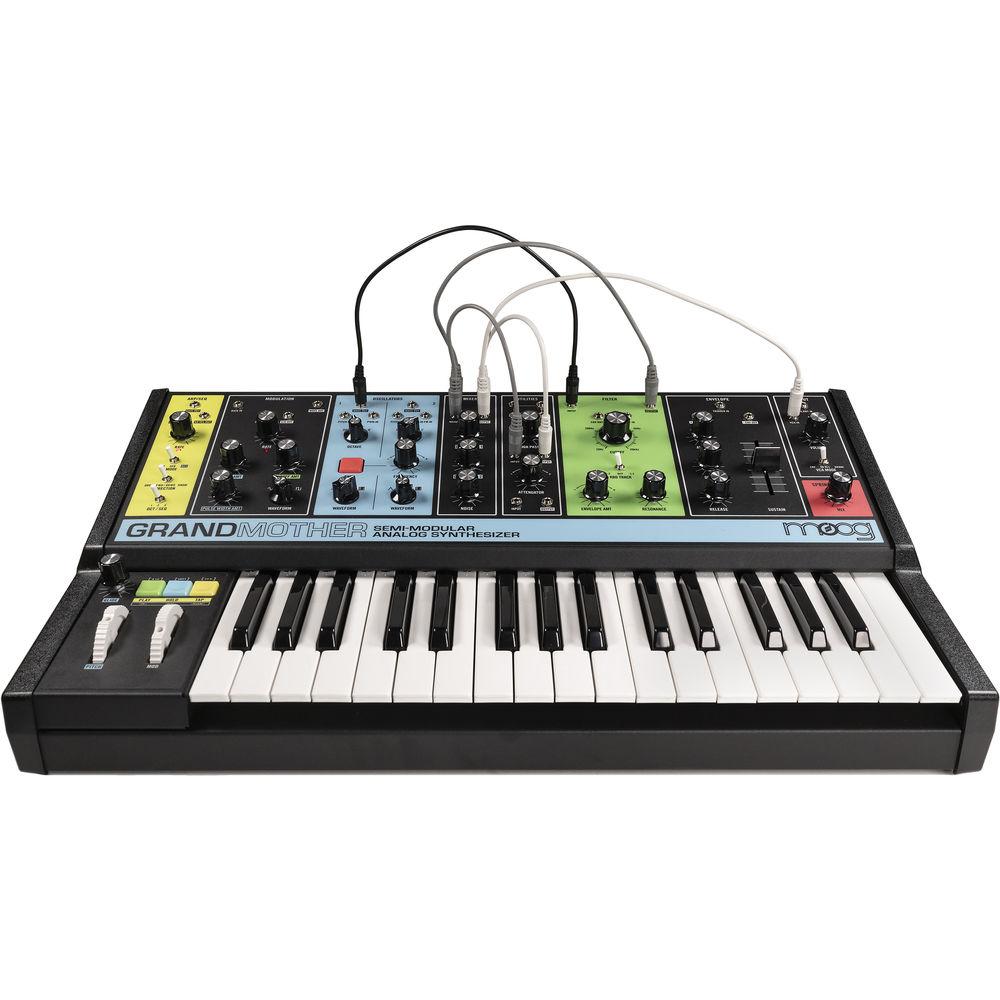

Product description The Moog Grandmother is a semi-modular analog synthesizer with a 32-note Fatar keyboard, an integrated sequencer/arpeggiator, a spring reverb, and 41 patch-points compatible with the Mother-32, DFAM, and other Eurorack modules. The semi-modular design is pre-wired internally for making sounds without patch cables and is fully controllable via MIDI.
Both oscillators offers selectable waveshapes and can be hard-synced, while the dedicated analog LFO features audio-rate capabilities. The classic 24 dB low-pass ladder filter provides a frequency range of 10 Hz to 20 kHz, while the patchable 1-pole high-pass filter offers additional harmonic shaping. Additionally, the Grandmother offers a standard ADSR envelope generator and is complemented by a built-in hardware spring reverb.

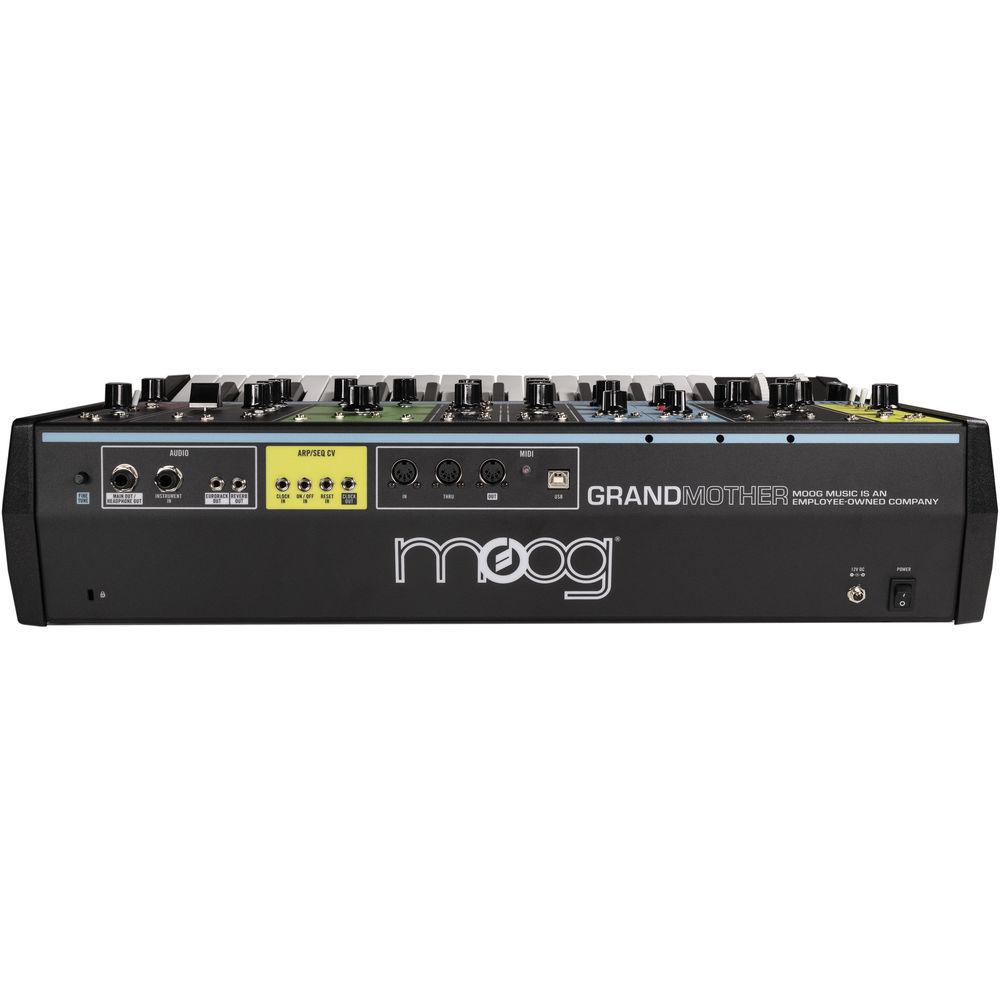

The on-board sequencer offers three memory slots and each sequence can retain up to 256 notes. Additional features include USB MIDI, MIDI in/out/thru via 5-pin DIN, a patchable bipolar attenuator, a patchable 4-way mult, and a 1/4" external input for processing guitars, drum machines and more. The Moog Grandmother ships with a power adapter. -
- Hardware spring reverb can be used to process external sounds
- 1/4" external audio input for guitars, drum machines, and more.
- Semi-Modular: No patching is required
- Easy to use arpeggiator and sequencer
- Store up to 3 sequences with up to 256 notes each
- Two analog oscillators with selectable waveshape and hard sync
- Classic 4-pole Ladder filter (10 Hz to 20 kHz)
- Patchable 1-pole high-pass filter
- Analog ADSR envelope generator
- Analog LFO with audio-rate capabilities
- 32-note Fatar keyboard with velocity
- All normalized connections can be interrupted for full modularity
- MIDI in/out/thru (5-pin DIN) and USB MIDI
- Patchable bipolar attenuator
- Works with Mother-32, DFAM, Eurorack modular systems, and more
- 41 patch points with 21 inputs, 16 outputs and a parallel-wired 4-jack mult
UPC: 040232613395 In the Box Moog Grandmother Semi-Modular Analog Synthesizer Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Moog Grandmother Semi-Modular Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMoog GRANDMOTHER Specs | Keyboard | 32-note Fatar keyboard with velocity | | Polyphony | Mono | | Multitimbral | Single | | Synthesis Method | Analog | | Components | Two analog oscillators with selectable waveshapes and hard sync
Classic 4-Pole Ladder Filter: 10 Hz to 20 kHz
Patchable 1-pole high-pass filter
Envelope Generator: ADSR
LFO with audio-rate capabilities
Patchable bipolar attenuator
Mult: 4-jack | | Patch Points | 41 Patch Points
Inputs: 21
Output: 16
Parallel-Wired Mult: 4-jack | | Effects | Spring reverb with integrated reverb tank | | Sequencer | 3 x sequences, with up to 256 notes each | | Arpeggiator | Yes | | Inputs | 1/4" / 6.3 mm | | Outputs | 1/4" / 6.3 mm | | MIDI Connectors | In: 5-pin DIN
Out: 5-pin DIN
Thru: 5-pin DIN
USB: Type-B | | Power | Power Adapter: 12 VAC, 2 A
Voltage: 100 to 240 VAC, 50/60 Hz | | Dimensions (WxDxH) | 23.0 x 14.3 x 5.5" / 584 x 363 x 140 mm | | Weight | 18.0 lb / 8.2 kg | | | | Package Weight | 22.4 lb | | Box Dimensions (LxWxH) | 25.8 x 16.4 x 8.8" |
