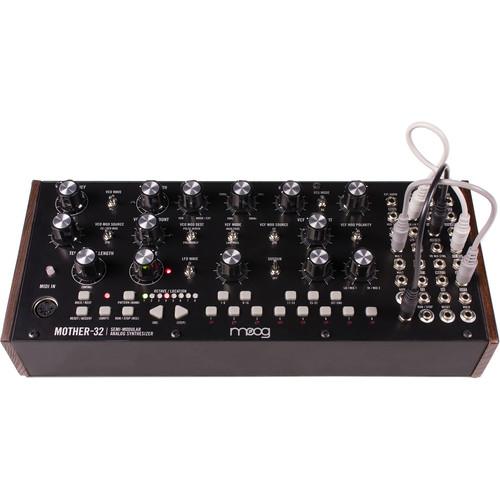

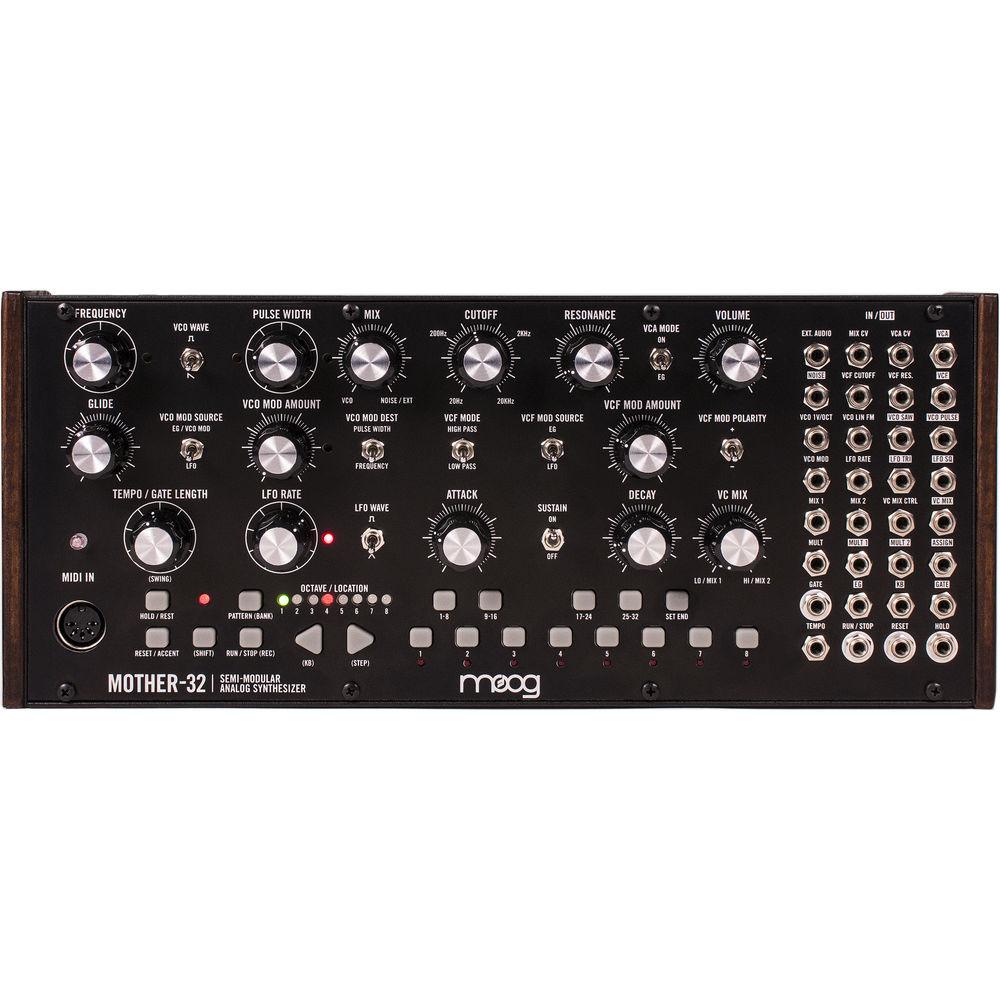

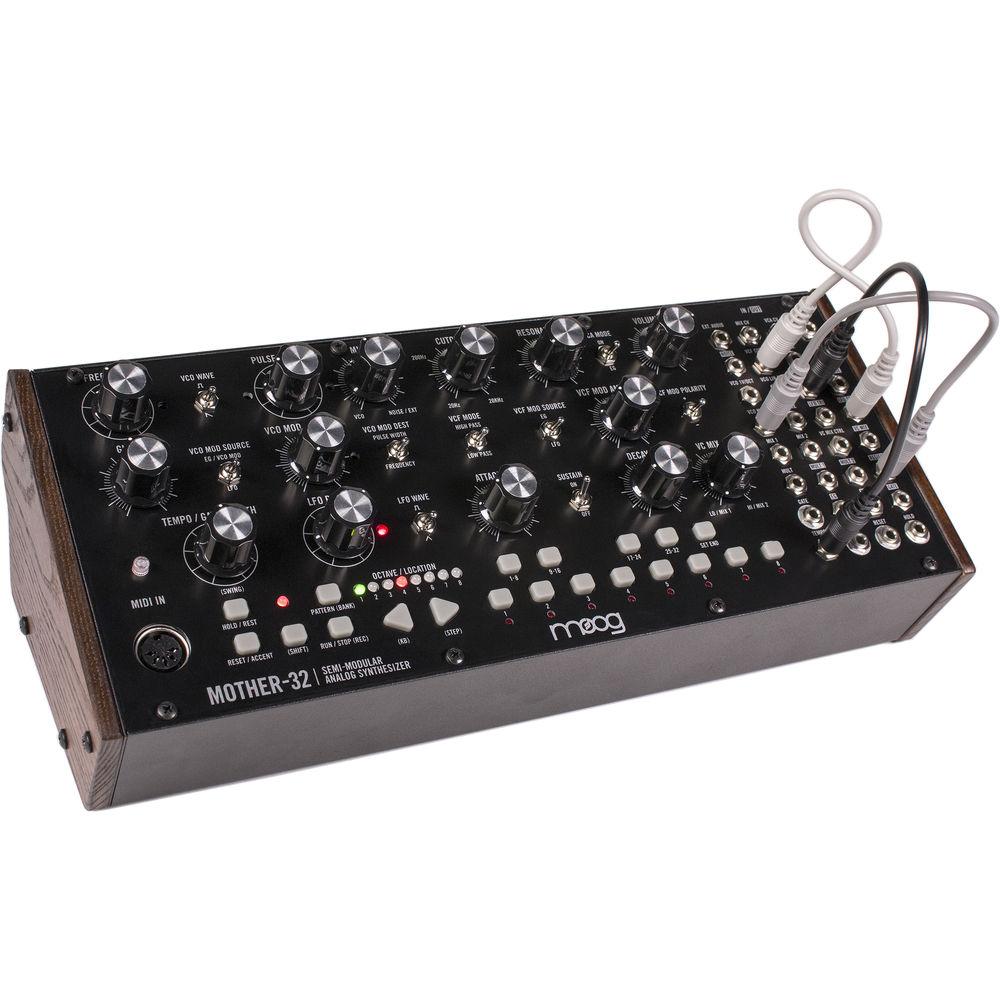

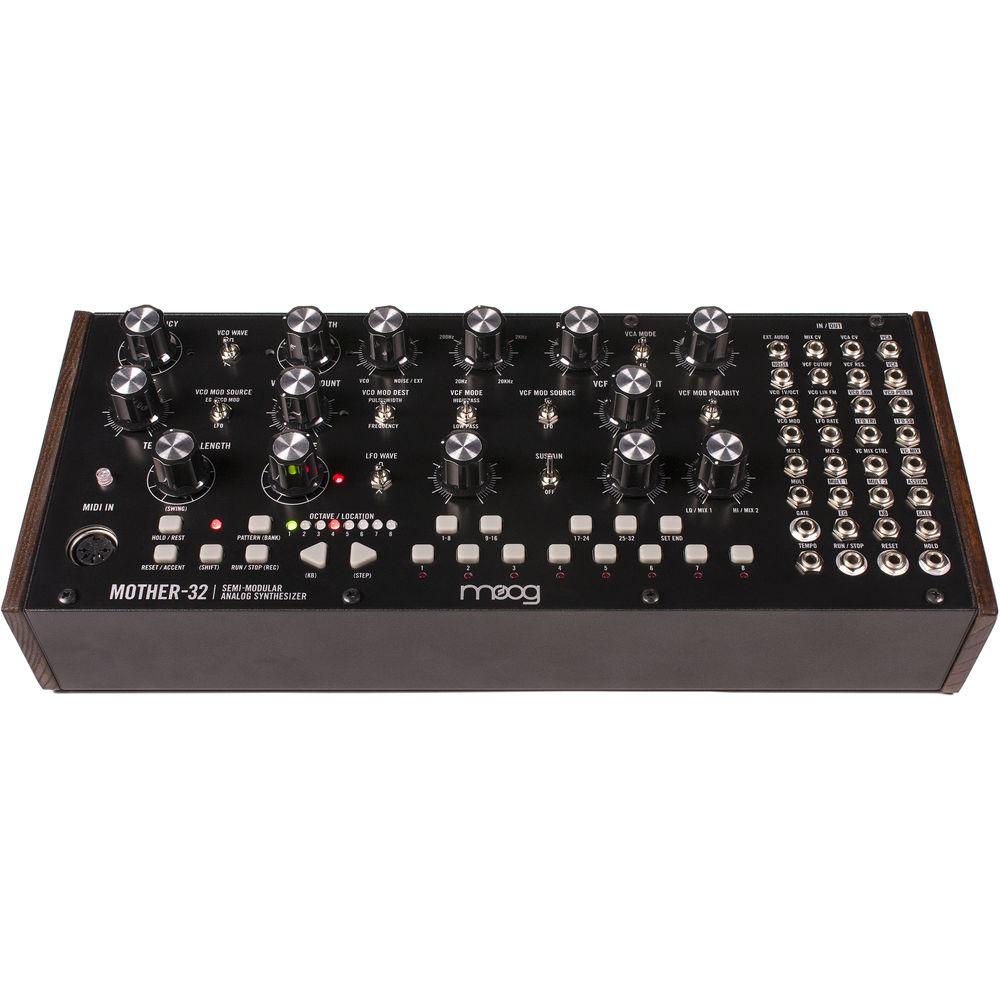

User Manual for Moog Mother-32 Semi-Modular Analog Synthesizer Click to enlarge the picture
Contents of the user manual for the Moog Mother-32 Semi-Modular Analog Synthesizer
- Product category: Synthesizer Modules Moog
- Brand: Moog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Moog Synthesizer Modules
 |
User manual for the Moog Mother-32 Semi-Modular Analog Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Moog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Moog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Moog product will considerably shorten its lifespan!
|
Product description - Moog Mother-32 Semi-Modular Analog Synthesizer: Quick Listen
The Mother-32 from Moog is a semi-modular analog synthesizer with an integrated 32-step sequencer and 32-point patchbay with Eurorack compatibility. The semi-modular design is pre-wired internally for making sounds without patch cables and is fully controllable via MIDI. The single oscillator is switchable between saw and square waveforms and offers pulse width modulation. The on-board LFO is capable of generating frequencies at audio levels and can be routed to the VCO, pulse width, filter cutoff. The classic 24 dB ladder filter is switchable between low-pass and high-pass with controls for cutoff and resonance. The envelope offers controls for attack and decay with sustain available via toggle switch.
The on-board sequencer offers 32 steps and can be saved into 64 sequencer preset slots. Each step can record note, glide, gate length, accent, rest, and ratchet information, while the sequencer itself can clock to MIDI and offers a global swing. The on-board 13-note keyboard can record into the sequencer in real-time or be used to step-record data. Additionally, the keyboard can transpose a running sequence in real-time.
The front panel of the Mother-32 can be removed from the chassis and placed within a standard Eurorack enclosure, making it fully compatible with a variety of Eurorack modules. The patch-bay offers 32 input and output points for signal routing including VCO waveform output, voltage control over resonance, LFO rate control, external audio input, keyboard CV tracking, and connections for controlling the sequencer. The Mother-32 ships with a power supply and 5 patch cables - General Features
-
- 32-step sequencer (real-time and step-record)
- Sequence notes, gate length, accent, glide, and ratchet per step
- Transpose sequence in real-time with keyboard
- 64 slots to save sequences (sequences- not patches)
- 5-pin Midi input
- 32x modular patchbay
- White noise
- 2x Voltage control mixers
- Definitive Moog oscillator w/ pulse and sawtooth wave output
- Main Module can be transferred into any Eurorack skiff
- Both Low Pass and high pass modules
- Patchbay Inputs
-
- External Audio
- Mix CV
- VCA CV
- VCF Cutoff
- VCF Resonance
- VCO 1V/Octave
- VCO Linear FM
- VCO Modulation
- LFO Rate
- Mix 1
- Mix 2
- VC Mix Control
- Mult
- Gate
- Tempo
- Run/Stop
- Reset
- Hold
- Patchbay Outputs
-
- VCA
- Noise
- VCF
- VCO Saw
- VCO Pulse
- LFO Triangle
- LFO Square
- VC Mix
- Mult 1
- Mult 2
- Assign
- EG
- KB
- Gate
- Patchbay Assignable Output
-
- Accent (Default)
- Sequencer Clock
- Sequencer Clock / 2
- Sequencer Clock / 4
- Sequencer Step ramp
- Sequencer Step saw
- Sequencer Step triangle
- Sequencer Step random
- Sequencer Step 1 trigger output
- MIDI velocity
- MIDI pitch bend
- MIDI channel pressure
- MIDI CC 1
- MIDI CC 2
- MIDI CC 4
- MIDI CC 7
UPC: 094922033031 In the Box Moog Mother-32 Semi-Modular Analog Synthesizer Power Supply 5 x Patch Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Moog Mother-32 Semi-Modular Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMoog Mother-32 Specs | Sound Engine | 100% Analog | | Keys | Momentary Pads: 13 | | Polyphony | Monophonic | | Patchbay | 32x 1/8" / 3.5 mm jacks | | Rear Panel I/O | Audio Output: 1/4" / 6.35 mm | | Power | Power Supply: 100-250 VAC, 50/60 Hz, +12 VDC 1 A
Power Consumption: 2.8 W
Eurorack Current Draw: +12 VDC, 230 mA (10-pin header) | | Dimensions (W × H × D) | Desktop Case: 12.6 x 4.2 x 5.2" / 31.9 x 10.7 x 13.3 cm
Eurorack Mounting: 60 HP
Module Depth: 0.7" / 17.5 mm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 14.1 x 8.3 x 6.4" |
