Moog One 3-Part Polyphonic Analog Synthesizer

Search your instruction manual in PDF to download

User Manual for Moog One 3-Part Polyphonic Analog Synthesizer

Click to enlarge the picture
Moog One 3-Part Polyphonic Analog Synthesizer Contents of the user manual for the Moog One 3-Part Polyphonic Analog Synthesizer
  • Product category: Synthesizer Keyboards Moog
  • Brand: Moog
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Moog Synthesizer Keyboards

Moog One 3-Part Polyphonic Analog Synthesizer Moog One 3-Part Polyphonic Analog Synthesizer Moog One 3-Part Polyphonic Analog Synthesizer Moog One 3-Part Polyphonic Analog Synthesizer Moog One 3-Part Polyphonic Analog Synthesizer Moog One 3-Part Polyphonic Analog Synthesizer
User manual for the Moog One 3-Part Polyphonic Analog Synthesizer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Moog product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Moog user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Moog product will considerably shorten its lifespan!



Product description

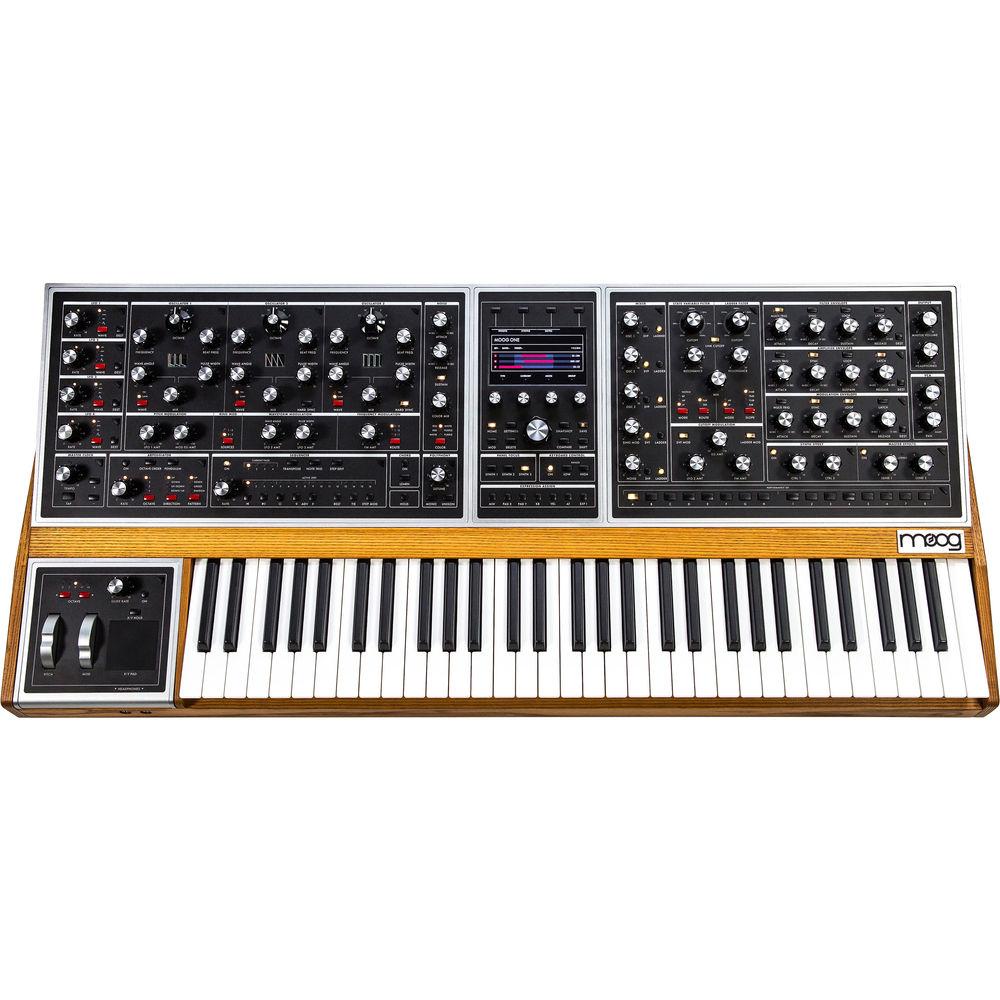

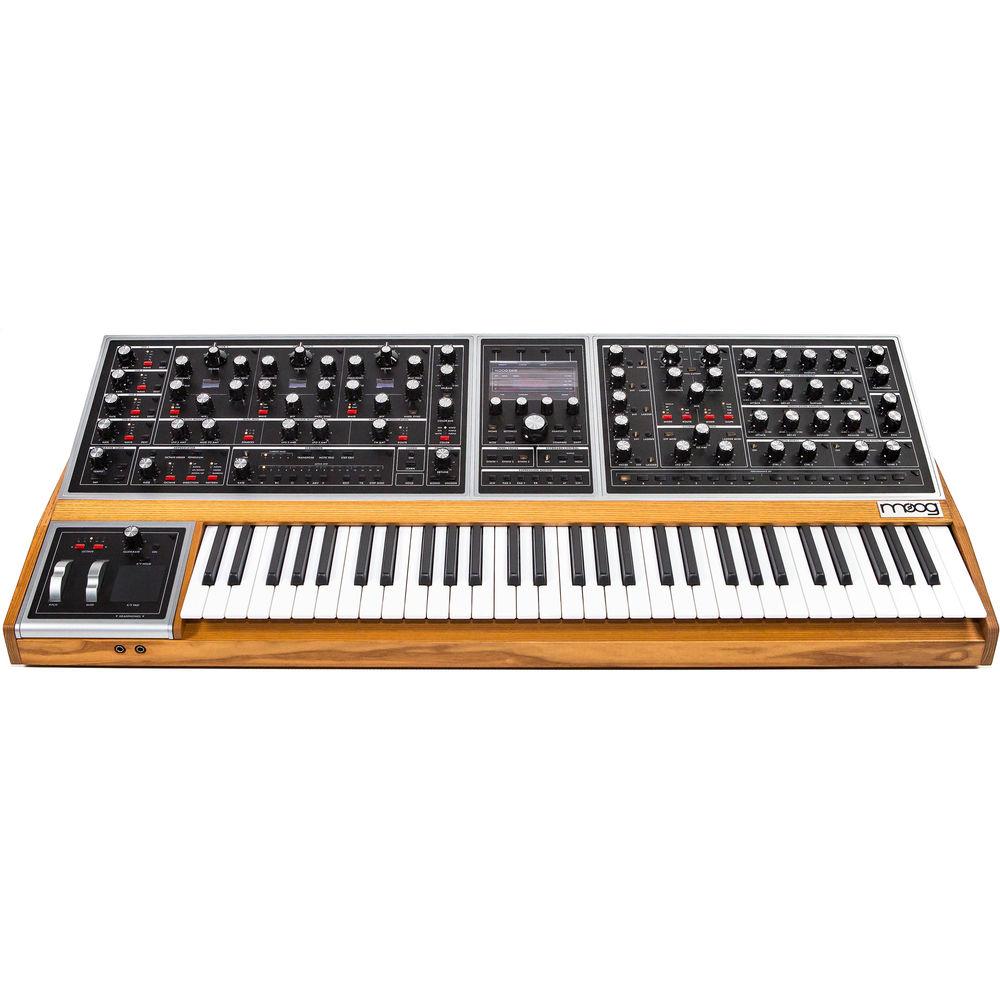

The One, The Only, The One Polyphonic Synthesizers by Moog Read More The 16-voice Moog One is a 3-part multitimbral polyphonic analog synthesizer designed for musicians, sound designers, and performers working in the studio and on stage. As the first polyphonic analog synthesizer in over three decades from Moog, the One inspires the imagination, unlocks your creativity, and explores a vast realm of sonic potential.

With its powerful synthesizer architecture, the Moog One can be configured as three independently addressable analog polysynths, allowing the voices to be easily assigned, split, layered, or stacked with up to 48 oscillators in unison mode. Each voice offers three triangle-core oscillators, two independent analog filters, a dual-source analog noise generator, an analog mixer, four LFOs, and three envelopes. Additionally, each synth engine is equipped with a fully featured step sequencer, arpeggiator, and effects processor.

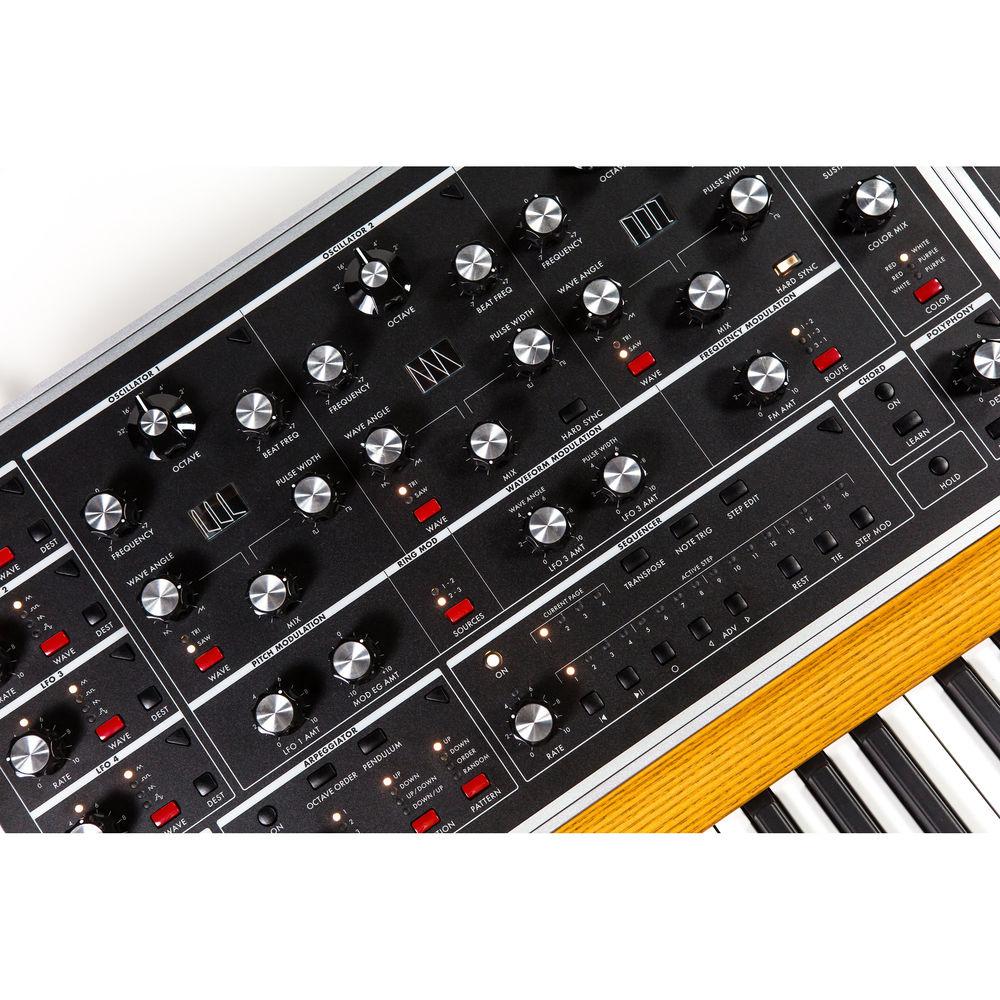

Each of the three VCOs offers a mix of selectable triangle/sawtooth waveforms, as well as variable-width pulse waves. The rise/fall time of the triangle wave and the reset phase of the sawtooth wave can be shaped and modulated to create to a rich palette of classic analog tones. Blending the tri/saw and pulse waves together opens new dimensions of harmonic freedom, creating complex waveforms not typically found in analog synthesizers. Additional features include hard sync, analog ring mod, and FM.

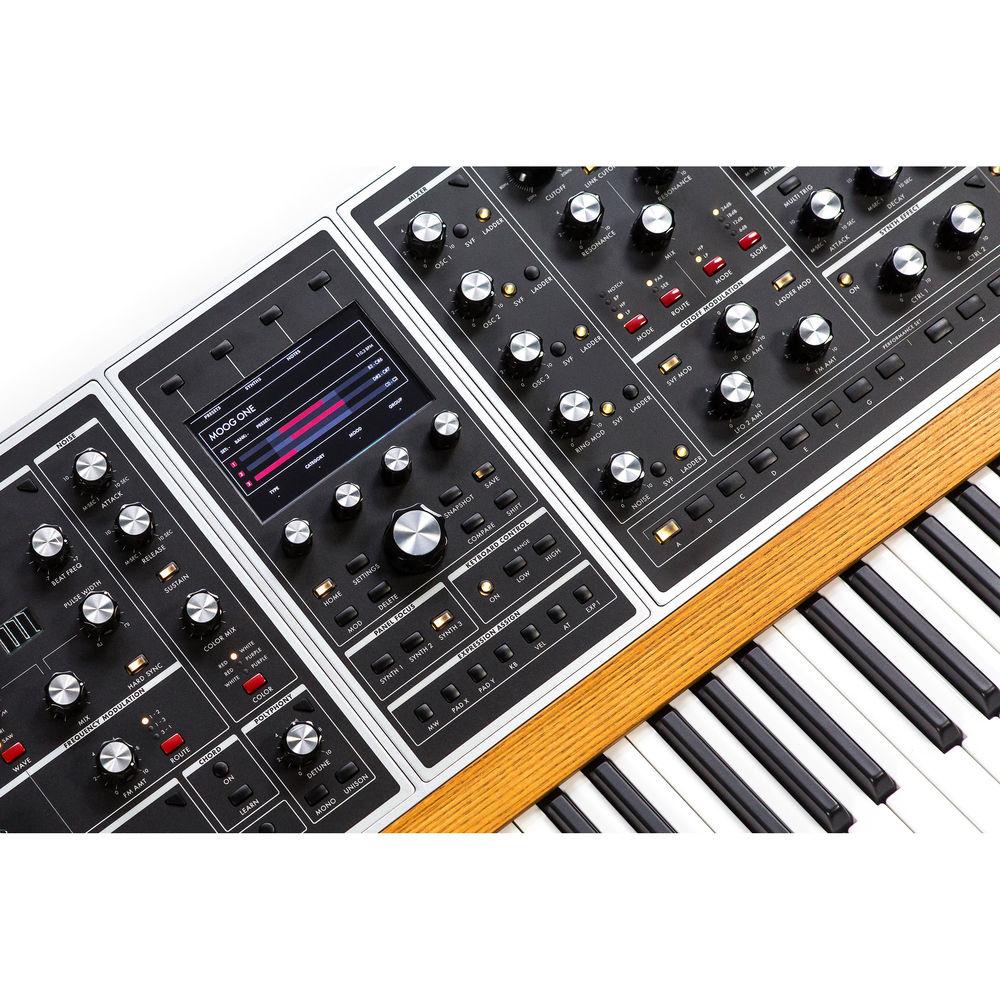

Filter one is a state-variable multimode filter offering precision and articulation, while filter two is a classic Moog ladder filter with selectable high/low pass behavior. The filters can be run in series or parallel to provide access to a vibrant spectrum of classic, obscure, and completely new sounds.

The four, wide-range LFOs can be assigned to nearly any destination and include the ability to sync to MIDI with clock divisions. You can also adjust start delay times, number of repeats per instance, fade in/out times, and more. Each of the three DAHDSR (Delay, Attack, Hold, Decay, Sustain, Release) envelope generators are assignable and offers advanced controls with looping, synchronization, and time scaling capabilities, allowing for the character of each envelope to be user-sculpted with per-stage envelope curves.

The Moog One utilizes a professional-quality 61-note Fatar TP-8S keyboard with velocity and aftertouch to ensure a dynamic and expressive playing experience. Milled aluminum pitch and mod wheels, as well as a pressure-sensitive X/Y pad provide an even deeper means of emotive and continuously variable control. The Moog One can store and recall tens-of-thousands of presets that are easily categorized, edited, noted, and shared via USB drive. Up to 64 presets can be loaded into the "Performance Set" module, where they are easily recalled from the font panel.

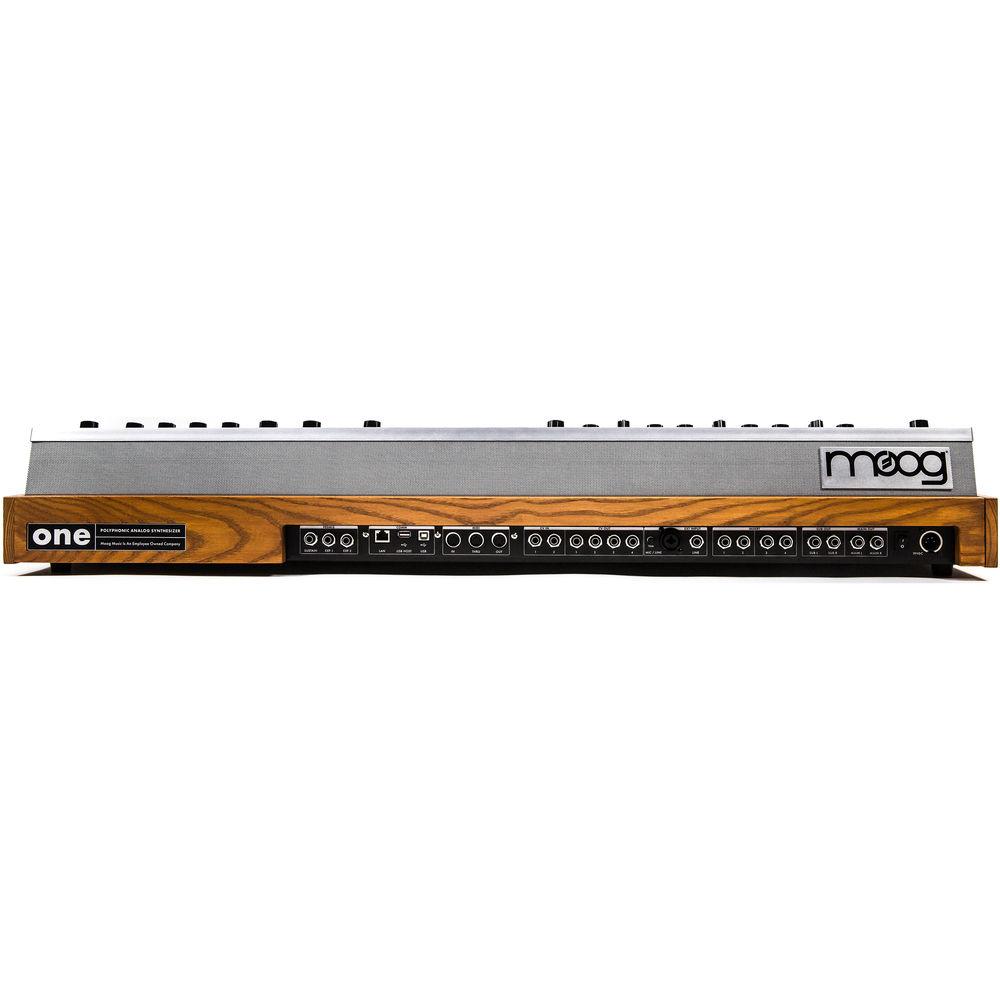

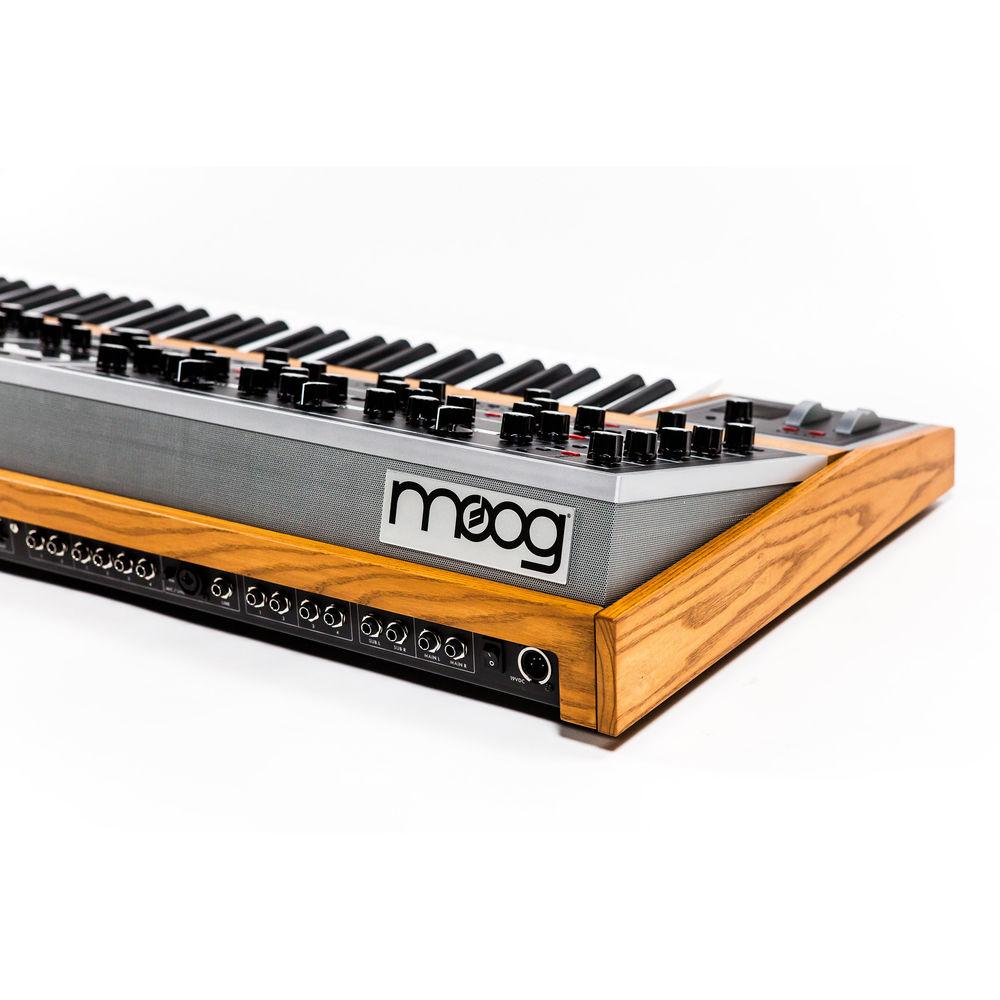

The enclosure is hand-crafted from ash-wood and features an aluminum panel that is populated by 73 knobs and 144 buttons. For connectivity, the instrument provides two 1/4" headphone outputs, two pairs of assignable 1/4" outputs, and two inputs for line and mic/line sources. Additionally, there are four 1/4" hardware inserts, as well as nine CV/Gate inputs/outputs for connecting with external processors and modular synthesizers. MIDI communication is handled through standard 5-pin DIN connectors, as well as USB MIDI control. Sustain and expression pedal inputs are also on board.

The built-in digital effects are programmable per synth or available on the master bus. Effect types include chorus, delay, bit reduction, and vocoding. Additionally, a suite of Eventide reverbs is included featuring Blackhole, Shimmer, Plate, Room, and Hall algorithms. The instrument retains a 100% analog signal path with no in-line conversion when insert effects are off. The Moog One includes a power adapter.
    • 16 voice polyphony
    • Three VCOs per voice with waveshape mixing and OLED displays
    • Unison Mode (up to 48 oscillators)
    • Two filters per voice with filter mixing (2 x multimode state variable filters that function as a single filter, and a classic low pass / high pass Moog ladder filter)
    • Three DAHDSR envelopes per voice with user-definable curves
    • 3-part multitimbral
    • Sequencer and arpeggiator per timbre
    • Chord memory
    • Dual-source noise generator with dedicated envelope
    • Mixer with external audio input
    • Ring modulation with selectable routing
    • Oscillator FM and Hard Sync with selectable routing
    • Four assignable LFOs
    • Professional-quality 61-note Fatar TP-8S with velocity and aftertouch
    • Assignable pressure-sensing X/Y pad
    • Digital effects on synth and master bus—chorus, delay, bit reduction, vocoding
    • Eventide reverbs
    • Selectable glide types
    • USB and DIN MIDI
    • Save, categorize, and recall tens of thousands of presets
    • Create performance sets to make up to 64 presets accessible at the push of a button
    • Nine assignable CV/GATE I/O (5 x in / 4 x out)
    • USB drive support for system and preset backup
    • LAN port for future expansion
UPC: 040232238925 In the Box Moog One 3-Part Polyphonic Analog Synthesizer (16-Voice)
  • Power Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Moog One 3-Part Polyphonic Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Moog THE ONE Specs

    Keyboard 61-note Fatar TP-8S with velocity and aftertouch
    Polyphony 16
    Multitimbral 3-part
    Synthesis Method Analog
    Presets Tens of thousands of presets
    64 presets per Performance Set
    Effects Synth and Master Bus Effects: Chorus, delay, phase, bit reduction, and vocoder
    Eventide Reverb: Blackhole, shimmer, plate, room, and hall
    Sequencer Sequencer and arpeggiator per part
    Controllers Knobs: 73
    Buttons: 144
    Expansion Slots LAN port for future expansion
    USB USB drive support for system and preset backup
    MIDI Connectors 5-pin DIN connectors
    USB MIDI
    Outputs Headphone: 2 x 1/4" / 6.3 mm (located on the front edge of the left hand controller)
    Outputs: Two pairs of assignable 1/4" / 6.3 mm TRS (TS compatible)
    CV/Gate: 4 x 1/4" / 6.3 mm TS
    Inputs External Audio (Line Level): 1 x 1/4" / 6.3 mm
    External Audio (Mic/Line): Combo XLR-1/4" / 6.3 mm with trim knob
    CV/Gate: 5 x 1/4" / 6.3 mm
    Sustain Pedal: 1 x 1/4" / 6.3 mm
    Expression Pedal: 2 x 1/4" / 6.3 mm TRS (configurable through the modulation matrix or as CV inputs)
    Insert Hardware Inserts: 4 x 1/4" / 6.3 mm (TRS send/returns, can be used as mono outs)
    Displays 3 x OLED
    1 x LCD
    Dimensions (W x D x H) 42.0 x 20.0 x 7.0" / 106.7 x 50.8 x 17.8 cm
    Weight 45.0 lb / 20.4 kg
    Package Weight 68.65 lb
    Box Dimensions (LxWxH) 48.25 x 26.85 x 10.25"
