User Manual for Moog Sirin Limited Edition Desktop Analog Synthesizer Click to enlarge the picture
Contents of the user manual for the Moog Sirin Limited Edition Desktop Analog
- Product category: Synthesizer Modules Moog
- Brand: Moog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Moog Synthesizer Modules
|
User manual for the Moog Sirin Limited Edition Desktop Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Moog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Moog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Moog product will considerably shorten its lifespan!
|

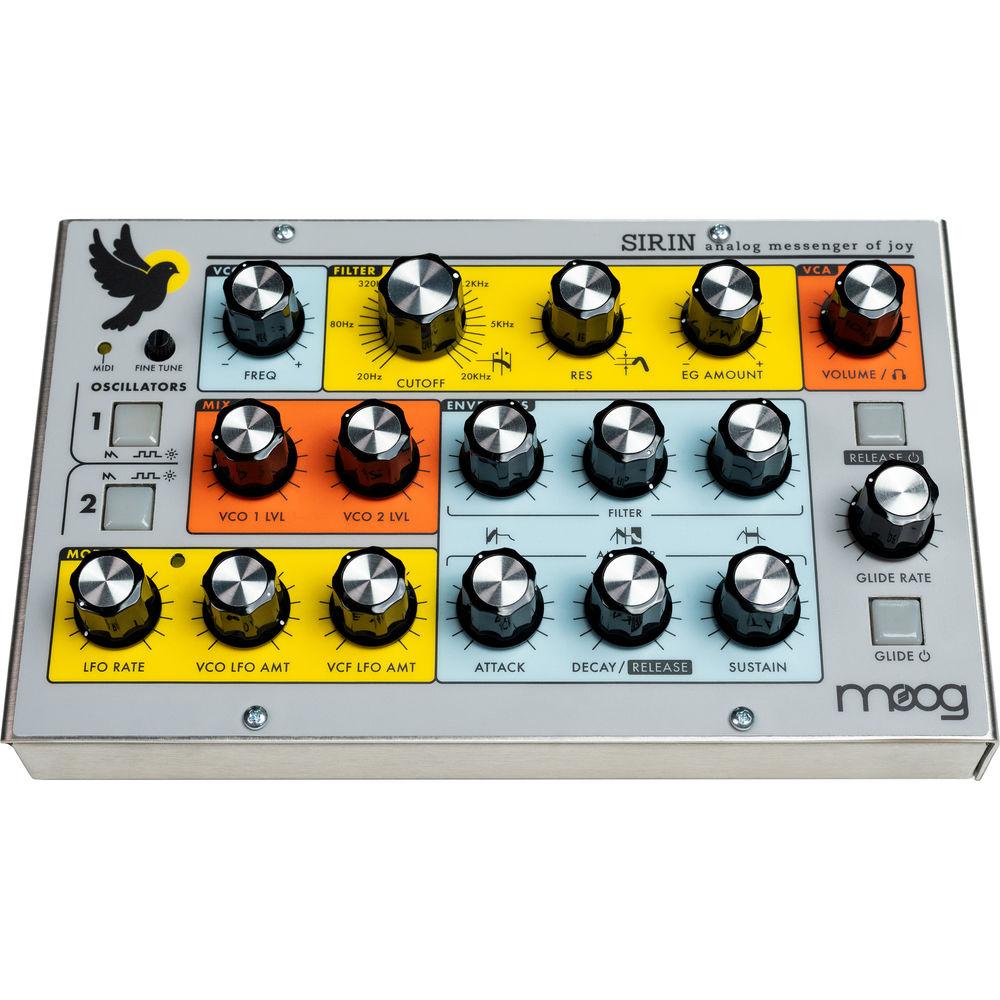

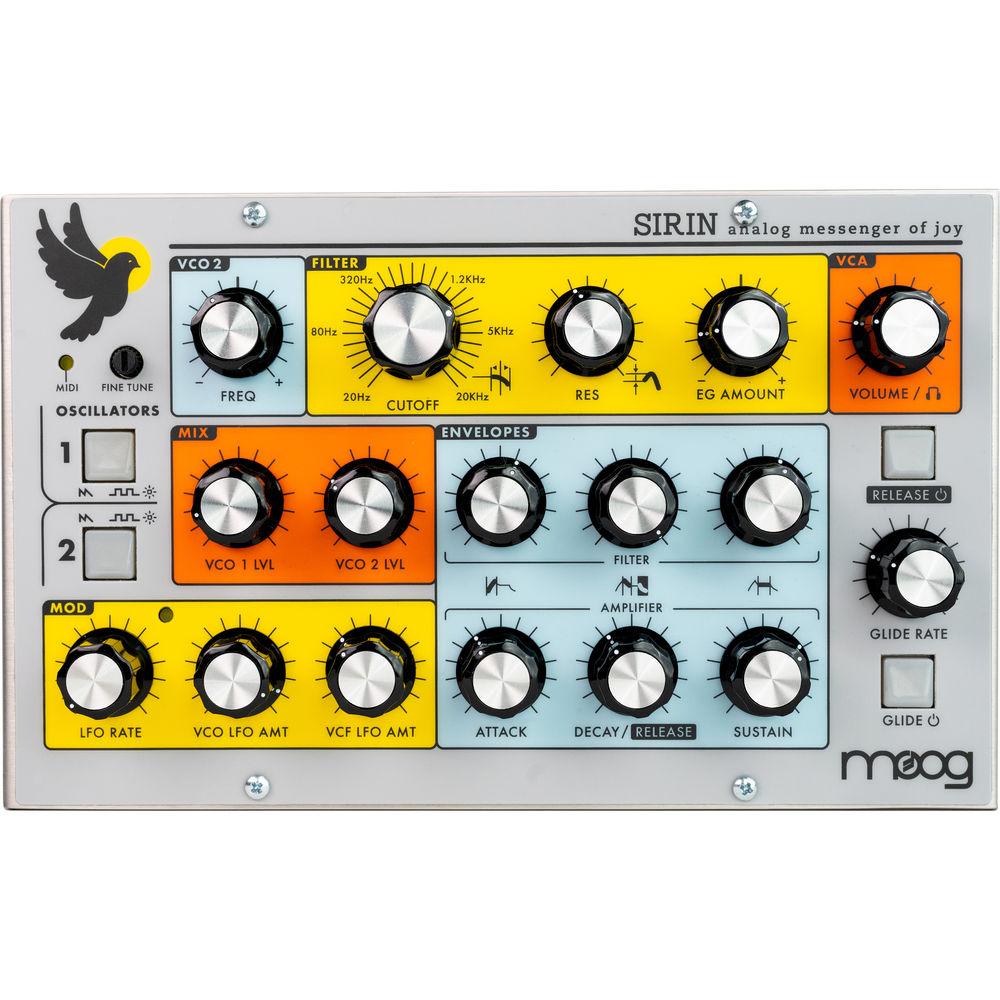

Product description Handcrafted in the USA, the limited-edition Moog Sirin is a monophonic desktop analog synthesizer offering an efficient knob-per-function design, convenient program recall, and a wealth of tones ranging from deep bass to piercing leads. Based on the Moog Taurus Bass sound engine, the Sirin features a 20 Hz to 20 kHz Taurus ladder filter, and two modified Taurus Bass oscillators, which empower it with a pitch range of E0 to D8. Added to that flexible foundation are two ADSR envelopes, multi-wave LFO with MIDI sync, and glide with selectable type.Connect a traditional controller to the 5-pin MIDI input, or hook up the Sirin via USB to take advantage of MIDI I/O over USB. Utilize the assignable CV/gate inputs to interface with other analog synths and modules; the Sirin performs CV-to-MIDI conversion internally. You can even manipulate an audio source plugged into the 1/4" input. Connect headphones to the 3.5mm stereo output, or route the mono 1/4" output to an analog mixer, audio interface, or audio recorder.The Sirin's 128 presets allow you to save and recall complex configurations with the ease of a digital synth. Access hidden functions via front-panel controls and MIDI, or install the free editor/librarian standalone software and plug into your computer to edit the Sirin's settings while producing in your workstation. - Dual-modified Taurus Bass oscillators with selectable hard sync and saw/square waveforms
- VCO 2 frequency control with range of ±12 semitones
- Dual ADSR envelopes with legato on/off and EG reset
- Selectable glide types include LCR, LCT, and EXP with legato on/off
- Multiple modulation sources such as triangle, square, saw, ramp, sample & hold, and filter EG
- Oscillator pitch, oscillator 2 pitch only, and filter cutoff modulation destinations
- Assignable CV/gate inputs include filter CV (fixed destination), pitch CV (default), volume CV (default), and Gate (default)
UPC: 040232238970 In the Box Moog Sirin Limited Edition Desktop Analog Synthesizer 12 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Moog Sirin Limited Edition Desktop Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

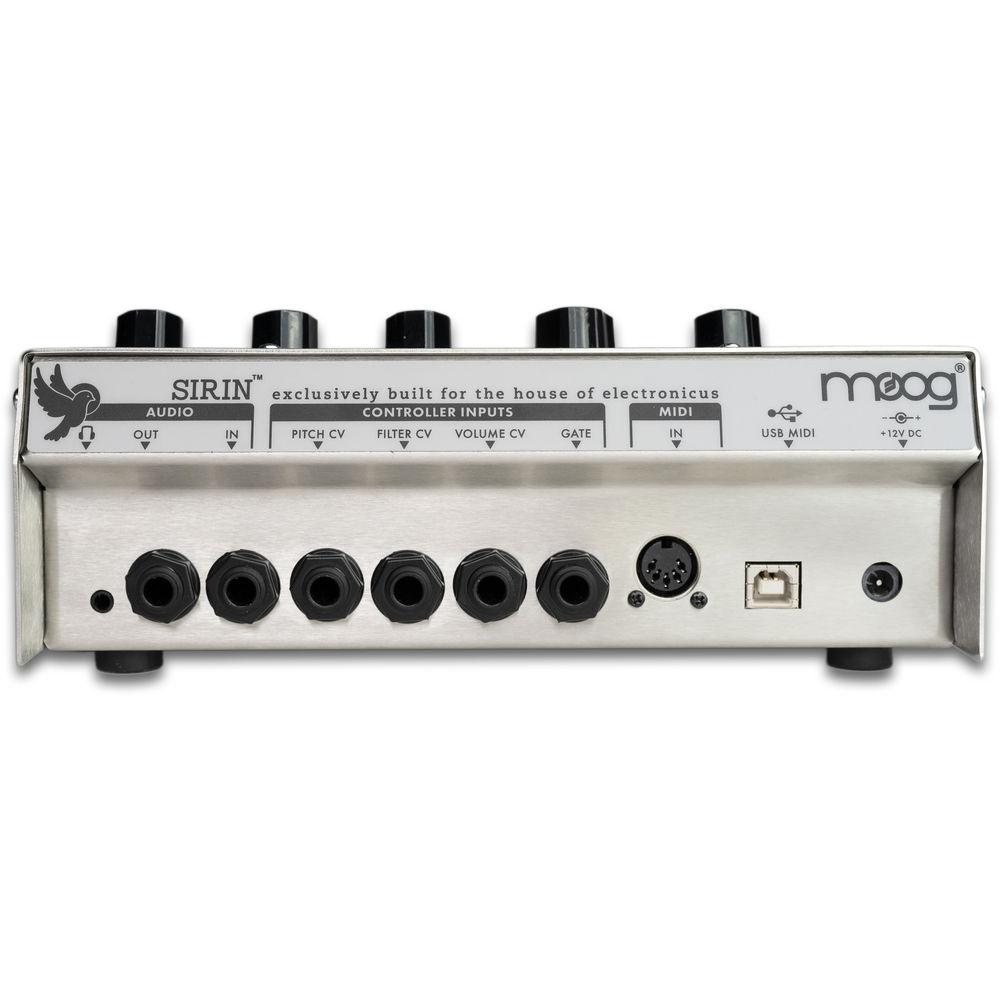

Technical parametersMoog Sirin Limited Editio Specs Sound Engine | Analog | Polyphony | Monophonic | Note Range | E0 to D8 | Presets | 128 | Inputs | 1 x 1/4" Audio Input 4 x 1/4" Controller Inputs | Outputs | 1 x 1/4" Mono Audio Output 1 x 1/8" / 3.5 mm Stereo Headphone Output | MIDI | 1 x 5-Pin DIN MIDI Input | USB | 1 x USB Type-B Port | Power Requirement | 100 to 250 VAC at 50/60 Hz via Included 12 VDC Power Supply | Enclosure Material | Brushed Stainless Steel | Country of Manufacture | United States of America | Dimensions (H x W x D) | 3.1 x 8.6 x 5.2" / 7.9 x 21.8 x 13.2 cm | Weight | 2.8 lb / 1.3 kg | | Package Weight | 3.775 lb | Box Dimensions (LxWxH) | 12.7 x 9.3 x 6.8" |
