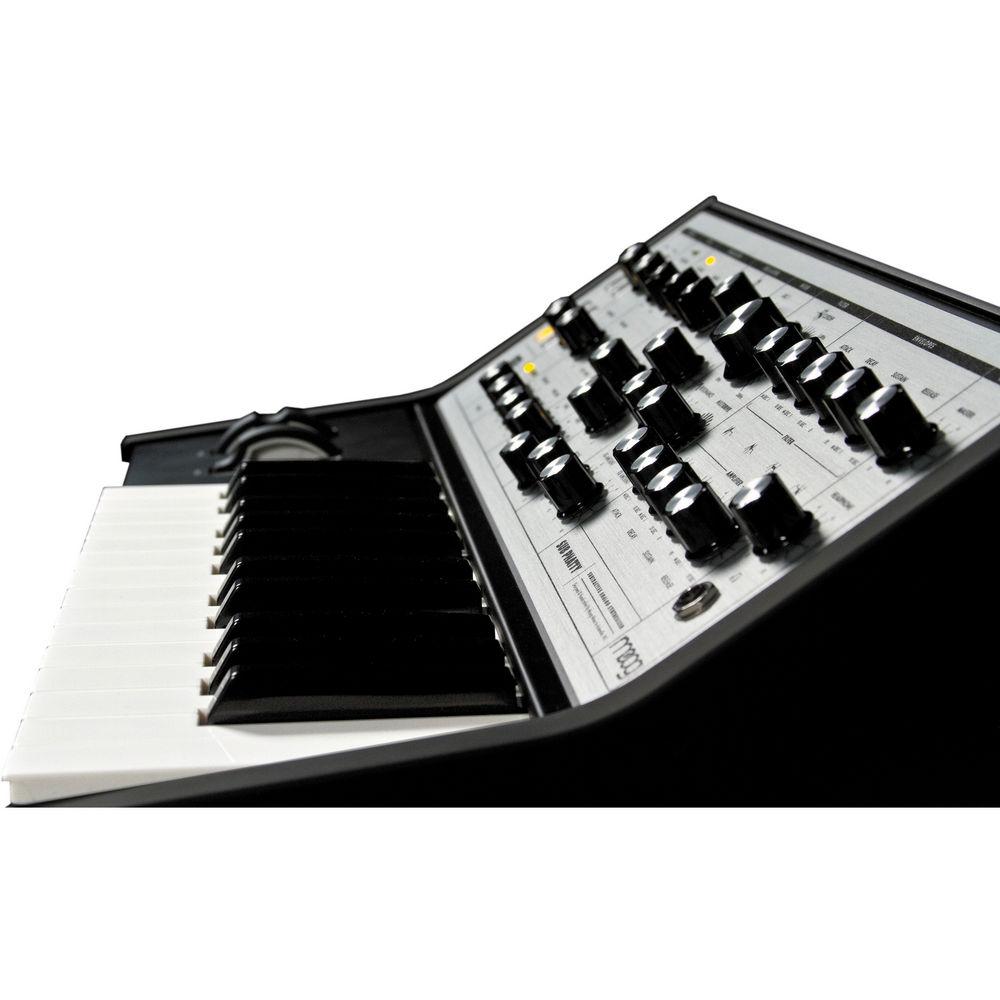

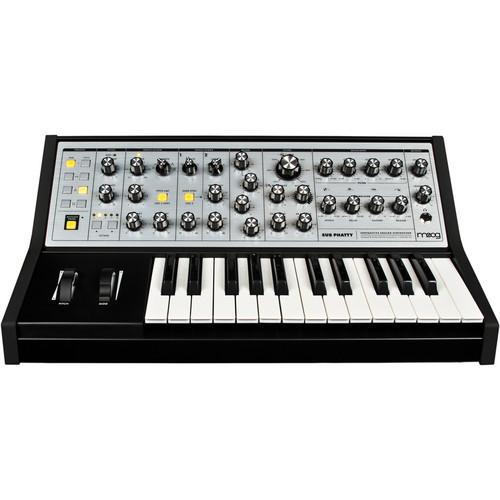

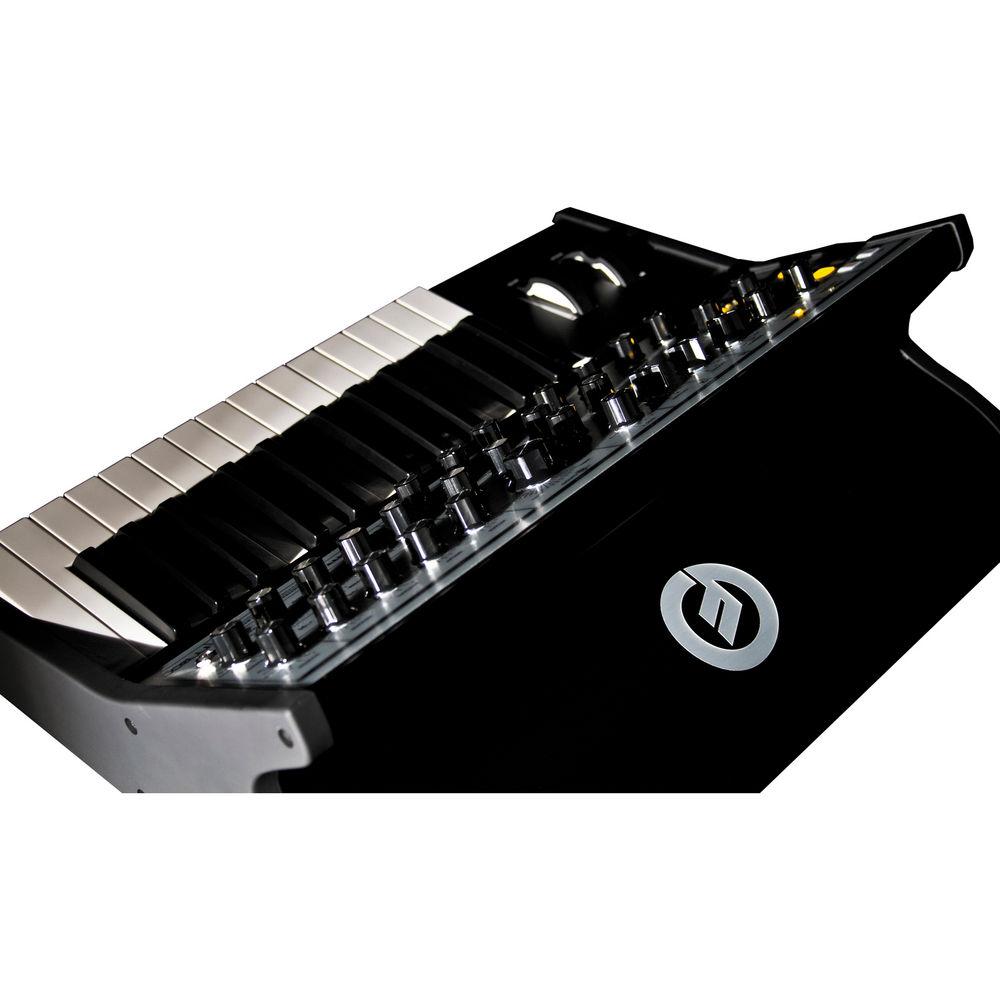

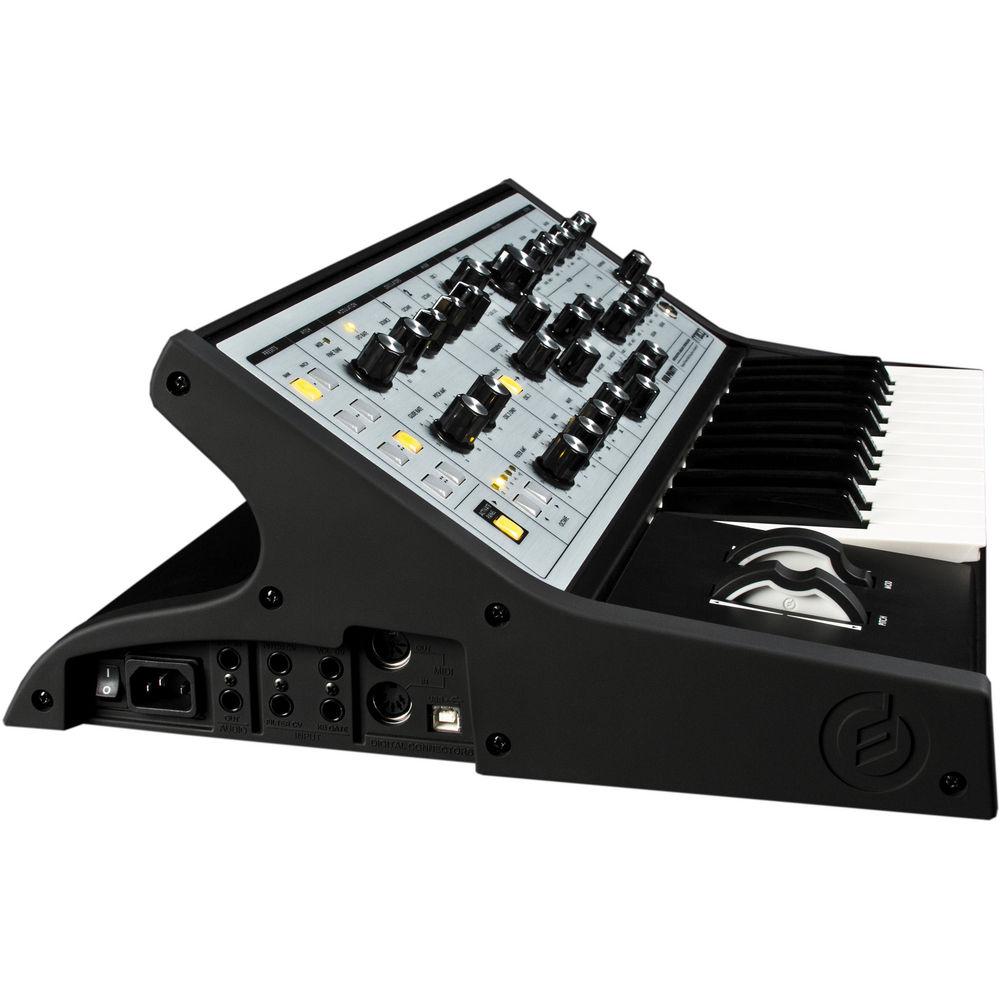

The Sub Phatty Monophonic Analog Synthesizer from Moog is a 25-key programmable monophonic analog synthesizer that is designed for bass, but not limited to that application. It is powered by two variable waveshape oscillators and a square wave sub oscillator that produces a tone one octave lower than oscillator one. Its sound engine is rounded out by a noise generator for producing percussive tones and effects.
Moog's Multidrive section allows you to add tones ranging from subtle warmth to snarling distortion based on your settings. The Sub Phatty also provides a variety of modulation sources and destinations, as well as a Moog ladder filter to alter and shape your sounds. The synth has both 5-pin DIN and USB MIDI connectivity, in addition to a downloaded plug-in or stand alone software editor. - Under the Hood Features
-
- Filter Velocity Sensitivity
- Volume Velocity Sensitivity
- Ext. Audio Level
- Osc2 Beat Frequency
- VCO Gate Reset
- LFO Gate Reset
- Pitch Bend Up Amount
- Pitch Bend Down Amount
- Glide Legato
- Glide Type
- Filter Poles
- Wave Modulation Destination
- LFO KB Tracking
- LFO Range
- Filter EG Reset
- Amp EG Reset
- Legato
- Gate On/Ext.
- MIDI Channel In
- MIDI Channel Out
- Local Control
- 14-Bit MIDI Output
- MIDI Path In
- MIDI Path Out
- MIDI Merge DIN
- MIDI Merge USB
- Includes Presets From:
-
- Amos Gaynes
- Diego Stocco
- HelloSamples (Borja Ruiz)
- Huston Singletary
- Igor Cristo
- Pete Dako
- Rob Murray-Lyon
- Shane Hinchcliff
UPC: 094922423887 In the Box Moog Sub Phatty Monophonic Analog Synthesizer Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Moog Sub Phatty Monophonic Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMoog Sub Phatty Specs | Type | Programmable monophonic analog synthesizer | | Sound Engine | analog | | Keyboard | 25 semi-weighted | | Controllers | 1x Pitch bend wheel
1x Mod wheel | | Polyphony | Monophonic | | Sound Generator | 2x Variable waveshape oscillators
1x Square wave sub oscillator
1x Noise generator | | Calibration Range | 22 Hz to 6.8 kHz, Guaranteed note range at 8' of note 18 to 116 | | Modulation | Sources: triangle, square, saw, ramp, sh, filter envelope
Destinations: pitch, osc 2 pitch only, filter, waveshape | | Filter | Moog Ladder Filter 20 Hz to 20 kHz | | Audio Input | 1x 1/4" (6.3 mm) TS | | Audio Output | 1x 1/4" (6.3 mm) TS
1x 1/4" (6.3 mm) TRS headphone output | | Presets | 4x Banks
4x Patches per bank | | MIDI | 1x 5-pin DIN input
1x 5-pin DIN output
1x USB port | | Control Voltage Inputs | 1x 1/4" (6.3 mm) filter CV input
1x 1/4" (6.3 mm) pitch CV input
1x 1/4" (6.3 mm) volume CV input
1x 1/4" (6.3 mm) KB Gate input | | Transpose | +/- 2 octaves | | LFO | 0.01 Hz to 1 kHz | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 24.5 x 17.0 x 9.5" |
