User Manual for Moog Werkstatt-01: Moogfest 2014 Kit Analog Synthesizer Click to enlarge the picture
Contents of the user manual for the Moog Werkstatt-01: Moogfest 2014 Kit Analog
- Product category: Synthesizer Modules Moog
- Brand: Moog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Moog Synthesizer Modules
 |
User manual for the Moog Werkstatt-01: Moogfest 2014 Kit Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Moog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Moog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Moog product will considerably shorten its lifespan!
|

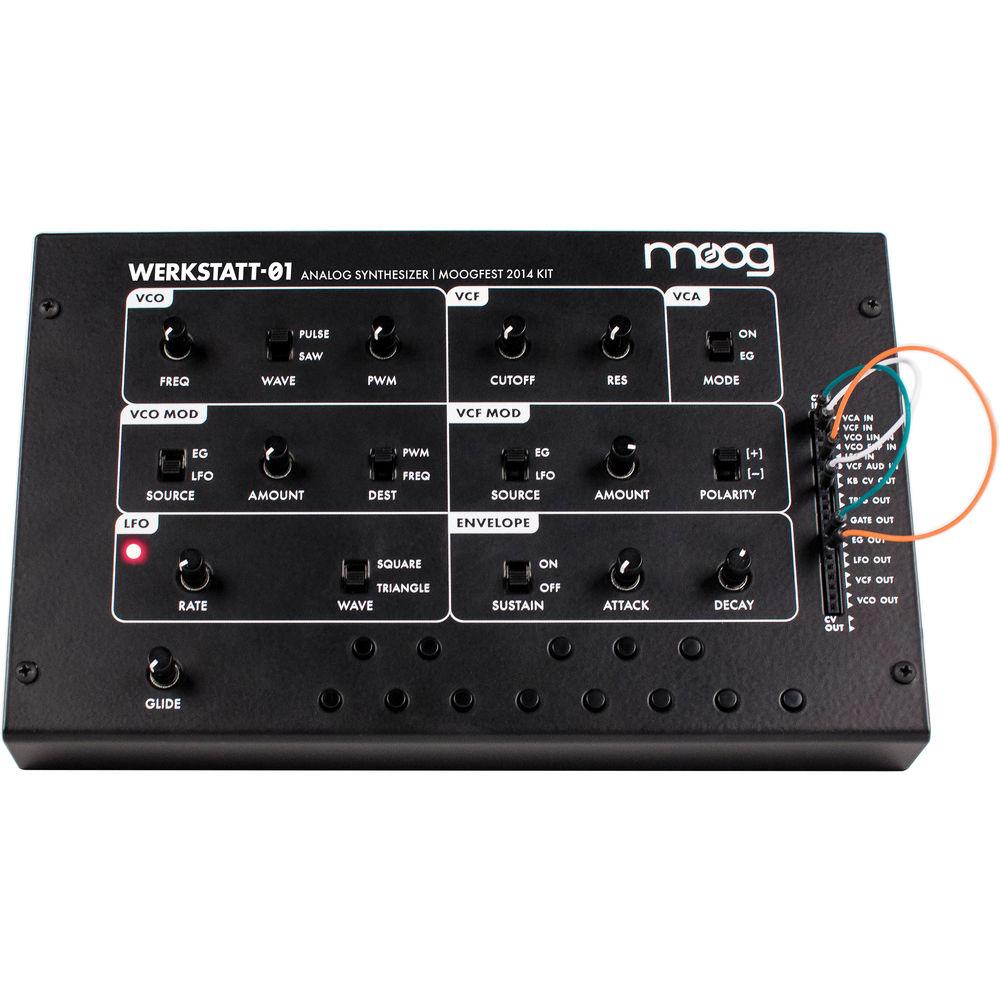

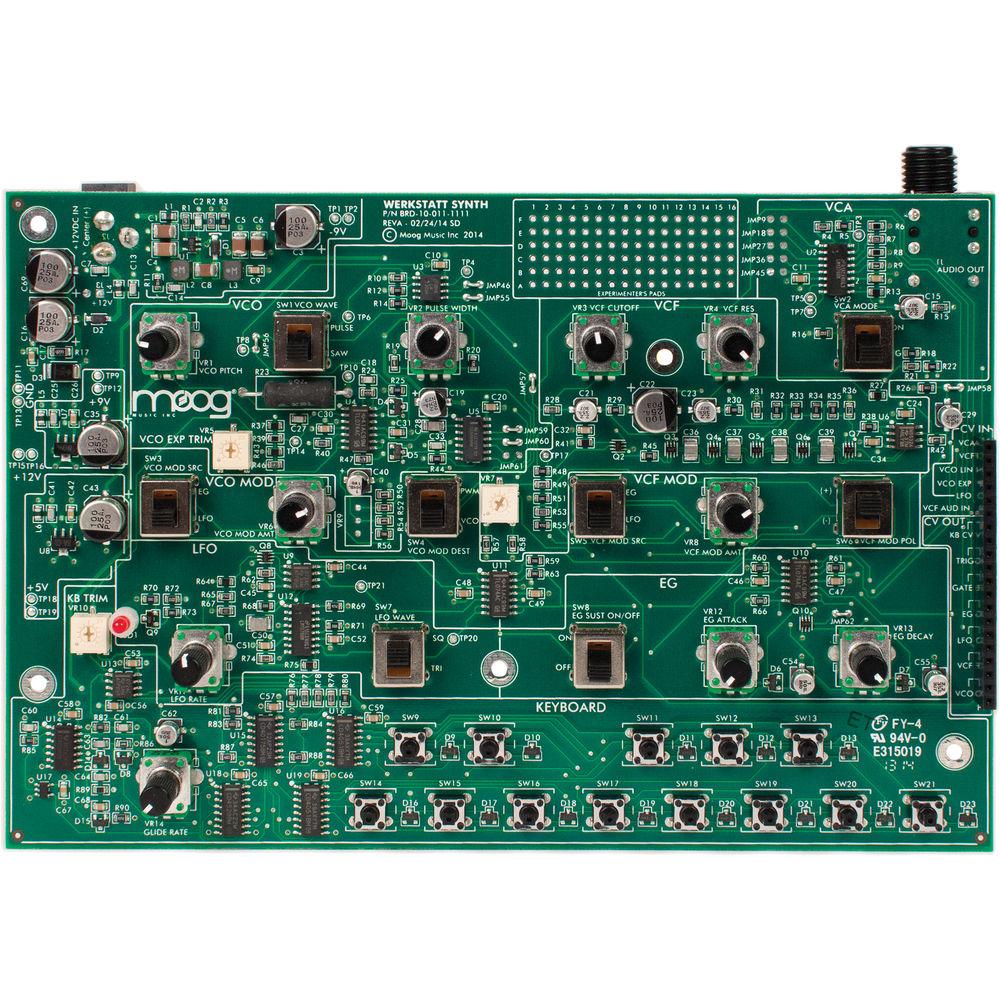

Product description Allowing you to build a patchable synthesizer based on classic Moog circuitry without the need for any soldering skills, the Werkstatt-01: Moogfest 2014 Kit Analog Synthesizer from Moog, provides the ability to study the analog circuits while creating a single oscillator synthesizer. The finished product gives you a single voltage controlled oscillator (VCO) with frequency control and the option to use either a saw or square waveshape. You can then manipulate your tone via the 4-pole Moog Ladder Filter section, an LFO section, a VCF modulation section, a VCO modulation section, and adjustable Envelope section. The built-in 1 octave low-note priority legato keyboard features glide control for a variety of playing options.
Please note, this kit requires assembly for operation. UPC: 094922449986 In the Box Moog Werkstatt-01: Moogfest 2014 Kit Analog Synthesizer Pack of Patch Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Moog Werkstatt-01: Moogfest 2014 Kit Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMoog Moogfest 2014 Specs | Oscillators | Single VCO with frequency control (8 Hz to 16 kHz)
Saw and square waveshapes with control for square pulse width
Envelope or LFO selectable Mod Source that can be assigned to PWM or Pitch with Amount control
Ability to PWM the square wave | | Filter | 4-pole Moog Ladder Filter with Resonance control (20 Hz to 20 kHz)
Select between the Envelope generator and LFO as Mod Source

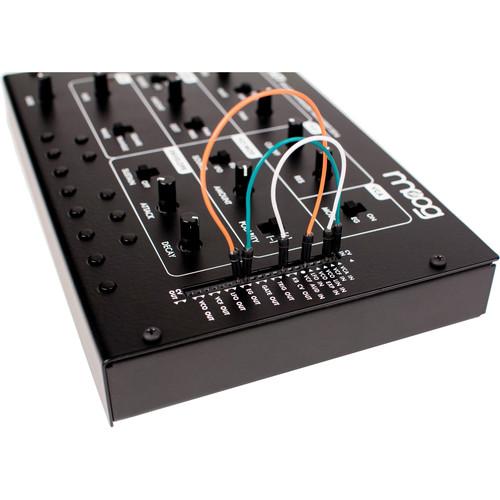

Polarity switch (+/-) and amount knob for control of filter cutoff modulation | | LFO | Selectable Square or Triangle waveshape with rate control (2 to 600 Hz) | | VCA and Amplifier | Select between the Envelope Generator or ON (Drone) | | Envelope | Controls for Attack & Decay time with Sustain On/Off switch | | Keyboard | One octave low-note priority legato keyboard with glide control | | Patchbay | VCA Input: 0 to +5 V in VCA EG Mode, +/-2.5 V in VCA ON Mode
VCF Input: -5 to +5 V
VCO LINEAR FM Input: +/-2.5 V (This is an inverting control input)
VCO EXPONENTIAL FM Input: -5 to +5 V, 1 V/Octave trimmable
LFO CV Input: 5 to +5 V (Negative CV slows LFO more than the panel)
VCF AUDIO Input: Unbuffered/Unmixed AC coupled input to VCF
2x KB CV Output: 3 V/semitone from 1 keyboard (Attenuate for 1 V/Octave)
2x TRIG Output: 5 ms pulse, 0 to +5 V signal generated from low-note priority
2x GATE Output: 0 to +5 V signal generated from low-note priority
2x EG Output: 0 to +5 V signal, Simple ASD or AD type Envelope Generator
2x LFO Output: -2.5 to +2.5 V Triangle or Square wave, selected via LFO Switch
2x VCF Output: -2 to +2 V signal for audio or CV uses
2x VCO Output: 0 to +5 V VCO signal, wave selected by VCO Wave Switch | | Rear Panel | AUDIO Output: Nominal +/-1.5 V Signal
Power: +12 VDC Center Positive with 1.2 A Wall transformer
Power Consumption 1.8 W, average | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 12.598 x 7.165 x 5.748" |
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Moog Werkstatt-01: Moogfest 2014 Kit Analog Synthesizer
| Subject: certain ICs in the Werkstatt-01 | | Date: 06.02.2021 20:44:47 | Name: Brian Hagen | | I have not been able to figure out what two very small ICs are in the Werkstatt-01. They are U numbers 7 and 17. Visual inspection turns up the characters "B25S". In the schematic, U7 gets its input from +12V via an inductor and appears to have outputs of +9V-OUT and test points TP9 and TP12. Even though I believe that I may have the function somewhat understood, I still do not have an IC designation, which would add to understanding of the entire schematic. (Searches for "B52S" turned up articles about WWII bombers, but I did not read about them ...) | | Post reply |
