Morley Cliff Burton Power Fuzz Wah

Search your instruction manual in PDF to download

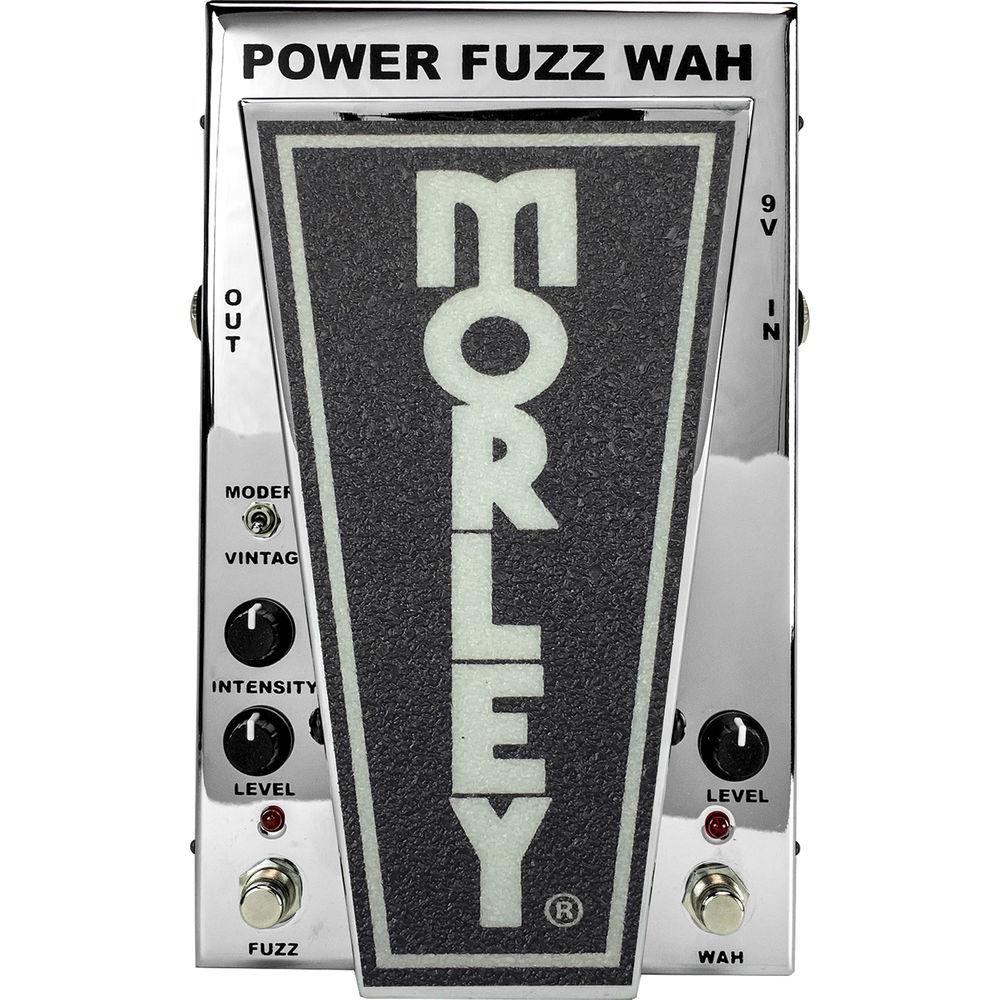

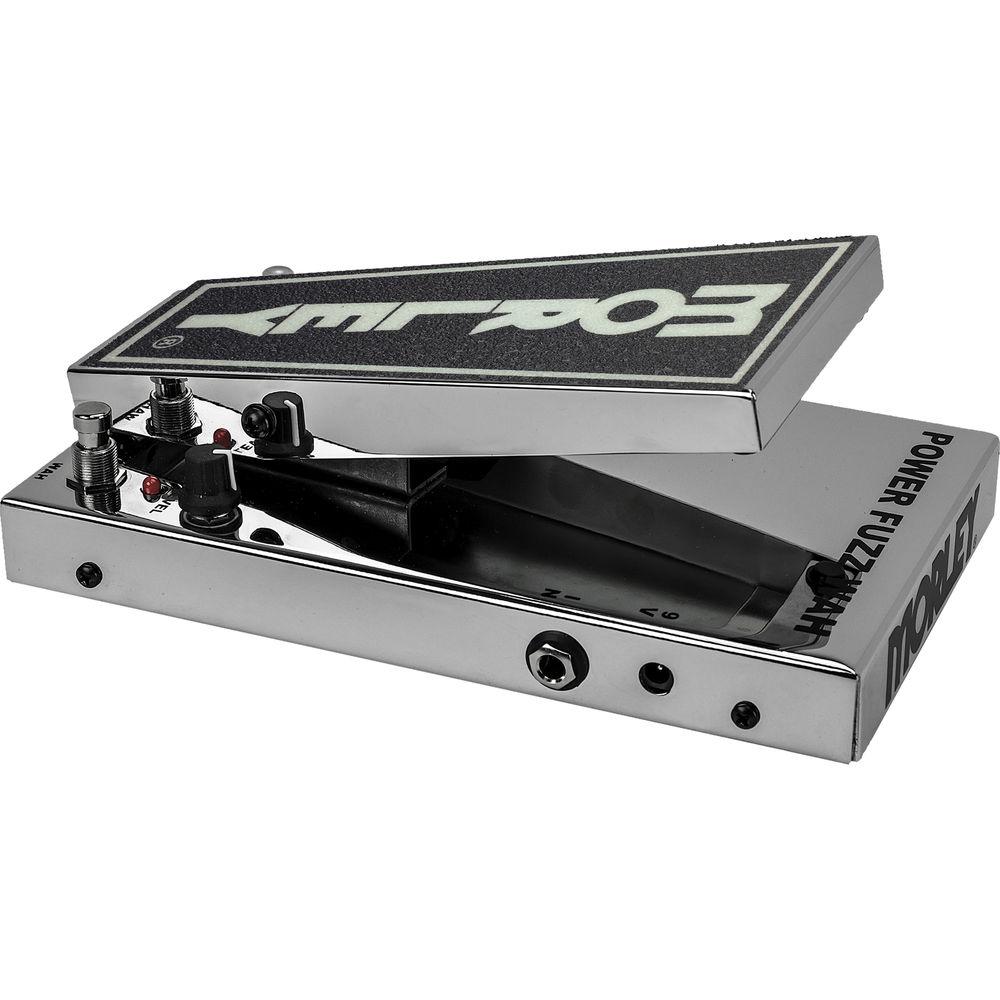

User Manual for Morley Cliff Burton Power Fuzz Wah Pedal

Click to enlarge the picture
Morley Cliff Burton Power Fuzz Wah Pedal Contents of the user manual for the Morley Cliff Burton Power Fuzz Wah
  • Product category: Effects Pedals Morley
  • Brand: Morley
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Morley Effects Pedals

Morley Cliff Burton Power Fuzz Wah Pedal Morley Cliff Burton Power Fuzz Wah Pedal Morley Cliff Burton Power Fuzz Wah Pedal Morley Cliff Burton Power Fuzz Wah Pedal
User manual for the Morley Cliff Burton Power Fuzz Wah contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Morley product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Morley user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Morley product will considerably shorten its lifespan!



Product description

An homage to the '70s pedal used by Metallica's renowned original bassist, Morley’s Cliff Burton Tribute Series Power Fuzz Wah features both fuzz and wah effects which can be used separately or together. Though it was initially intended for use with electric guitar, Burton integrated the Power Fuzz Wah into his bass rig, and it became an essential element of his unique style and tone.The pedal offers a vintage-voiced wah, replete with a knob to adjust the level of the effect, and utilizes electro-optical circuitry, so there are no potentiometers which may degrade over time, becoming noisy with age. Instead, you are provided with a smooth, effectual wah.The pedal's fuzz section is switchable between modern and vintage modes, and offers controls for both level and intensity of the fuzz, footswitches to activate either effect, as well as LEDs to indicate the state of their usage. The Power Fuzz Wah includes 1/4" input and output jacks for connection to your instrument and amplifier, and is compatible for use with guitar, bass, or keyboards. It can operate using a single 9V battery or a separately available 9 VDC adapter.
    Electro-Optical Circuitry
  • An LED (Light Emitting Diode) shines on an LDR (Light Dependent Resistor). A shutter then alters light between the two components controlling the function, and this is how that wah-specific sweep through frequencies is created. This electro-optical design ensures smooth pedal control without unwanted noise from potentiometers, which conventional wahs typically use.
    Key Features at a Glance
    • Electro-Optical: No pots
    • Wah Level Control: Adjust the level of the Wah as you like it
    • Modern/Vintage Fuzz Switch: Select between two modes of Fuzz
    • Fuzz Level & Intensity Controls: Adjust the Fuzz character as you wish
    • Dual LED Indication: Shows when you're in Wah or Fuzz modes
UPC: 664101000989 In the Box Morley Cliff Burton Power Fuzz Wah Pedal
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Morley Cliff Burton Power Fuzz Wah Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Morley PFW-C Specs

    Chassis Steel
    Audio I/O 1 x 1/4" instrument input, phone type
    1 x 1/4" instrument output, phone type
    Controls WAH LEVEL knob
    FUZZ LEVEL knob
    FUZZ INTENSITY knob
    MODERN / VINTAGE FUZZ MODE toggle switch
    FUZZ footswitch
    WAH footswitch
    WAH foot pedal
    Indicators Wah on / LED on
    Fuzz on / LED on
    Power 9 V battery or 9 VDC 300 mA regulated power supply (center pin negative)
    Dimensions (L x W x H) 9.1 x 5.9 x 2.8" / 23.2 x 14.9 x 7.0 cm
    Weight 3.3 lb / 1.5 kg
    Package Weight 3.8 lb
    Box Dimensions (LxWxH) 10.8 x 6.6 x 2.7"
