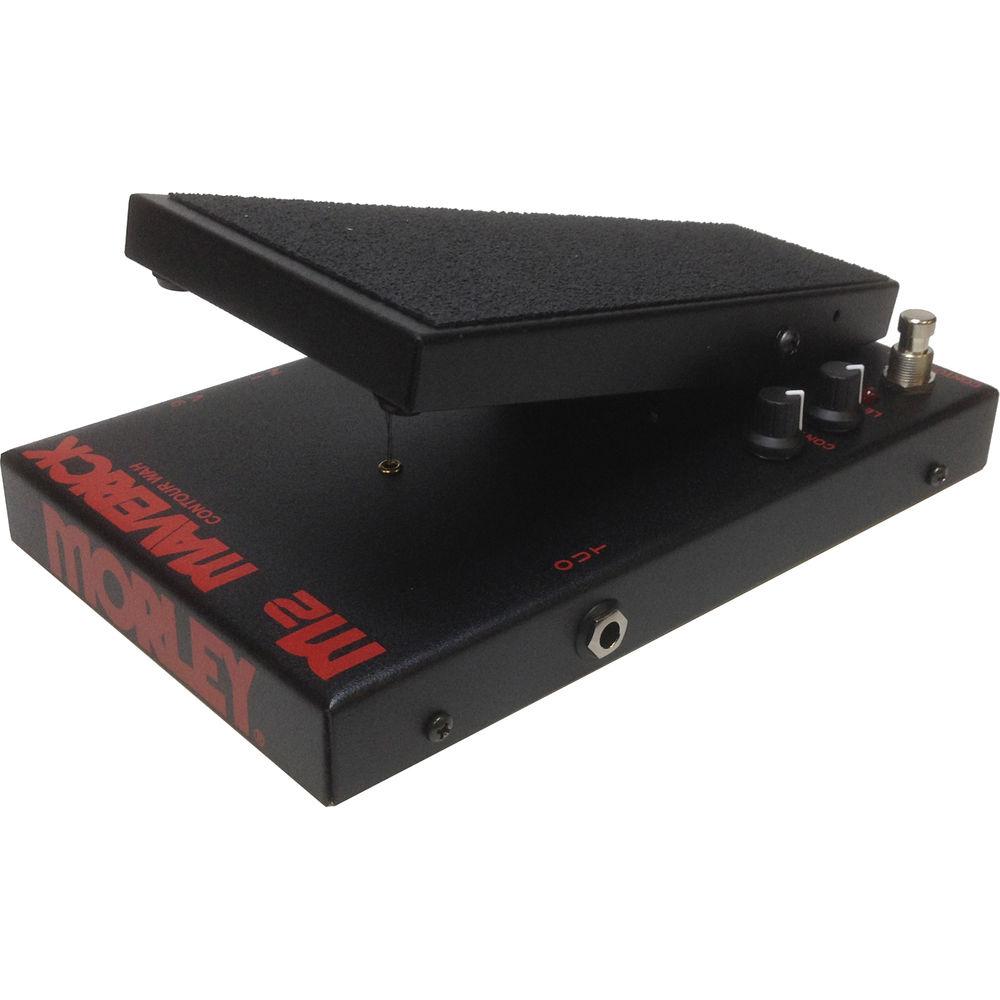

User Manual for Morley M2 Maverick Contour Wah Pedal Click to enlarge the picture
Contents of the user manual for the Morley M2 Maverick Contour Wah Pedal
- Product category: Effects Pedals Morley
- Brand: Morley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Morley Effects Pedals
|
User manual for the Morley M2 Maverick Contour Wah Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Morley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Morley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Morley product will considerably shorten its lifespan!
|

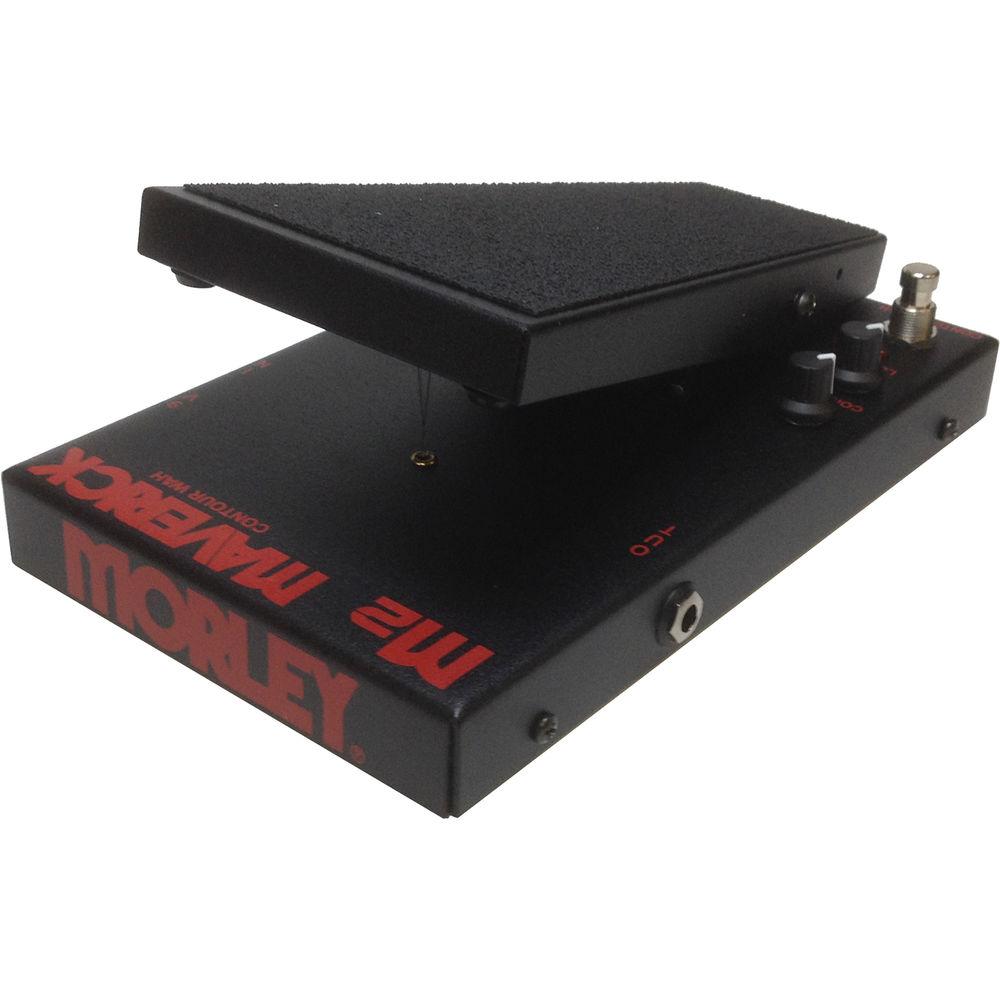

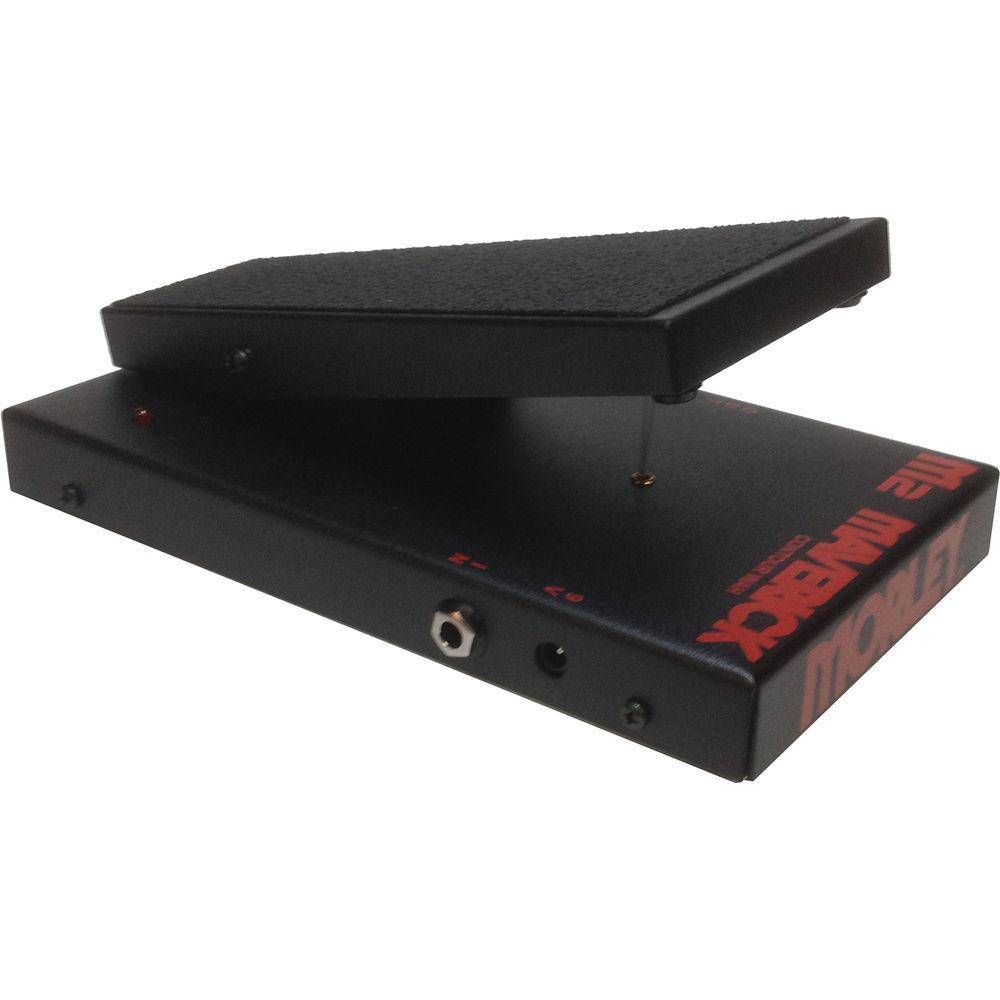

Product description The Morley M2 Maverick Contour Wah Pedal combines Morley's electro-optical circuitry with its traditional potentiometer-based design in one enclosure, providing a footswitch which allows you to switch between the two modes—Maverick and Contour—with the push of a button. In Maverick mode, the pedal functions as a traditional wah, while in Contour mode, two rotary knobs are provided to shape the Contour and adjust the Level of the wah's tone. Separate LEDs are included to indicate when the pedal is powered and when Contour mode is active. The wah itself uses a switchless design so the effect is engaged when you step on the treadle and bypassed when you step off. With its True-Tone buffered bypass circuit, any signal routed through the pedal will be maintained in a pristine manner over long cable runs. The pedal utilizes a cold-rolled steel construction, and offers 1/4" input and output connections for your instrument and amplifier. The M2 Maverick Contour Wah runs on a 9V battery or an optional 9 VDC power adapter. - Electro-Optical Circuitry
- An LED (Light Emitting Diode) shines on an LDR (Light Dependent Resistor). A shutter then alters light between the two components controlling the function, and this is how the electro-optical circuitry makes the wah sound possible in this mode.
- Traditional Pot-Based Wah
- To facilitate a more traditional sound, the pedal also offers a mode which utilizes a 100-kOhm slide pot for classic tone, travel, and Q control.
In the Box Morley M2 Maverick Contour Wah Pedal Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Morley M2 Maverick Contour Wah Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMorley M2CW Specs Audio I/O | 1 x 1/4" instrument input, phone type 1 x 1/4" instrument output, phone type | Potentiometer Resistance | 100 kOhms | Controls | Level knob Contour knob Contour Wah footswitch | Chassis | Cold-rolled steel | Bypass | Buffered | Current Draw | 14 mA | Power | 9 V Battery or 9 VDC 300 mA regulated power supply (center pin negative) | Dimensions (L x W x H) | 9.1 x 5.9 x 2.8" / 23.2 x 14.9 x 7.0 cm | Weight | Not specified by manufacturer |
