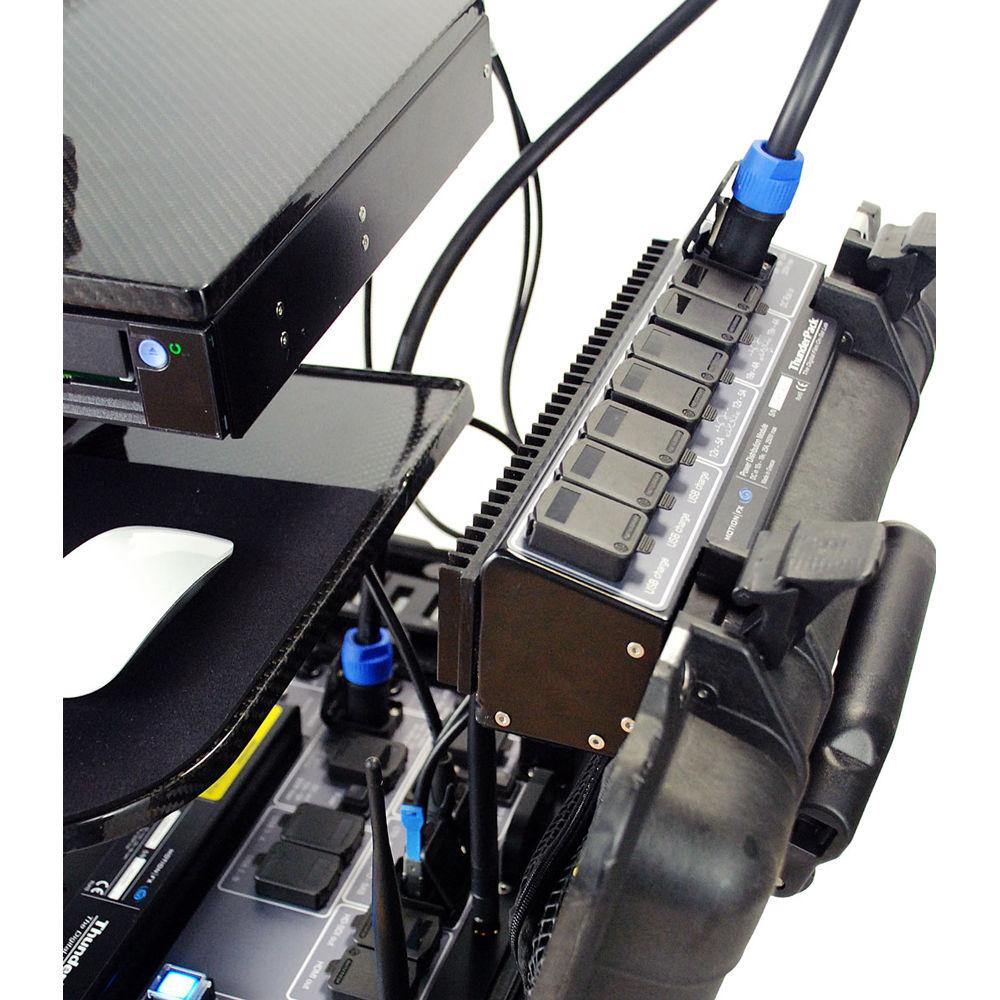

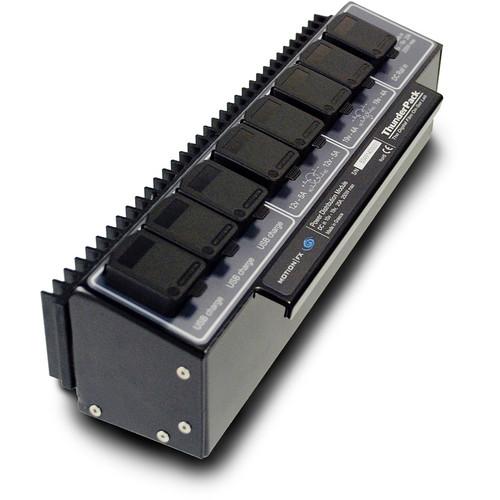

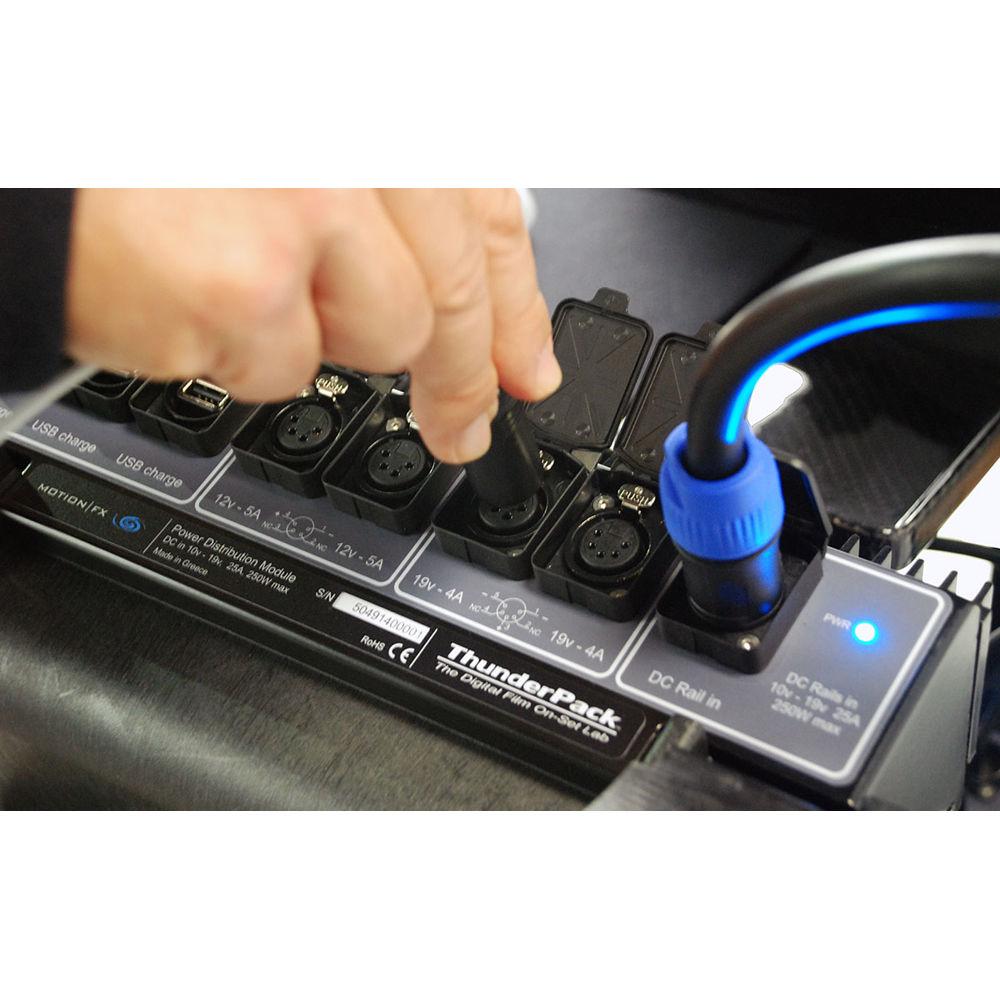

Product description The Motion FX Power Distribution Module is a high efficiency DC to DC power conditioning unit which connects to the ThunderPacks unregulated DC rail output. Each Power Distribution Module with 5V, 12V, and 19V outputs. With the Power Distribution Module you can connect up to two MacBook Pros via 19V 5-pin XLR, three mobile devices via USB, and professional 4-pin XLR-powered accessories simultaneously. Included with the Power Distribution Module is a bridge power cable for connecting to the ThunderPack and a 5-pin XLR to MagSafe 2 adapter for connecting a MacBook Pro computer. For storage and protection, a Neoprene case is also included. In the Box Motion FX Systems Power Distribution Module for ThunderPack Bridge Power Cable 5-pin XLR to MagSafe 2 Cable Neoprene Sleeve Limited 2-Year Warranty wutsraxe Table of Contents
|
Upload User Manual
Have you got an user manual for the Motion FX Systems Power Distribution Module for ThunderPack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

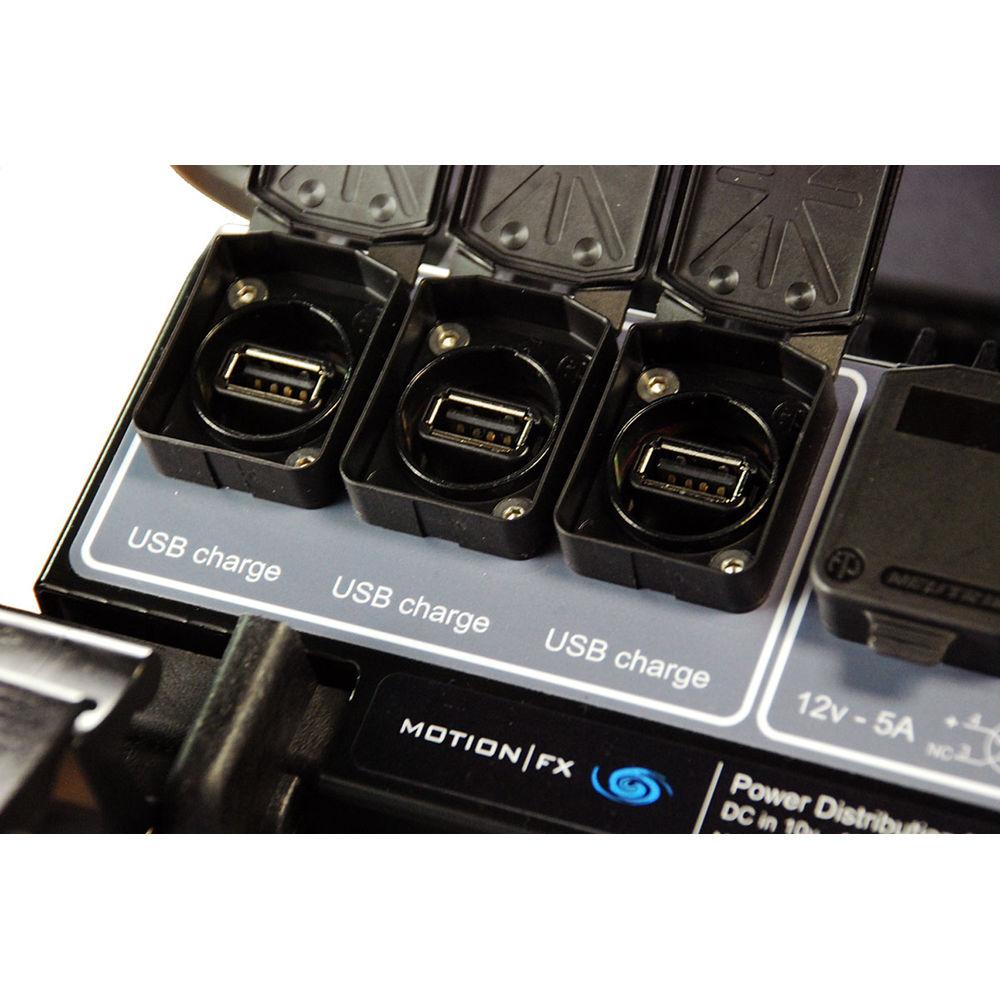

Technical parametersMotion FX Systems PWRP-MODULE Specs | Power Input | 10 to 24 VDC, 250 W | | Power Outputs | 3 x USB high power configuration, 5 V 2 A each
2 x 4-pin XLR, 12 VDC 5 A
2 x 5-pin XLR, 19 VDC 4 A | | Operating Conditions | Operating Temperature: 32 to 122°F / 0 to 50°C (in shade)
Operating Humidity: 95% (closed cover)
Max Operating Altitude: 13,000' / 4000 m | | Dimensions | 11.8 x 4 x 3.6" / 300 x 102 x 93 mm | | Weight | 3 lb / 1.4 kg (with sleeve and power cable) |
