User Manual for Motion FX Systems ThunderPack BMD Portable DIT Base Station Click to enlarge the picture
Contents of the user manual for the Motion FX Systems ThunderPack BMD Portable
- Product category: Portable RAID Recorders Motion FX Systems
- Brand: Motion FX Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motion FX Systems Portable RAID Recorders
 |
User manual for the Motion FX Systems ThunderPack BMD Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motion FX Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motion FX Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motion FX Systems product will considerably shorten its lifespan!
|
Product description Made for digital imaging technicians (DITs) working on pro photo and video productions in the field, the ThunderPack Portable DIT Base Station from MotionFX provides a portable solution which combines fast Thunderbolt RAID storage, power management, battery power, video I/O, and networking, all within a compact and durable package. Once set up, the ThunderPack becomes the center for your production, and after the day is done, it compacts into a sealed, rolling, and impact-resistant case. The full setup is small enough that it can be comfortably transported by a single person. Features - Thunderbolt Storage

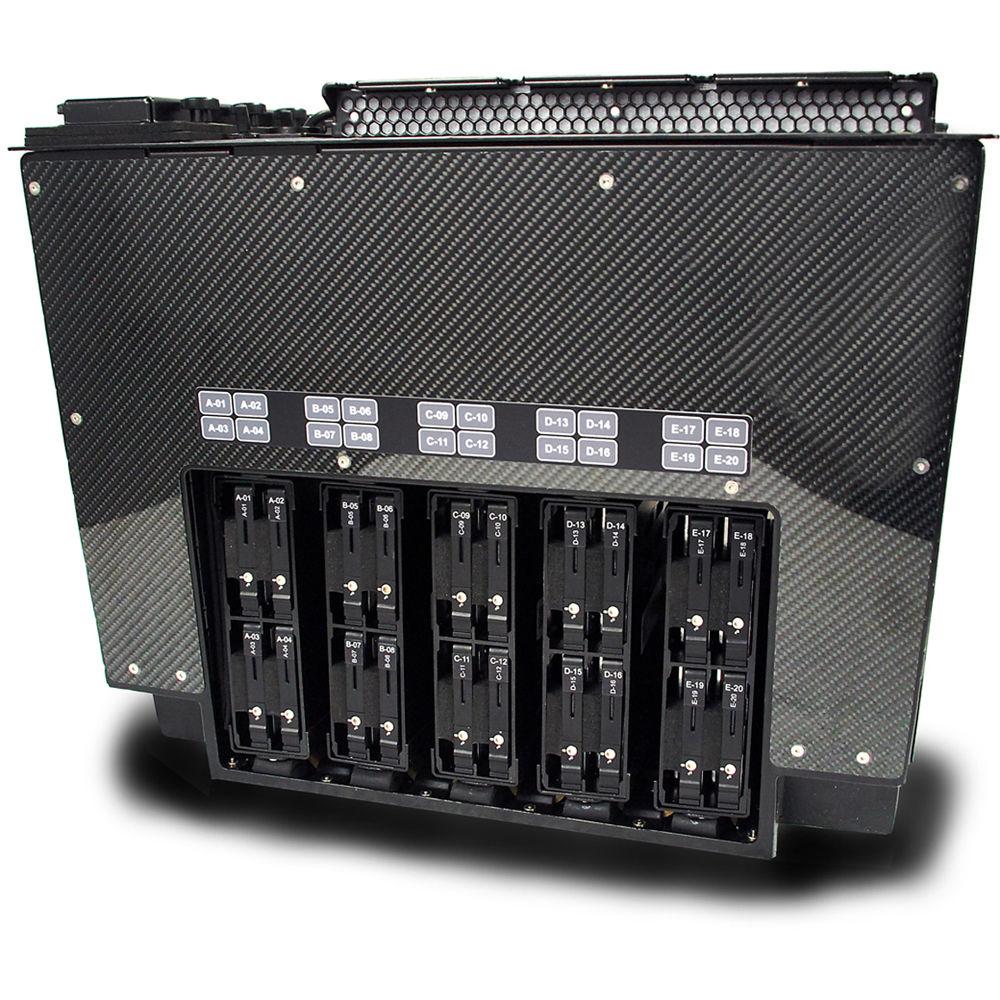

- Connect your computer via a single Thunderbolt terminal to gain access to all of the functionality of the ThunderPack. With 20 2.5" drive slots available for storage, you should have no problem storing sound, image, and other media files for use on set. Video DITs can transfer and store hours of uncompressed or raw footage for creating dailies or even a preliminary online edit with data transfer speeds greater than 700 MB/s. Photo DITs can immediately begin organizing or working on high-resolution raw photos from a tethered digital camera or digital back while the photographer is still shooting. This ThunderPack configuration comes with 20 2.5" aluminum HDD canisters to fit hard drives of your choosing.

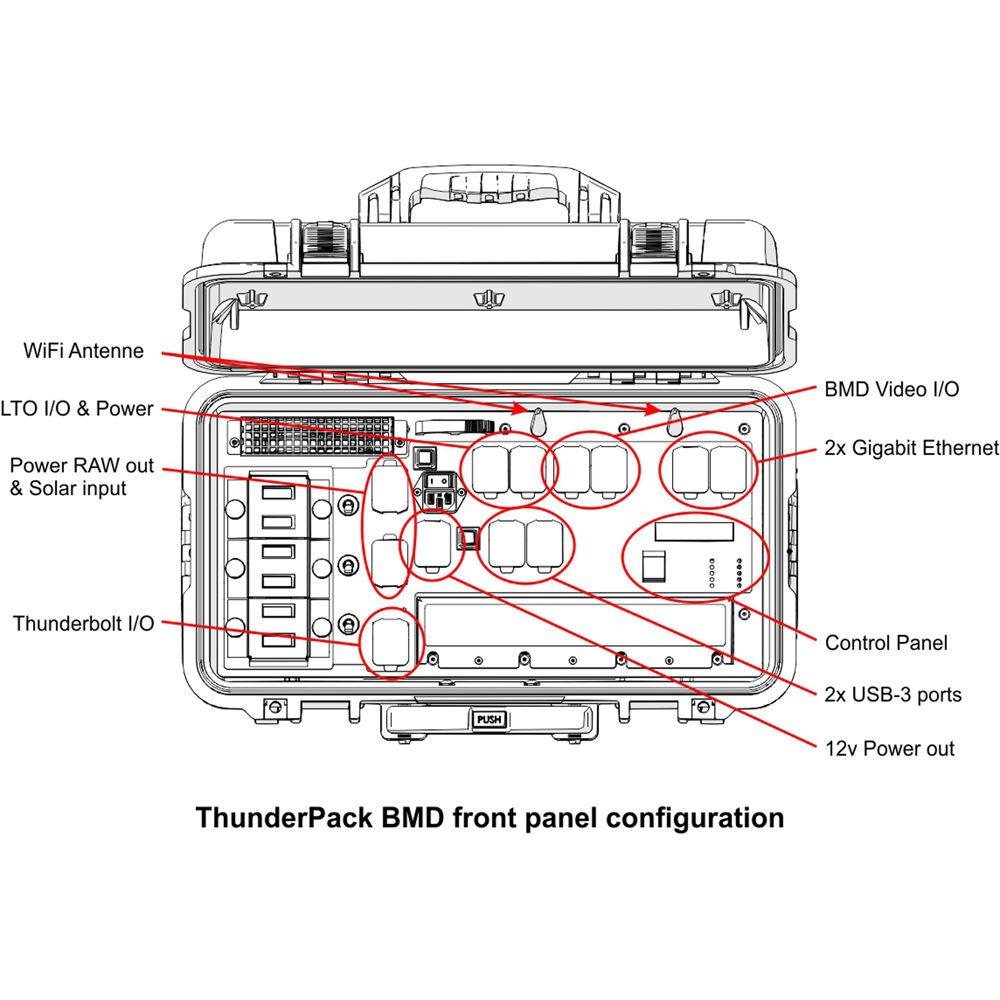

- Advanced I/O
- Not only for storage, the ThunderPack provides access to video I/O by way of a built-in Blackmagic Design Ultrastudio Mini for interfacing with professional high-resolution monitoring hardware. Many video DITs also do preliminary color correction or raw video processing for dailies, which requires a calibrated SDI monitor for accurate colors. Additional interfaces for data include SAS connections for LTO-6 archival storage and RJ45 gigabit Ethernet connections for expanding your on-site network. USB 3.0 connections are also available for flash drives, portable hard disks, and other peripherals.
- Advanced Power Options
- ThunderPack systems can have up to 588 Wh of battery power provided by six separately available hot swappable 98 Wh lithium-ion battery packs. These packs supply power for the internal electronics, and via the DC rail outputs, a wide range of external devices such as laptops or battery chargers can be connected. Peak loads of up to 480 watts are supported. For power autonomy, a solar power input allows for operation in remote regions.
- Wi-Fi Connectivity
- Using an integrated router, the ThunderPack can create its own wireless network providing means of communication for all Wi-Fi enabled devices on set. Now that many devices can take advantage of, or even require, a Wi-Fi connection for operation, the ThunderPack acts as a central base of communication for controlling and communicating with those devices.
- Pelican Case Enclosure

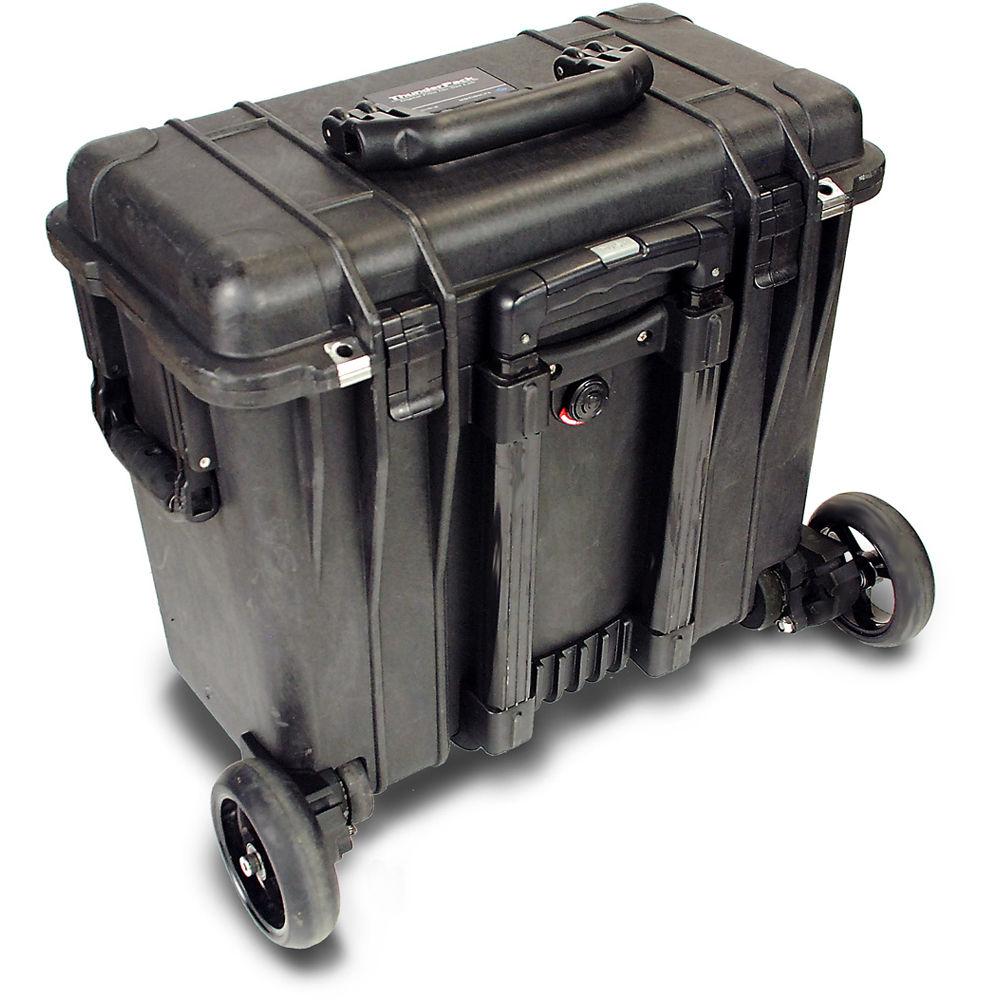

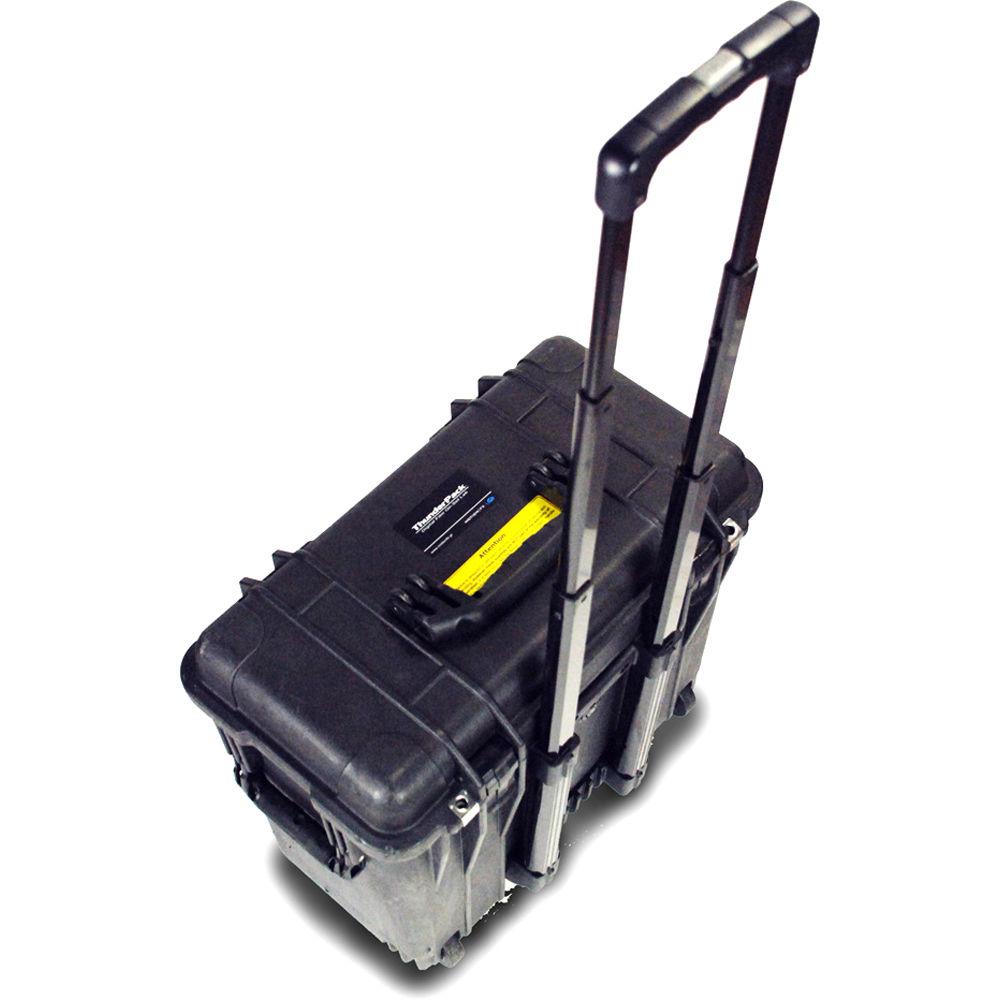

- When not in use, the main unit of the ThunderPack can be completely enclosed in the included Pelican case. When sealed, the case protects the ThunderPack unit from inclement weather and is rated to remain waterproof for up to 30 minutes at depths of 3'.
In the Box Motion FX Systems ThunderPack BMD Portable DIT Base Station 20 x 2.5" Drive Canisters ThunderPack Wheels Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motion FX Systems ThunderPack BMD Portable DIT Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotion FX Systems TP-BMD-D Specs | Interfaces | Main system interface: Thunderbolt (>700 MB/s read/write speed using RAID 6 or ATTO DVRAID)
DD interface: 20 x 6 Gb/s SAS2/SATA3 2.5" ports (max. drive height 17 mm) + 6 Gb/s SAS2/SATA3 expander (for LTO or HDD)
External LTO interface: 4 x 5 Gb/s SAS2/SATA3 to SFF-8644 socket + 5-pin XLR power 12 V & 5 V, 40W total max | | Custom Configuration Options | BMD UltraStudio Mini Monitor:
Output: HD-SDI, HDMI
Network Configuration:
Wired: Thunderbolt interface to Gigabit port for MacBook computer, Vigor Gigabit Ethernet Switch (2 external & 1 internal ports)
Wireless: 2.5 Ghz and 5 Ghz, 300 Mbps Vigor Router with DHCP management | | OS Compatibility | Mac OS X 10.8 and newer | | RAID Support | ATTO ThunderStream 3808, RAID 0/1/3/5/6 | | Power | Power input:
88 to 268 VAC, 50/60 Hz full range
Operating: 11 to 15 VDC, 0 to 10 A
Operating & charging: 16 to 22 VDC, 0 to 10 A
Power output: Power rails raw output: 10 to 19 V, 25 A or 250 W max
Power sub-system: 6 x 98 Wh Li-ion batteries
Total capacity: 588 Wh
DC PSU peak load: 480 W (320 W continuous) | | Operating Conditions | Temperature: 35.6 to 118.4°F / 2 to 48°C (under shade)
Humidity:
Open cover: 95%
Closed cover: waterproof to 3.3' / 1 m underwater for up to 30 minutes
Altitude: 13,000' / 4000 m max | | Dimensions | 19.2 x 11.4 x 16.4" / 487 x 289 x 416 mm | | Weight | 50.7 lb / 23 kg (with HDDs and batteries)
41.2 lb / 18.7 kg (without HDDs, with batteries)
36.4 lb / 16.5 kg (without HDDs or batteries) |
