Product description

Made for digital imaging technicians (DITs) working on pro photo and video productions in the field, the ThunderPack Portable DIT Base Station from MotionFX provides a portable solution which combines fast Thunderbolt RAID storage, power management, battery power, custom AV I/O configuration, and networking, all within a compact and durable package. Once set up, the ThunderPack becomes the center for your production, and after the day is done, it compacts into a sealed, rolling, and impact-resistant case. The full setup is small enough that it can be comfortably transported by a single person.

Features

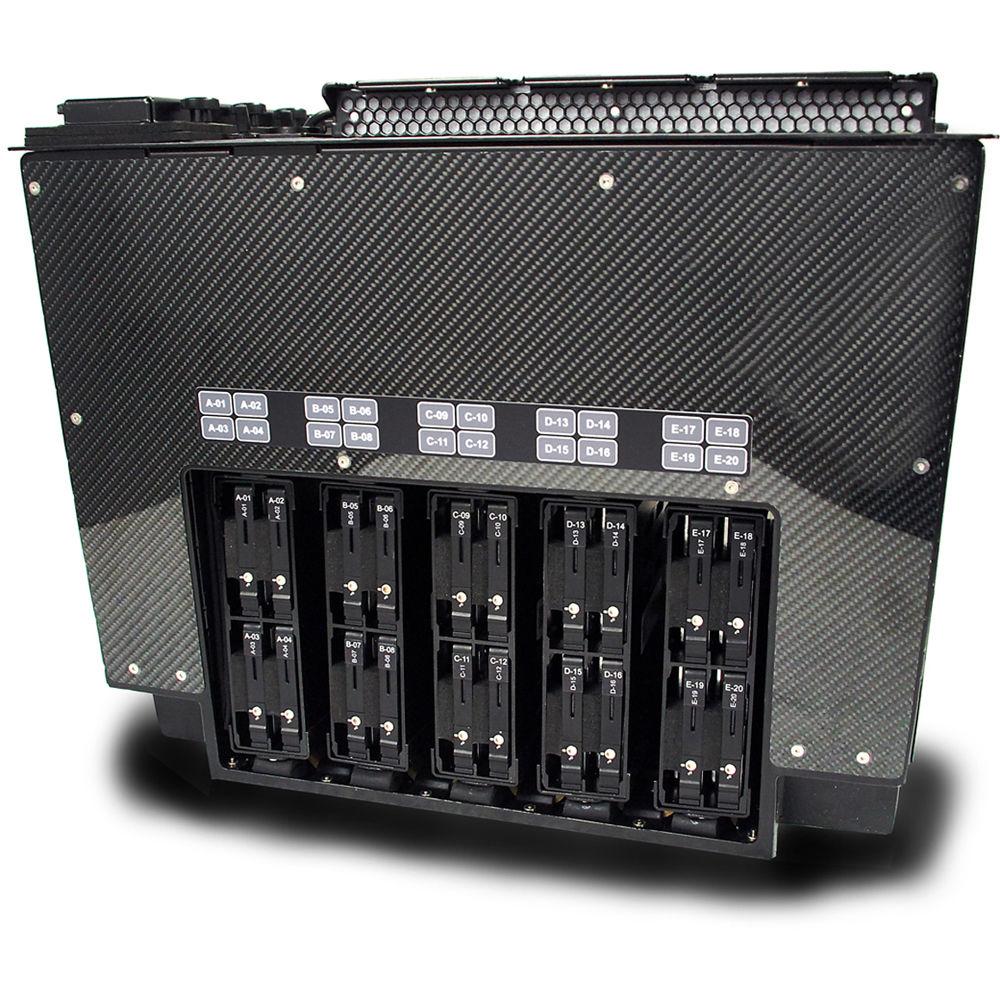

    Thunderbolt Storage
  • Connect your computer via a single Thunderbolt terminal to gain access to all of the functionality of the ThunderPack. With 20 2.5" drive slots available for storage, you should have no problem storing sound, image, and other media files for use on set. Video DITs can transfer and store hours of uncompressed or raw footage for creating dailies or even a preliminary online edit with data transfer speeds greater than 700 MB/s. Photo DITs can immediately begin organizing or working on high-resolution raw photos from a tethered digital camera or digital back while the photographer is still shooting. This ThunderPack configuration comes with 20 2.5" aluminum HDD canisters to fit hard drives of your choosing.

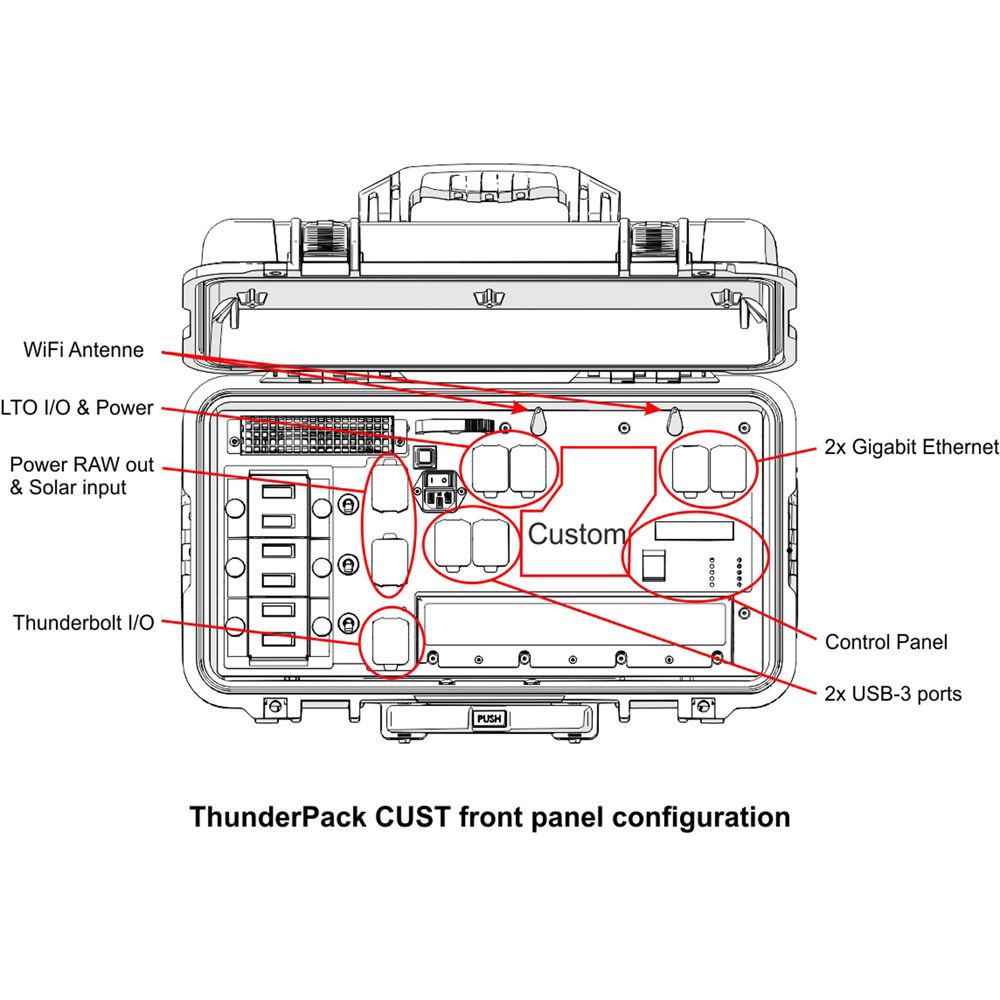

    Advanced I/O
  • Not only for storage, the ThunderPack provides access to extra I/O by way of a custom payload bay for adding your own hardware to conform with your specific workflow. Six Neutrik outboard connections provide access to any I/O on the device you use while keeping the device itself protected. Multiple devices can be used, provided they can fit in the space; for example a Fujifilm LUT Box can be used alongside a Blackmagic Design Ultrastudio Mini while keeping all of the connections topside. Additional interfaces for data include SAS connections for LTO-6 archival storage and RJ45 gigabit Ethernet connections for expanding your on-site network. USB 3.0 connections are also available for flash drives, portable hard disks, and other peripherals.
    Advanced Power Options
  • ThunderPack systems can have up to 588 Wh of battery power provided by six separately available hot swappable 98 Wh lithium-ion battery packs. These packs supply power for the internal electronics, and via the DC rail outputs, a wide range of external devices such as laptops or battery chargers can be connected. Peak loads of up to 480 watts are supported. For power autonomy, a solar power input allows for operation in remote regions.
    Wi-Fi Connectivity
  • Using an integrated router, the ThunderPack can create its own wireless network providing means of communication for all Wi-Fi enabled devices on set. Now that many devices can take advantage of, or even require, a Wi-Fi connection for operation, the ThunderPack acts as a central base of communication for controlling and communicating with those devices.

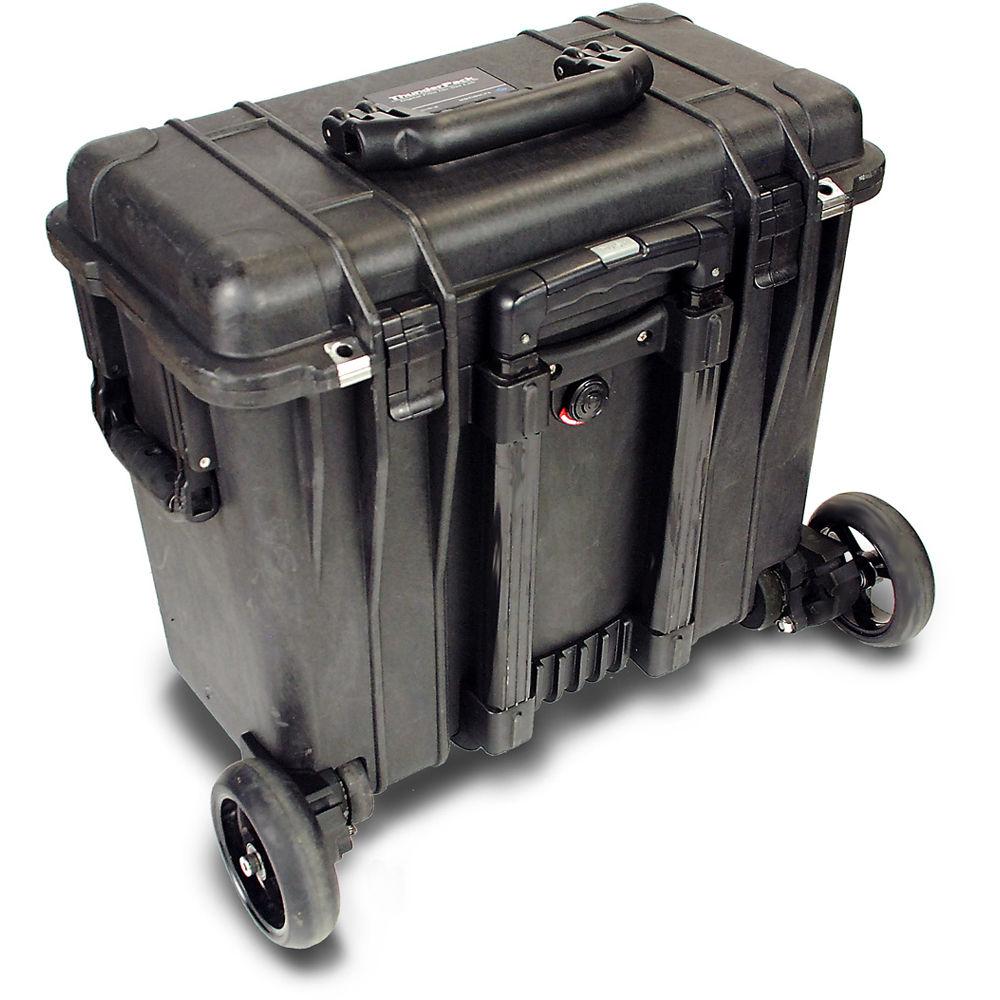

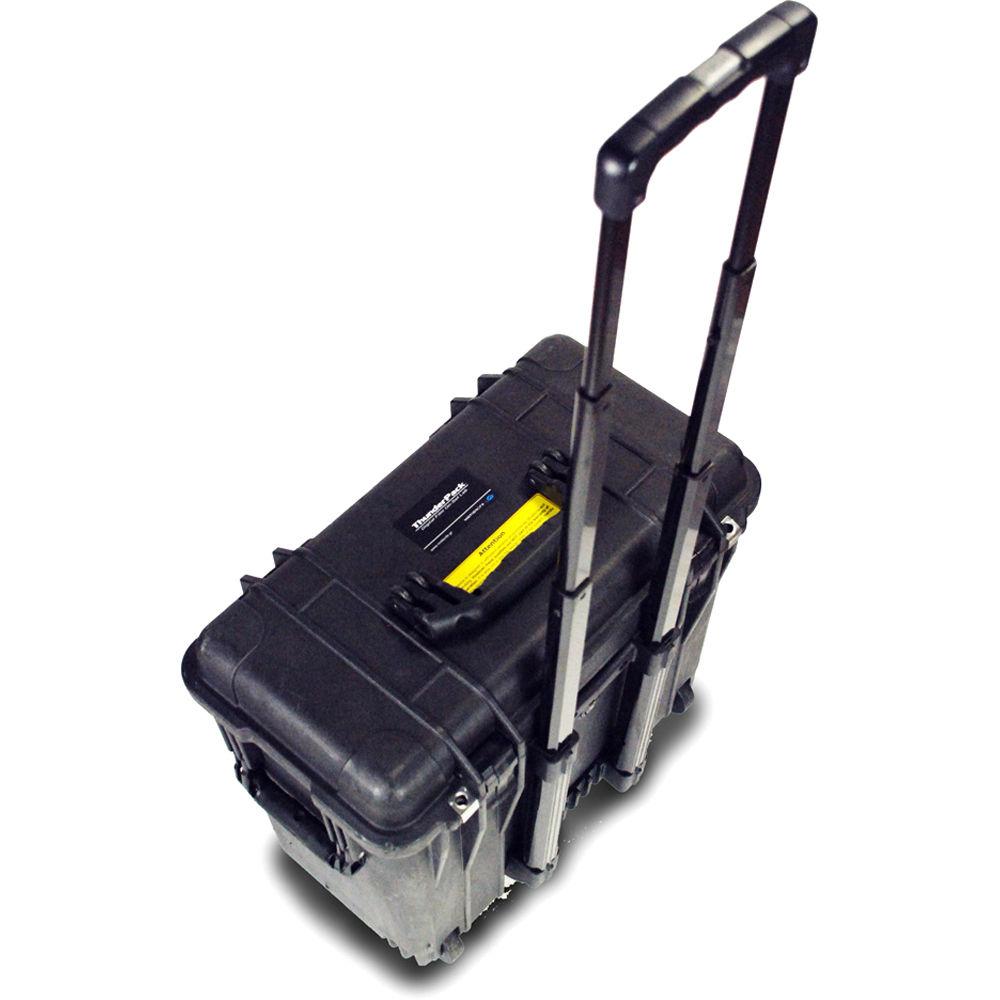

    Pelican Case Enclosure
  • When not in use, the main unit of the ThunderPack can be completely enclosed in the included Pelican case. When sealed, the case protects the ThunderPack unit from inclement weather and is rated to remain waterproof for up to 30 minutes at depths of 3'.
In the Box Motion FX Systems ThunderPack Custom Portable DIT Base Station
  • 20 x 2.5" Drive Canisters
  • ThunderPack Wheels
  • Power Cord
  • Limited 2-Year Warranty
  • euqzqvfsqedrxwsdsvvyava Table of Contents




    Upload User Manual

    Have you got an user manual for the Motion FX Systems ThunderPack Custom Portable DIT Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Motion FX Systems TP-CUST-D Specs

    Interfaces Main system interface: Thunderbolt (>700 MB/s read/write speed using RAID 6 or ATTO DVRAID)
    DD interface: 20 x 6 Gb/s SAS2/SATA3 2.5" ports (max. drive height 17 mm) + 6 Gb/s SAS2/SATA3 expander (for LTO or HDD)
    External LTO interface: 4 x 5 Gb/s SAS2/SATA3 to SFF-8644 socket + 5-pin XLR power 12 V & 5 V, 40W total max
    Custom Configuration Options Custom payload bay:
    6 x Neutrik compatible I/O panels
    Dimensions: 9 x 14 x 1.5" / 103 x 229 x 103 mm custom payload bay
    Network Configuration:
    Wired: Thunderbolt interface to Gigabit port for MacBook computer, Vigor Gigabit Ethernet Switch (2 external & 1 internal ports)
    Wireless: 2.5 Ghz and 5 Ghz, 300 Mbps Vigor Router with DHCP management
    OS Compatibility Mac OS X 10.8 and newer
    RAID Support ATTO ThunderStream 3808, RAID 0/1/3/5/6
    Power Power input:
    88 to 268 VAC, 50/60 Hz full range
    Operating: 11 to 15 VDC, 0 to 10 A
    Operating & charging: 16 to 22 VDC, 0 to 10 A
    Power output: Power rails raw output: 10 to 19 V, 25 A or 250 W max
    Power sub-system: 6 x 98 Wh Li-ion batteries
    Total capacity: 588 Wh
    DC PSU peak load: 480 W (320 W continuous)
    Operating Conditions Temperature: 35.6 to 118.4°F / 2 to 48°C (under shade)
    Humidity:
    Open cover: 95%
    Closed cover: waterproof to 3.3' / 1 m underwater for up to 30 minutes
    Altitude: 13,000' / 4000 m max
    Dimensions 19.2 x 11.4 x 16.4" / 487 x 289 x 416 mm
    Weight 50.7 lb / 23 kg (with HDDs and batteries)
    41.2 lb / 18.7 kg (without HDDs, with batteries)
    36.4 lb / 16.5 kg (without HDDs or batteries)
