User Manual for Moto G5 Plus XT1687 32GB Smartphone Click to enlarge the picture
Contents of the user manual for the Moto G5 Plus XT1687 32GB Smartphone
- Product category: Unlocked Cell Phones Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Unlocked Cell Phones
 |
User manual for the Moto G5 Plus XT1687 32GB Smartphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

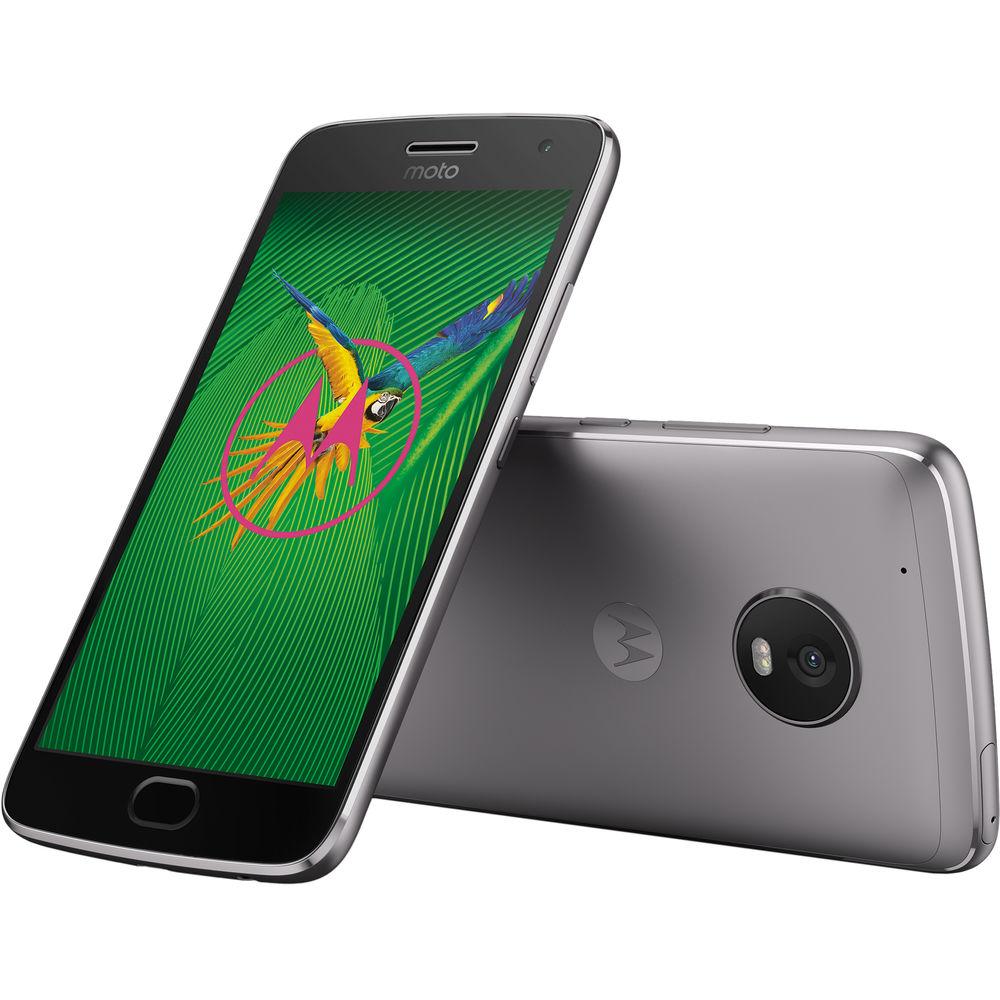

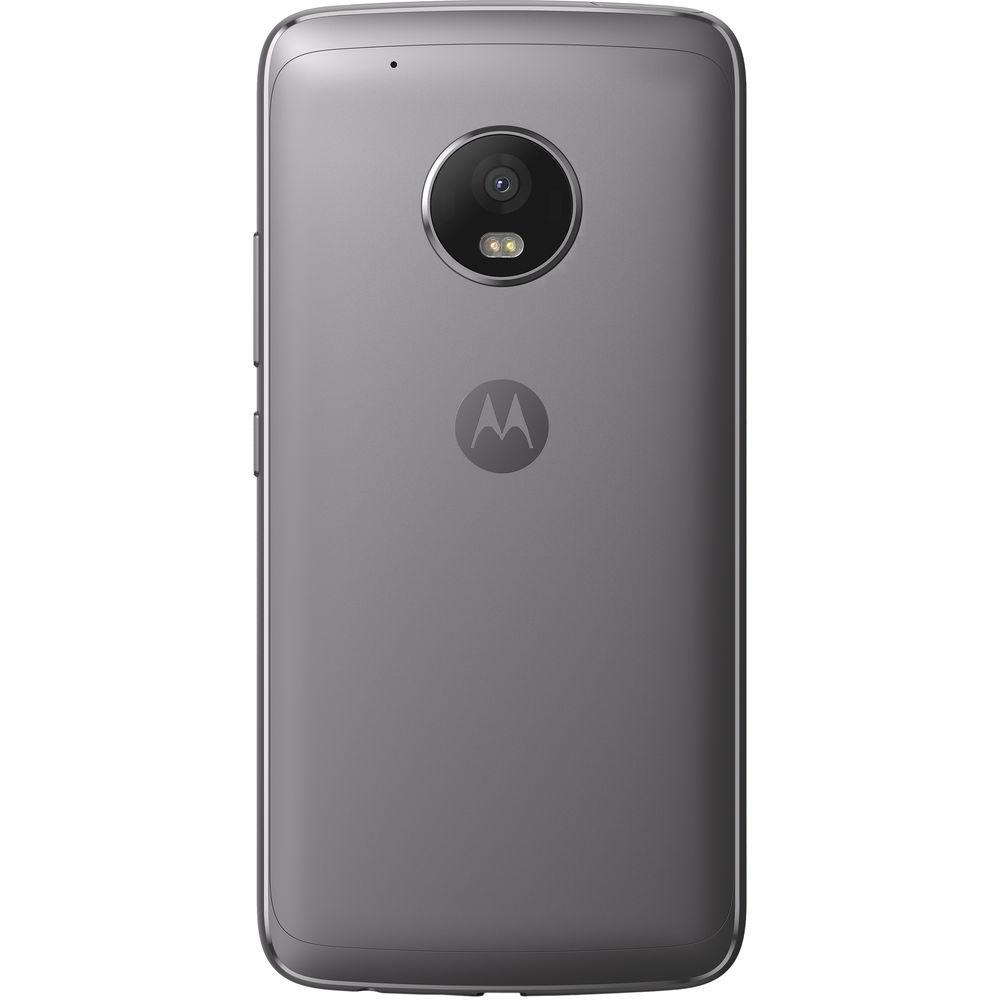

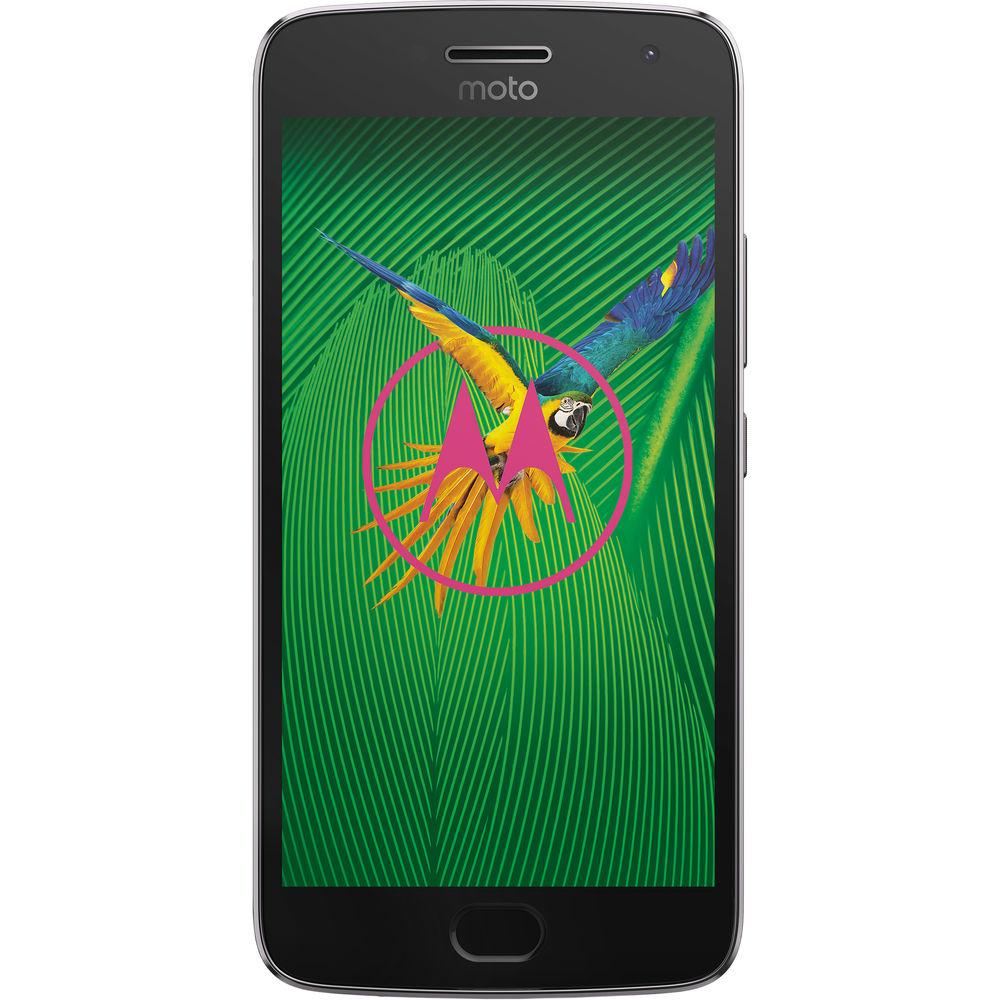

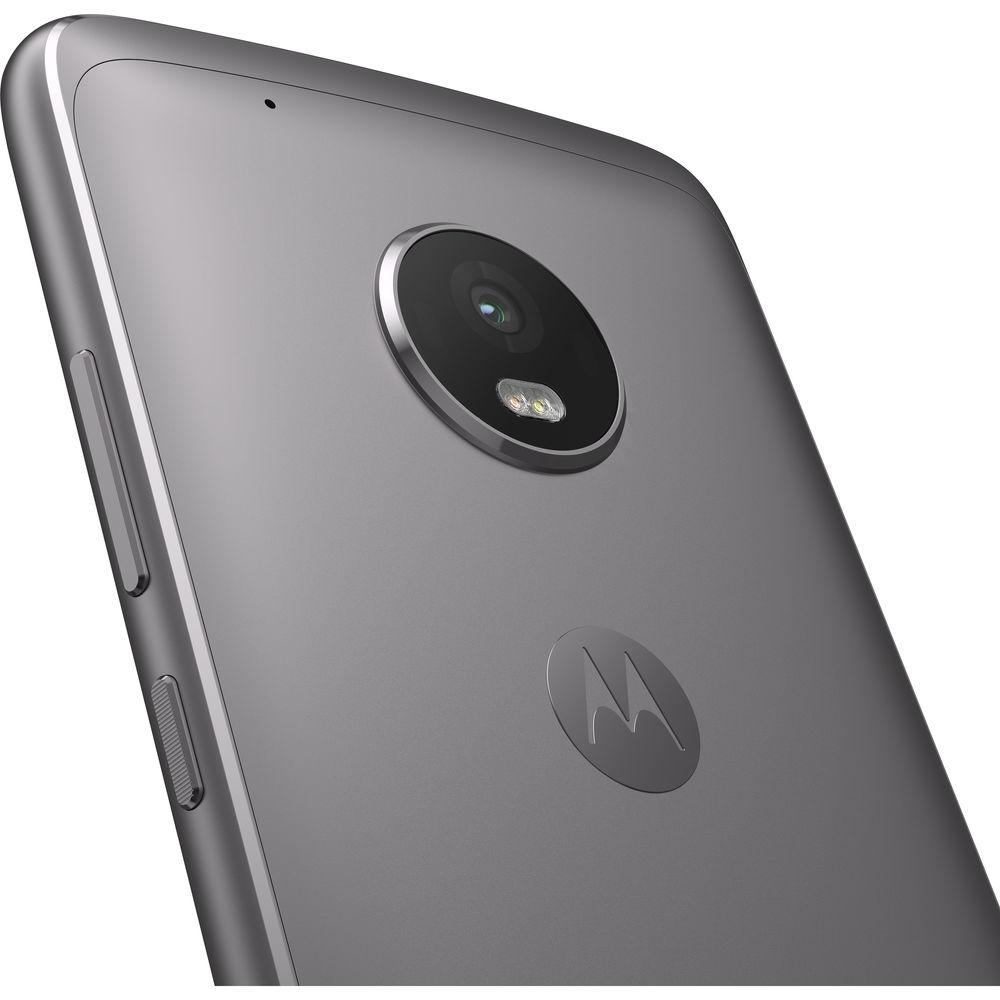

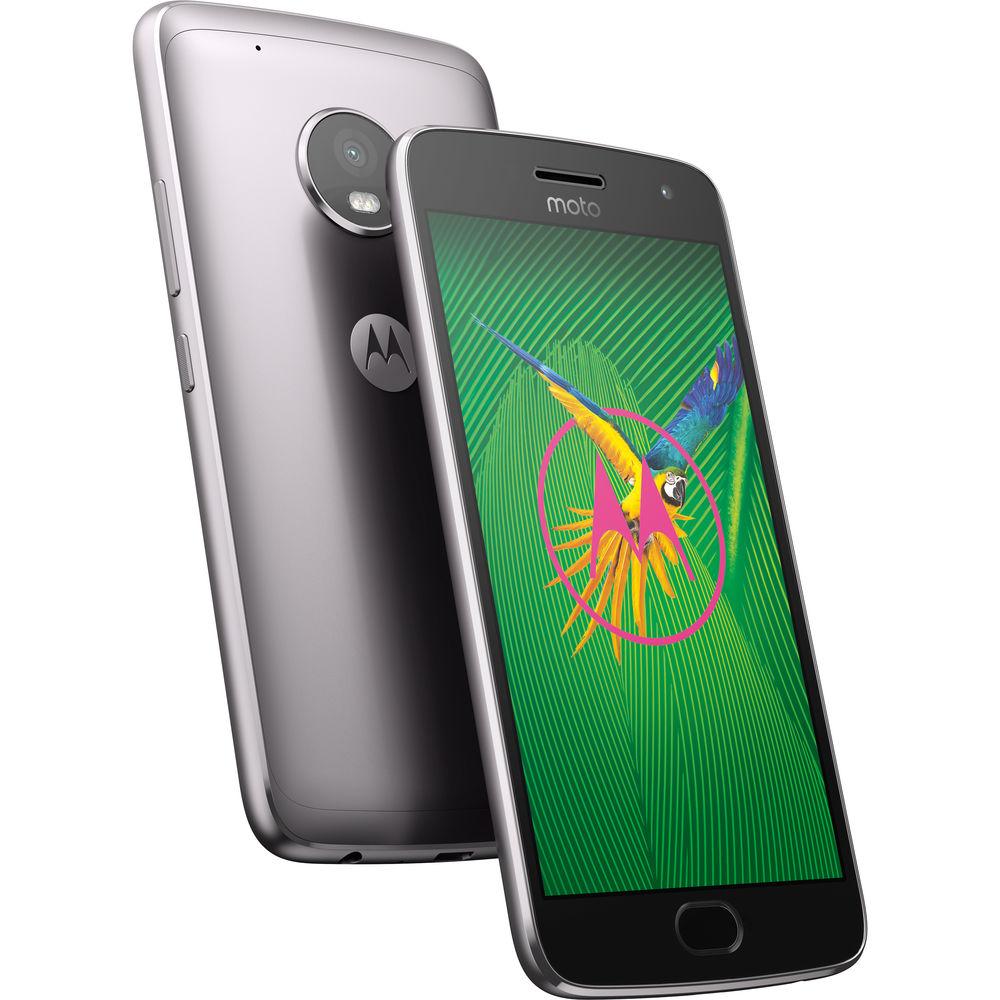

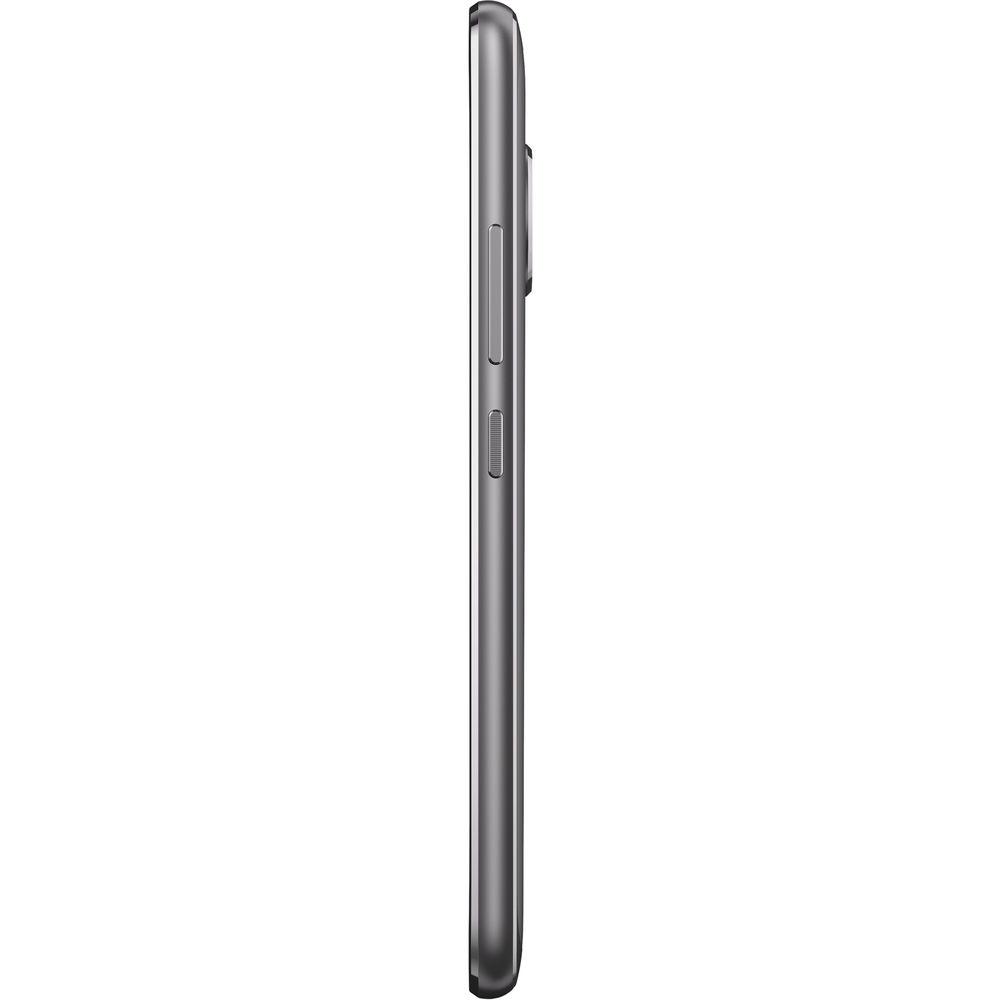

Product description The Best Smartphones of 2018 Read More Experience the next generation of dynamic handheld performance with the Moto G5 Plus from Lenovo. The G5 Plus features a new-look aluminum body that's precision-crafted for a more refined look than its predecessors. It's smartphone is powered by a 2.0 GHz octa-core Qualcomm Snapdragon 625 processor and 2GB of dedicated RAM. It comes equipped with 32GB of storage and includes a microSD slot that supports microSDXC cards for additional storage. The integrated micro-USB interface allows you to connect the device for mass- storage purposes and also serves as a charging port.
The Moto G5 Plus houses a 5.2" LCD touchscreen display, which features a 1920 x 1080 resolution that fully supports all your HD content. For your photo and video needs, the G Plus features two powerful cameras: a rear-facing 12MP lens with Dual Autofocus Pixels technology, color balancing dual-LED flash, auto HDR, 4K video capture, and several other enhancements built-in. A front-facing 5MP wide-angle lens is built-in as well.
The Moto G5 Plus is also well-equipped for wireless communication. It features Bluetooth 4.2 technology for pairing with other Bluetooth-enabled devices, and 802.11a/b/g/n Wi-Fi for high-speed Internet connectivity. GPS with GLONASS is also on-board for using compatible location services and applications. The Moto G5 Plus's 3000mAh battery is designed to provide "All Day" mixed usage on a full charge, and thanks to TurboPower technology, it can provide up to 6 hours of power from only 15 minutes of charging. - GSM + CDMA / 4G LTE Wireless Connectivity
- This phone is designed to work on select GSM and CDMA networks and is 4G LTE capable. LTE is an advanced cellular network data protocol capable of data speeds so fast that they compete with wired broadband Internet providers. With an LTE connection, this phone should have no problem streaming HD video, downloading apps, uploading photos, or anything else that requires a high-speed data connection. The phone is also backwards compatible with 3G and 2G data for instances when you can't get LTE. In addition to cellular wireless, this phone also features Bluetooth and Wi-Fi connectivity.
- North American Variant / US Compatible LTE
- The XT1687 is a US variant of the Moto G5 Plus. The XT1687's LTE radio is tuned to frequencies that are most often used in the United States and North America. It can also be used in other parts of the world; however, LTE access may be limited or unsupported, depending on the network. To ensure this phone will work with your carrier please check to make sure the frequencies your carrier uses are supported by this phone. The full list of compatible carrier frequencies can be found herecauvwwbfwwszdcvvzfeuuxufyfaqrxrtzs, the frequencies this phone supports can be found in the product specs.
- Moto Experiences
- The Moto G5 Plus features a series of shortcuts to make using your new G5 Plus even easier. The fingerprint sensor lets you quickly unlock your phone without a passcode. The all-new Moto Actions allows you to access everyday features with just a simple gesture. When you want to know what's going on without unlocking your phone, Moto Display will show you a quick preview of notifications and updates, so you can see what's going on.
- All-Day Battery and TurboPower Technology
- The Moto G5 Plus is designed to last a full day and then some. With a 3000mAh battery, you can go about your day and not worry about battery life. Go to school or work, visit with friends, and then head out for the evening - you'll still have enough juice to get home. Plus, the Moto G5 Plus is equipped with TurboPower technology, which is designed to give you 6 hours of usage after just 15 minutes of charging.
- Enhanced Cameras
- The new Moto G5 Plus is the first camera in its class with Dual Autofocus Pixels. Utilizing 10 times more pixels on the sensor, the camera is able to lock onto a subject up to 60% faster than previous models.
- Android 7.0 Nougat
- The Android operating system integrates heavily with Google's services. Using the card-based Google Now, Android quickly surfaces information for you whenever you need it, powered by the same Knowledge Engine that runs Google's web search. It's a personalized and customizable OS, allowing you to add your favorite apps or widgets to your homescreen. You can even download new themes using the Google Play Store, which offers access to more than one million apps, games, books, music, movies, and more. Android 7.0 Nougat adds major productivity capabilities to the operating system in the form of a multi-window view, which allows for two apps to be placed onscreen at a time. An improved notification system allows you to interact with texts and emails right from your notification pane - without needing to open the app. Other features include file-based encryption, a Data Saver mode, the ability to scale text and icons to better suit your phone's screen, and more.
UPC: 723755011106 In the Box Moto G5 Plus XT1687 32GB Smartphone (Unlocked, Lunar Gray) USB Cable Limited 1-Year Warranty Smart Assistants Roundup M. Brett Smith 12/14/2018 The Camera Phone is 20 Years Old! Allan Weitz 06/11/2017 What Smartphones Should I Consider If I Care About Security? Chris Gold 05/01/2017 Why Buy an Unlocked Phone: A Primer Chris Gold 08/12/2015 Guide to Cleaning Your Smartphone M. Brett Smith 03/28/2019 A Look at Dual Camera Systems in Smartphones M. Brett Smith 05/03/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the Moto G5 Plus XT1687 32GB Smartphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMoto XT1687 Specs | | | Operating System | Android 7.0 Nougat | | Memory | 2 GB | | Chipset | Qualcomm Snapdragon 625 | | CPU | 2.0 GHz ARM Cortex A53 Octa-Core | | GPU | 650 MHz Adreno 506 | | Storage | 32 GB | | | | Size | 5.2" | | Native Resolution | 1920 x 1080 | | Display Colors | 16.0 Million | | Aspect Ratio | 16:9 | | Pixel Density | 424 ppi | | Display Technology | IPS-Type LCD | | Screen Coating | Gorilla Glass 3 | | | | Ports | 1 x USB 2.0 - Micro | | Audio | 1 x 1/8" / 3.5 mm Headphone
1 x Integrated Microphone
1 x Integrated Speaker | | Flash Media Slot | 1 x microSDXC | | SIM Card Size | Card 1: Nano | | | | CDMA 2G | CDMA: 800, 1900 MHz | | GSM 2G | GSM, GPRS, EDGE: 850, 900, 1800, 1900 MHz | | CDMA 3G | CDMA2000, EV-DO: 800, 1900 MHz | | GSM 3G/3.5G | UMTS, HSPA+: 850, 900, 1700, 1900, 2100 MHz | | 4G LTE | LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 25, 26, 38, 41, 66 Bands | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | Bluetooth | Bluetooth 4.1 + LE | | NFC | No | | Infrared | No | | GPS | Yes | | FM Radio | Yes | | | | Sensors | Ambient Light Sensor, Accelerometer, Fingerprint, Gyroscope, Proximity | | Water Resistance | Resistant | | Keyboard | Virtual | | Pointing Device | None | | Battery | Internal Lithium-Ion (3000.0 mAh) | | Fast Charging Technology | Motorola TurboPower | | Wireless Charging Technology | None | | Dimensions (W x H x D) | 5.9 x 2.9 x 0.4" / 150.2 x 74.0 x 9.7 mm | | Weight | 5.47 oz / 155 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.4 x 3.7 x 1.8" |
