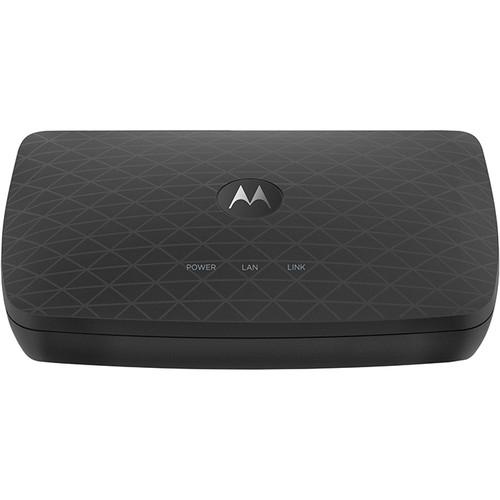

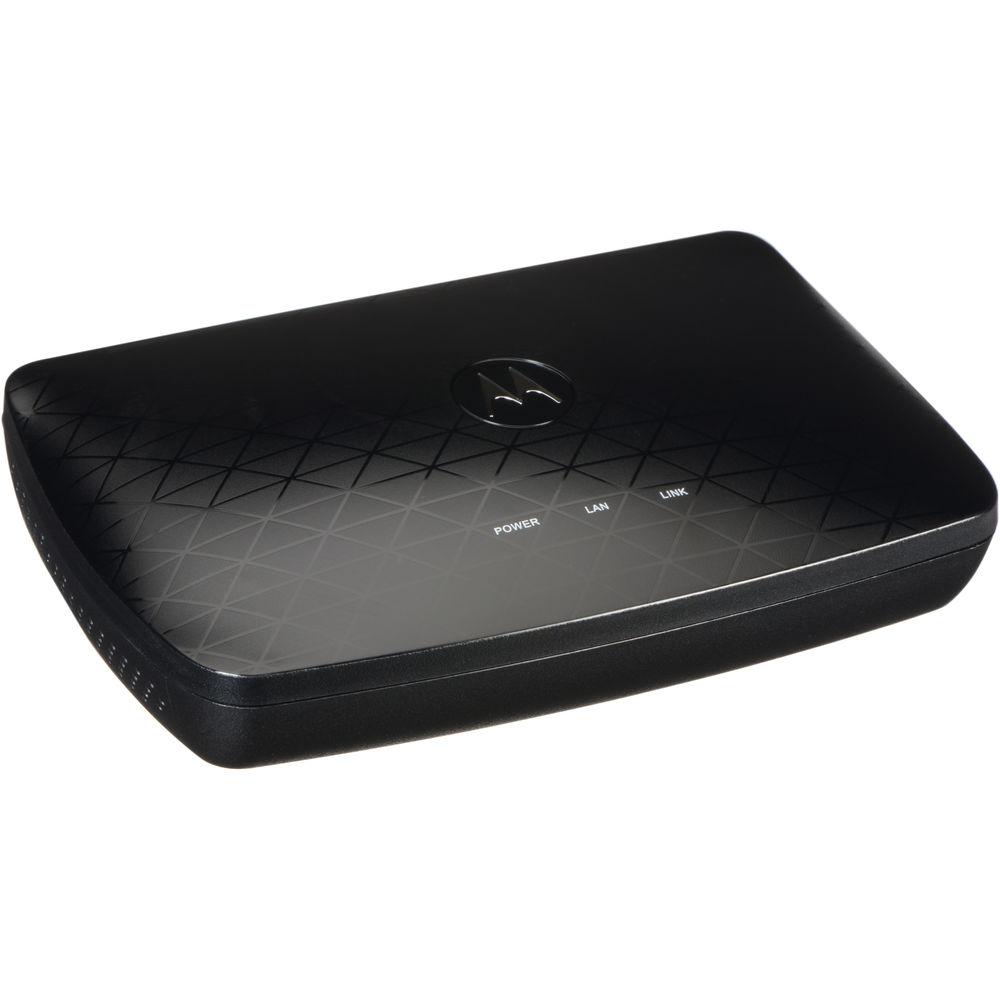

User Manual for Motorola Bonded 2.0 MoCA Adapter for Ethernet over Coax Click to enlarge the picture
Contents of the user manual for the Motorola Bonded 2.0 MoCA Adapter for
- Product category: Networking Accessories Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola Networking Accessories
 |
User manual for the Motorola Bonded 2.0 MoCA Adapter for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|
Product description With the Bonded 2.0 MoCA Adapter from Motorola, you can transmit data over coax cables, making it easy to connect your Ethernet-capable devices such as HDTVs, wireless access points, game consoles, and more directly to your network. This adapter supports data transfer rates up to 1 Gb/s and operates over existing coax cabling along with the ability to connect up to 16 remote devices. Installation is simple with plug-in setup and the Bonded 2.0 MoCA adapter comes compatible with MoCA 1.0, 1.1, 2.0, and 2.5 making it compatible with nearly any network device. -
- Provides a high-speed wired connection using existing coax between a router and an HDTV, computer, or other device that has an Ethernet port for internet access
- Works over the coax cabling in your home
- Works for up to 16 remote devices, each using its own MoCA adapter
- Bonded MoCA 2.0 is very fast, supporting actual speeds up to 1 Gb/s. This is typically much faster than unbonded MoCA 2.0, MoCA 1.1, MoCA 1.0, or Wi-Fi
- This MoCA adapter works with all types of MoCA including MoCA 1.0, 1.1, 2.0, and 2.5
- Easy plug-in setup, with no need for configuring the MoCA adapter or re-configuring your router
- USA customer support and 2-year warrant

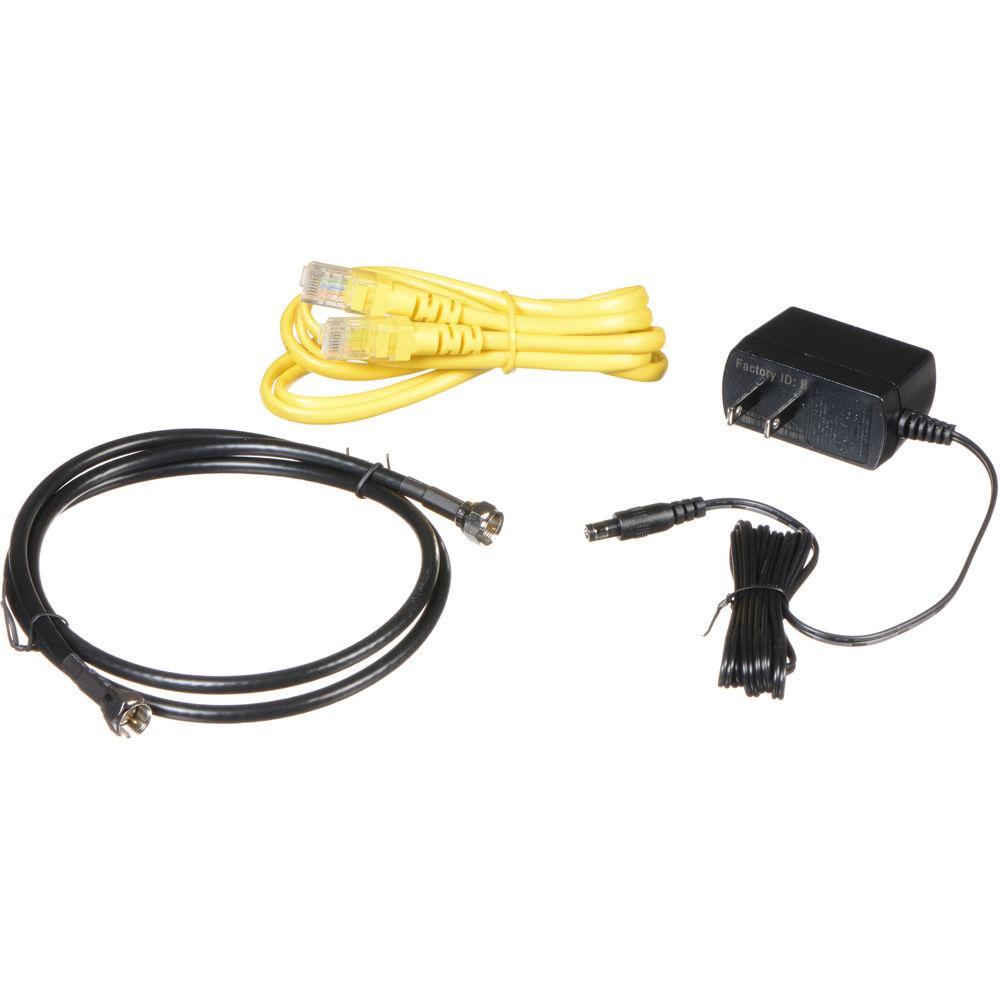

UPC: 855631006408 In the Box Motorola Bonded 2.0 MoCA Adapter for Ethernet over Coax Power Cube PoE Filter Flexible Coax Cable Ethernet Cable 2 x Screws for Optional Wall Mount Wrench Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola Bonded 2.0 MoCA Adapter for Ethernet over Coax in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola MM1000-10 Specs | MoCA Technology | • Bonded MoCA 2.0
• Interoperable with MoCA 1.0, 1.1, 2.0, and 2.5
• Actual Data Speeds: Up to 1 Gb/s
• Up to 16 MoCA-enabled devices can be connected to a MoCA-enabled router or modem/router
• MoCA Bands - MoCA Ext Band D Operation: 1125 - 1675 MHz | | Ethernet | IEEE 802.3x | | Interfaces | Coax Interfaces:

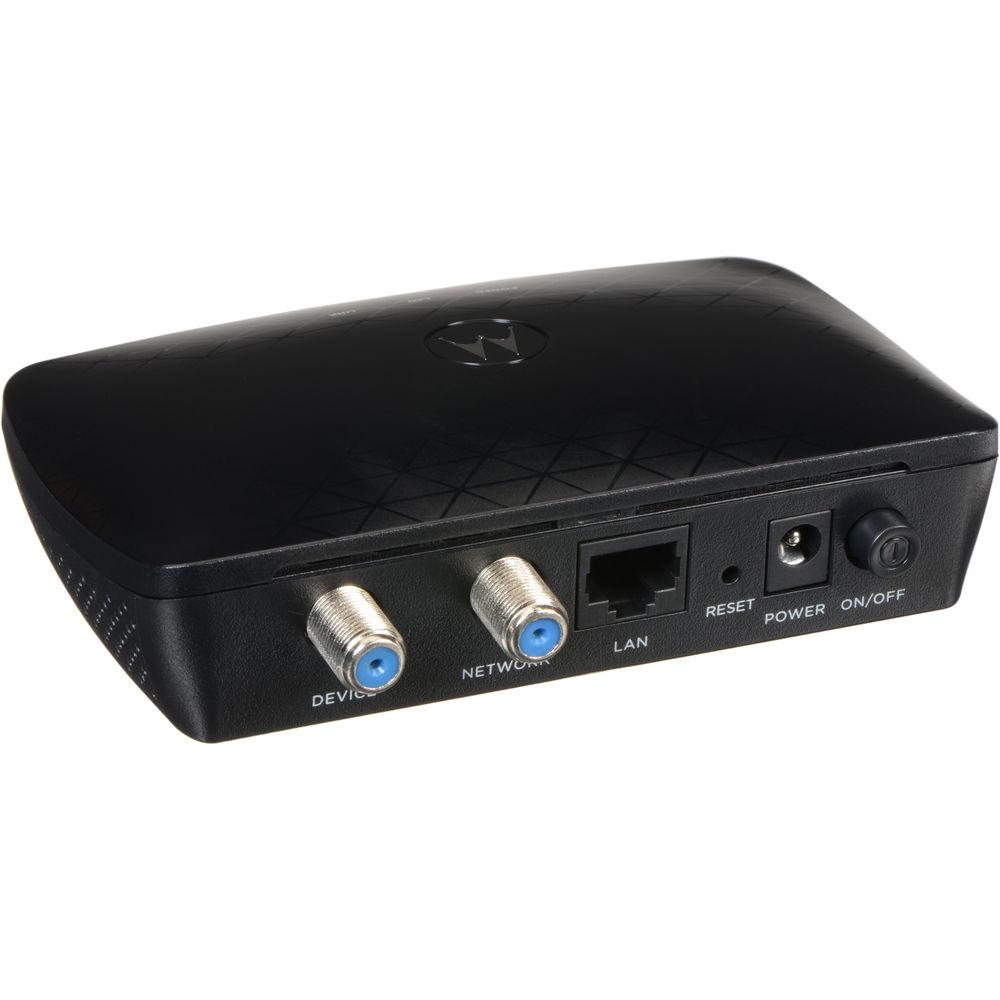

• 2 x MoCA Coax Connectors: Device and Network
• Both connectors are F-Type female 75 Ω
Ethernet Interface:
• 1 x RJ45 10/100/1000 Mb/s Ethernet port, with auto MDI/MDIX | | LEDs | Power, LAN, Link | | Chipset | Broadcom BCM6802 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Power Adapter | Energy-efficient 5 Volt, 1 Amp power adapter with superior surge protection and 90-265 VAC universal voltage input | | Certifications | FCC Part 15B, ISED Canada ICES-003, BV US/Canada ITE safety, CE (as per manufacturer) | | Network Requirements | Coax Network Requirements: The MoCA Adapter MM1000 is designed to work with most coax networks including networks associated with cable TV, cable internet, and FiOS or another fiber optic network.
The MoCA Adapter is NOT designed to work with DirecTV, Dish, and other satellite networks, or with AT&T Internet or AT&T U-Verse, since these services use frequencies that conflict with the MoCA Adapter. | | Dimensions | 4.9 x 3.1 x 1.2" / 12.4 x 8.0 x 3.0 cm | | Weight | 4.2 oz / 120.0 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.6 x 5.7 x 2.4" |
