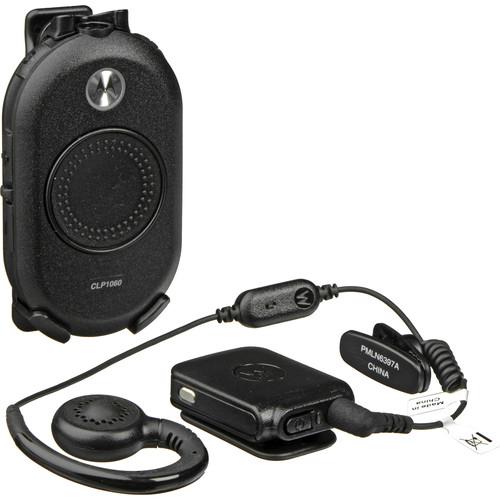

User Manual for Motorola CLP1060 6-Channel On-Site 2-Way Business Bluetooth Capable Radio Click to enlarge the picture
Contents of the user manual for the Motorola CLP1060 6-Channel On-Site 2-Way Business
- Product category: 2-Way Radios Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola 2-Way Radios
|
User manual for the Motorola CLP1060 6-Channel On-Site 2-Way Business contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|
Product description The CLP1060 6-Channel On-Site 2-Way Business Bluetooth Capable Radio from Motorola is a sleek and simple 2-way communications radio designed for retail and hospitality applications. The palm-sized design provides extreme user friendliness for seamless and natural communication. The unit has a large, central push-to-talk button that lets you communicate instantly. The radio operates on six channels and has an embedded antenna. It offers 99 selectable UHF frequencies for clear communication without interference and distortion.
The radio operates on a rechargeable lithium-ion battery, with a runtime of up to 18 hours. A smart status glow indicator uses different colors to indicate active channel, radio transmit and receive, scan, and battery status. Programming software makes it easy to customize the radio's settings from your PC. The radio comes complete with a 1130mAh Li-ion rechargeable battery, a charging tray and power adapter, a belt clip, and a swivel earpiece with an inline PTT button. - Sleek, palm-sized design provides extreme user friendliness for seamless and natural communication; ideal for retail and hospitality venues
- Voice-driven menu provides access to channel, monitor, scan, and call tone
- Earpiece can be used for discreet communications
- Antimicrobial protection helps prevent the growth of mold and germs on the surface of the radio
- Large, central push-to-talk button lets you communicate instantly
- Radio operates on six channels and has an embedded antenna
- 99 selectable UHF frequencies for clear communication without interference and distortion
- Smart status glow indicator uses different colors to indicate active channel, radio transmit/receive, scan, and battery status
- Programming software makes it easy to customize the radio's settings from your PC
- Includes a 1130mAh Li-ion rechargeable battery, a charging tray and power adapter, a belt clip, and a swivel earpiece with an inline PTT button
- Optional accessories such as a repeater, high-capacity batteries, and more are also available
UPC: 748091000072 In the Box Motorola CLP1060 6-Channel On-Site 2-Way Business Bluetooth Capable Radio Charging Tray and AC Adapter 1130mAh Li-Ion Battery HKLN4438 Swivel Belt Clip for CLP Bluetooth Transmitter Limited 2-Year Warranty User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola CLP1060 6-Channel On-Site 2-Way Business Bluetooth Capable Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola CLP1060 Specs | Type | UHF | | Frequency Range | 450 to 470 MHz | | Coverage Area | Up to 10 floors or 100,000 ft² (9290 m²)
With Repeater: Up to 20 floors or 250,000 ft² (23,226 m²) (available separately) | | Number of Channels | 6 | | Channel Bandwidth | 12.5 kHz / 25.0 kHz | | Codes | PL Codes: 39 std + 6 custom
DPL Codes: 84 std + 84 inverted + 6 custom | | Scanning | Yes | | Channel Spacing | 12.5, 25 | | Private Line | 39 + programmable | | Digital Private Line | 84 | | Cloning | Yes, with optional accessories | | Battery Type/Life | Average Battery Life @ 5/5/90:
With BT60 Li-Ion Battery 1130 mAh: 8 hours
With BT90 Li-Ion Battery 1800 mAh: 12 hours (available separately) | | | | RF Output | High: 1.0 W
Low: 0.5 W | | Frequency Stability | < 2.5 ppm | | Harmonic and Spurs | < -45 dBc | | Noise | @ 12.5 kHz without Companding: -40 dB
@ 25.0 kHz: -45 dB | | Modulation | @ 12.5 kHz: ± 2.5 kHz
@ 25.0 kHz: ± 5.0 kHz | | Adjacent Channel Isolation | Adjacent Channel Power: 60 dBc | | Spurious Emission | @ 12.5 kHz: < -20 dBm
@ 25.0 kHz: < -13 dBm | | Frequency Response | (0.3 to 3.0 kHz) +1 to -3 dB | | Distortion | < 2% | | | | Sensitivity | -122 dBm (0.18 uV) | | Adjacent Channel Crosstalk | Adjacent Channel Selectivity:
@ 12.5 kHz: 60 dB
@ 25.0 kHz: 65 dB | | Intermodulation Spacing | Rejection: 60 dB | | Spurious Output | 80 dB (blocking 1 MHz) | | Hum and Noise | CSQ Hum & Noise @ 12.5 kHz: -50 dB
PL Hum & Noise @ 12.5 kHz: -50 dB
DPL Hum & Noise @ 12.5 kHz: -45 dB | | Harmonic & Spurious Emissions | Radiated Spurious Emissions (< 1 GHz): < - 54 dBm
Radiated Spurious Emissions (> 1 GHz): < - 52 dBm | | Military Specification 810/IP54 | Meets or exceeds Mil-Std 810G; 500.5, 501.5, 502.5, 503.5, 505.5, 513.6, 514.6 | | Environmental | Operating Temperature: -22 to 140°F (-30 to +60°C) (Radio)
Shock & Vibration: Polycarbonate housing passes EIA 603
Dust & Humidity: Satisfied EIA 603 | | Dimensions (HxWxD) | 3.5 x 2 x 0.75" (89 x 51 x 19 mm) | | Weight | 2.38 oz (67.5 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.8 x 6.1 x 3.1" |
