User Manual for Motorola DLR1060 2-Way Digital Business Radio Click to enlarge the picture
Contents of the user manual for the Motorola DLR1060 2-Way Digital Business Radio
- Product category: 2-Way Radios Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola 2-Way Radios
 |
User manual for the Motorola DLR1060 2-Way Digital Business Radio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|

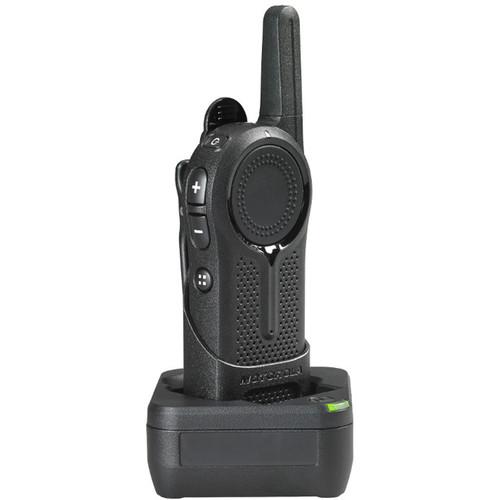

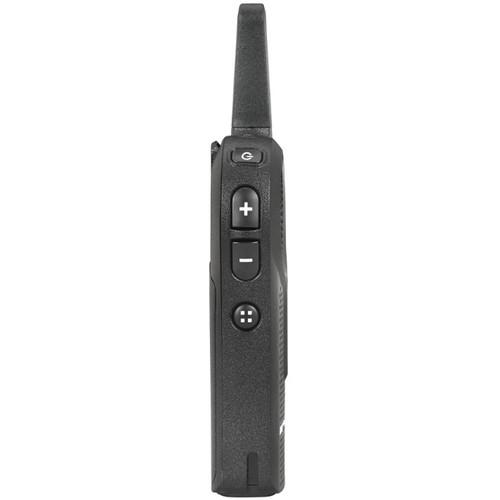

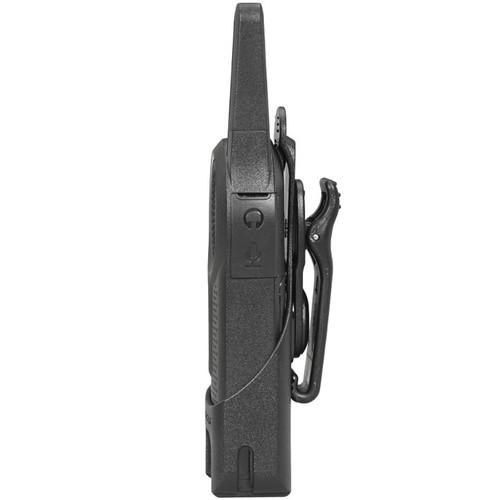

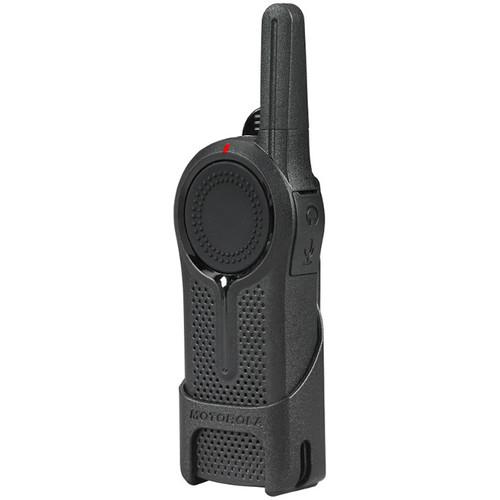

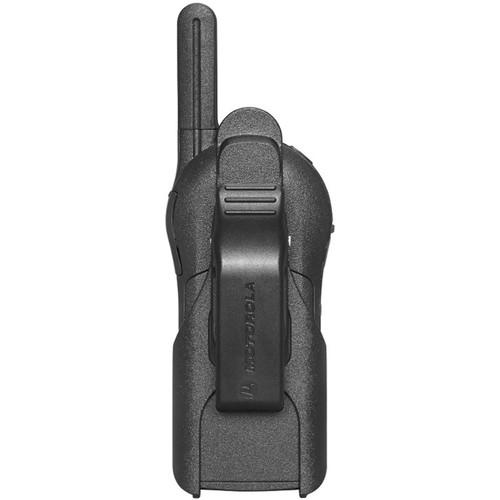

Product description Whether you are running a restaurant, maintenance department, or movie set, you can count on the DLR1060 2-Way Digital Business Radio from Motorola to handle your communication needs. You can communicate across an extended range of 300,000 square feet and up to 20 floors to control your business. This radio operates in the digital 900 MHz ISM license-free band, which makes communications more private and reliable when compared to analog radios. Navigate through channels, check battery status, and customize features with user-friendly voice prompts.
Set up your radio fleet with a unique 4-digit Radio Profile ID number so you can assure private communication without interference. Computer Programming Software (CPS) lets you configure a Private Group to achieve the highest level of privacy. It also lets you personalize your channel voice prompts, channel alias names, radio name, top button, and channel number. The CPS also configures special features such as a unique Radio Profile ID, Home Channel, Mic Gain, and maximum number of channels.
Call All Available or Page All Available are flexible group communications that can reach all users currently available. The Private Reply feature allows users to instantly communicate one-to-one privately after a group transmission. Direct Call lets you easily reach a specific individual, enabling instant communication, while Home Channel designates a specific channel so the radio automatically reverts back. A Talk Permit Tone uses a prompt tone to alert team members when a channel is available so people don't step over each other's transmissions. Instant Mute helps with customer service, immediately lowering the volume to the minimum level by pressing the radio's top button.
You can customize the top programmable button with different options, such as private reply and Call All Available, to make those functions easier to access. The internal rechargeable battery allows for continuous operation of up to 14 hours. A polycarbonate housing contains built-in antimicrobial properties that inhibit the growth of bacteria and mold on the radio's surfaces. This unit conforms to Military Standards 810 C, D, E, F, and G, including shock, vibration, extreme temperatures, and dust so it can handle the bumps and bruises of the job site. - Channels and Codes
-
- Operating in the digital 900 MHz ISM license-free band makes communication more private and reliable when compared to analog radios
- Setting up your radio fleet with a unique 4-digit Radio Profile ID number you can assure private communications without interference
- Computer Programming Software (CPS) lets you configure a Private Group to achieve the highest level of privacy
- Private Reply feature allows users to instantly communicate one-to-one privately
- Call All Available or Page All Available are flexible group communications that can reach all available users
- Direct Call lets you easily reach a specific individual, enabling instant communication
- Home Channel designates a specific channel so the radio automatically reverts back
- Performance
-
- Communicate across an extended range of 300,000 square feet and up to 20 floors
- Navigate through channels, check battery status, and customize features with user-friendly voice prompts
- Talk Permit Tone uses a prompt tone to alerts team members when a channel is available
- Instant Mute immediately lowers the volume to the minimum level by pressing the radio's top button
- Configure special features such as a unique Radio Profile ID, Home Channel, Mic Gain, and maximum number of channels
- Customize the top programmable button with different options, such as private reply and Call All Available
- CPS Programming Software lets you personalize your channel voice prompts, channel alias names, radio name, top button, and channel number
- Battery life allows for continuous operation of up to 14 hours
- Polycarbonate housing contains built-in antimicrobial properties that inhibit the growth of bacteria and mold on the radio surfaces
- Meets Military Standards 810 C, D, E, F, and G, including shock, vibration, extreme temperatures, and dust
UPC: 748091000515 In the Box Motorola DLR1060 2-Way Digital Business Radio Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola DLR1060 2-Way Digital Business Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola DLR1060 Specs | Channels | 6 x Channels | | Frequency Band | 900 MHz ISM FHSS | | Frequency Synthesizer | PLL (Phase-Locked Loop) | | Circuit Type | FM | | Privacy Codes | 4-digit Radio Profile ID | | Antenna Type | Rigid | | Receiver Sensitivity | -125 dBm | | Connectivity | 2.5 mm stereo jack, external microphone
3.5 mm mono jack, external speaker | | Power Source | 3.7 V ± 0.5 V, internal rechargeable battery | | Output Power | Transmitter: 1 W
Receiver Audio: 0.75 W | | Operating Temperature | -22 to 140° F / -30 to 60° C | | Durability | MIL-STD-810 | | Certifications | FCC Certification, Part 95 | | Compliance | Certified by the FCC and Industry Canada to operate in the license-free 900 MHz ISM band | | Dimensions | 4.2 x 1.7 x 0.9" / 10.7 x 4.3 x 2.3 cm | | Weight | 4.2 oz / 119.1 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.45 x 5.85 x 2.1" |
