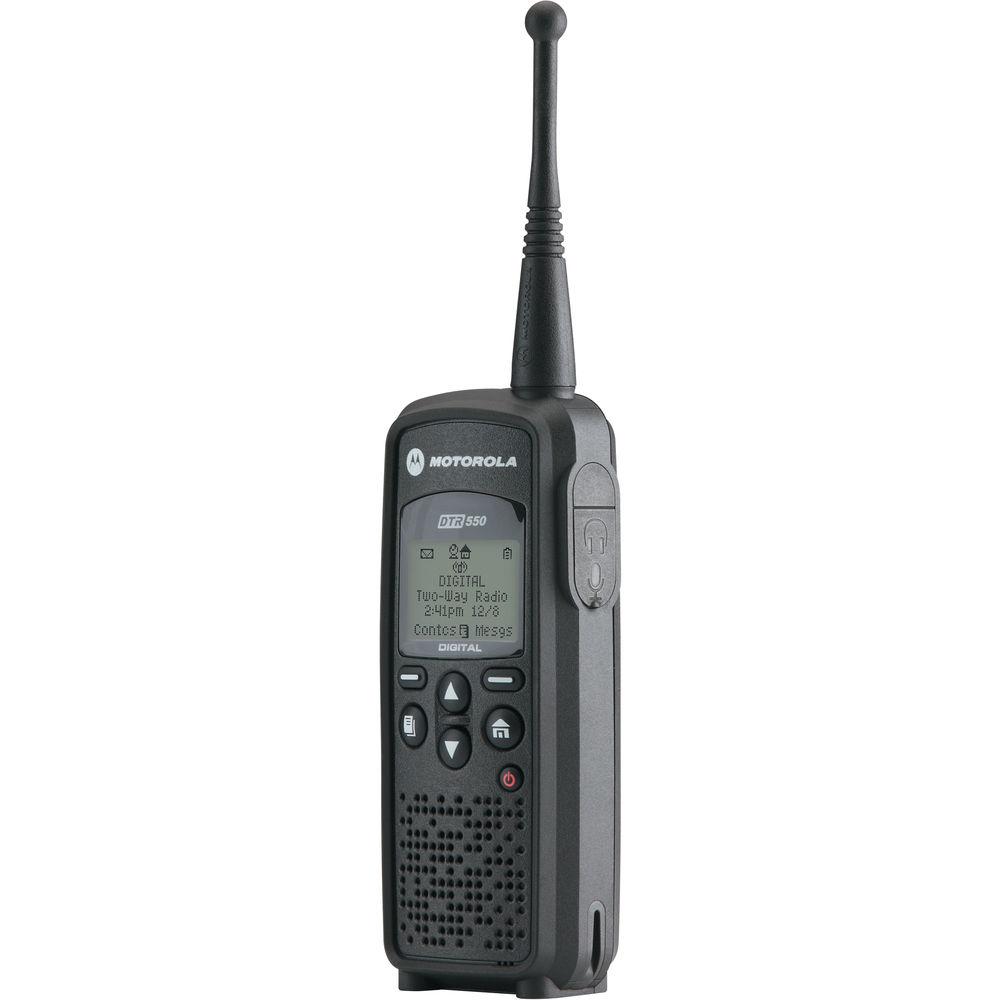

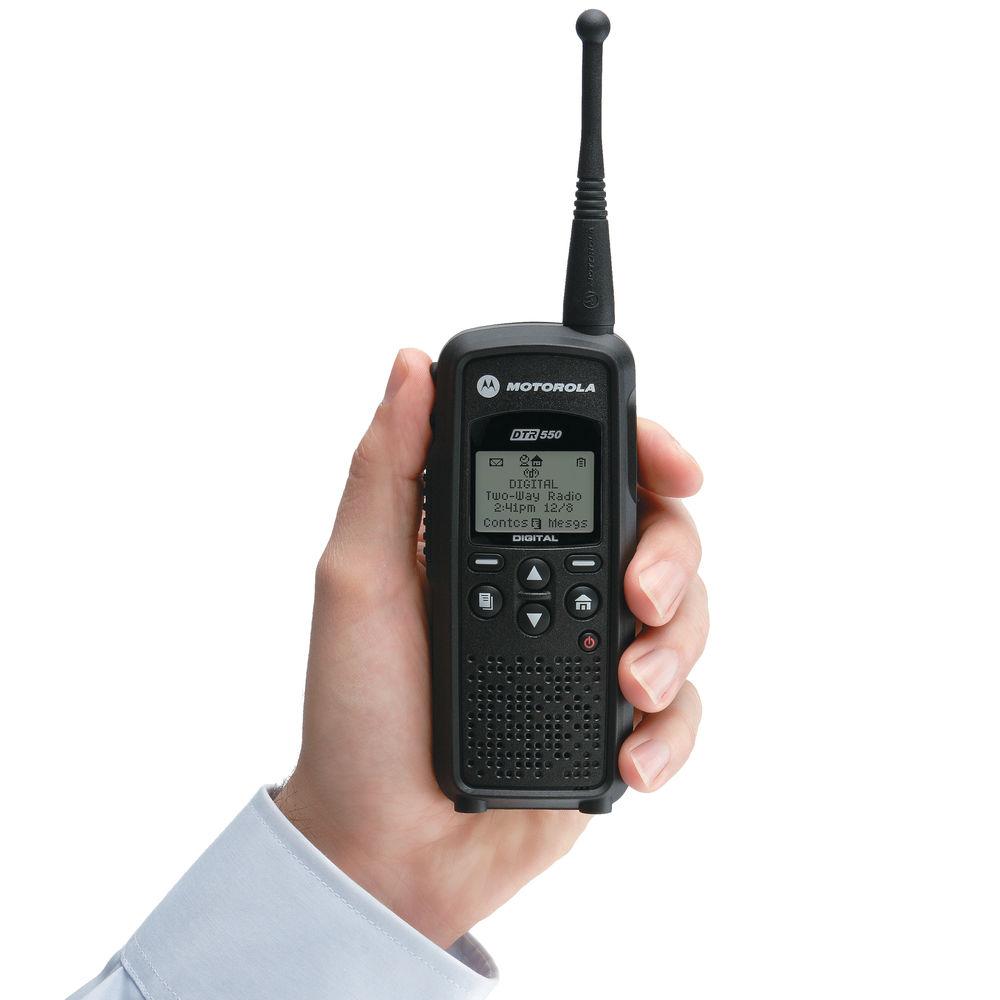

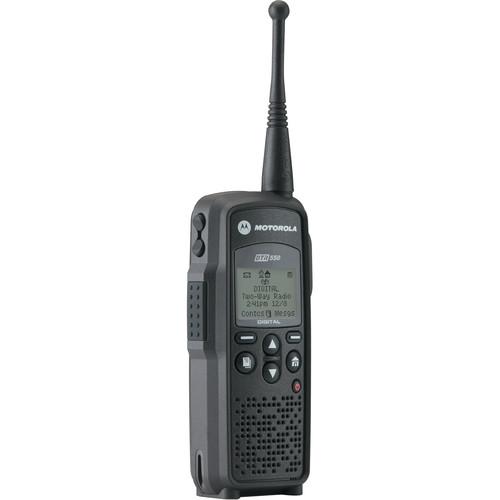

User Manual for Motorola DTR550 Digital On-Site Portable 2-Way Radio Click to enlarge the picture
Contents of the user manual for the Motorola DTR550 Digital On-Site Portable 2-Way
- Product category: 2-Way Radios Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola 2-Way Radios
 |
User manual for the Motorola DTR550 Digital On-Site Portable 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|
Product description The DTR550 Digital On-Site Portable 2-Way Radio from Motorola is a digital on-site portable 2-way radio that offers high-quality communication and versatile features in a compact and rugged design. The radio operates on the 900 MHz license-free band and offers group calling with access to up to 20 public groups and 150 private contacts. It also provides digital 1-to-1 and 1-to-many calling, so that other DTR radios on the same group ID and channel can communicate.
The radio has a full graphic backlit display with contrast adjustment and a backlight timer. The screen will display SMS text message information, including reception and origination info, plus a time/date stamp. A caller ID function stores information about your last 20 transmissions. The radio also supports unit-to-unit configuration for simplified cloning operation with an optional cable.
The DTR550 operates for up to 14.5 hours via the included rechargeable Li-ion battery. This allows you to communicate without worry, even on extra-long work days. The radio has a rugged polycarbonate housing with a comfortable and durable rubber overmold. It meets MIL-STD 810C, 810D, 810E, and 810F specifications for shock, vibration, water, dust, and temperature extremes. - Operates on the 900 MHz frequency band
- Group calling feature with access to up to 20 public and 150 private contacts
- Digital 1-to-1 calling and 1-to-many calling, allowing other DTR radios on the same group ID and channel to communicate
- Full graphic backlit display with contrast adjustment and a backlight timer
- SMS text message support, including reception and origination info, plus a time/date stamp
- A caller ID function stores information about your last 20 transmissions
- The radio supports unit-to-unit configuration for simplified cloning operation via computer
- Operates for up to 14.5 hours via the included rechargeable Li-ion battery. This allows you to communicate without worry, even on extra-long work days
- Rugged polycarbonate housing with a comfortable and durable rubber overmold. It meets MIL-STD 810C, 810D, 810E, and 810F specifications for shock, vibration, water, dust, and temperature extremes

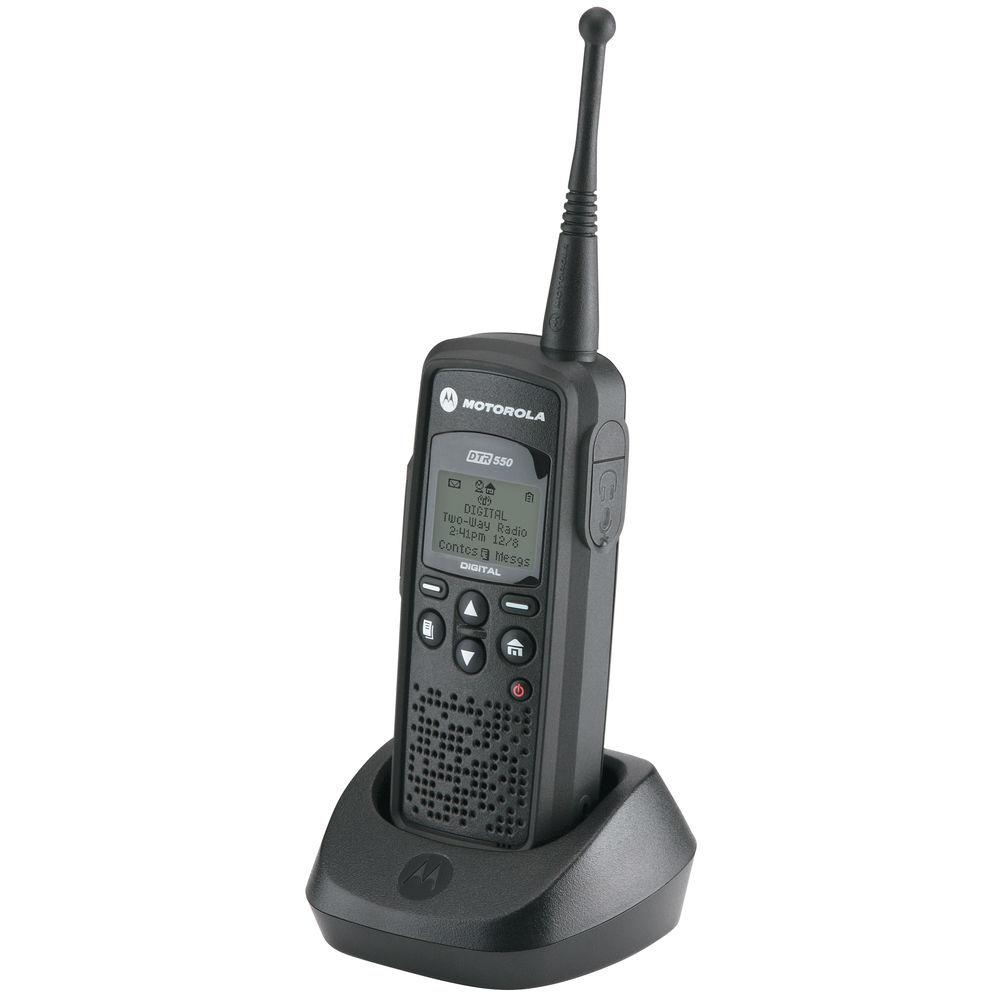

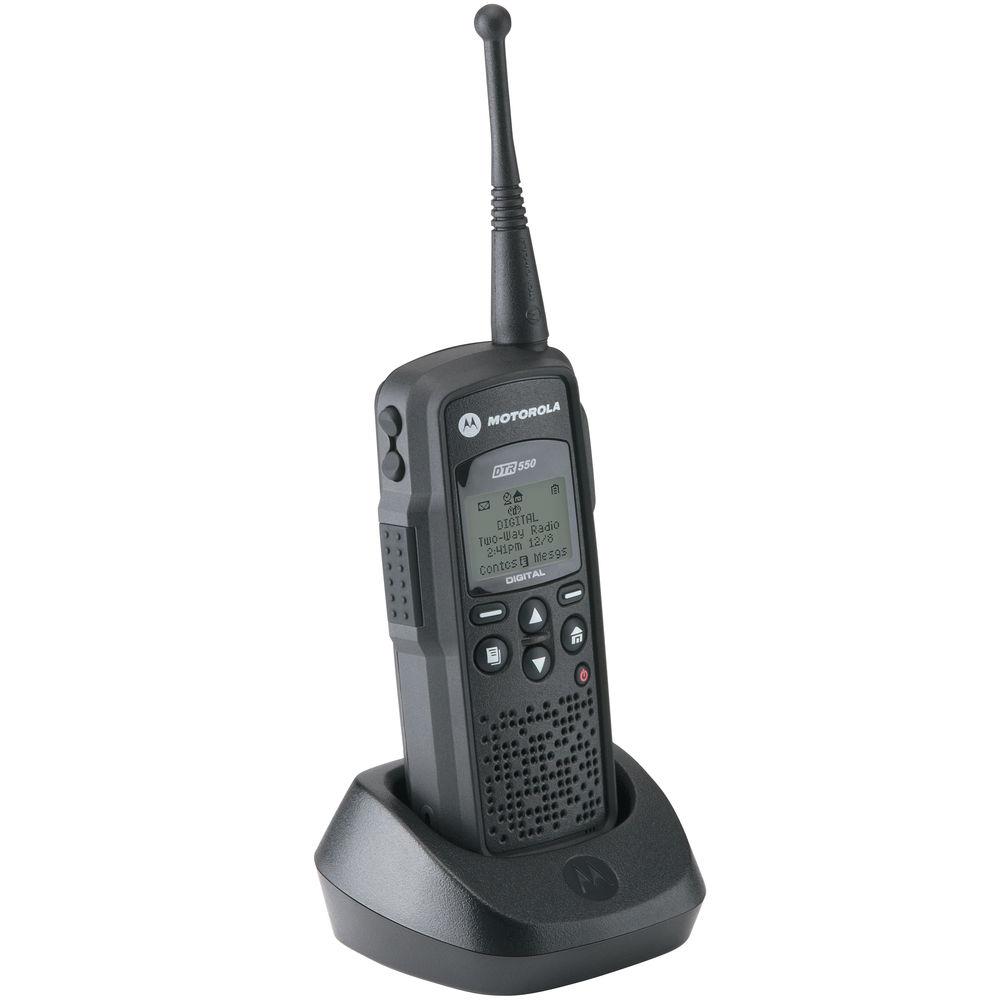

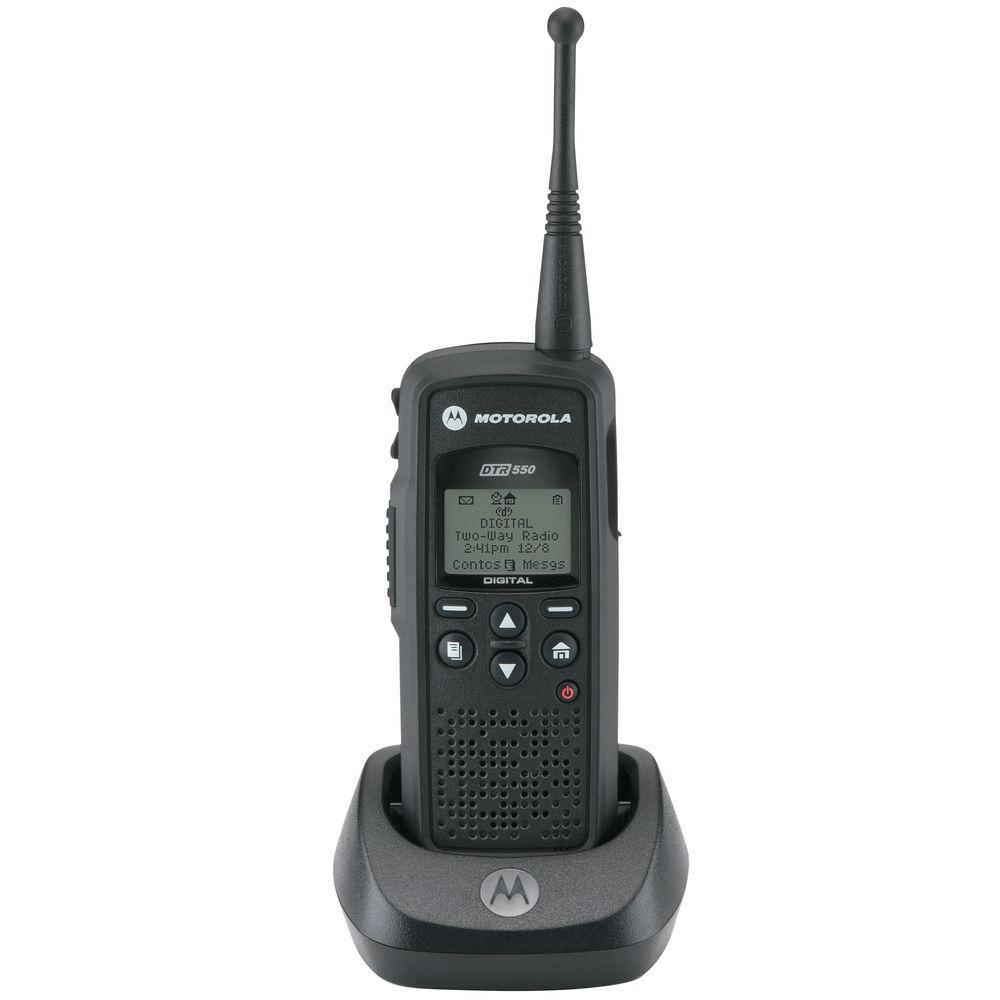

UPC: 748091000089 In the Box Motorola DTR550 Digital On-Site Portable 2-Way Radio Belt Holster 3-Hour Charger Charging Tray Li-Ion Battery (Standard Capacity) Antenna Documentation CD Limited 2-Year Warranty User Manual PDF 876.9kbexwwtryxcxebruyurdzuduzwuyr Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola DTR550 Digital On-Site Portable 2-Way Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola DTR-550 Specs | | | Frequency | 900 MHz ISM FHSS | | Contacts | List Capacity: 170 (shared group/private) | | Programming | 20 Public groups | | Power Supply | 3.8 V ±0.4 V | | Battery Life | 14.5 hours, 1200 mAh battery
19 hours, 1500 mAh battery | | Specifications | FCC Designation: AZ489FT5842
IC Designation: 109U-89FT584
Military: Meets MIL-STD 810C, 810D, 810E, and 810F specifications for shock, vibration, water, dust, and temperature extremes | | Dimensions (HxWxD) | 5.2 x 2.3 x 1.4" (132 x 57 x 35 mm) | | Weight | 7.1 oz (200 g), 1200 mAh battery
7.3 oz (206 g), 1500 mAh battery | | | | Sensitivity | -125 dBm | | Frequency Stability | ±0.0005% (±5 PPM) | | Spurious Rejection | 55 dB | | Blocking Immunity | 75 dB (±500 kHz to 1 MHz)
80 dB (±1 MHz to 15 MHz) | | Audio Output | 1 W | | | | RF Output | 1 W | | Channel Spacing | 50 kHz | | Frequency Stability | ±0.0005% (±5 PPM) | | Harmonic and Spurs | 500 uV/m (3 m) | | Audio Frequency Response | 300 Hz - 3 kHz +1/-3 dB | | Distortion | < 3% | | Ratio | -50 dBc TX ACCPR | | Modulation | 8-Level FSK 900 MHz ISM FHSS | | | | Package Weight | 1.54 lb | | Box Dimensions (LxWxH) | 13.25 x 6.9 x 2.45" |
