User Manual for Motorola MB7220-10 8x4 343 Mbps DOCSIS 3.0 Cable Modem Click to enlarge the picture
Contents of the user manual for the Motorola MB7220-10 8x4 343 Mbps DOCSIS
- Product category: Modems Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola Modems
 |
User manual for the Motorola MB7220-10 8x4 343 Mbps DOCSIS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|
Product description Fast Motorola Cable Modems Help Eliminate Rental Fees Read More Eliminate added monthly expenses incurred by renting a cable modem from your service provider with the MB7220-10 8x4 343 Mbps DOCSIS 3.0 Cable Modem from Motorola. This cable modem comes compatible with a wide variety of cable Internet service providers including Comcast XFINITY, Time Warner Cable, and other providers. The modem features a single coax connector to receive the incoming cable Internet signal and a single Gigabit Ethernet port to connect to your computer or router. Once connected, you benefit from 8 downstream channels offering a maximum download speed of 343 Mbps and 4 upstream channels supporting a maximum upload speed of 123 Mbps. Users can also monitor the status of the connection and power thanks to dedicated LED indicators for Ethernet link, connection status, upstream link, downstream link, and power. Should any modifications be needed to the connection settings a web-based utility simplifies the process of managing various aspects of the network. - Fast Data Speeds
- Up to 343 Mbps downstream and 123 Mbps upstream with bonding of up to eight channels downstream and four channels upstream. Full-Band Capture Digital Tuning lets service providers deliver faster, more reliable Internet.
- Fast 10/100/1000 Base-T Ethernet Connectivity
- Supports fast DOCSIS 3.0 data transfers and provides compatibility and easy installation with almost any computer, wired and wireless routers, HDTVs, game stations, and other Ethernet-capable devices.
- Supports IPv4 and IPv6
- Support for a variety of Internet addressing to keep your equipment current.
- Five Status-Reporting LEDs
- LAN, Online, Upstream, Downstream, and Power lights allow easy status monitoring.
- DOCSIS 3.0 Compatible
- Provides support for the data-over-cable standard DOCSIS 3.0, as well as DOCSIS 1.1 and 2.0, to ensure operation and compatibility with all U.S. operators. DOCSIS (Data Over Cable Service Interface Specification) is the industry standard for transmission of Internet data over cable-based systems in the U.S. and many other countries.
- Cable Company Certifications
- Certified by CableLabs
Comcast XFINITY
Time Warner Cable
And other service providers UPC: 855631006002 In the Box Motorola MB7220-10 8x4 343 Mbps DOCSIS 3.0 Cable Modem Power Cube Ethernet Cable Hook and Loop Cable Organizer Coax Connection Tool Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola MB7220-10 8x4 343 Mbps DOCSIS 3.0 Cable Modem in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola MB7220-10 Specs | | | Interfaces Supported | Cable Modem Service Interface

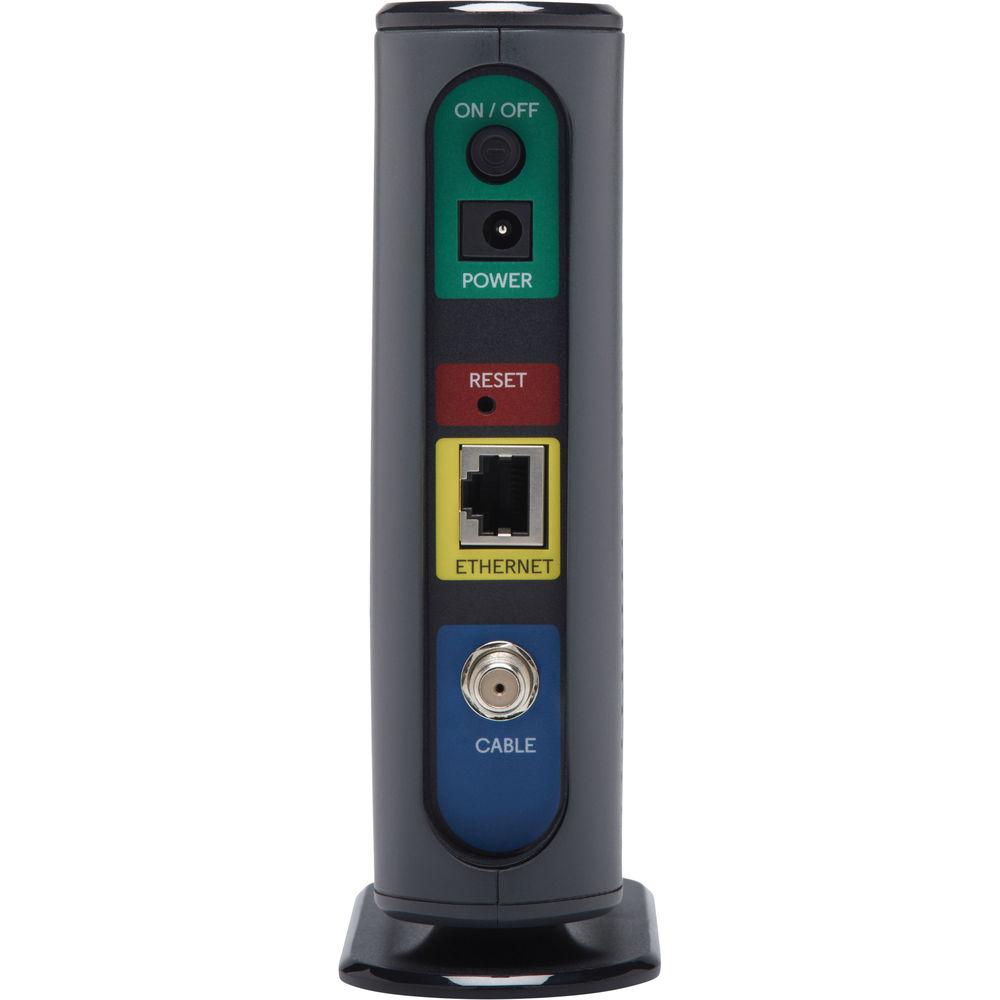

F-type female 75 (standard coaxial connector)
Ethernet LAN Interface
RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX | | Status Indicators | Ethernet link, Connection status, Upstream link, Downstream link, Power | | Power Adapter | DoE-compliant Level VI energy-saving, UL-listed power adapter with 12 Volt DC, 1 Amp output and 110 VAC nominal input
NEMA 5-15 (North American style) plug | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Certifications | FCC part 15B, Bureau Veritas 60950-1 ITE safety, CableLabs, cable service providers | | Surge Protection | Ruggedized cable and power lightning protection | | | | Downstream | Data Rate: Up to 343 Mbps (8 channels), Up to 43 Mbps (single channel)
Frequency: 88 to 1002 MHz (edge to edge)
Modulation: 64 or 256 QAM
Operating Level Range: -15 to +15 dBmV | | Upstream | Data Rate: Up to 123 Mbps (4 channels), Up to 31 Mbps (single channel)
Frequency: 5 to 42 MHz (edge to edge)
Modulation: QPSK, 8QAM, 16QAM, 32QAM, 64QAM,128QAM, 256QAM
Operating Level Range: A-TDMA: +8 to +54 dBmV (32QAM, 64QAM)
+8 to +58 dBmV (QPSK)
S-CDMA: +8 to +53 dBmV (all modulations) | | Security | DOCSIS 3.0 Security (BPI+, EAE, SSD) | | Protocols | Network Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, DHCP, FTP, TFTP, SNMP, HTTP
Application Protocols
SNMP v1/v2/v3 | | DHCP Client | Automatically retrieves IP and DNS server address from DHCP server at ISP | | ToD (RF868) | ToD support for local and MSO time synchronization | | TFTP | TFTP support for cable modem configuration file download | | Management | Web-based management interface utility | | Chipset | Broadcom BCM3383D | | | | System Requirements | • The cable modem must be connected to a cable modem service that uses any of the DOCSIS standards - 3.0, 2.0, 1.1
• The supplied power cube plugs into the most common USA power outlet | | Dimensions | 6.1 x 4.9 x 2.0" / 155 x 124 x 51 mm | | Weight | 9.3 oz / 264 g | | | | Package Weight | 1.34 lb | | Box Dimensions (LxWxH) | 8.4 x 7.6 x 2.4" |
