User Manual for Motorola MD1600 AC1600 VDSL2 ADSL Modem Router Click to enlarge the picture
Contents of the user manual for the Motorola MD1600 AC1600 VDSL2 ADSL Modem
- Product category: Modems Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola Modems
 |
User manual for the Motorola MD1600 AC1600 VDSL2 ADSL Modem contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|

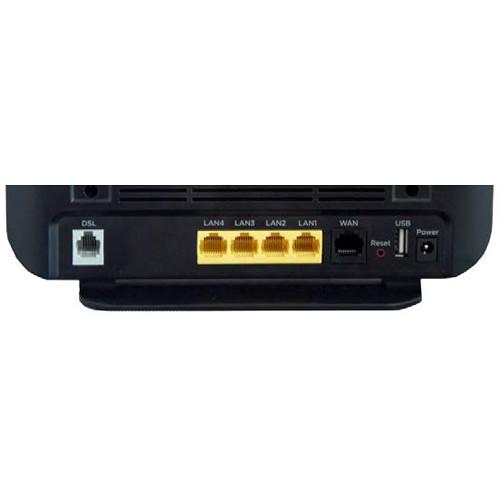

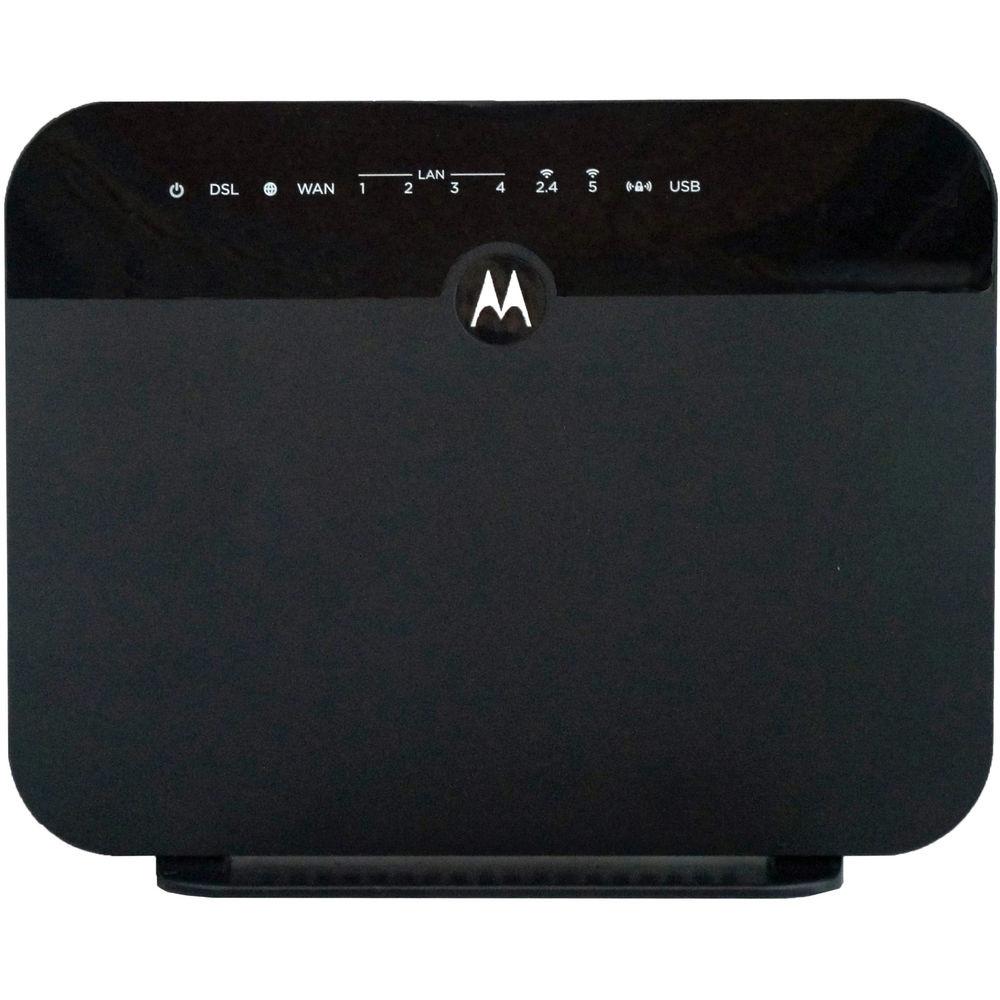

Product description Connect to DSL internet and create a wireless network at the same time with the MD1600 AC1600 VDSL2/ADSL+ Modem Router from Motorola. Capable of up to 1,600 Mb/s Wi-Fi data throughput and DSL data speeds up to 100 Mb/s, the MD1600 AC1600 VDSL2/ADSL+ Modem Router works with DSL service providers such as CenturyLink and Frontier. The router does not support AT&T Internet and U-Verse, and Verizon DSL service is not recommended. The MD1600 supports the Wi-Fi 5 (802.11ac) standard and comes equipped with four Gigabit Ethernet LAN ports, a Gigabit Ethernet WAN port, and a USB 2.0 Type-A port that supports network-attached storage and DLNA media sharing. The router also boasts VPN support, a firewall, and WPA/WPA2 encryption. - Saves Money
- Typically eliminates $100 per year in equipment rental cost for CenturyLink and other DSL providers.
- Easy Setup
- Setup wizard automatically detects your DSL connection type for fast, easy setup.
- Device and Media Sharing
- USB 2.0 host port allows for plugging in optional USB storage devices for network-attached storage (NAS). Supports DLNA media sharing for easy sharing of video and audio files by other devices on your network.
- Networking and Security Features
- Includes firewall, WPA/WPA2 wireless security, IPv4 and IPv6 support, and built-in virtual private network (VPN) capability.
- Surge Protection
- Includes ruggedized lightning and power surge circuits.
- System Requirements

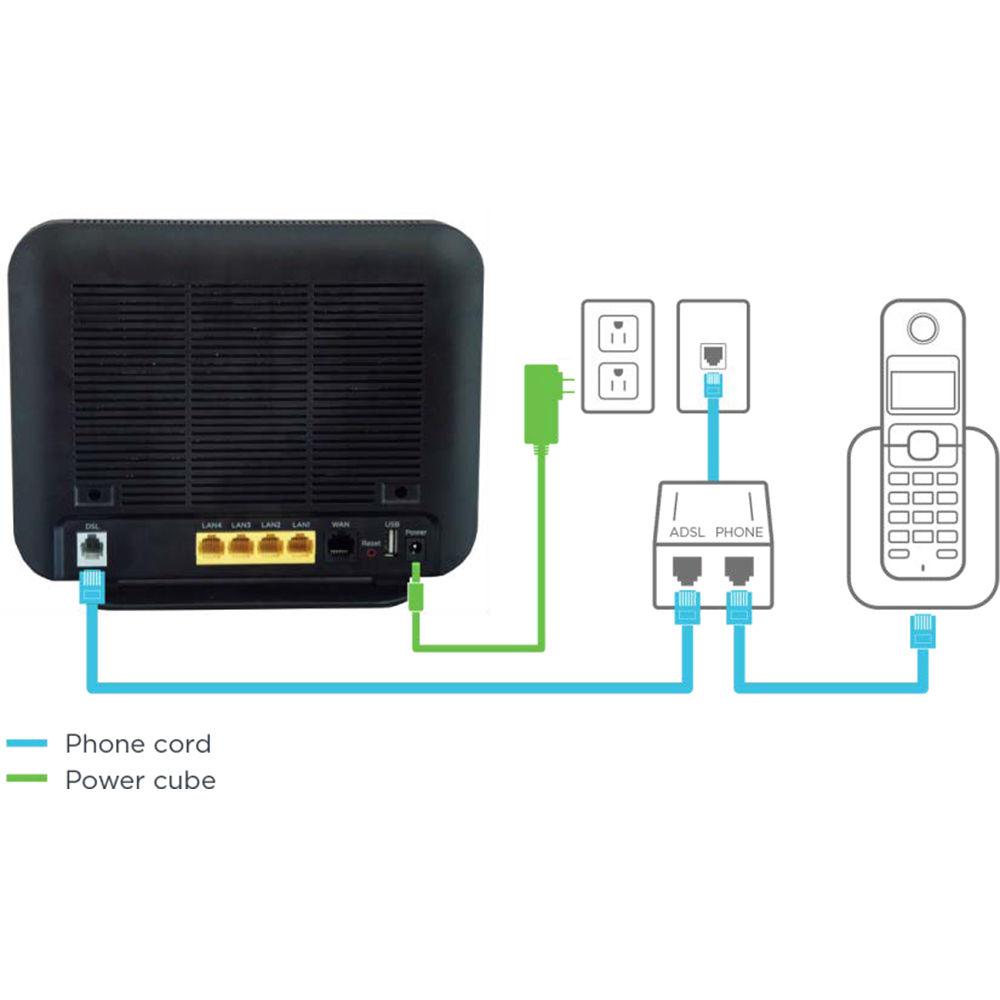

- This modem connects to your existing telephone line, which must be enabled for ADSL or VDSL Internet service from CenturyLink, Frontier, or another compatible ADSL or VDSL service provider. AT&T Internet and U-Verse are not supported. Not recommended for Verizon DSL service, or if you have bonded DSL service. Directly connected devices, such as computers, HDTVs, and game stations, must have an Ethernet port. Devices connected wirelessly must have wireless 802.11ac/n/g/b capability.

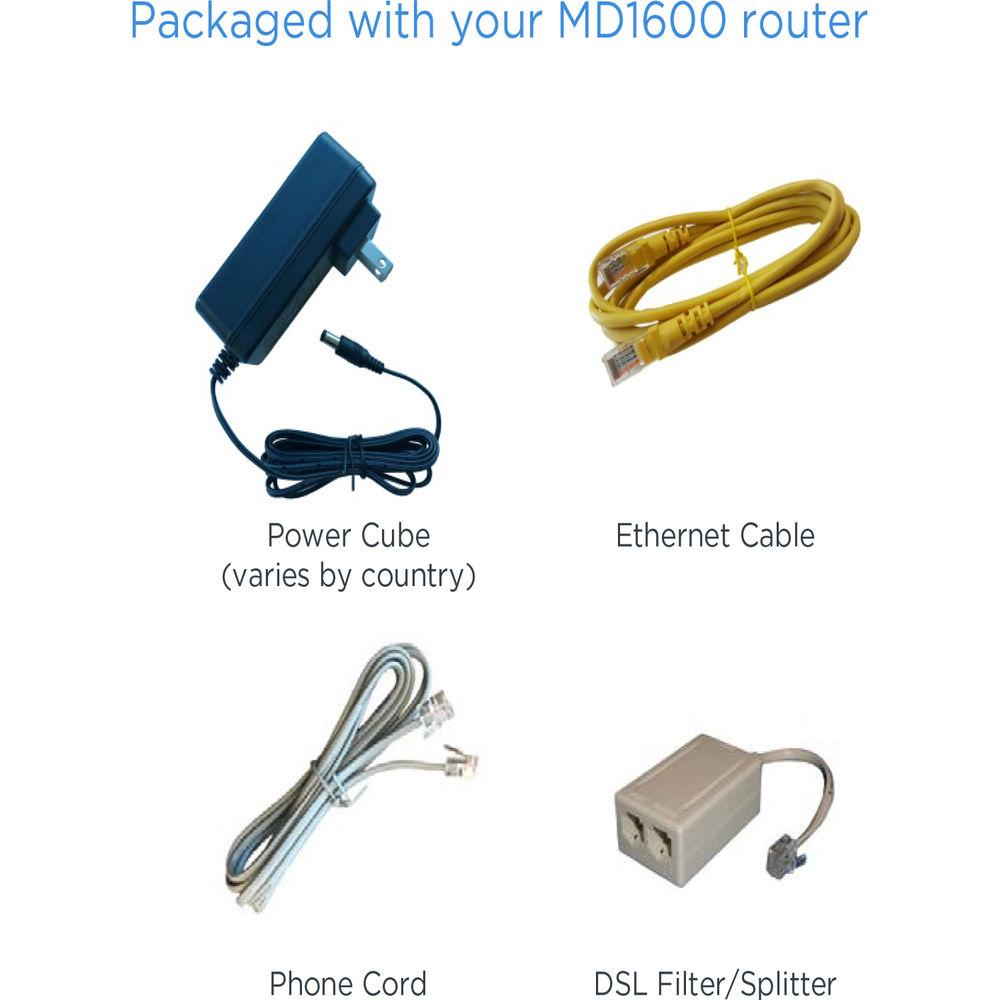

UPC: 855631006361 In the Box Motorola MD1600 AC1600 VDSL2/ADSL+ Modem Router Power Cube Phone Cord Ethernet Cable DSL Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola MD1600 AC1600 VDSL2 ADSL Modem Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola MD1600 Specs | Ethernet Ports | 4 x 10/100/1000 Ethernet LAN Ports
1 x 10/100/1000 Ethernet WAN Ports
Auto-MDI/MDIX Support | | USB Ports | 1 x USB 2.0 Type-A
NAS Support
DLNA Media Sharing Support | | Standards and Protocols | VDSL:
ITU-T G.993.2 (VDSL2)
Supports 8a, 8b, 12a, 12b, 17a Profiles
Supports G.Vector
Supports G.INP
Supports PTM
ADSL:
ANSI T1.413 Issue 2
G.992.1 (G.dmt)
G.992.2 (G.lite)
G.992.3 (G.bis/ADSL2)
G.992.5 (ADSL2+)
G.994.1 (G.hs)
ITU-T G.993.5
Annex A
Annex L (Reach Extended ADSL2)
Annex M
ATM Forum UNI 3.0/3.1/4.0 PVCs
CBR, UBR, VBR-rt, VBR-nrt
Multiple PVCs
F4/F5 OAM | | Features & Functions | RFC2516 PPP over Ethernet (PPPoE)
RFC2364 PPP over ATM AAL5 (PPPoA)
RFC2684 Multiprotocol Encapsulation over ATM Adapter Layer 5
RFC1483 Multiprotocol Encapsulation over ATM Adapter Layer 5
RFC1483 Bridging
RFC1483 Routed (IPoA) | | Bridge Features | Self-Learning Bridge (IEEE 802.1d Transparent Bridging)
>64 Learning MAC Addresses | | Wi-Fi Technology | 802.11ac/n/g/b
3 x 3 (802.11ac)
2 x 2 (802.11n) | | Wi-Fi Performance | 5 GHz: Up to 1300 Mb/s
2.4 GHz: Up to 300 Mb/s
8 x SSIDs | | Antennas | 5 x Internal | | Transmit Power | Up to 24dBm | | LEDs | Power, DSL, Internet, WAN, LAN 1-4, 2.4 GHz, 5 GHz, WPS, USB | | Networking Features | IP Routing
Transparent Bridging
Source and Destination Routing
DHCP Server/Client
Virtual Server
Port Triggering
UPnP
NAT
NAPT
DMZ
ALG
IP QoS | | Security | IPSec VPN
VPN Passthrough: PPTP, L2TP, and IPsec Tunnel
Service Access Control Based on Incoming Interface (WAN or LAN)
Denial of Service (DoS) Protection: SYN Flooding, IP Surfing, Ping of Death, Fragile, UDP ECHO (Port 7), Teardrop, Land
PAP (RFC1334), CHAP (RFC1994), MSCHAP for PPP Session
WPA-PSK/WPA2-PSK, WPA/WPA2, WEP-64/128, 802.1x Authentication, Wireless MAC Address Filtering
IP Filtering, MAC Filtering, Parental Control | | Management Features | Auto-Detection of ADSL and VDSL Services Setup
Web-Based Graphical User Interface (GUI)
Embedded Web Server
Download Image via HTTP
Universal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0)
WAN Management Protocol (TR-069) | | Power Adapter | 12 V, 2 A
100-240 VAC
Surge Protection | | Operating Temperature | 32°-104°F / 0°-40°C | | Operating Humidity (Relative) | 10-95% | | Certifications | FCC Parts 15B/C/E
FCC MPE
FCC Part 68
CE
Bureau Veritas 60950-1 ITE Safety | | | | Package Weight | 2.015 lb | | Box Dimensions (LxWxH) | 13.1 x 8.8 x 3.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
